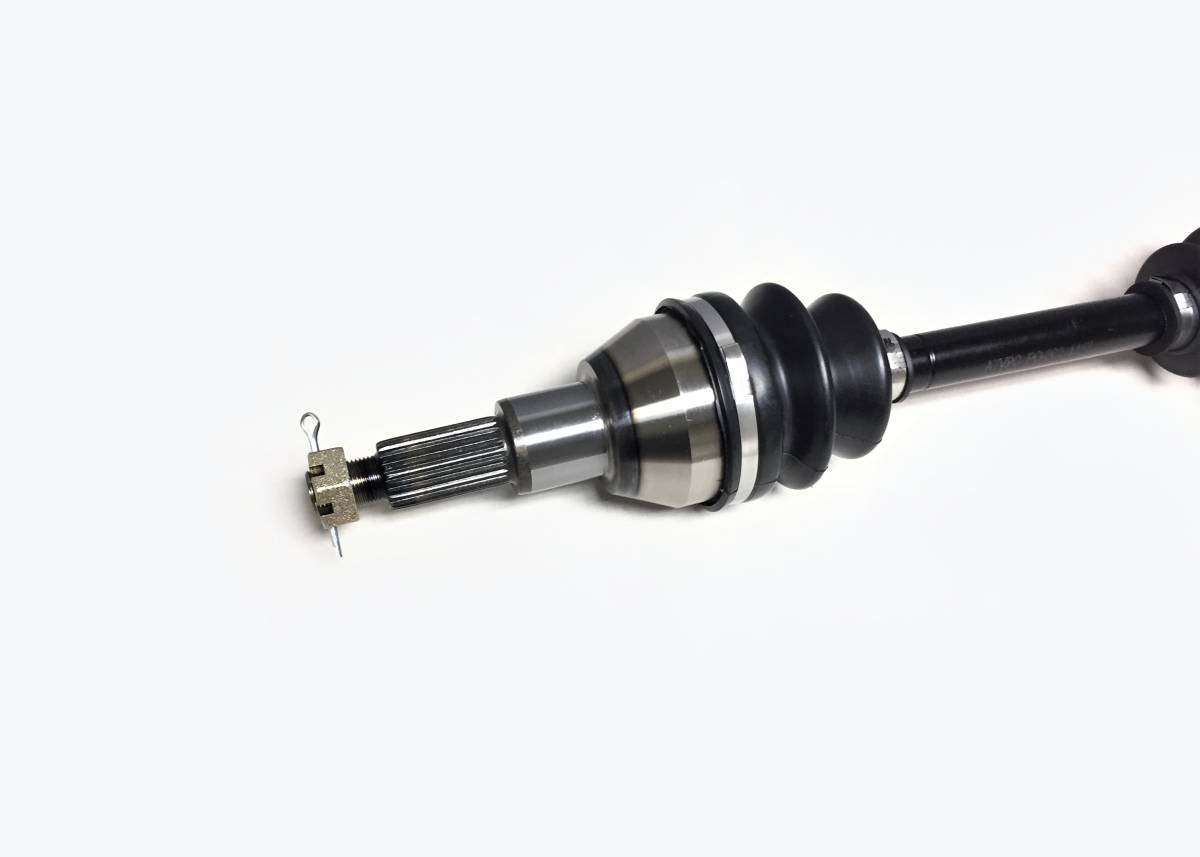

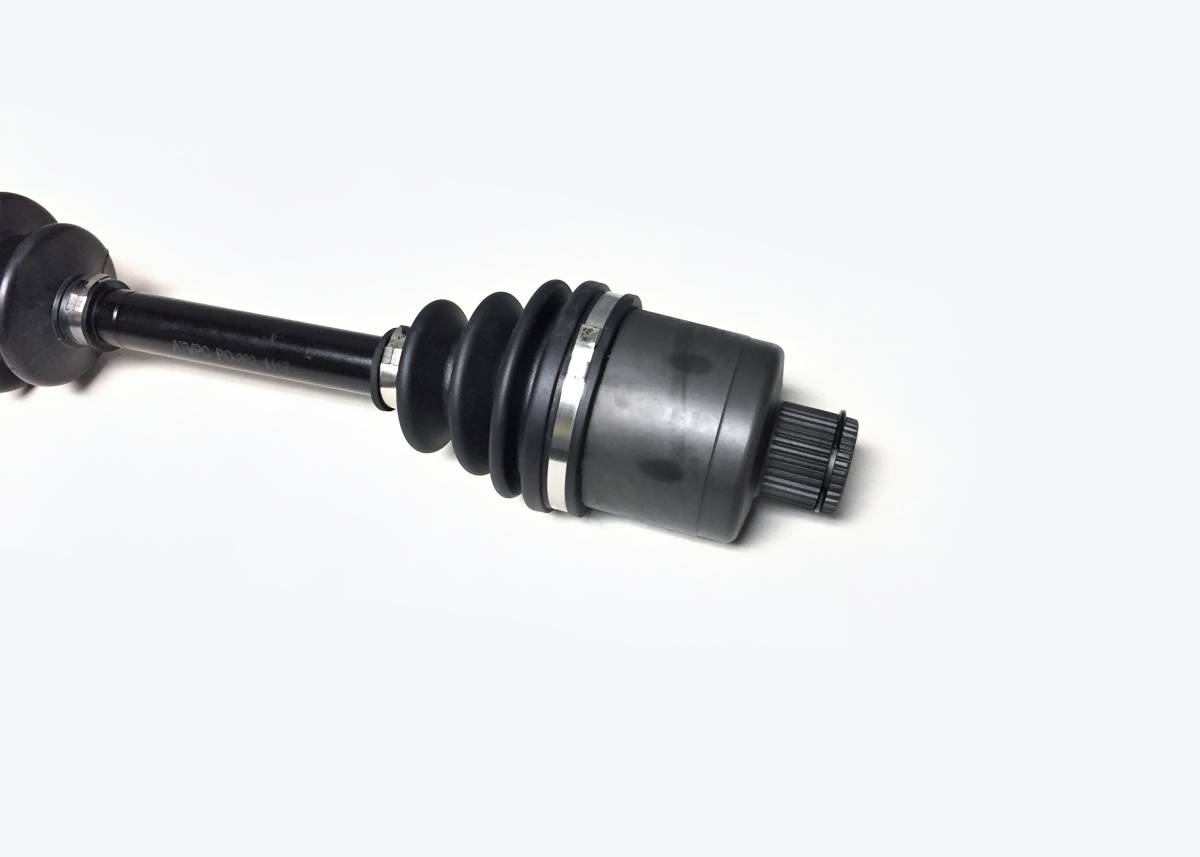

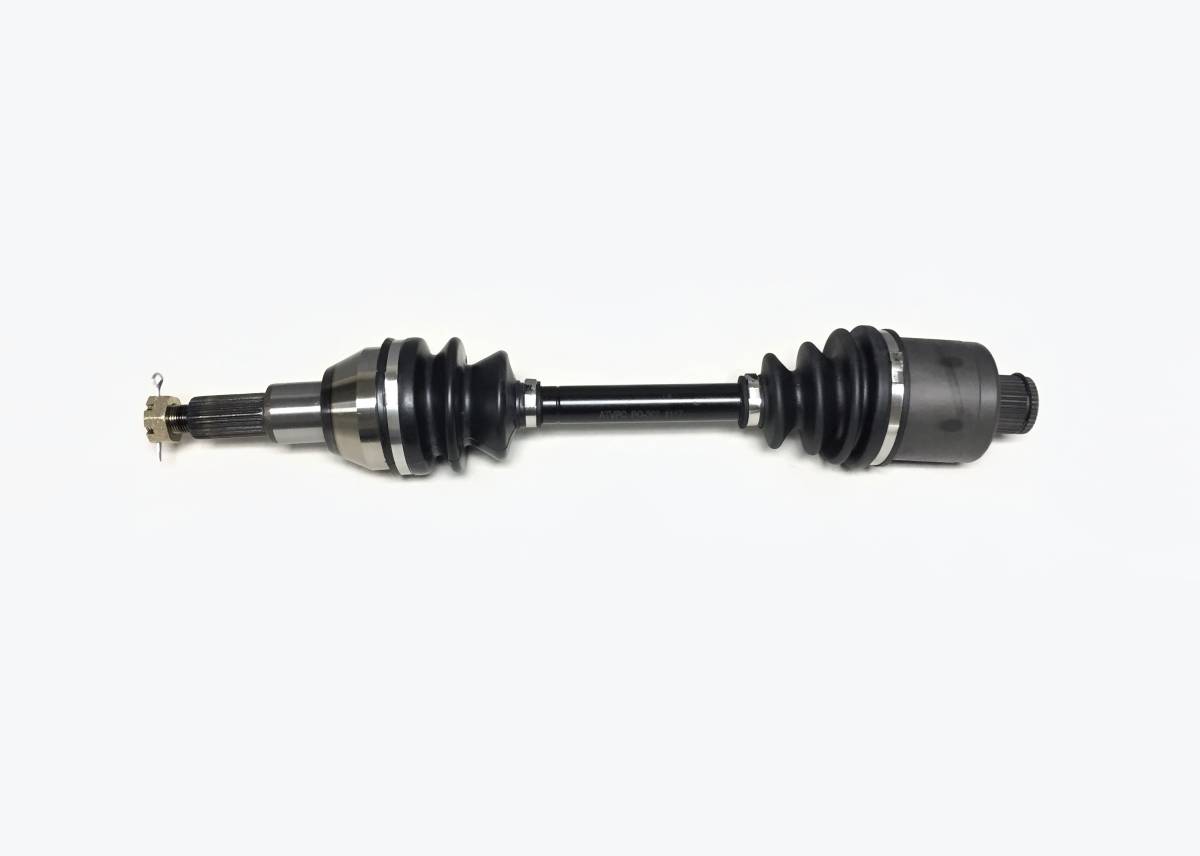

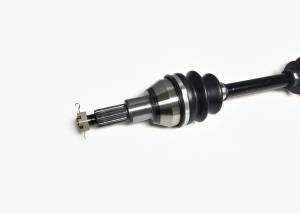

Rear CV Axle for Polaris Sportsman 400/500, Worker 500, Diesel 455 ATV, 1380142

Location on vehicle: Rear,Left,Right

PO-302
This is a new Rear CV axle for a Polaris ATV.

It will fit the following 4x4 models:

1999 ... Sportsman 335

(models that require an inboard CV joint)

2001-2002 ... Sportsman 400

2000-2002 ... Diesel 455

1999-2002 ... Sportsman 500

1999 ... Worker 500

Rear, Left or Right

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly hardened steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear and puncture resistance
  • Inboard CV joint spline count: 36
  • Outboard CV joint spline count: 26
  • Compressed overall axle length: 545.5 mm
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $92.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2002PolarisDiesel 4554X4
2001PolarisDiesel 4554X4
2000PolarisDiesel 4554X4
2000PolarisSportsman 3354X4Only vehicles w/ inboard CV joint
2002PolarisSportsman 4004X4
2001PolarisSportsman 4004X4
2002PolarisSportsman 5004X4
2002PolarisSportsman 5004x4 DUSE
2002PolarisSportsman 5004x4 HO
2002PolarisSportsman 5004x4 RSE
2002PolarisSportsman 5004x4 Richard Petty Edition
2001PolarisSportsman 5004x4 DUSE
2001PolarisSportsman 5004x4 HO
2001PolarisSportsman 5004x4 RSE HO
2000PolarisSportsman 5004X4
2000PolarisSportsman 5004x4 RSE
1999PolarisSportsman 5004X4
1999PolarisSportsman 5004x4 Remington Special Edition
1999PolarisWorker 500--

Product Notes

  • Fits: 2000 Sportsman 335 (models the use an inboard CV joint), 2000-2001 Sportsman 400, 2000-2002 Diesel 455, 1999-2002 Sportsman 500 4x4, 1999 Worker 500.
  • Features a stronger than OEM chromoly hardened steel axle bar. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.
  • Compressed Length- 545.5 mm, Inboard Spline Count- 36, Outboard Spline Count- 26.
  • Replaces OE # 1380142.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

  • What's In The Box

  • 1 axle
  • Warranty

    1 year factory defect limited warranty

    Details

    Shipping Information

    • Item Requires Shipping
    • 14.3 lbs.
    • W5.0000” x H5.0000” x L25.0000”
