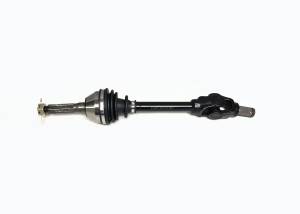

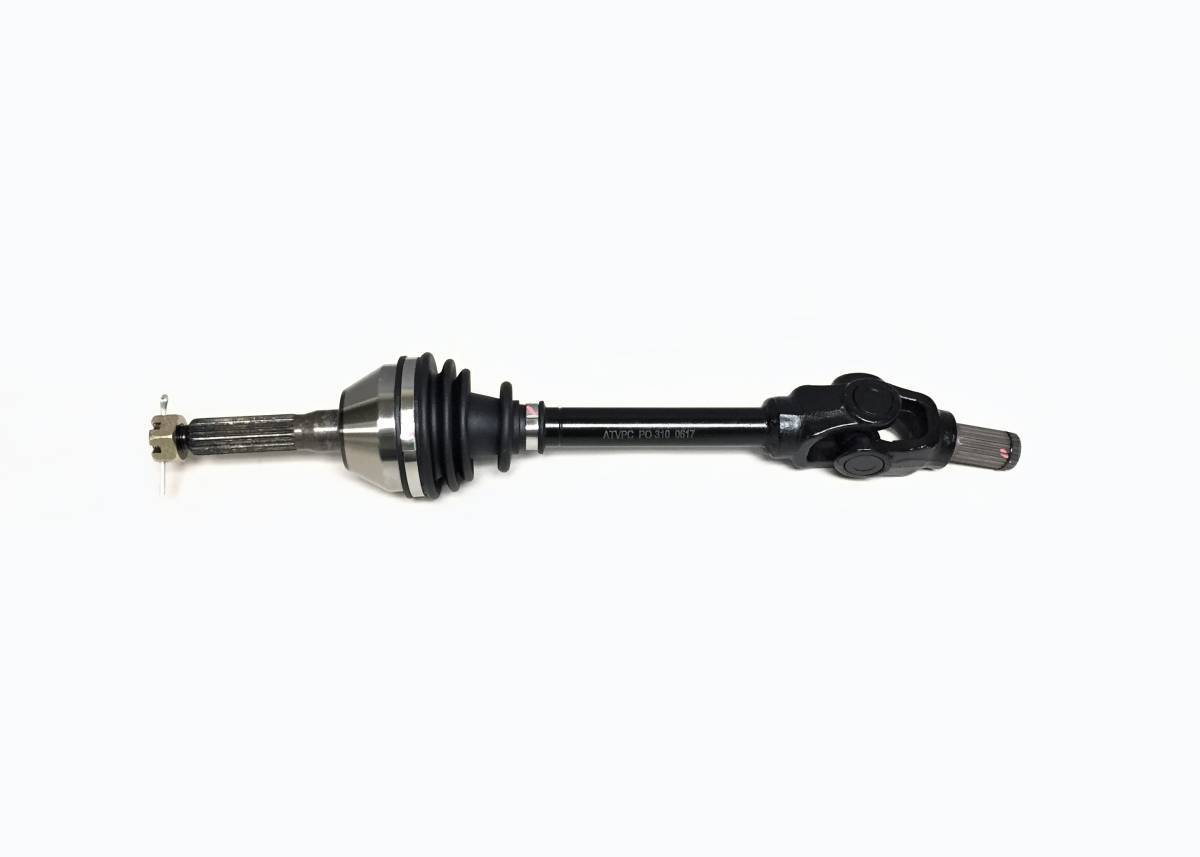

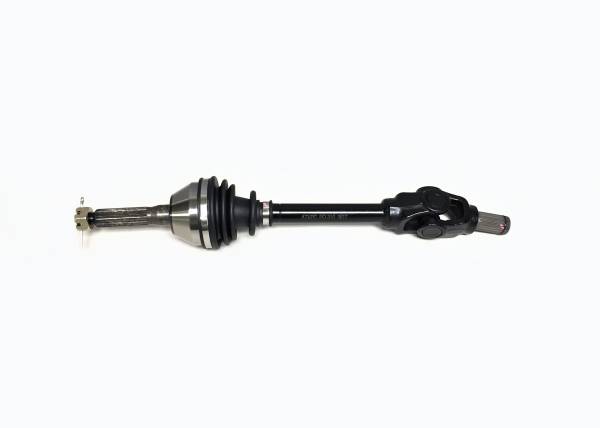

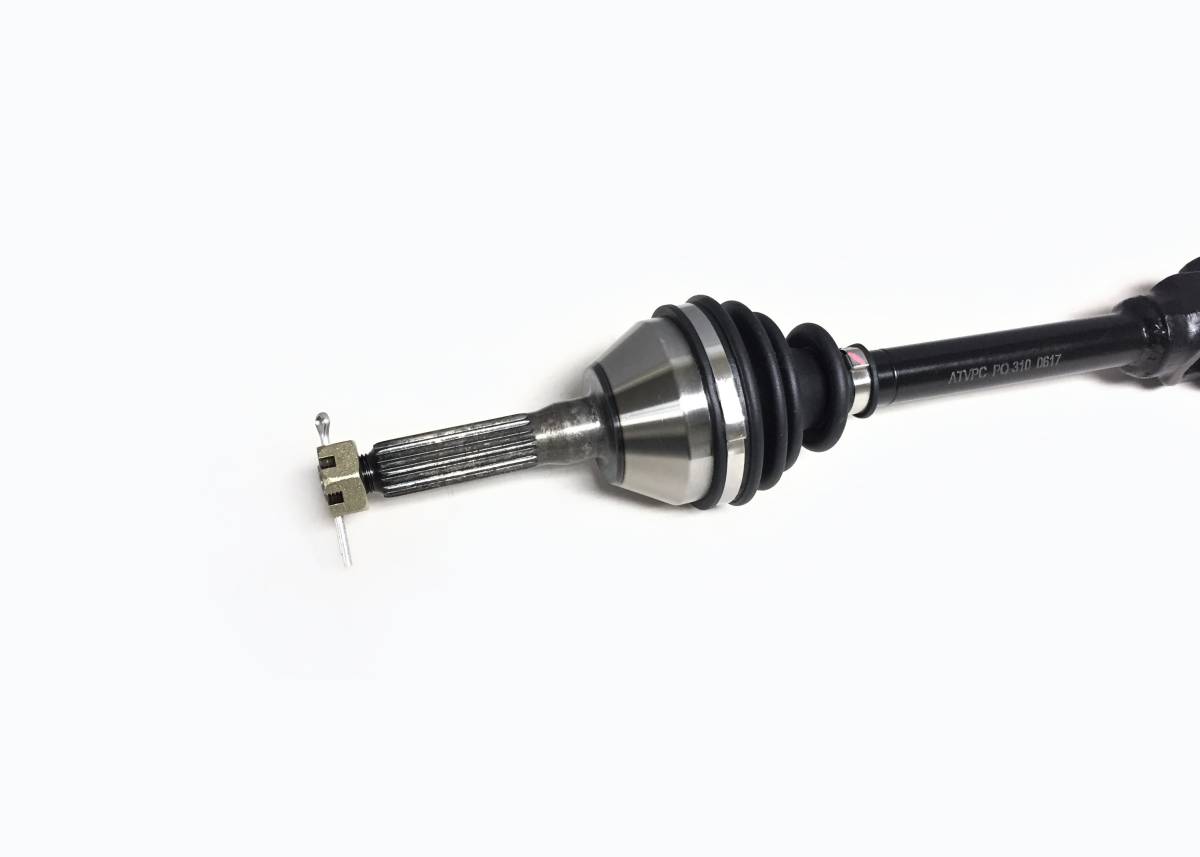

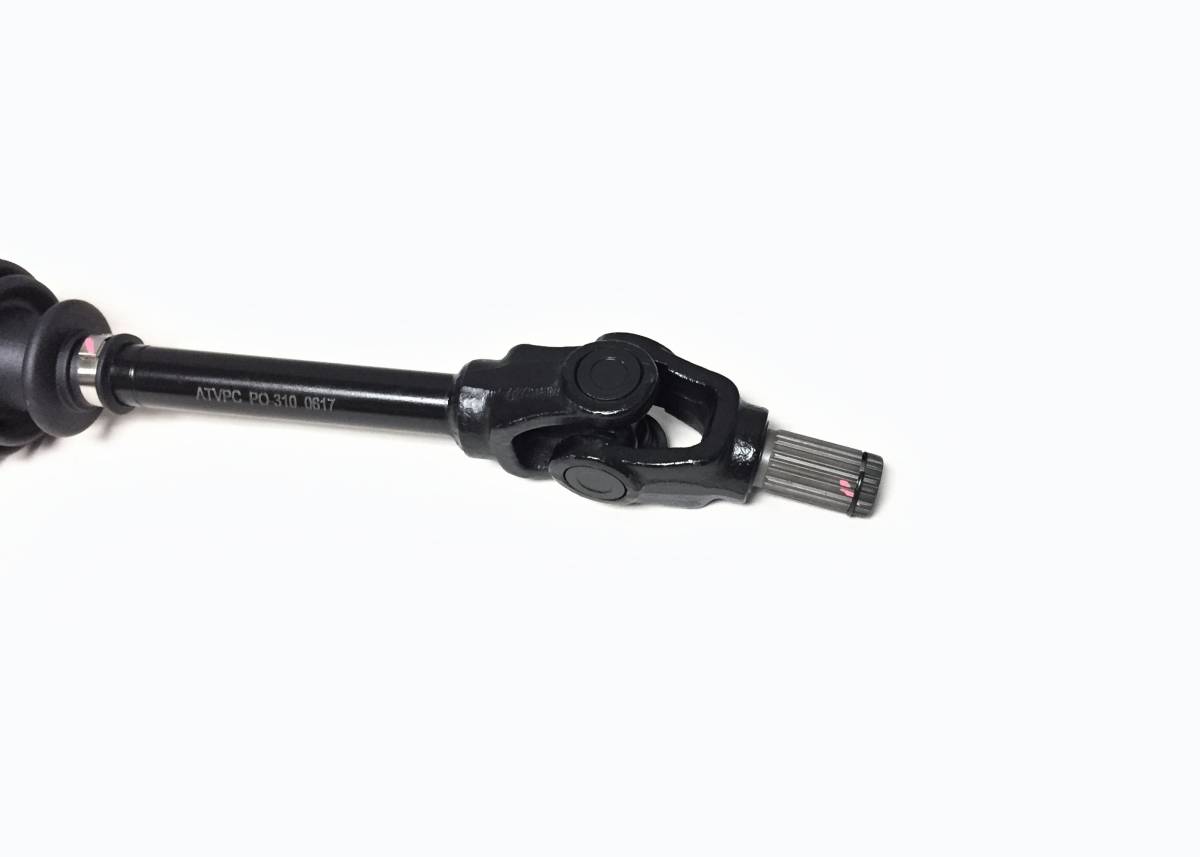

Front CV Axle for Polaris ATP 330 500 & Sportsman 400 500 600 700 4x4

Location on vehicle: Front,Left,Right

(0) Reviews: Write first review

SKU: PO-310

This is Front, Left or Right CV axle for a Polaris ATV.

It fits the following 4x4 models:

2004 ... ATP 330 / ATP 500 HO

2003-2004 ... Sportsman 600

(models built after October 3, 2002)

2002 ... Sportsman 700

(models built after May 1st, 2002)

*Not intended for use in lifted vehicles

Product features:

Stronger than OEM, forged steel axle bar
Greased with a moly based grease to provide superior joint lubrication
Fitted with neoprene boots for added wear & puncture resistance
Inboard CV joint spline count: 22
Outboard CV joint spline count: 20
Compressed overall axle length: 511 mm
Replaces Polaris OE # 1380218

Shipping: Free Shipping - Same Day If Ordered Before 3 EST

Pricing: $74.99

Application List
Product Notes
Warranty
Details
Shipping
Reviews

Application List

Year	Make	Model	Submodel	Notes
2004	Polaris	ATP 330	4X4
2004	Polaris	ATP 500	4x4 HO
2004	Polaris	Magnum 330	4X4
2003	Polaris	Magnum 330	4X4
2004	Polaris	Sportsman 400	4X4	w/ MALE splines on inner yoke
2004	Polaris	Sportsman 500	4x4 HO	w/ MALE splines on inner yoke
2004	Polaris	Sportsman 600	Twin
2003	Polaris	Sportsman 600	Twin	only models manf'd AFTER 10/3/02
2004	Polaris	Sportsman 700	Twin
2004	Polaris	Sportsman 700	Twin EFI
2003	Polaris	Sportsman 700	Twin
2002	Polaris	Sportsman 700	Twin	only models manf'd AFTER 05/1/02

Product Notes

Fits 2004 ATP 330 / 500, 2004 Sportsman 400 (with male spline inboard yoke), 2004 Sportsman 500 4x4 (with male spline inboard yoke), 2003-2004 Sportsman 600 4x4 (built after Oct 3rd, 2002), 2002-2004 Sportsman 700 (built after May 1st, 2002).

Fitted with neoprene CV boots for added wear and puncture resistance. Greased with a moly based grease to provide superior joint lubrication.

Compressed Length - 511 mm, Inboard Spline Count - 22, Outboard Spline Count - 20.

Replaces Polaris OE # 1380218.

Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.
