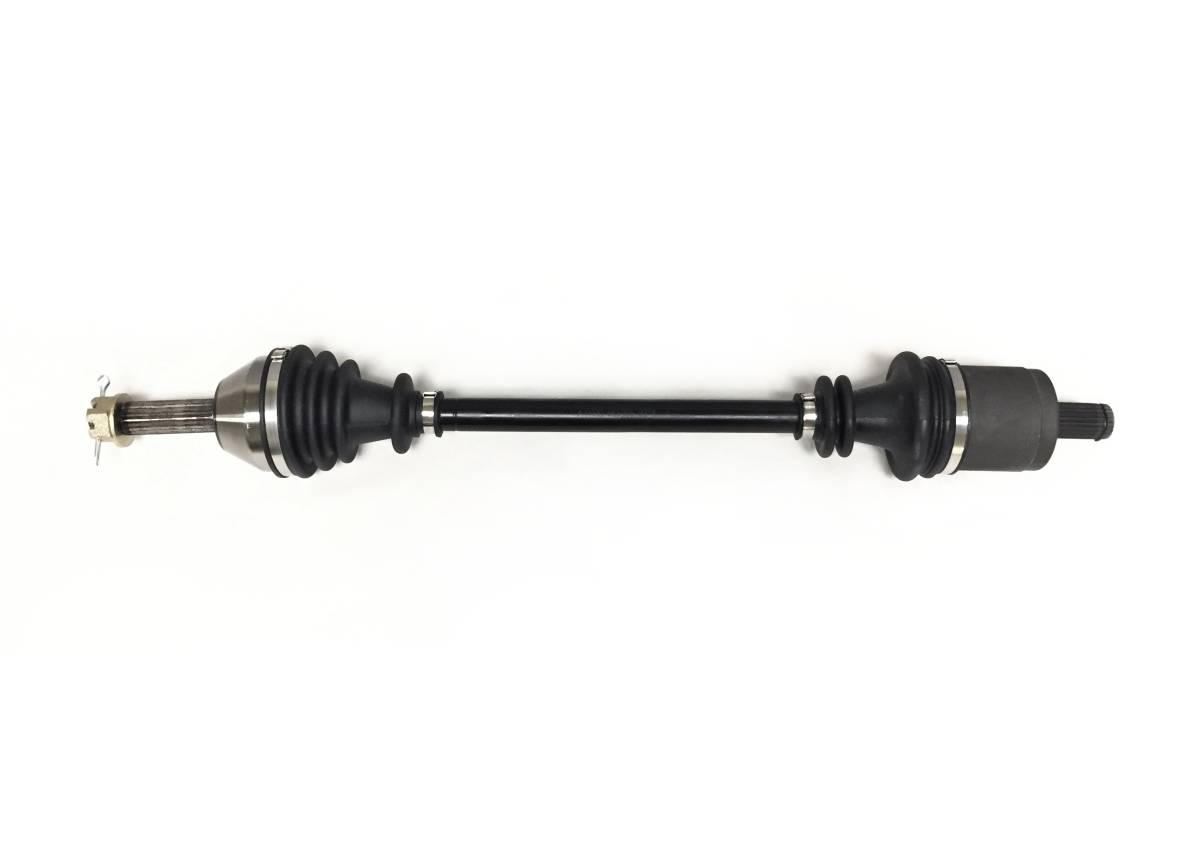

Front CV Axle for Polaris Ranger 500, 700 & XP 700 4x4/6x6 2005-2007

Location on vehicle: Front,Left,Right

PO-309
This is a new Front CV axle for a Polaris UTV.

It will fit the following applications:

2004-2007 ... Ranger 500 4x4

(only models that require a CV joint on the inner axle shaft)

2005-2007 ... Ranger 700 / XP 700 4x4

2006-2007 ... Ranger 700 6x6

Fits Front, Left or Right

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance
  • Inboard CV joint spline count: 22
  • Outboard CV joint spline count: 20
  • Compressed overall axle length: 630 mm
Limited Supply: only 8 remaining
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $73.99
Qty:
Free Ground Shipping

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits FRONT, LEFT or RIGHT: 2004-2007 Ranger 500 4x4 (models that use an inner CV joint), 2005-2007 Ranger 700 / XP 700 4x4, 2006-2007 Ranger 700 6x6.
  • Features a stronger than OEM chromoly forged steel axle bar. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.
  • Inner splines: 22, Outer splines: 20, Compressed axle length: 630 mm.
  • Replaces Polaris OEM #1332423.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

  • What's In The Box

  • 1 axle
  • Application List

    YearMakeModelSubmodelNotes
    2007PolarisRanger 5004X4
    2007PolarisRanger 5004x4 EFI
    2006PolarisRanger 5004X4
    2006PolarisRanger 5004x4 EFI
    2005PolarisRanger 5004X4must use CV joint on innner shaft
    2005PolarisRanger 5004x4 Limited Editionmust use CV joint on innner shaft
    2004PolarisRanger 5004X4must use CV joint on innner shaft
    2007PolarisRanger 7004x4 EFI
    2007PolarisRanger 7004x4 MVRS
    2007PolarisRanger 7006x6 EFI
    2006PolarisRanger 7006x6 EFI
    2007PolarisRanger XP 7004x4 Browning EFI
    2007PolarisRanger XP 7004x4 EFI
    2006PolarisRanger XP 7004x4 EFI
    2005PolarisRanger XP 7004x4 EFI

    Details

    Shipping Information

    • Item Requires Shipping
    • 11.0 lbs.
    • W5.0000” x H5.0000” x L31.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
