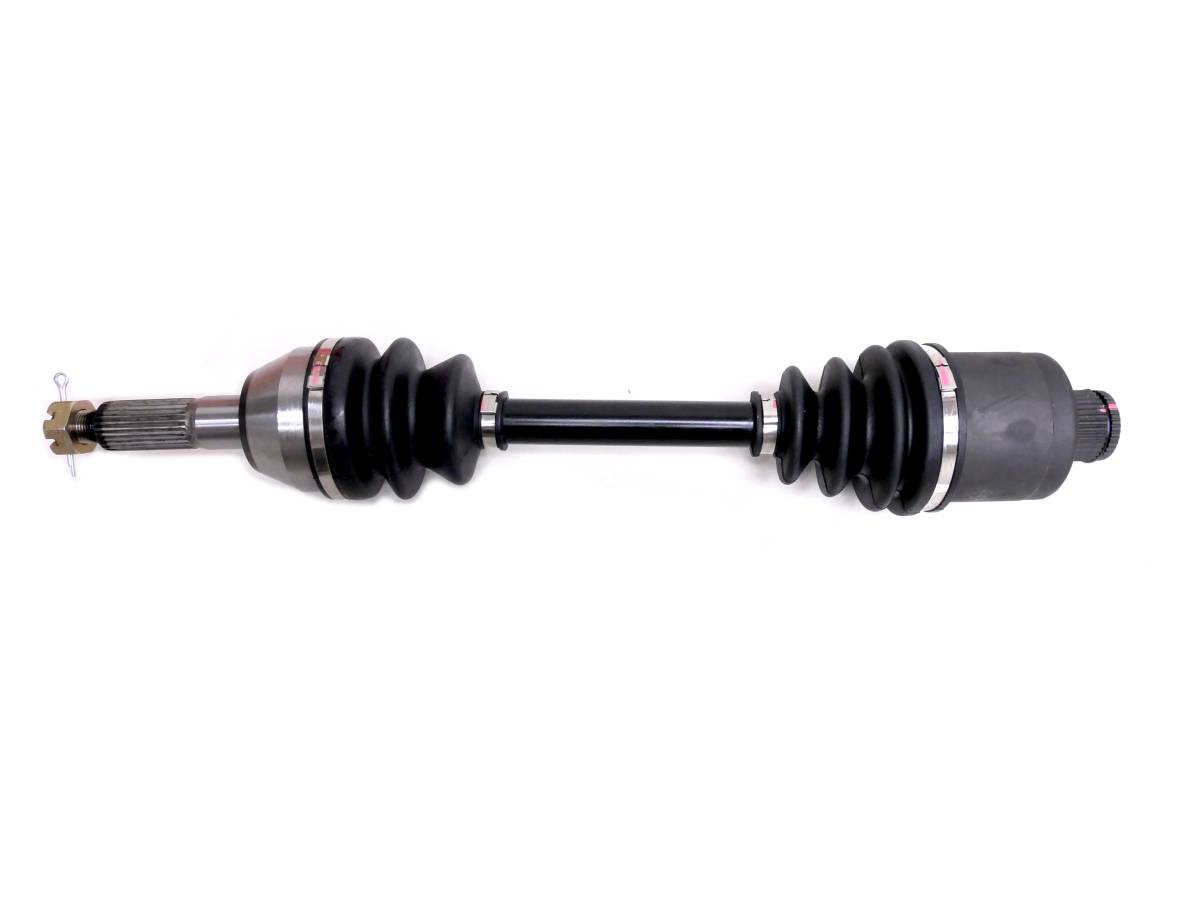

Rear CV Axle for Polaris Sportsman 400 450 500 600 700 800 1380197

Location on vehicle: Rear,Left,Right

(0) Reviews: Write first review
PO-301
This is a new Rear, Left or Right CV axle for a Polaris ATV.

It fits the following 4x4 models:

2003-2005 ... Sportsman 400

2006-2007 ... Sportsman 450

2003-2010 ... Sportsman 500

(excluding Touring models)

2003-2005 ... Sportsman 600

2003-2007 ... Sportsman 700

2005-2009 ... Sportsman 800 4x4 & 6x6

(excluding Touring & X2 models)

2005-2007 ... Sportsman MV7

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM, forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene boots for added wear & puncture resistance

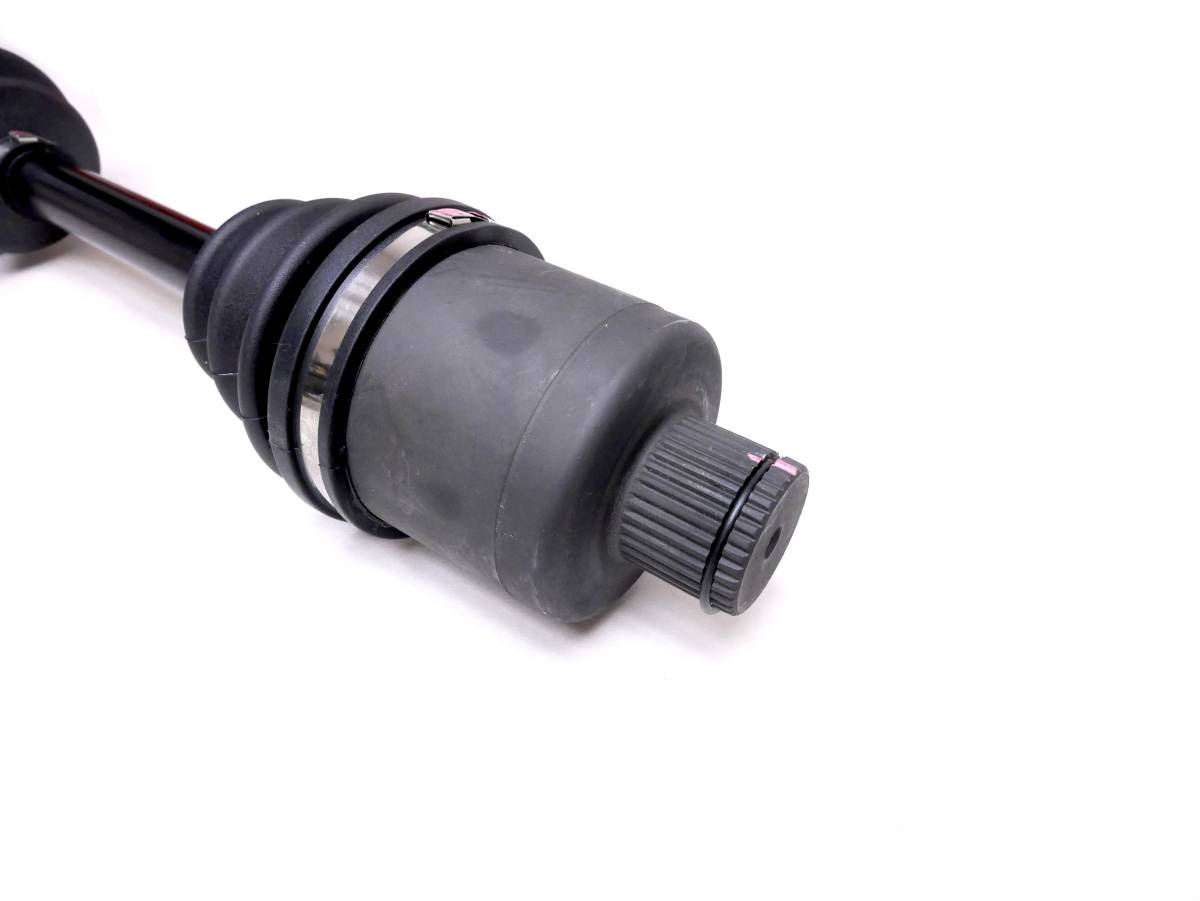

  • Inboard CV joint spline count: 36

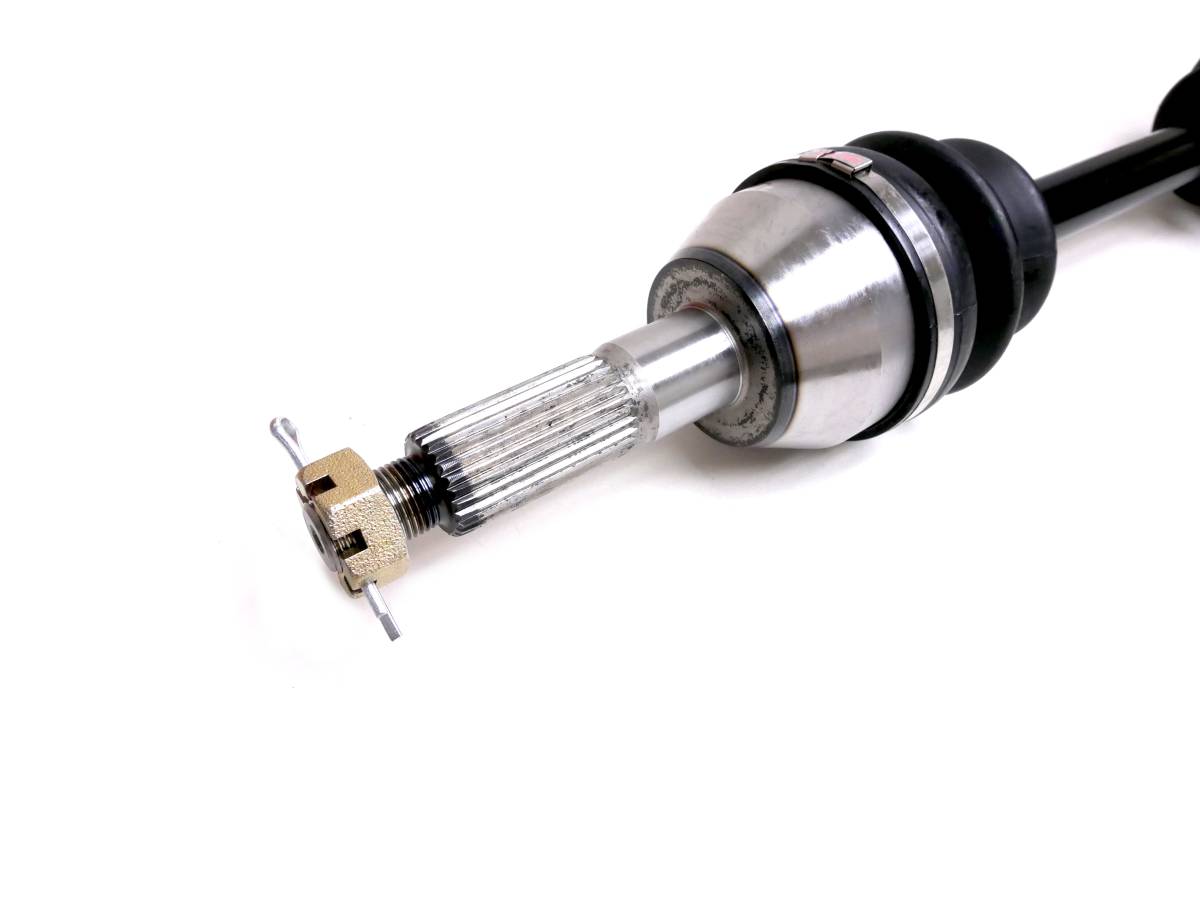

  • Outboard CV joint spline count: 26
  • Compressed overall axle length: 549 mm
  • Replaces Polaris OE # 1380197, 1380240
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $99.99
Qty:
Free Ground Shipping

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits rear, left or right on the following Polaris ATV models: 03-05 Sportsman 400, 06-07 Sportsman 450, 03-10 Sportsman 500 (excl Touring/X2), 03-05 Sportsman 600, 03-07 Sportsman 700, 05-09 Sportsman 800 4x4/6x6 (excl Touring & X2), 05-07 Sportsman MV7.
  • Features a stronger than OEM, 4340 chromoly steel bar for a higher tensile strenth and more durability. Engineered as a direct replacement, fully-assembled, and ready to install.
  • Joints fitted with neoprene CV boots for added flexibility and resistance to hot/cold temperatures. Also uses high-performance moly grease for additional protection against various environments and to keep vital components lubricated.
  • Replaces OEM # 1380197, 1380240. Compressed overall axle length: 549 mm, Inboard CV joint spline count: 36, Outboard CV joint spline count: 26.
  • Warranty: 1 Year (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on modified suspensions.

    • What's In The Box

  • 1 axle

    • Application List

    YearMakeModelSubmodelNotes
    2005PolarisSportsman 4004X4
    2004PolarisSportsman 4004X4
    2003PolarisSportsman 4004X4
    2007PolarisSportsman 4504X4
    2006PolarisSportsman 4504X4
    2006PolarisSportsman 4504x4 Browning
    2010PolarisSportsman 5004x4 HO
    2009PolarisSportsman 5004x4 HO
    2009PolarisSportsman 5004x4 HO EFI
    2008PolarisSportsman 5004x4 HO
    2008PolarisSportsman 5004x4 HO EFI
    2007PolarisSportsman 5004x4 Deluxe HO EFI
    2007PolarisSportsman 5004x4 HO EFI
    2007PolarisSportsman 5004x4 NBU HO EFI
    2007PolarisSportsman 5006x6
    2006PolarisSportsman 5004x4 Browning HO EFI
    2006PolarisSportsman 5004x4 HO
    2006PolarisSportsman 5004x4 HO EFI
    2006PolarisSportsman 5006x6
    2005PolarisSportsman 5004x4 HO
    2004PolarisSportsman 5004x4 HO
    2003PolarisSportsman 5004x4 HO
    2005PolarisSportsman 600Twin
    2004PolarisSportsman 600Twin
    2003PolarisSportsman 600Twin
    2007PolarisSportsman 700EFI
    2007PolarisSportsman 700MV
    2006PolarisSportsman 700Twin
    2006PolarisSportsman 700Twin Browning EFI
    2006PolarisSportsman 700Twin EFI
    2005PolarisSportsman 700Twin
    2005PolarisSportsman 700Twin EFI
    2004PolarisSportsman 700Twin
    2004PolarisSportsman 700Twin EFI
    2003PolarisSportsman 700Twin
    2009PolarisSportsman 800EFI
    2009PolarisSportsman 800HO EFI
    2008PolarisSportsman 800EFI
    2008PolarisSportsman 800EFI Military HO
    2008PolarisSportsman 800Touring EFI
    2007PolarisSportsman 800--
    2007PolarisSportsman 800Deluxe EFI
    2007PolarisSportsman 800EFI
    2006PolarisSportsman 800Twin Browning EFI
    2006PolarisSportsman 800Twin EFI
    2005PolarisSportsman 800Twin EFI
    2006PolarisSportsman MV7--
    2005PolarisSportsman MV7--

    Details

    Categories

    Shipping Information

    • Item Requires Shipping
    • 14.0 lbs.
    • W5.0000” x H5.0000” x L25.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
