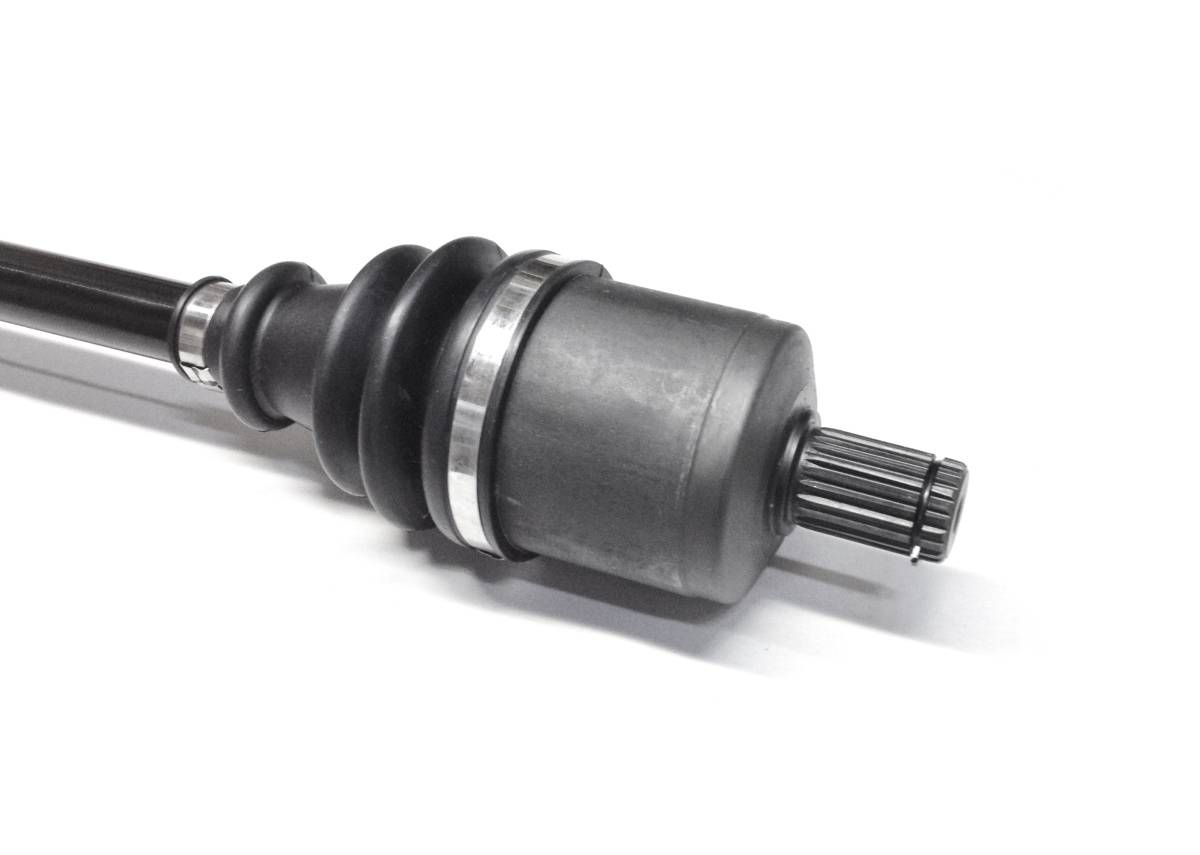

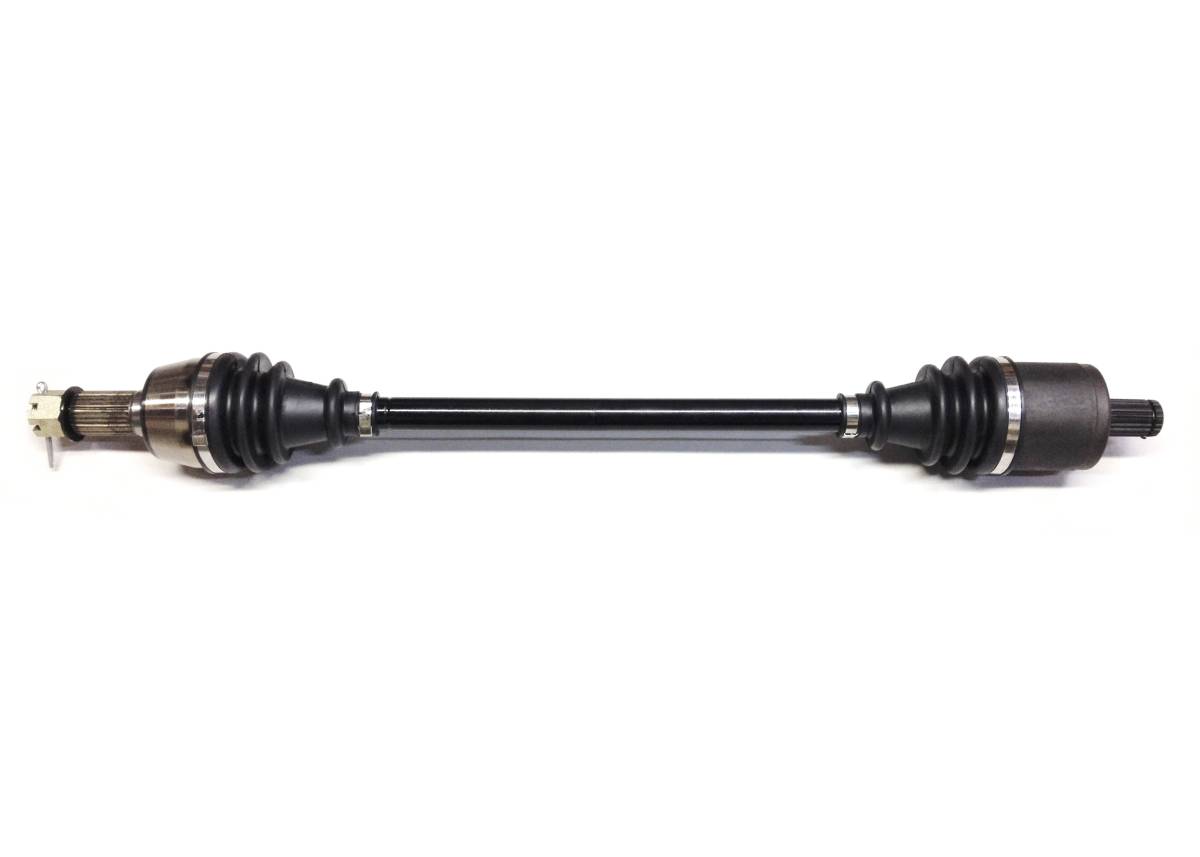

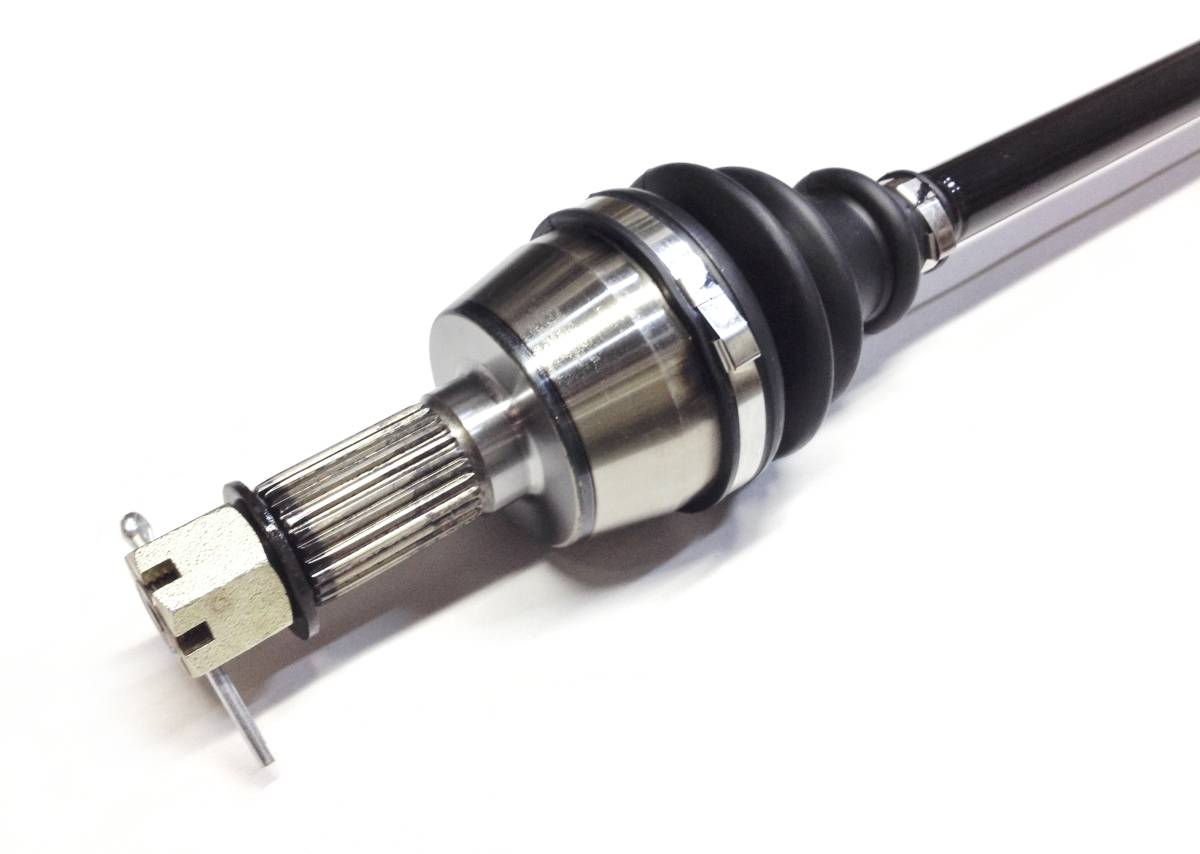

Front CV Axle for Polaris Brutus Ranger RZR 1332637

Location on vehicle: Front,Left,Right

PO-307
This is for one new Front CV axle for a Polaris UTV/RZR.

It will fit the following 4x4 applications:

2013-2018 ... Brutus HD

2015 ... Ranger 'Full Size' 570

2016 ... Ranger XP 570 / Crew 570-6

2013-2019 ... Ranger XP 900 / Crew 900

(all models excluding Diesel)

2014-2020 ... Ranger 1000 / XP 1000

(all models excluding MUD)

2009-2014 ... RZR S 800

2010-2014 ... RZR 4 800

2013-2016 ... Military RZR 900

Front, Left or Right

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance
  • Inboard CV joint spline count: 22
  • Outboard CV joint spline count: 26
  • Compressed overall axle length: 685.5 mm
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $79.99
Qty:
Free Ground Shipping

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits: 2013-2018 Brutus HD, 2013-2016 Military RZR 900, 2015 Ranger Full Size 570, 2016 Ranger XP 570/Crew 570-6, 2013-2019 Ranger XP 900 / Crew 900 (excluding Diesel), 2014-2020 Ranger 1000 (excluding MUD), 2009-2014 RZR S 800, 2010-2014 RZR 4 800.
  • Features a stronger than OEM chromoly forged steel axle bar. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.
  • Compressed Length - 685.5 mm, Inboard Spline Count - 22, Outboard Spline Count - 26.
  • Replaces Polaris OEM # 1332637.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

  • What's In The Box

  • 1 axle
  • Application List

    YearMakeModelSubmodelNotes
    2018PolarisBrutus HDPTO Deluxe
    2017PolarisBrutus HDPTO
    2017PolarisBrutus HDPTO Deluxe
    2016PolarisBrutus HDPTO
    2016PolarisBrutus HDPTO Deluxe
    2015PolarisBrutus HDPTO
    2015PolarisBrutus HDPTO Deluxe
    2014PolarisBrutus HD--
    2014PolarisBrutus HDPTO
    2013PolarisBrutus HD--
    2013PolarisBrutus HDPTO
    2014PolarisRZR 4 800LE EPS
    2013PolarisRZR 4 800--
    2013PolarisRZR 4 800LE EPS
    2012PolarisRZR 4 800--
    2012PolarisRZR 4 800Robby Gordon Edition
    2012PolarisRZR 4 800Robby Gordon Edition EPS
    2011PolarisRZR 4 800Robby Gordon Edition
    2011PolarisRZR 4 800Robby Gordon Edition EPS
    2010PolarisRZR 4 800Robby Gordon Edition
    2014PolarisRZR S 800--
    2014PolarisRZR S 800LE EPS
    2013PolarisRZR S 800EFI
    2013PolarisRZR S 800LE EFI
    2013PolarisRZR S 800LE EFI EPS
    2012PolarisRZR S 800EFI
    2012PolarisRZR S 800LE EFI
    2011PolarisRZR S 800EFI
    2010PolarisRZR S 800EFI
    2010PolarisRZR S 800LE EFI
    2009PolarisRZR S 800EFI
    2015PolarisRanger 5704x4 Full Size
    2015PolarisRanger 5704x4 Full Size EPS
    2015PolarisRanger Crew 5704x4 Full Size
    2015PolarisRanger Crew 5704x4 Full Size EPS
    2015PolarisRanger Crew 900--
    2015PolarisRanger Crew 900EPS
    2014PolarisRanger Crew 900--
    2014PolarisRanger Crew 900EPS
    2014PolarisRanger Crew 900LE EPS
    2016PolarisRanger Crew 900-5--
    2016PolarisRanger Crew 900-5EPS
    2016PolarisRanger Crew 900-6--
    2016PolarisRanger Crew 900-6EPS
    2015PolarisRanger Crew 900 6--
    2015PolarisRanger Crew 900 6EPS
    2018PolarisRanger Crew Diesel--
    2017PolarisRanger Crew Diesel--
    2016PolarisRanger Crew Diesel--
    2015PolarisRanger Crew Diesel--
    2016PolarisRanger Crew XP 570-6EPS
    2016PolarisRanger Crew XP 570-6Pursuit Camo EPS
    2019PolarisRanger Crew XP 900--
    2019PolarisRanger Crew XP 900EPS
    2018PolarisRanger Crew XP 900--
    2018PolarisRanger Crew XP 900EPS
    2017PolarisRanger Crew XP 900--
    2017PolarisRanger Crew XP 900EPS
    2020PolarisRanger Crew XP 1000EPS
    2020PolarisRanger Crew XP 1000EPS High Lifter Edition
    2020PolarisRanger Crew XP 1000EPS Northstar HVAC Edition
    2020PolarisRanger Crew XP 1000EPS Premium
    2020PolarisRanger Crew XP 1000EPS Texas Edition
    2020PolarisRanger Crew XP 1000NorthStar Premium
    2020PolarisRanger Crew XP 1000NorthStar Ultimate
    2019PolarisRanger Crew XP 1000EPS
    2019PolarisRanger Crew XP 1000EPS 20th Anniversary Limited Edition
    2019PolarisRanger Crew XP 1000EPS Back Country Edition
    2019PolarisRanger Crew XP 1000EPS High Lifter Edition
    2019PolarisRanger Crew XP 1000EPS Northstar HVAC Edition
    2019PolarisRanger Crew XP 1000EPS Polaris Pursuit Camo
    2019PolarisRanger Crew XP 1000EPS Premium
    2018PolarisRanger Crew XP 1000EPS
    2018PolarisRanger Crew XP 1000EPS High Lifter Edition
    2018PolarisRanger Crew XP 1000EPS Northstar HVAC Edition
    2017PolarisRanger Crew XP 1000--
    2017PolarisRanger Crew XP 1000EPS
    2017PolarisRanger Crew XP 1000EPS High Lifter Edition
    2017PolarisRanger Crew XP 1000EPS Northstar HVAC Edition
    2017PolarisRanger Crew XP 1000EPS pursuit camo
    2018PolarisRanger Diesel--
    2017PolarisRanger Diesel--
    2016PolarisRanger Diesel--
    2015PolarisRanger Diesel--
    2017PolarisRanger Diesel HST--
    2017PolarisRanger Diesel HSTDeluxe
    2016PolarisRanger Diesel HST--
    2016PolarisRanger Diesel HSTDeluxe
    2015PolarisRanger Diesel HST--
    2015PolarisRanger Diesel HSTDeluxe
    2014PolarisRanger Diesel HST--
    2014PolarisRanger Diesel HSTDeluxe
    2016PolarisRanger XP 570--
    2016PolarisRanger XP 570EPS
    2016PolarisRanger XP 570Pursuit Camo
    2019PolarisRanger XP 900--
    2019PolarisRanger XP 900EPS
    2018PolarisRanger XP 900--
    2018PolarisRanger XP 900EPS
    2017PolarisRanger XP 900--
    2017PolarisRanger XP 900EPS
    2016PolarisRanger XP 900--
    2016PolarisRanger XP 9004x4 High Lifter Edition EPS
    2016PolarisRanger XP 9004x4 Hunter Deluxe Edition EPS
    2016PolarisRanger XP 9004x4 Hunter Edition EPS
    2016PolarisRanger XP 9004x4 Northstar Edition EPS
    2016PolarisRanger XP 9004x4 Trail Edition EPS
    2016PolarisRanger XP 900EPS
    2016PolarisRanger XP 900Pursuit Camo
    2015PolarisRanger XP 900--
    2015PolarisRanger XP 9004x4 EPS Deluxe
    2015PolarisRanger XP 9004x4 Hunter Deluxe Edition EPS
    2015PolarisRanger XP 9004x4 Hunter Edition EPS
    2015PolarisRanger XP 900EPS
    2015PolarisRanger XP 900LE EPS
    2015PolarisRanger XP 900Northstar Edition EPS
    2014PolarisRanger XP 900--
    2014PolarisRanger XP 9004x4 Deluxe
    2014PolarisRanger XP 900Browning
    2014PolarisRanger XP 900EPS
    2014PolarisRanger XP 900LE Browning EPS
    2014PolarisRanger XP 900LE EPS
    2014PolarisRanger XP 900Pursuit
    2013PolarisRanger XP 900--
    2013PolarisRanger XP 900EPS
    2013PolarisRanger XP 900LE
    2013PolarisRanger XP 900LE Browning EPS
    2013PolarisRanger XP 900LE EPS
    2020PolarisRanger XP 1000EPS
    2020PolarisRanger XP 1000EPS High Lifter Edition
    2020PolarisRanger XP 1000EPS Northstar HVAC Edition
    2020PolarisRanger XP 1000EPS Premium
    2020PolarisRanger XP 1000EPS Texas Edition
    2020PolarisRanger XP 1000NorthStar Premium
    2020PolarisRanger XP 1000NorthStar Ultimate
    2019PolarisRanger XP 1000EPS
    2019PolarisRanger XP 1000EPS 20th Anniversary Limited Edition
    2019PolarisRanger XP 1000EPS Back Country Limited Edition
    2019PolarisRanger XP 1000EPS High Lifter Edition
    2019PolarisRanger XP 1000EPS Northstar HVAC Edition
    2019PolarisRanger XP 1000EPS Premium
    2018PolarisRanger XP 1000EPS
    2018PolarisRanger XP 1000EPS High Lifter Edition
    2018PolarisRanger XP 1000EPS Northstar HVAC Edition
    2017PolarisRanger XP 1000--
    2017PolarisRanger XP 1000EPS
    2017PolarisRanger XP 1000EPS High Lifter Edition
    2017PolarisRanger XP 1000EPS Hunter Edition
    2017PolarisRanger XP 1000EPS Northstar HVAC Edition
    2017PolarisRanger XP 1000EPS Ranch Edition

    Details

    Shipping Information

    • Item Requires Shipping
    • 12.0 lbs.
    • W5.0000” x H5.0000” x L32.0000”
