Upgraded Front CV Axle for Polaris ATV UTV 1380063 1380066

Location on vehicle: Front,Left,Right

(0) Reviews: Write first review
PO-104

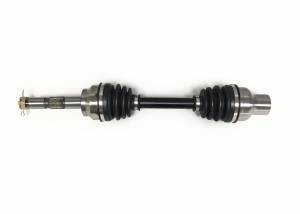

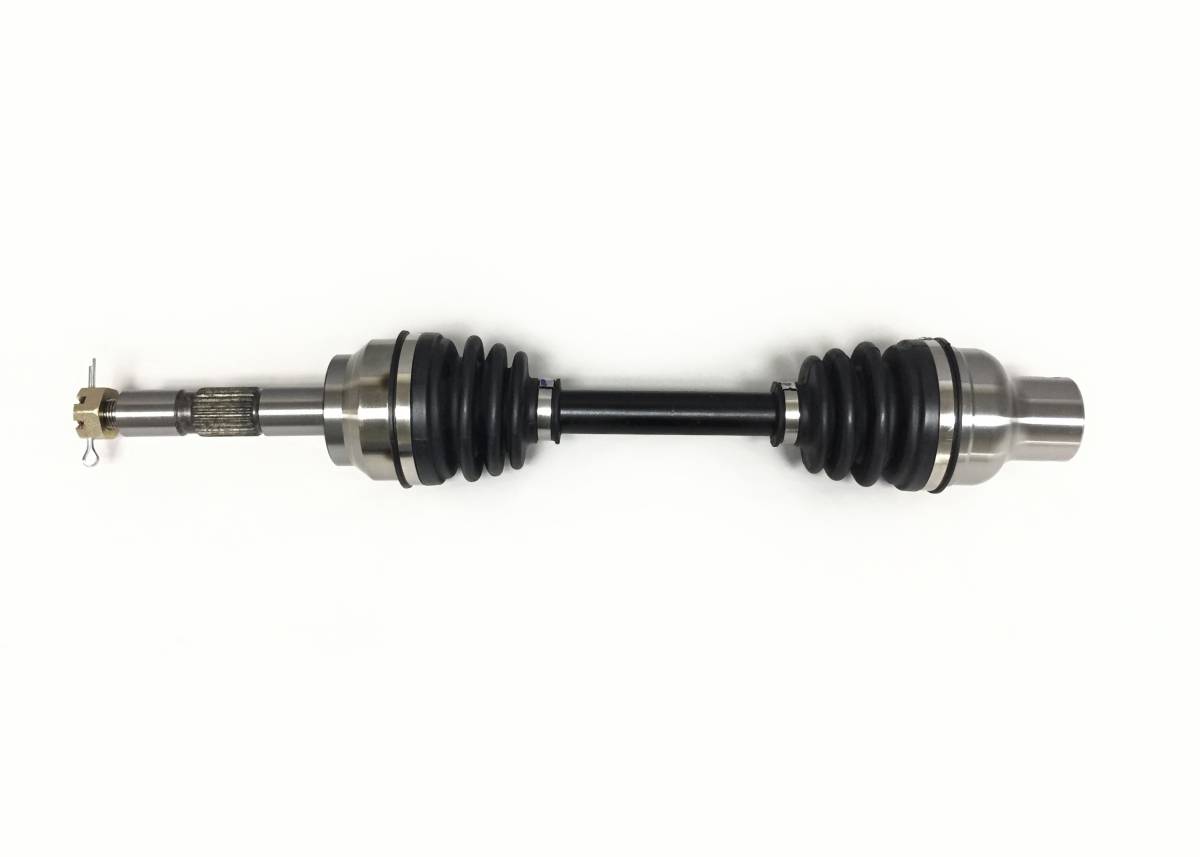

This is a new Front conversion CV axle for a Polaris ATV.

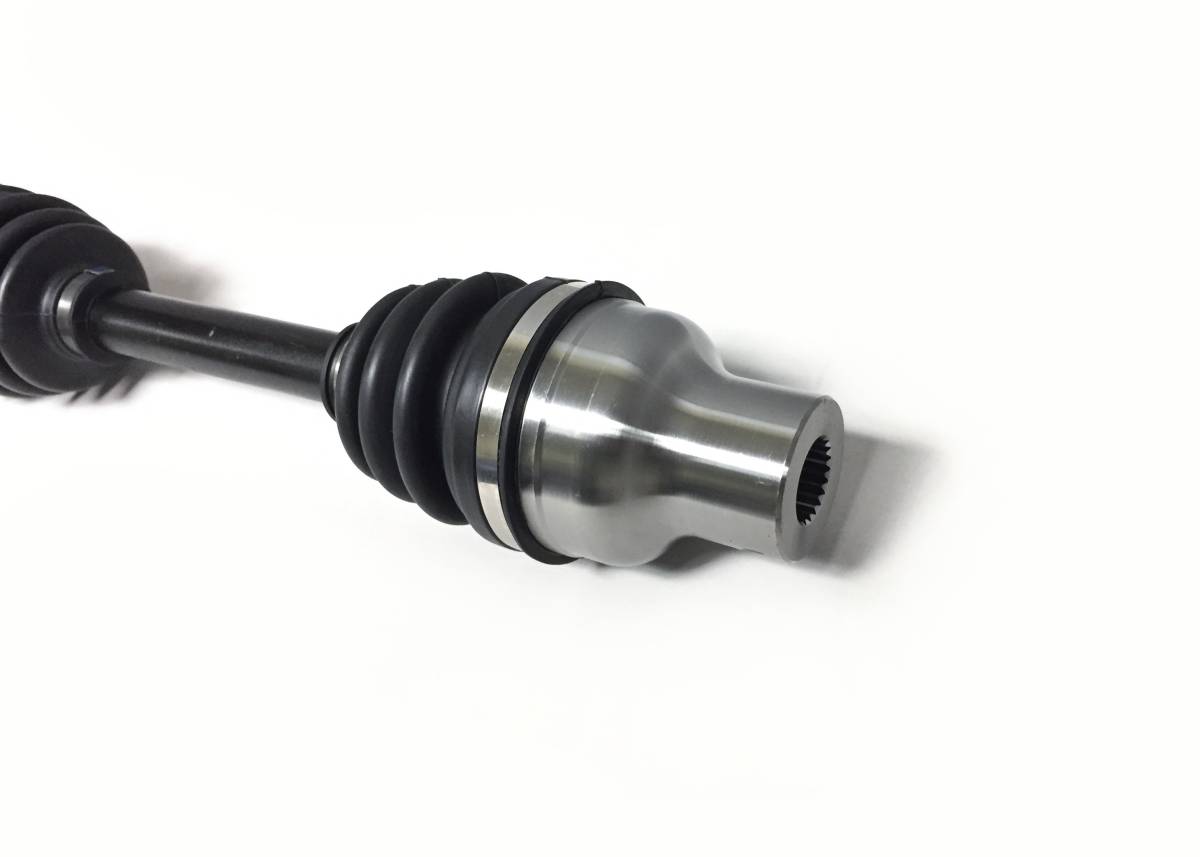

***The inner U-joint has been replaced with a CV joint for better durability and perfromance***

It will fit the following models:

1998-2002 ... Big Boss 500

1999-2002 ... Diesel 455

2000-2002 ... Magnum 325 (without Visco Lok)

1995-1998 ... Magnum 425

1995-2002 ... Scrambler 400

1997-2009 ... Scrambler 500

1999-2000 ... Sportsman 335

1995-2003 ... Sportsman 400

1996-2004 ... Sportsman 500 4x4 and 6x6

1999 ... Worker 335 and 500

2000-2002 ... Xpedition 325 & 425

2000-2002 ... Xplorer 250

1996-1999 ... Xplorer 300

1995-2002 ... Xplorer 400

1997 ... Xplorer 500

Front, Left or Right

Product features:

  • Stronger than OEM chromoly forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance

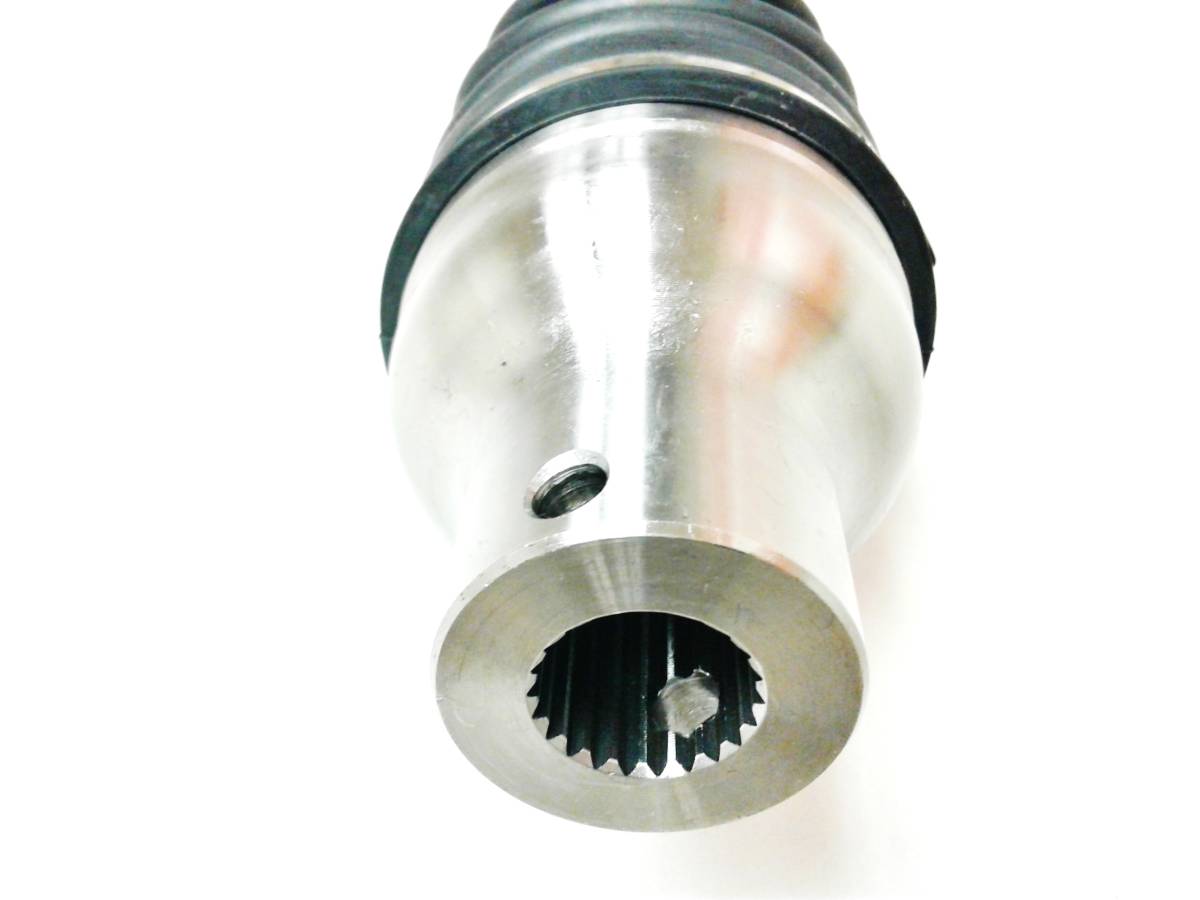

  • Inboard CV joint spline count: 22 (female type)

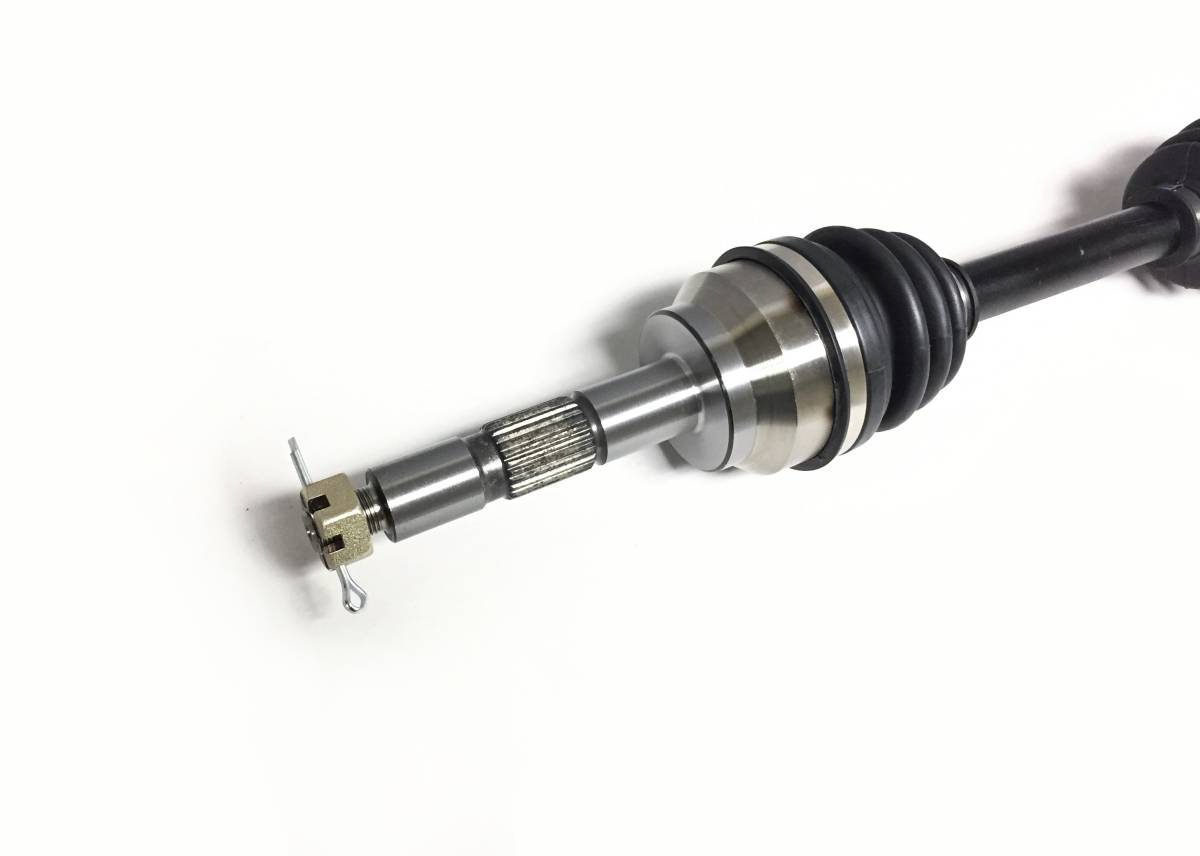

  • Outboard CV joint spline count: 26
  • Compressed overall axle length: 668.5 mm
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $95.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
1999PolarisScrambler 5004X4
2000PolarisScrambler 5004X4
2001PolarisScrambler 5004X4
2002PolarisScrambler 5004X4
2003PolarisScrambler 5004X4
2004PolarisScrambler 5004X4
2005PolarisScrambler 5004X4
2006PolarisScrambler 5004X4
2007PolarisScrambler 5004X4
2008PolarisScrambler 5004X4
2009PolarisScrambler 5004X4
1999PolarisSportsman 3354X4
1999PolarisSportsman 335--
2000PolarisSportsman 3354X4
1997PolarisSportsman 400L4X4
1995PolarisSportsman 4004X4
1996PolarisSportsman 4004X4
2001PolarisSportsman 4004X4
2002PolarisSportsman 4004X4
2003PolarisSportsman 4004X4
2000PolarisSportsman 5006x6
2000PolarisSportsman 5004x4 RSE
2000PolarisSportsman 5004X4
2001PolarisSportsman 5006x6
2001PolarisSportsman 5004x4 RSE HO
2001PolarisSportsman 5004x4 HO
2001PolarisSportsman 5004x4 DUSE
2002PolarisSportsman 5006x6
2002PolarisSportsman 5004x4 RSE
2002PolarisSportsman 5004x4 Richard Petty Edition
2002PolarisSportsman 5004x4 HO
2002PolarisSportsman 5004x4 DUSE
2002PolarisSportsman 5004X4
2003PolarisSportsman 5006x6
2003PolarisSportsman 5004x4 HO
2004PolarisSportsman 5006x6
2004PolarisSportsman 5004x4 HO
1996PolarisXplorer 3004X4
1997PolarisXplorer 3004X4
1998PolarisXplorer 3004X4
1999PolarisXplorer 3004X4
2000PolarisMagnum 3254X4
2001PolarisMagnum 3254X4
2002PolarisMagnum 3254X4
1995PolarisMagnum 4254X4
1996PolarisMagnum 4256x6
1996PolarisMagnum 4254X4
1997PolarisMagnum 4256x6
1997PolarisMagnum 4254X4
1998PolarisMagnum 4254X4
2000PolarisXplorer 2504X4
2001PolarisXplorer 2504X4
2002PolarisXplorer 2504X4
1998PolarisBig Boss 5006x6
1999PolarisBig Boss 5006x6
1996PolarisXplorer 400L--
1997PolarisXplorer 400L--
1998PolarisXplorer 400L--
1995PolarisXplorer 4004X4
1999PolarisXplorer 4004X4
2000PolarisXplorer 4004X4
2001PolarisXplorer 4004X4
2002PolarisXplorer 4004X4

Product Notes

  • Fits front, left or right: 98-02 Big Boss 500, 99-02 Diesel 455, 95-98 Magnum 425, 96-97 6x6 Magnum 425, 95-02 Scrambler 400, 97-09 Scrambler 500, 99-00 Sportsman 335, 95-03 Sportsman 400, 96-04 Sportsman 4x4 500, 00-08 Sportsman 6x6 500, 99 Worker 335/500, 00-02 Xpedition 325/425, 00-02 Xplorer 250, 96-99 Xplorer 300, 95-02 Xplorer 400.
  • Features a CV joint replacing the original U-joint for better performance and durability. Features a stronger than OEM, 4340 chromoly steel bar for a higher tensile strenth and more durability. Engineered as a direct replacement, fully-assembled, and ready to install.
  • Works as a double plunging axle that supports lift kits up to 2 inches. Joints fitted with neoprene CV boots for added flexibility and resistance to hot/cold temperatures. Also uses high-performance moly grease for additional protection against various environments and to keep vital components lubricated.
  • Replaces Polaris OEM # 2200960, 1380063, 1380066, 1380114. Compressed length - 668.5 mm Inboard spline count - 22 Outboard spline count - 26. Works as a double plunging axle that supports lift kits up to 2 inches.
  • Warranty: 1 Year (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on modified suspensions.

    • What's In The Box

  • 1 axle

    • Warranty

    1 year factory defect limited warranty

    Details

    • PO-104
    • PO-104
    • CUSTOM
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 11.2 lbs.
    • W5.0000” x H5.0000” x L28.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
