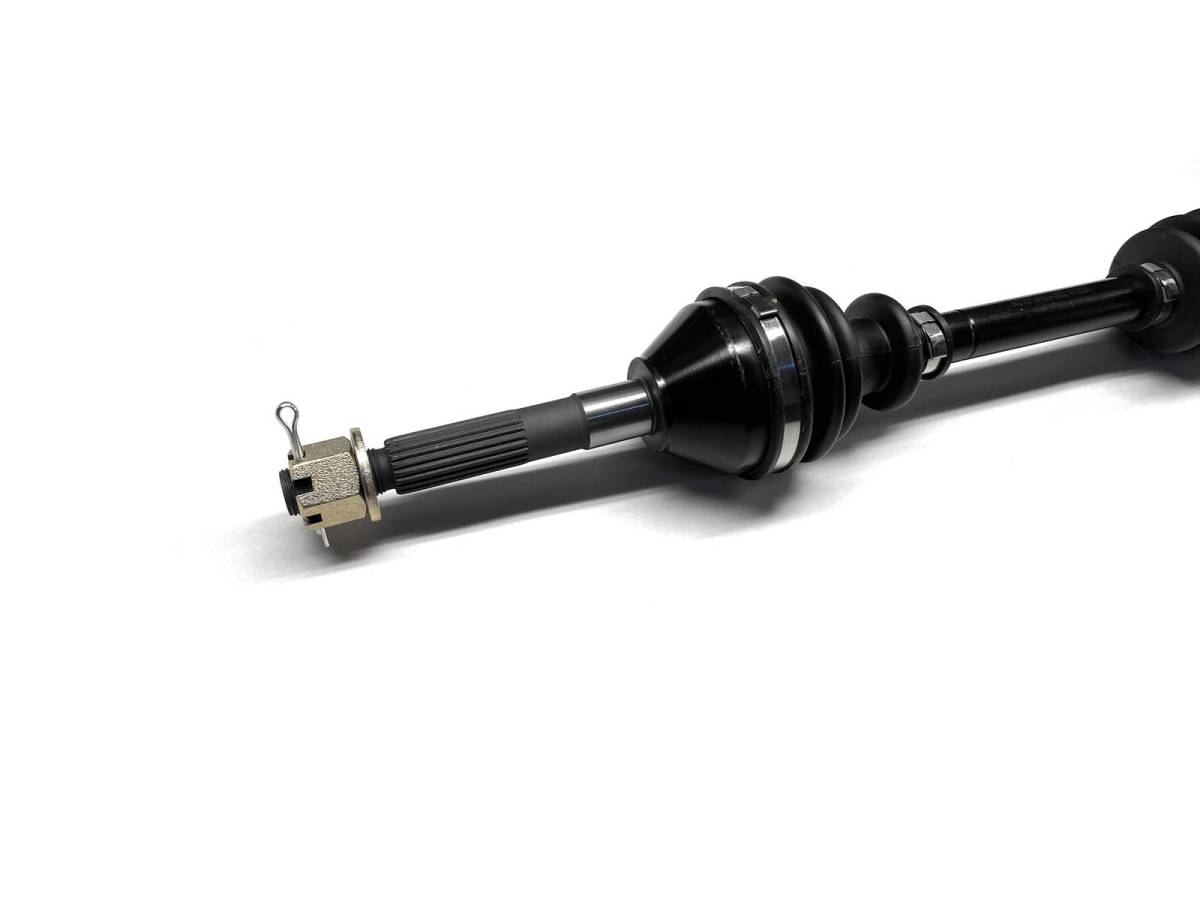

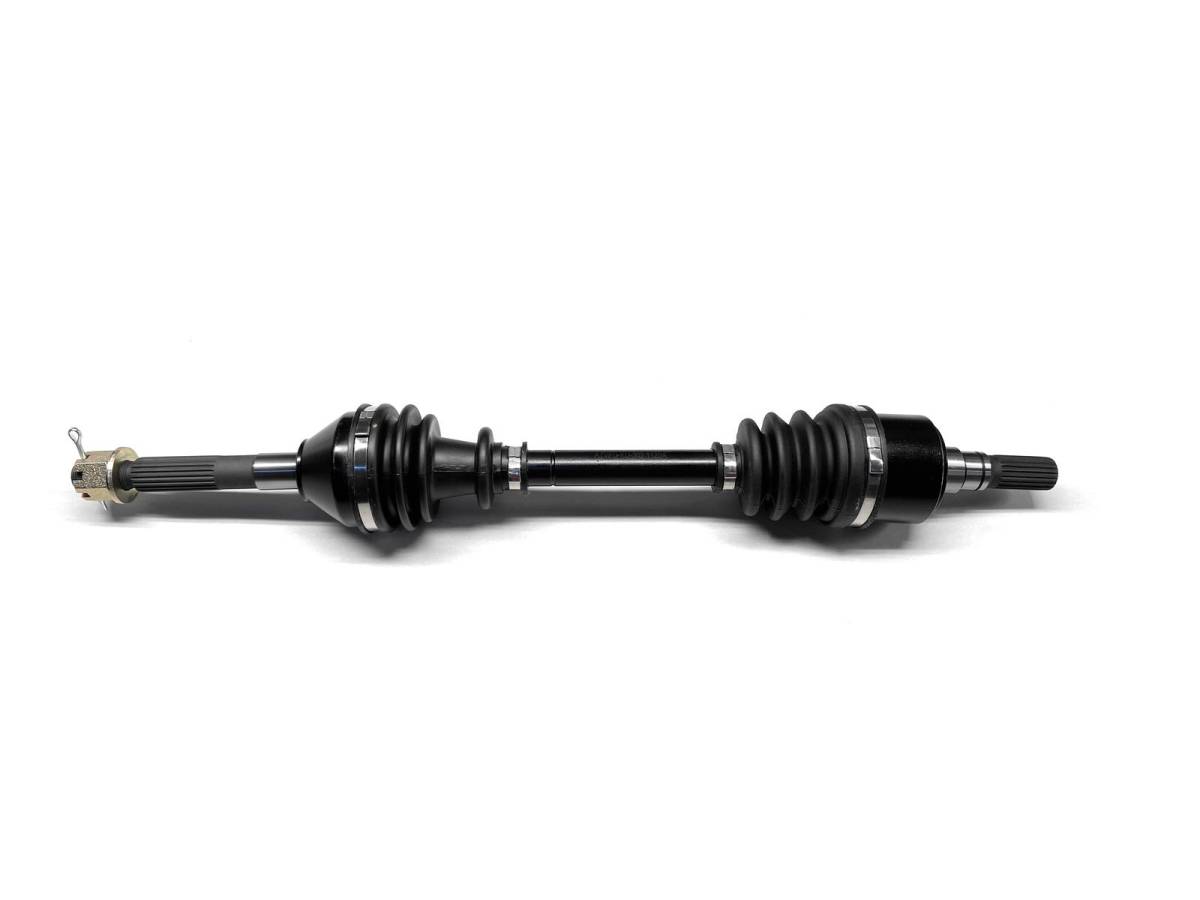

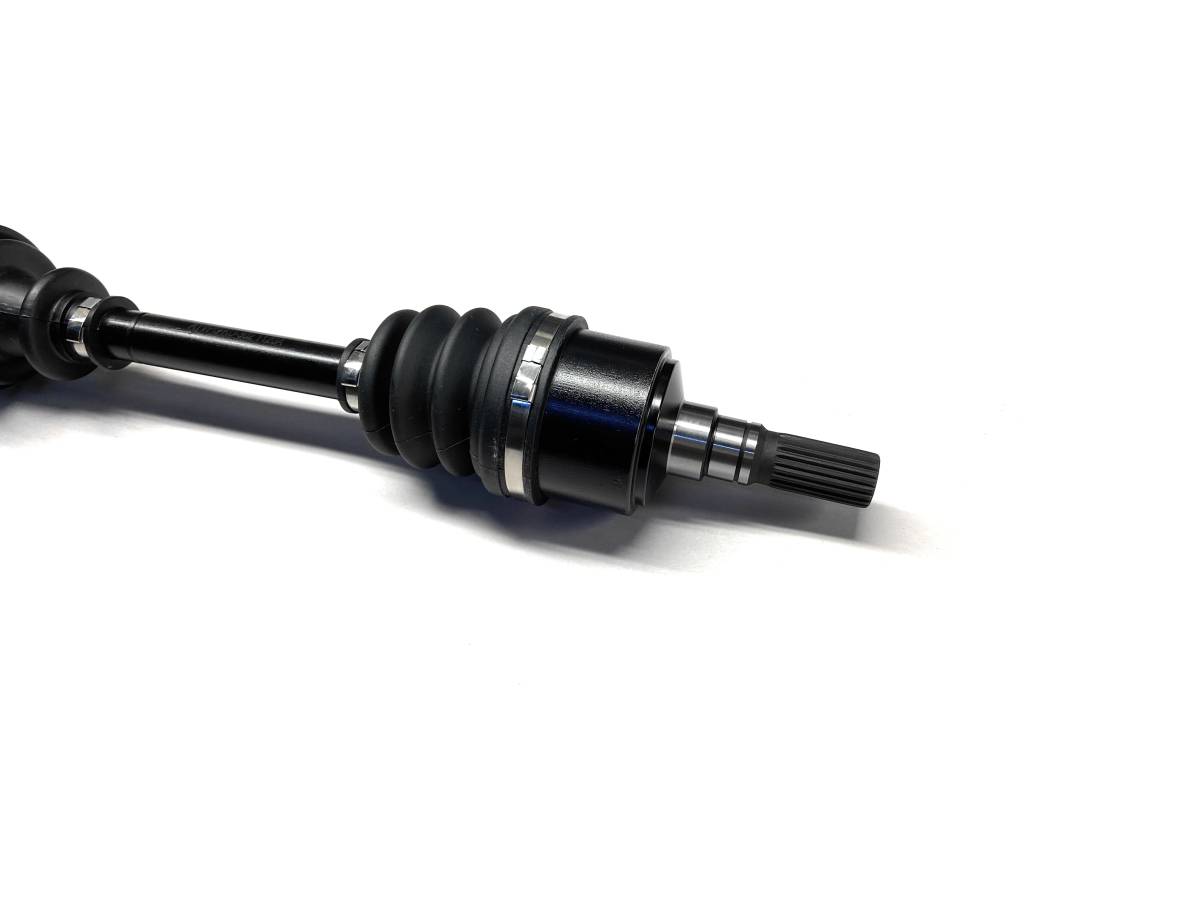

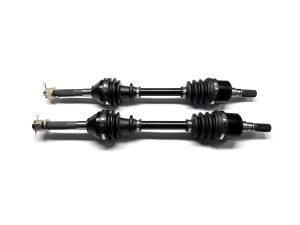

Front CV Axle for Kubota RTV 900, 1100, 1140 & 1200 Late Model, K7581-15310

Location on vehicle: Front,Left,Right

(0) Reviews: Write first review

SKU: KU-302

This is a new Front CV axle for a Kubota UTV.

It will fit the following 4x4 applications:

2009-2015 ... RTV 900 (late model)

2009-2015 ... RTV 1100 (late model)

2009-2015 ... RTV 1140 (late model)

2009-2014 ... RTV 1200 (late model)

*Not intended for use in lifted vehicles

Product features:

Stronger than OEM chromoly hardened steel axle bar
Greased with a moly based grease to provide superior joint lubrication
Fitted with neoprene CV boots for added wear & puncture resistance
Inboard CV joint spline count: 21
Outboard CV joint spline count: 21
Compressed overall axle length: 591.5 mm

Shipping: Free Shipping - Same Day If Ordered Before 3 EST

Pricing: $69.99

Application List
Product Notes
Warranty
Details
Shipping
Reviews

Application List

Year	Make	Model	Submodel	Notes
2010	Kubota	RTV900	General Purpose	late models
2010	Kubota	RTV900	Utility	late models
2010	Kubota	RTV900	Worksite	late models
2009	Kubota	RTV900	General Purpose	late models
2009	Kubota	RTV900	Utility	late models
2009	Kubota	RTV900	Worksite	late models
2013	Kubota	RTV1100	--	late models
2012	Kubota	RTV1100	--	late models
2011	Kubota	RTV1100	--	late models
2010	Kubota	RTV1100	--	late models
2009	Kubota	RTV1100	--	late models
2015	Kubota	RTV1140	CPX	late models
2015	Kubota	RTV1140	CPX Orange	late models
2015	Kubota	RTV1140	CPX Realtree Camouflage	late models
2014	Kubota	RTV1140	CPX	late models
2013	Kubota	RTV1140	CPX	late models
2012	Kubota	RTV1140	CPX	late models
2011	Kubota	RTV1140	CPX	late models
2010	Kubota	RTV1140	CPX	late models
2009	Kubota	RTV1140	--	late models

Product Notes

Fits: 2009-2015 RTV 900 (late models), 2009-2015 RTV 1100 (late models), 2009-2015 RTV 1140 (late models), 2009-2014 RTV 1200 (late models).

Fitted with neoprene CV boots for added wear & puncture resistance. Greased with a moly based grease to provide superior joint lubrication.

Compressed overall axle length: 591.5 mm, Inboard CV joint splines: 21, Outboard CV joint splines: 21.

OEM Replacement # K7581-15310.

Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.
