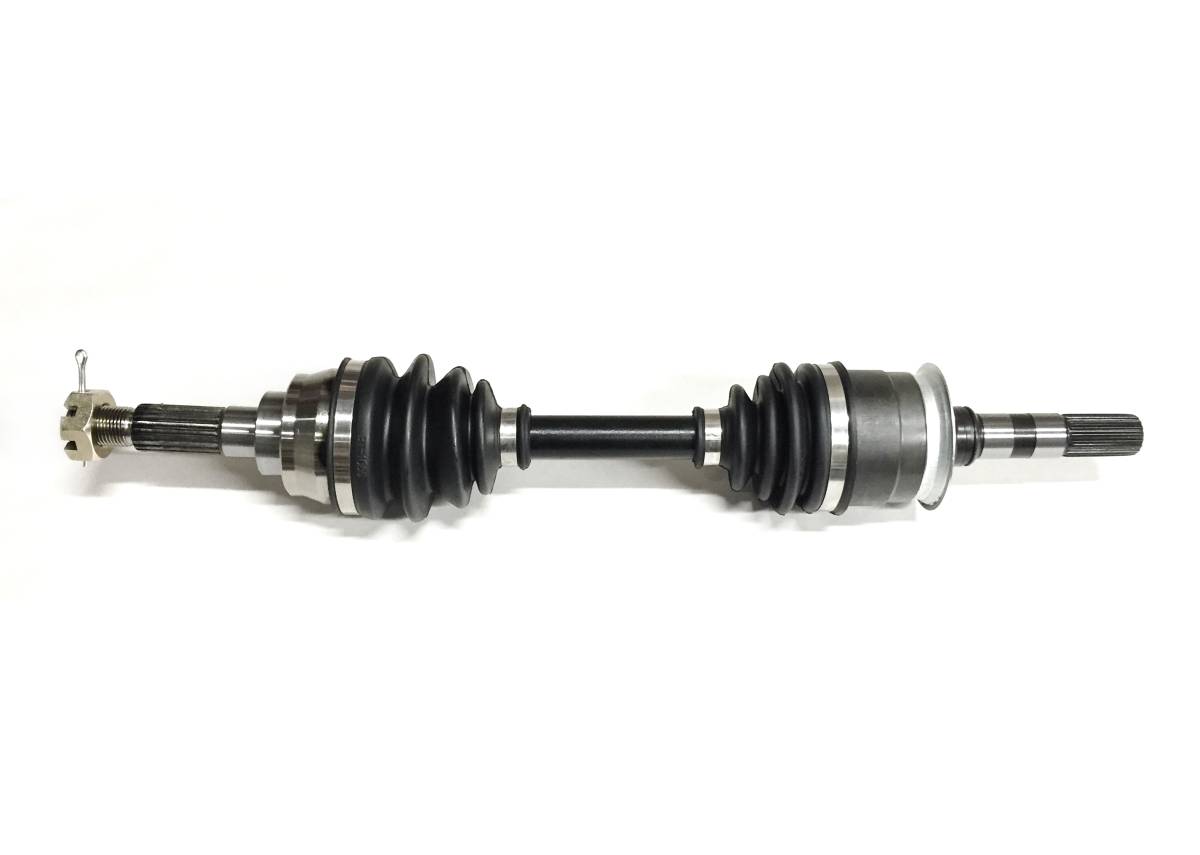

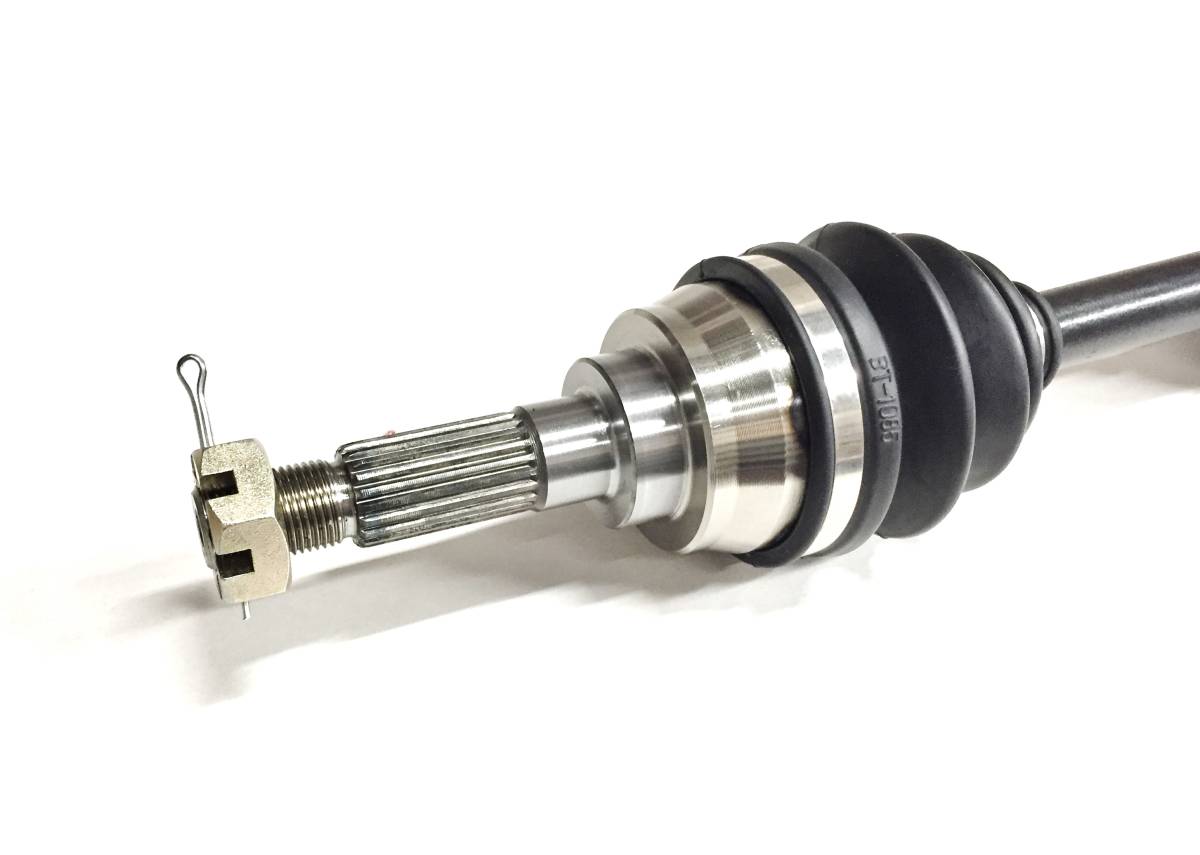

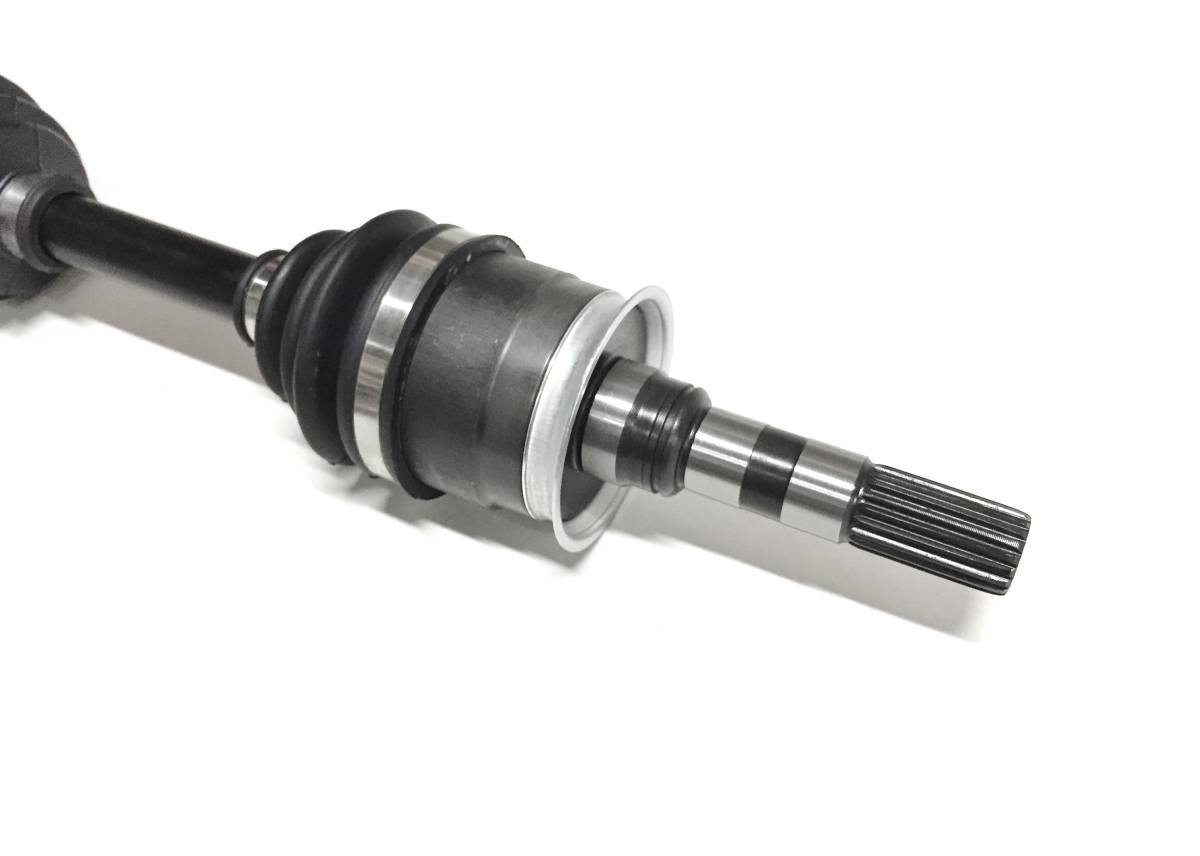

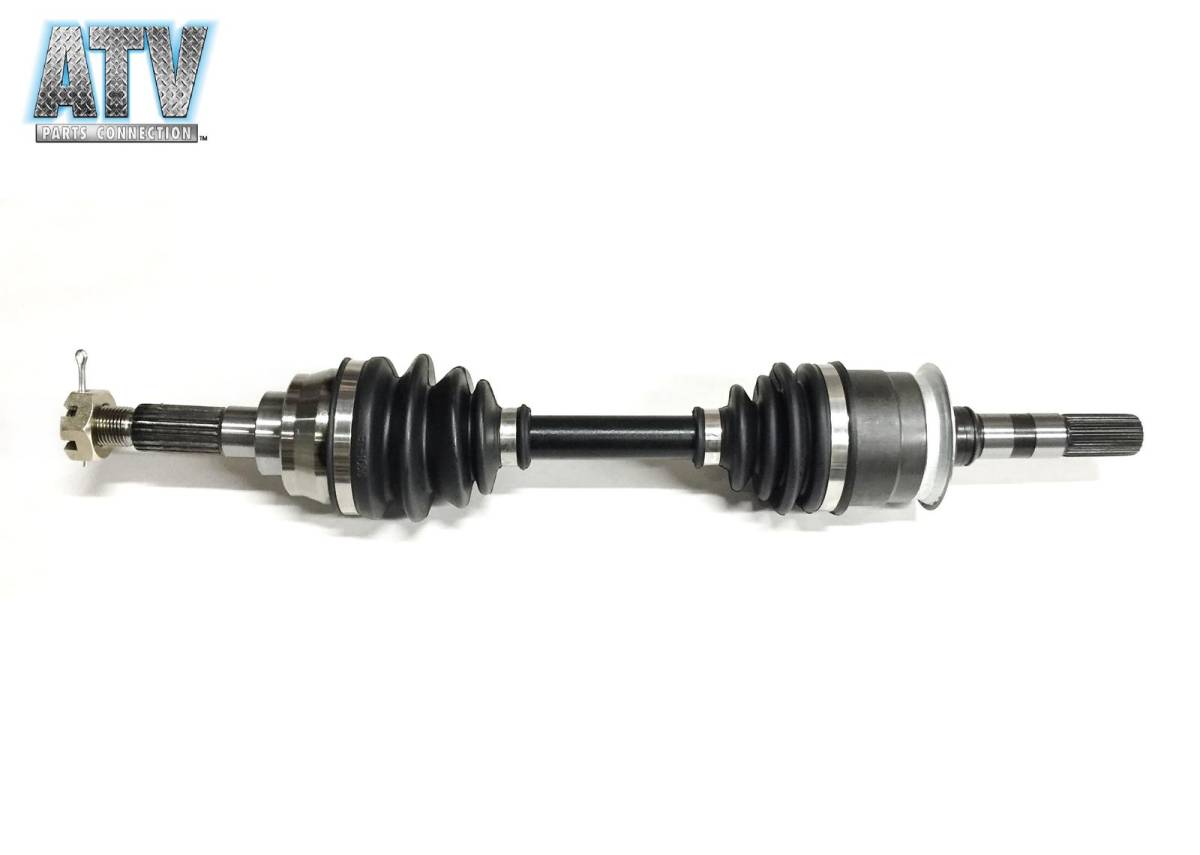

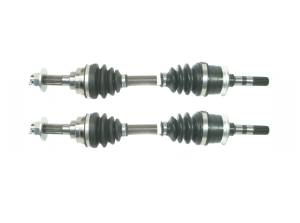

Front CV Axle for Kawasaki Bayou 300 1989-2005 & Bayou 400 1993-1999 4x4

Location on vehicle: Front,Left,Right

KW-308
This is a new Front CV axle for a Kawasaki ATV.

It will fit the following 4x4 models:

1989-2005 ... Bayou 300

1993-1999 ... Bayou 400

Front, Left or Right

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance
  • Inboard CV joint spline count: 19
  • Outboard CV joint spline count: 21
  • Compressed overall axle length: 471 mm
  • Replaces Kawasaki OEM # 59266-1103, 59266-1096
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $79.99
Qty:
Free ground shipping for lower 48 states ( some exclusions may apply)

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits 1989-2005 Bayou 300 4x4 & 1993-1999 Bayou 400 4x4.
  • Features a stronger than OEM chromoly forged steel axle bar. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.
  • Compressed Length - 471 mm, Inboard Spline Count - 19, Outboard Spline Count - 21.
  • Replaces Kawasaki OEM # 59266-1103, 59266-1096.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

  • What's In The Box

  • 1 axle
  • Application List

    YearMakeModelSubmodelNotes
    2004KawasakiBayou 300KLF300C 4x4
    2003KawasakiBayou 300KLF300C 4x4
    2002KawasakiBayou 300KLF300C 4x4
    2001KawasakiBayou 300KLF300C 4x4
    2000KawasakiBayou 300KLF300C 4x4
    1999KawasakiBayou 300KLF300C 4x4
    1998KawasakiBayou 300KLF300C 4x4
    1997KawasakiBayou 300KLF300C 4x4
    1996KawasakiBayou 300KLF300C 4x4
    1995KawasakiBayou 300KLF300C 4x4
    1994KawasakiBayou 300KLF300C 4x4
    1993KawasakiBayou 300KLF300C 4x4
    1992KawasakiBayou 300KLF300C 4x4
    1991KawasakiBayou 300KLF300C 4x4
    1990KawasakiBayou 300KLF300C 4x4
    1989KawasakiBayou 300KLF300C 4x4
    1999KawasakiBayou 400KLF400B 4x4
    1998KawasakiBayou 400KLF400B 4x4
    1997KawasakiBayou 400KLF400B 4x4
    1996KawasakiBayou 400KLF400B 4x4
    1995KawasakiBayou 400KLF400B 4x4
    1994KawasakiBayou 400KLF400B 4x4
    1993KawasakiBayou 400KLF400B 4x4

    Details

    Shipping Information

    • Item Requires Shipping
    • 7.5 lbs.
    • W5.0000” x H5.0000” x L25.0000”
