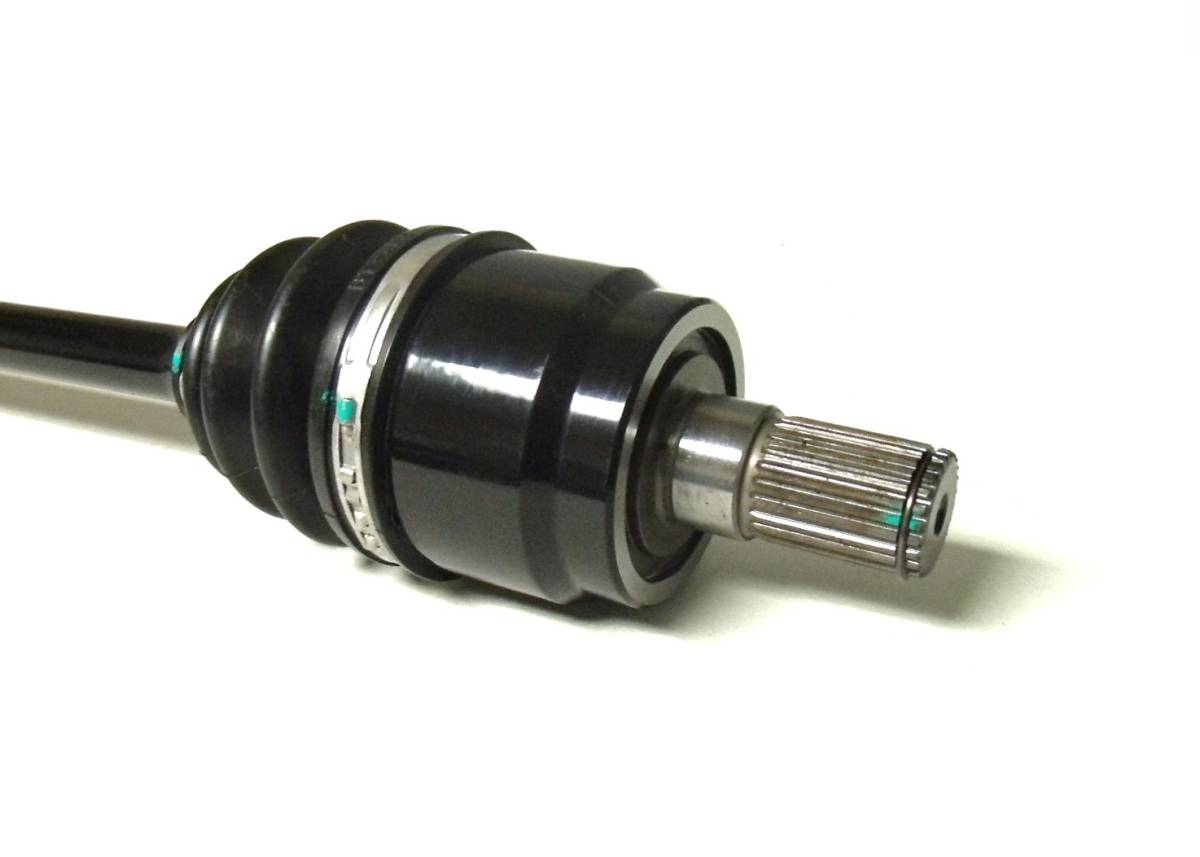

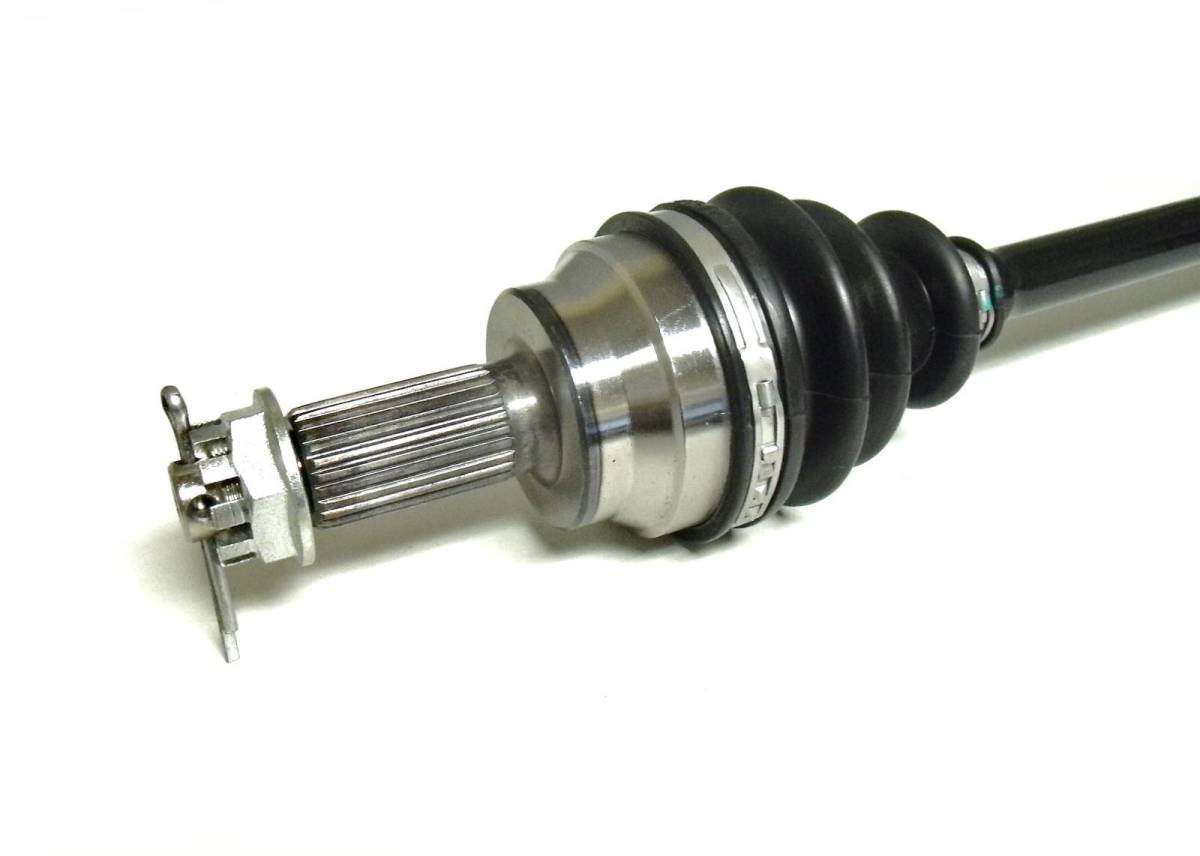

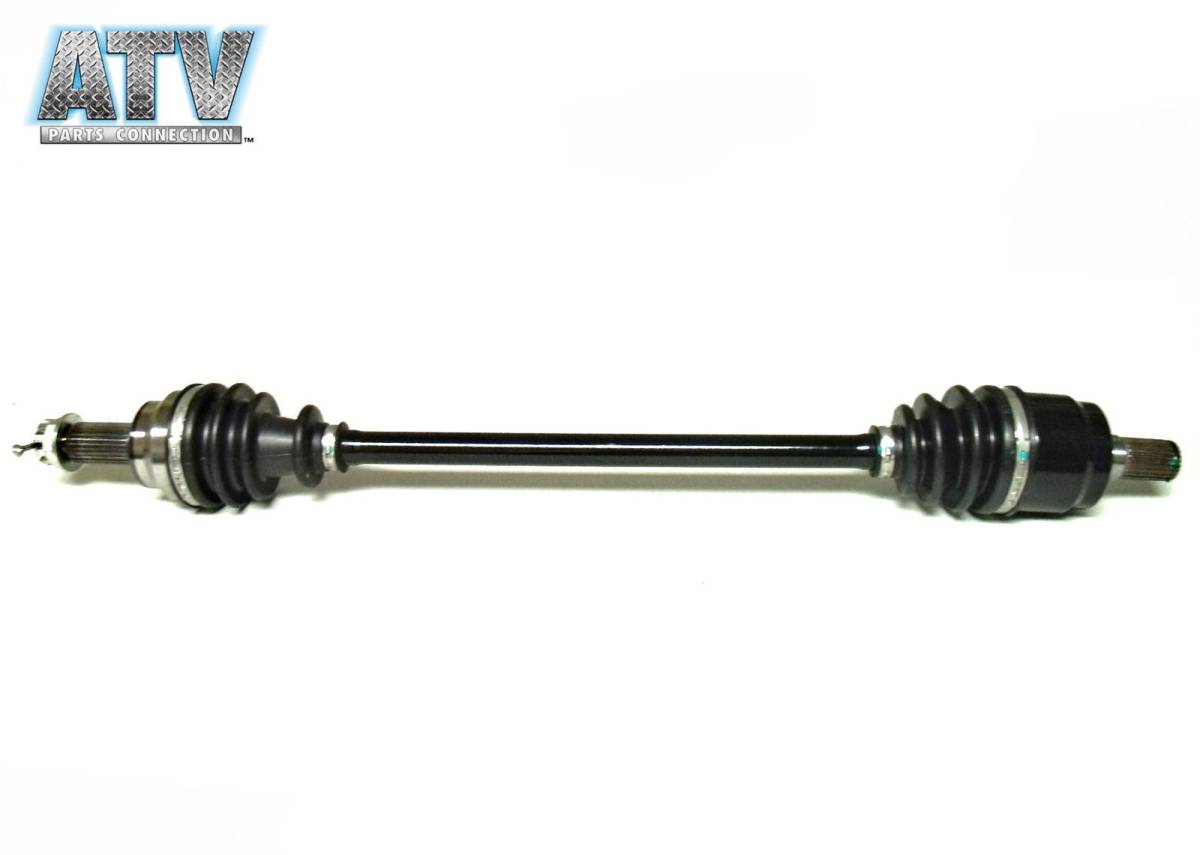

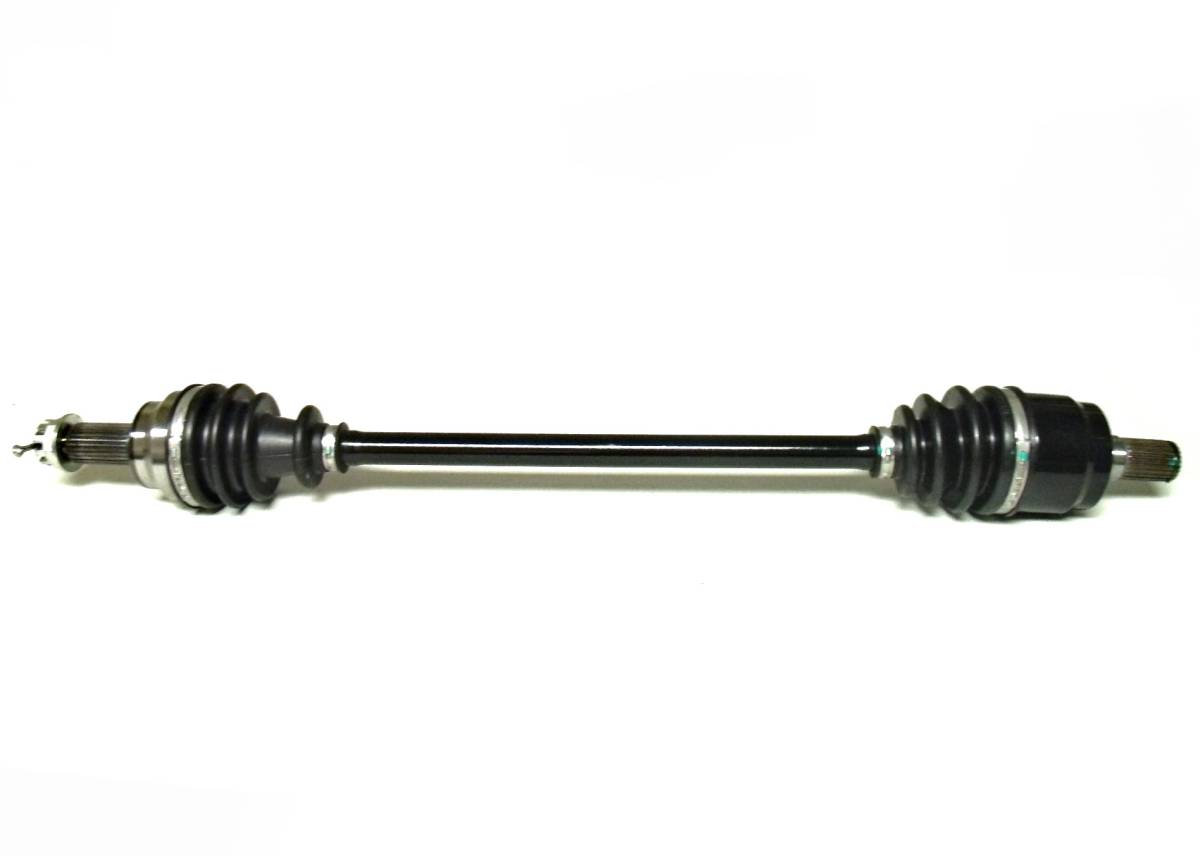

Rear CV Axle for Honda Pioneer 700 & 700-4 4x4 2015-2021

Location on vehicle: Rear,Left,Right

(0) Reviews: Write first review
HO-370
This is a new CV axle for a Honda UTV.

It will fit the following 4x4 applications:

2015-2021 ..... Pioneer 700/700-4

Rear, Left or Right side

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance
  • Inboard CV joint spline count: 25
  • Outboard CV joint spline count: 26
  • Compressed overall axle length: 691 mm
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $73.99
Qty:
Free Ground Shipping

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits REAR, LEFT or RIGHT on the 2015-2021 Honda Pioneer 700 & 700-4 (SXS700, SXS700-2, SXS700-4).
  • Stronger than OEM chromoly hardened steel axle bar. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear & puncture resistance.
  • Inner joint spline count: 25, Outer joint spline count: 26, Compressed axle length: 691 mm.
  • Replaces OE # 42300-HL3-A41, 42200-HL3-A41, 42220-HL3-A01.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

    • What's In The Box

  • 1 axle

    • Application List

    YearMakeModelSubmodelNotes
    2021HondaPioneer 700SXS700M2
    2021HondaPioneer 700SXS700M2D Deluxe
    2020HondaPioneer 700SXS700M2
    2020HondaPioneer 700SXS700M2D Deluxe
    2019HondaPioneer 700SXS700M2
    2019HondaPioneer 700SXS700M2D Deluxe
    2018HondaPioneer 700SXS700M2
    2018HondaPioneer 700SXS700M2D Deluxe
    2017HondaPioneer 700SXS700M2
    2017HondaPioneer 700SXS700M2D Deluxe
    2016HondaPioneer 700SXS700M2
    2015HondaPioneer 700SXS700M2
    2021HondaPioneer 700-4SXS700M4
    2021HondaPioneer 700-4SXS700M4D Deluxe
    2020HondaPioneer 700-4SXS700M4
    2020HondaPioneer 700-4SXS700M4D Deluxe
    2019HondaPioneer 700-4SXS700M4
    2019HondaPioneer 700-4SXS700M4D Deluxe
    2018HondaPioneer 700-4SXS700M4
    2018HondaPioneer 700-4SXS700M4D Deluxe
    2017HondaPioneer 700-4SXS700M4
    2017HondaPioneer 700-4SXS700M4D Deluxe
    2016HondaPioneer 700-4SXS700M4
    2015HondaPioneer 700-4SXS700M4
    2022HondaPioneer 700SXS700M2
    2022HondaPioneer 700SXS700M2D Deluxe

    Details

    Categories

    Shipping Information

    • Item Requires Shipping
    • 10.2 lbs.
    • W5.0000” x H5.0000” x L32.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
