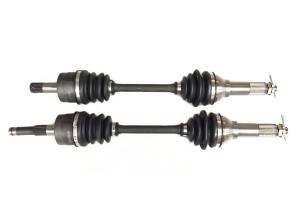

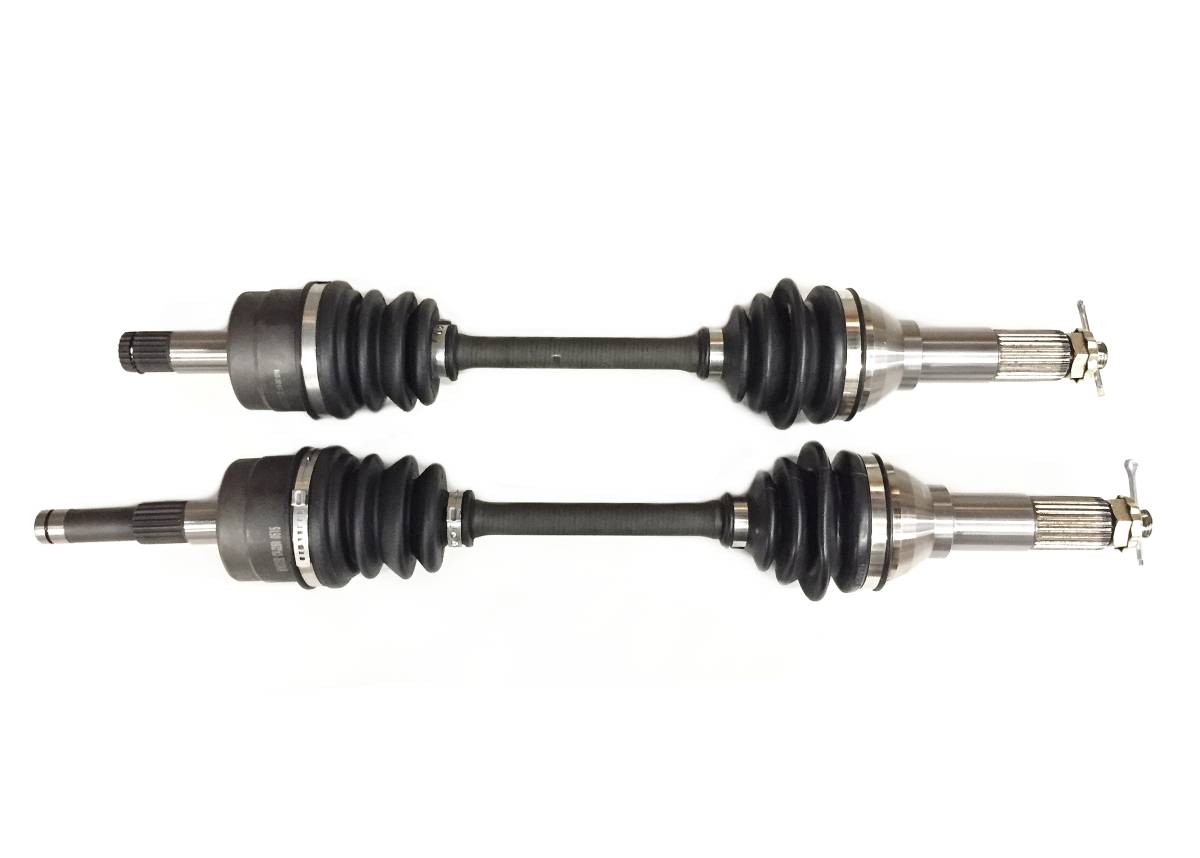

Front CV Axle Pair for Yamaha Grizzly 660 4x4 2002

Location on vehicle: Front,Left,Right

This is a pair of new Front, Left & Right CV axles for a Yamaha ATV.

They fit the following 4x4 applications:

2002 ... Grizzly 660

Front, Left & Right

*Not intended for use in lifted vehicles

Product features:

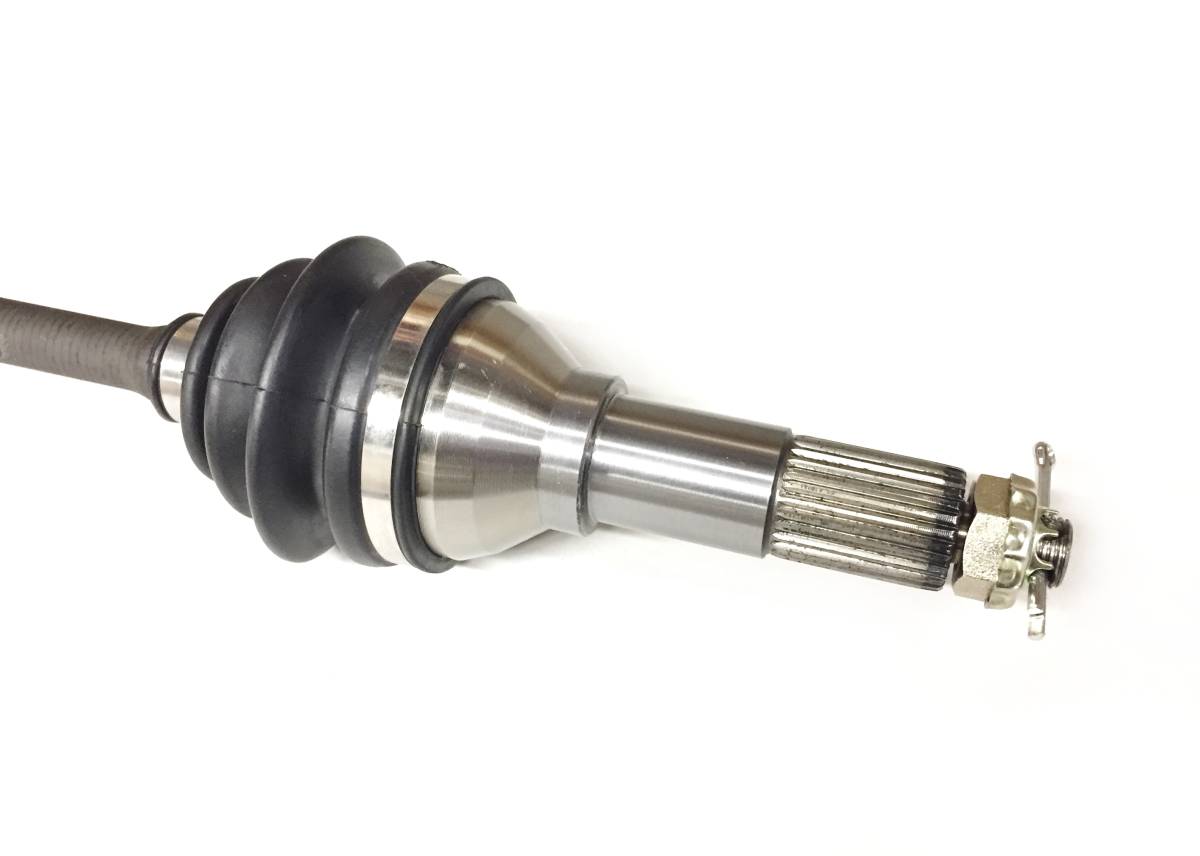

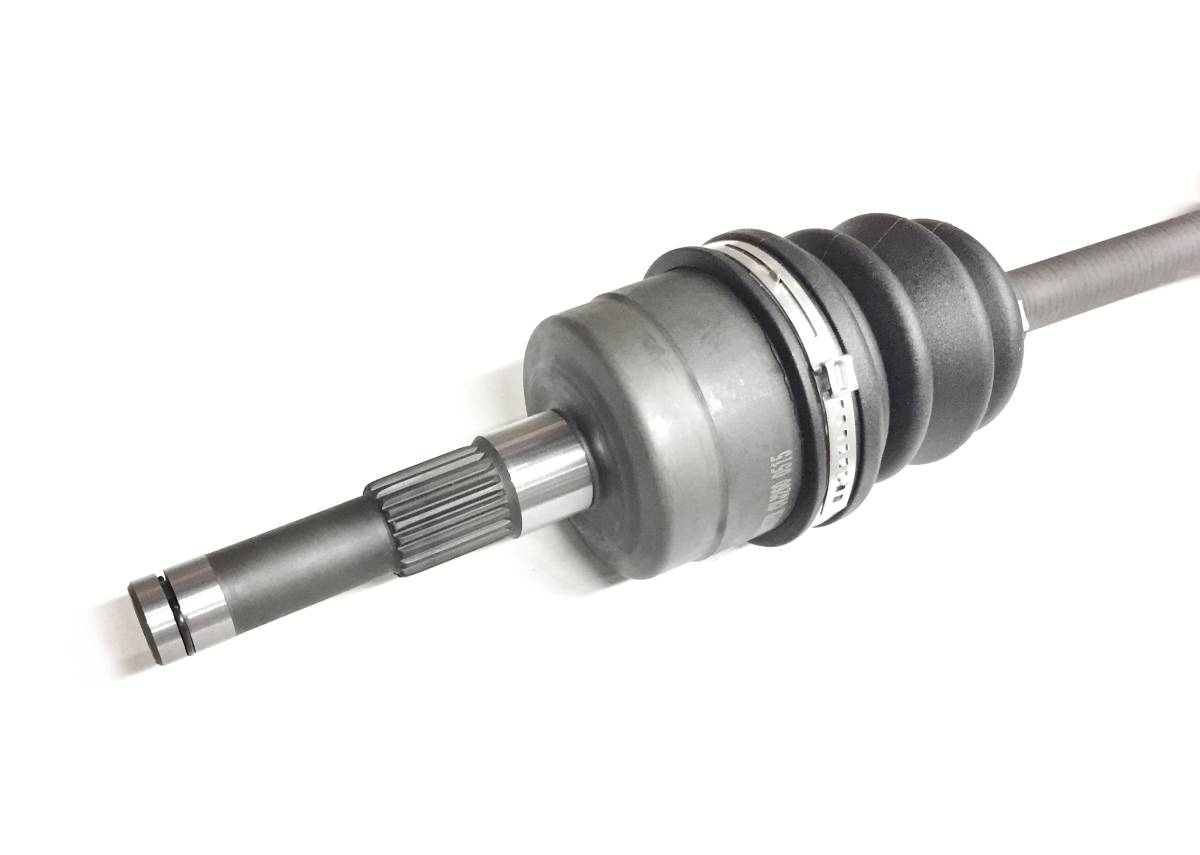

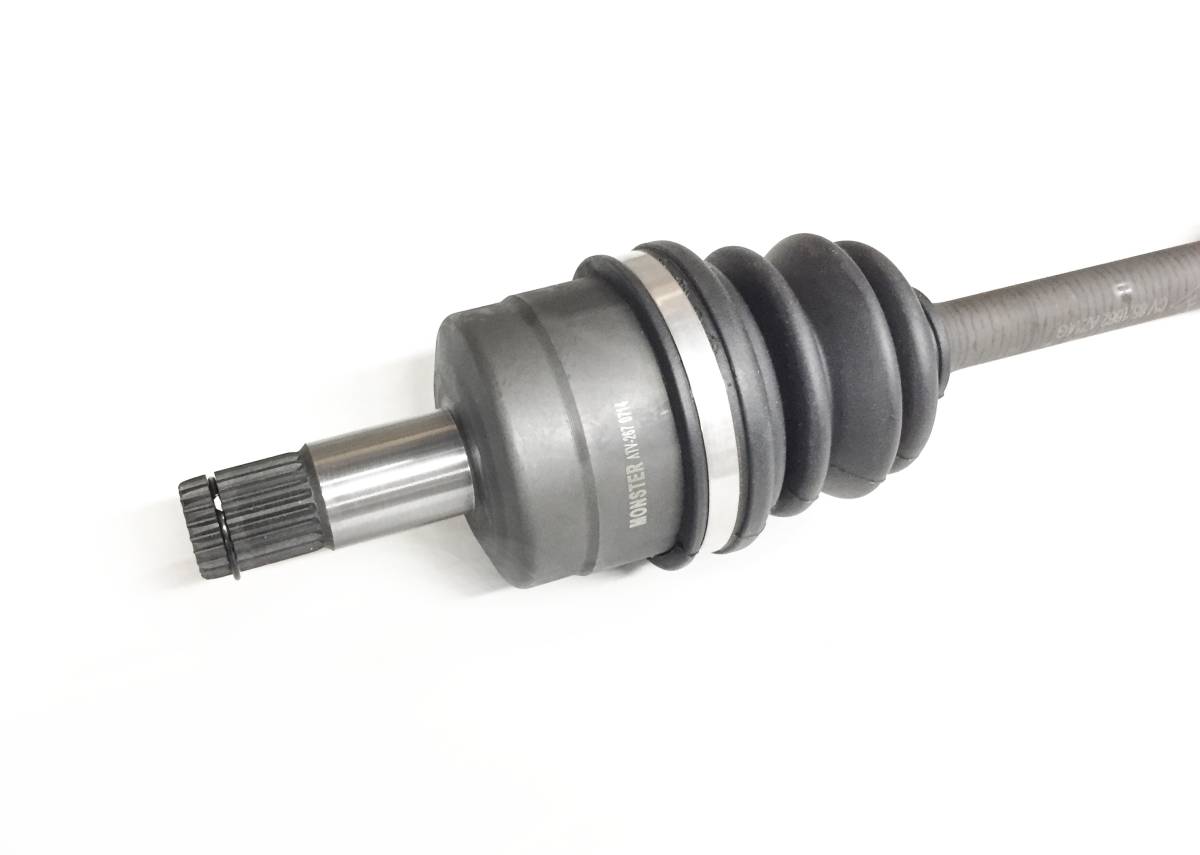

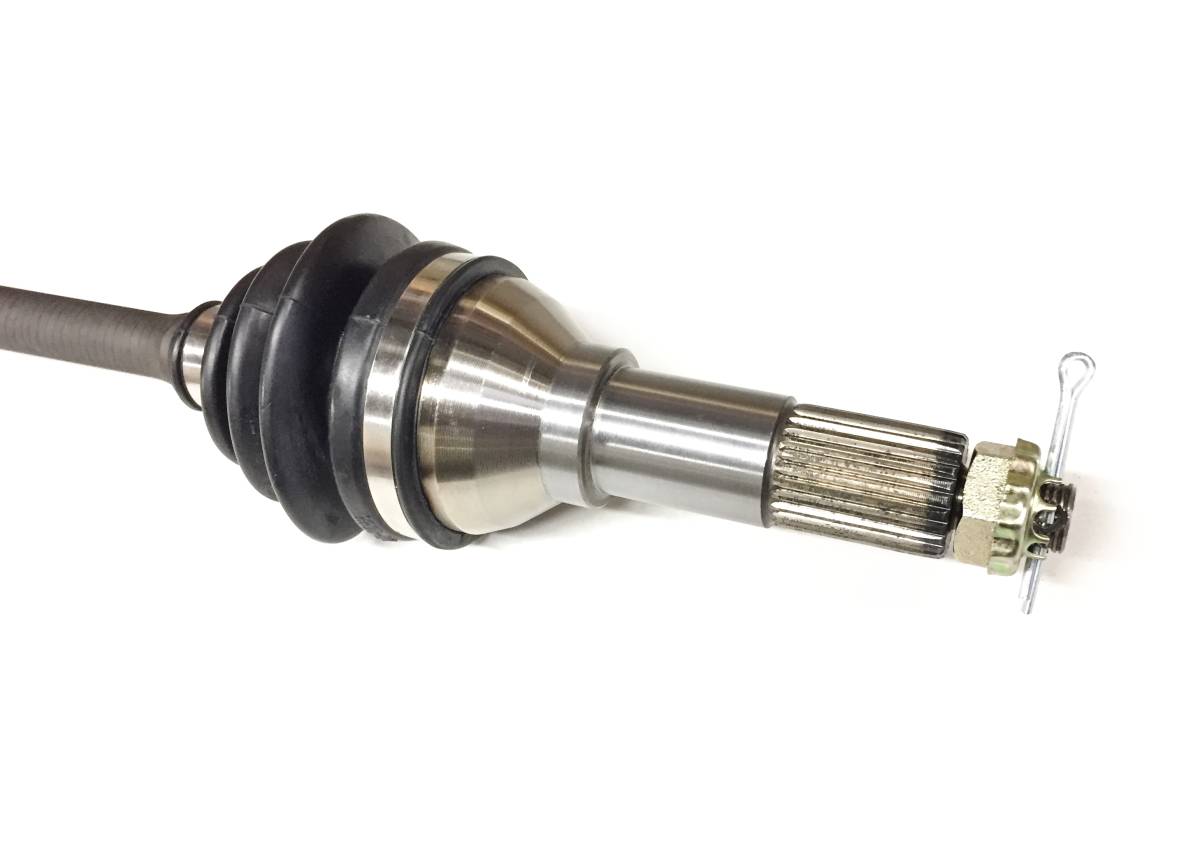

  • Stronger than OEM chromoly forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene boots for added wear & puncture resistance
  • Inboard CV joint spline count: 21 (both)
  • Outboard CV joint spline count: 27 (both)
  • Compressed overall axle length: Left- 551 mm, Right- 509.5 mm
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $129.99
Free Ground Shipping


1 year factory defect limited warranty

Product Notes

  • Fits 2002 Yamaha Grizzly 660 4x4 ATV. Models YFM660-FP/FPS/FHP.
  • Features a stronger than OEM chromoly steel shaft fitted with neoprene boots filled with moly based grease for added wear and puncture resistance.
  • Inner Splines: 21 (both), Outer Splines: 27 (both), Compressed length: L: 551 mm, R: 509.5 mm
  • Replaces OE # Replaces OE # 5KM-2510J-00-00, 5KM-2510F-00-00, 5KM-2510J-10-00, 5KM-2510F-00-00.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

  • What's In The Box

  • 2 axles
  • Application List

    2002YamahaGrizzly 660YFM660F 4x4
    2002YamahaGrizzly 660YFM660FH 4x4 Hunter Edition


    • YA-213/YA-214
    • YA-213/YA-214
    • ATV Parts Connection
    • Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 15.8 lbs.
    • W5.0000” x H10.0000” x L24.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
