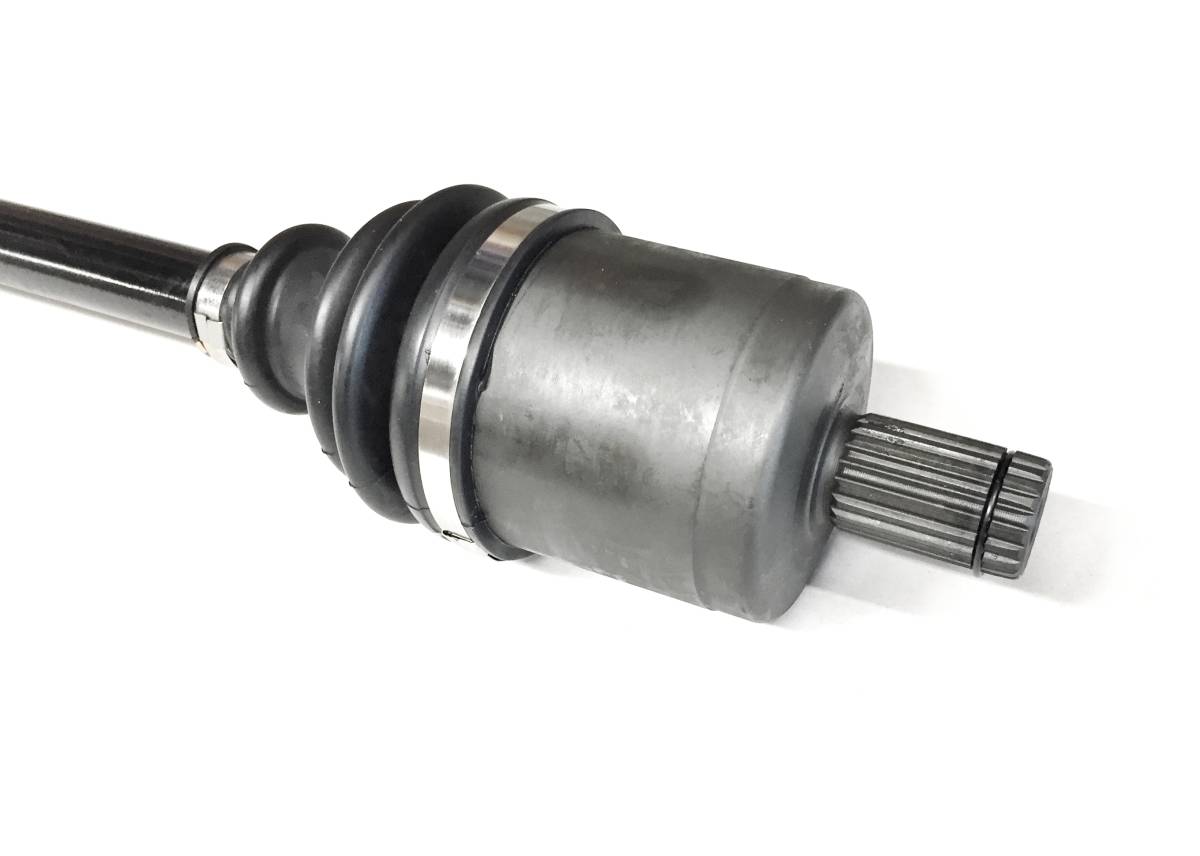

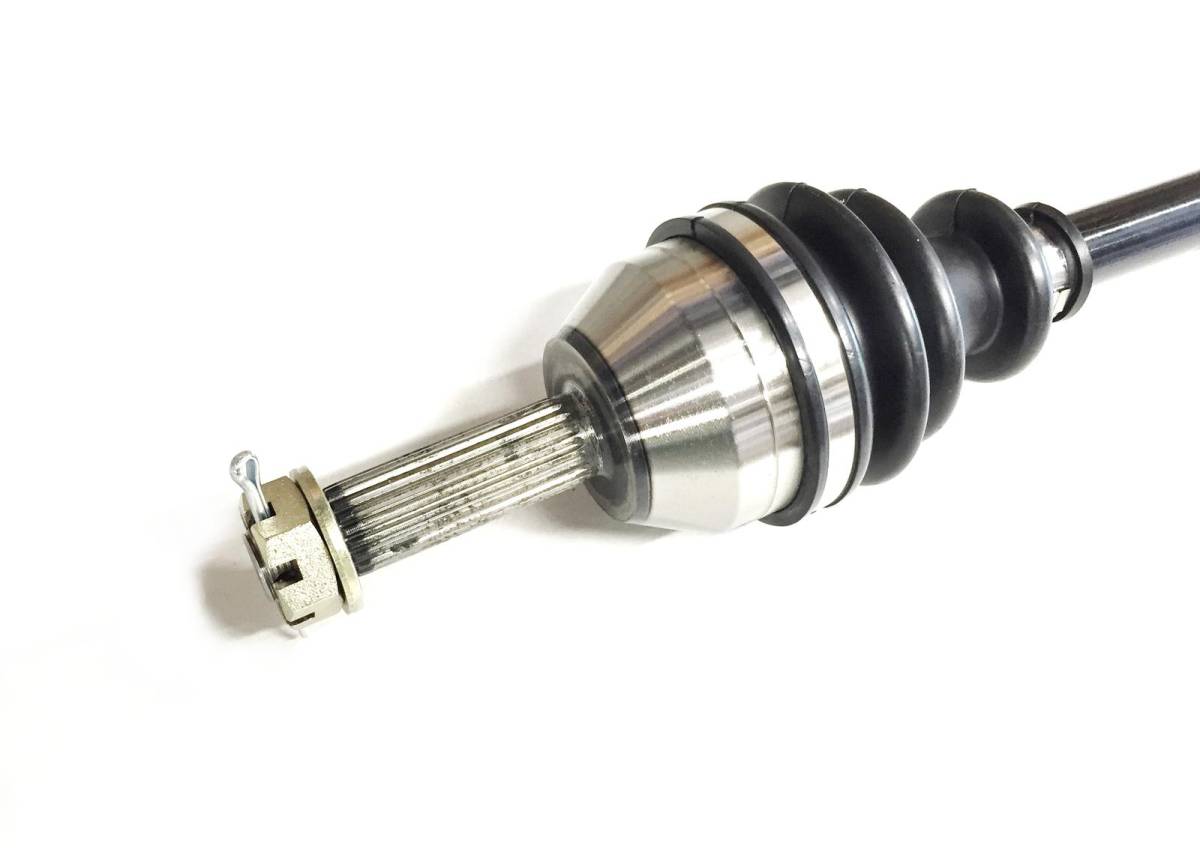

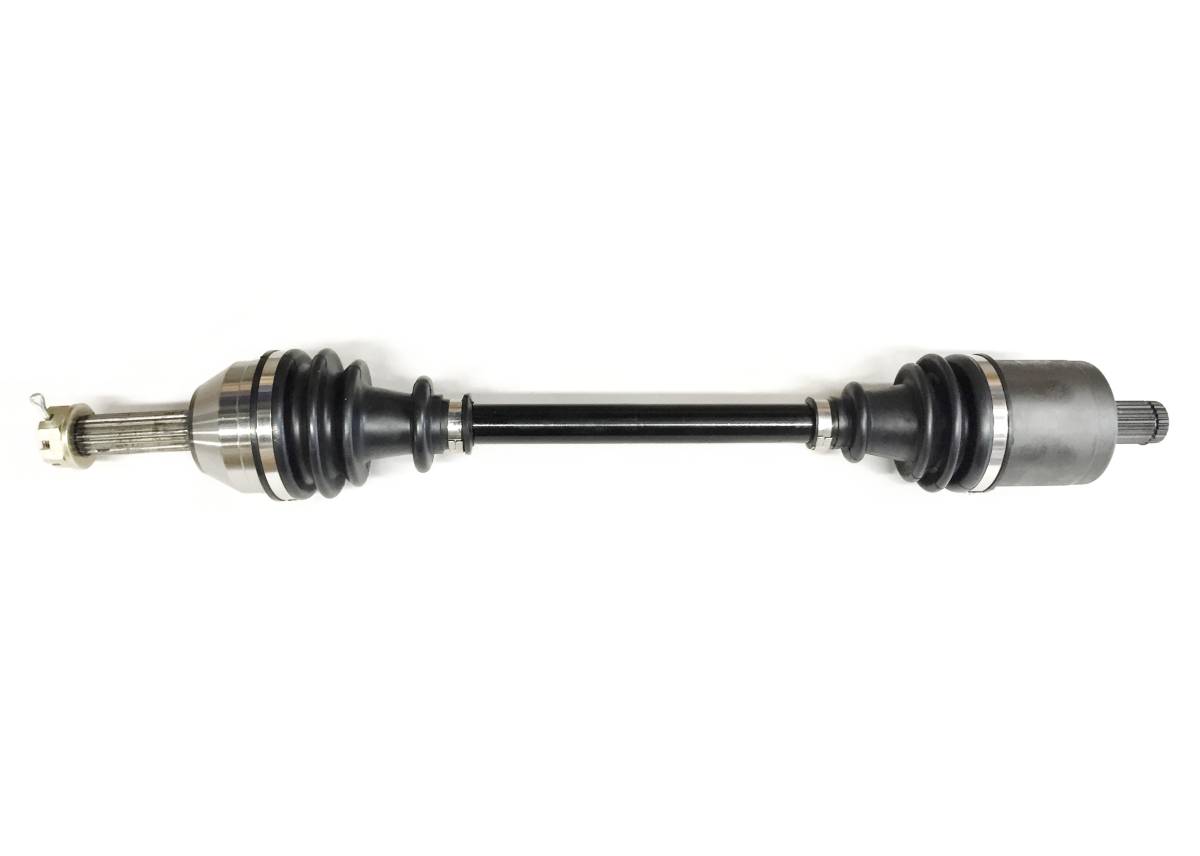

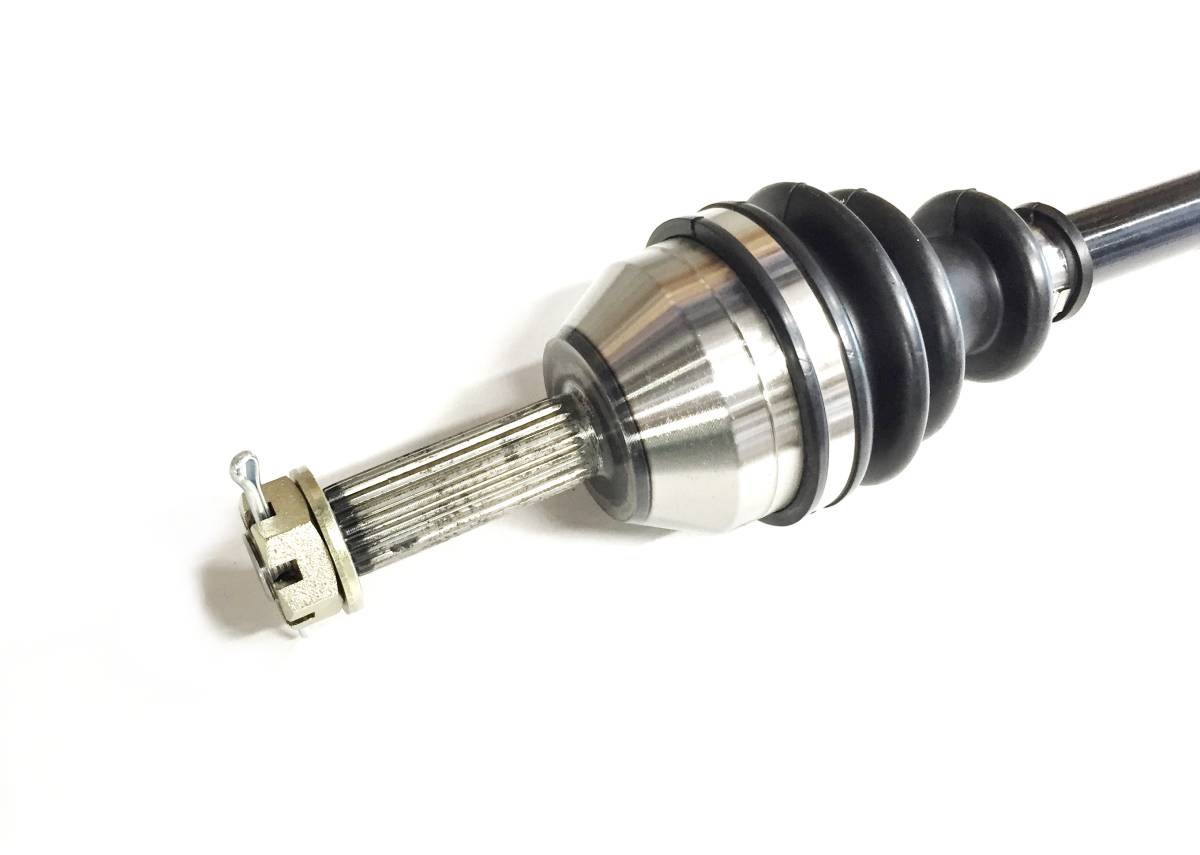

Front CV Axle for Polaris Ranger 400 500 570 & Midsize 800 4x4 1333134

Location on vehicle: Front,Left,Right

PO-314
This is a new Front CV axle for a Polaris UTV.

It will fit the following 4x4 applications:

2010-2014 ... Ranger 400

2011-2013 ... Ranger 500/Crew 500

2014 ... Ranger 570/Crew 570

2013-2014 ... Ranger Midsize 800

Front, Left or Right

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance
  • Inboard CV joint spline count: 22
  • Outboard CV joint spline count: 20
  • Compressed overall axle length: 594 mm
  • Replaces Polaris OE # 1333134, 1332690, 2203877
Limited Supply: only 9 remaining
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $91.99
Qty:
Free ground shipping for lower 48 states ( some exclusions may apply)

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits front left or right on the 2010-2014 Ranger 400, 2011-2013 Ranger 500/Crew 500, 2014 Ranger 570/Crew 570, & 2013-2014 Ranger Midsize 800.
  • Features a stronger than OEM chromoly forged steel axle bar. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.
  • Compressed Length - 594 mm * Inboard Spline Count - 22 * Outboard Spline Count - 20.
  • Replaces Polaris OE # 1333134, 1332690, 2203877.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

  • What's In The Box

  • 1 axle
  • Application List

    YearMakeModelSubmodelNotes
    2014PolarisRanger 4004X4
    2013PolarisRanger 400Midsize
    2012PolarisRanger 4004X4
    2012PolarisRanger 4004x4 Pursuit
    2011PolarisRanger 4004X4
    2011PolarisRanger 400Pursuit HO
    2010PolarisRanger 4004X4
    2013PolarisRanger 500LE Midsize EFI
    2013PolarisRanger 500Midsize EFI
    2012PolarisRanger 5004x4 EFI
    2012PolarisRanger 5004x4 LE EFI
    2011PolarisRanger 5004x4 EFI
    2014PolarisRanger 570EFI
    2014PolarisRanger 570LE EFI EPS
    2014PolarisRanger 570Pursuit EFI
    2014PolarisRanger 800Midsize EFI
    2014PolarisRanger 800Midsize LE EFI EPS
    2014PolarisRanger 800Midsize Pursuit EFI
    2013PolarisRanger 800LE Midsize EFI
    2013PolarisRanger 800Midsize EFI
    2013PolarisRanger Crew 500LE Midsize
    2013PolarisRanger Crew 500Midsize
    2013PolarisRanger Crew 500Pursuit
    2012PolarisRanger Crew 5004X4
    2012PolarisRanger Crew 5004x4 LE
    2011PolarisRanger Crew 5004X4
    2011PolarisRanger Crew 5004x4 Pursuit
    2014PolarisRanger Crew 570EFI
    2014PolarisRanger Crew 570LE EFI EPS
    2014PolarisRanger Crew 570Pursuit EFI

    Details

    Shipping Information

    • Item Requires Shipping
    • 11.0 lbs.
    • W5.0000” x H5.0000” x L32.0000”
    • Free ground shipping for lower 48 states ( some exclusions may apply)
    • Free Shipping - Same Day If Ordered Before 3 EST
