Front CV Axle Pair for Polaris Sportsman 400 450 500 600 700 800 2005-2006

Location on vehicle: Front,Left,Right

SKU: PO-305/PO-305

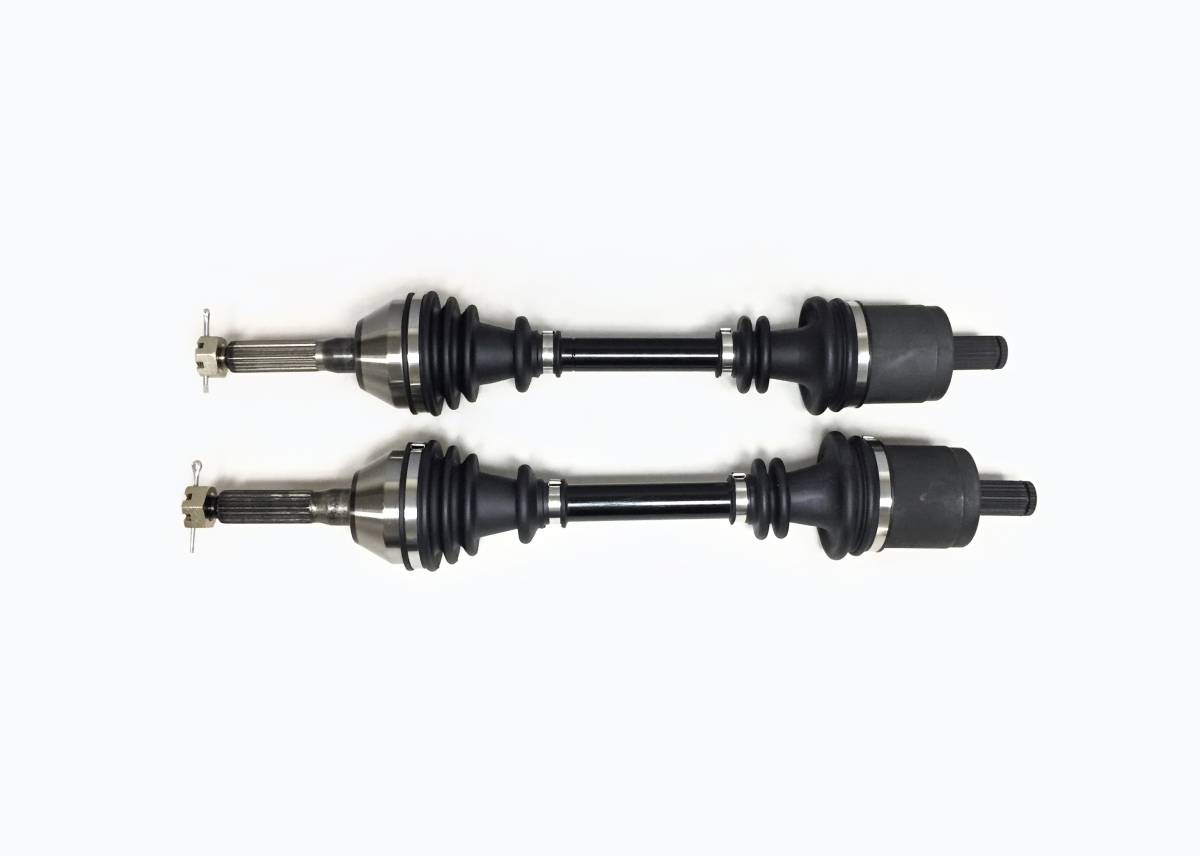

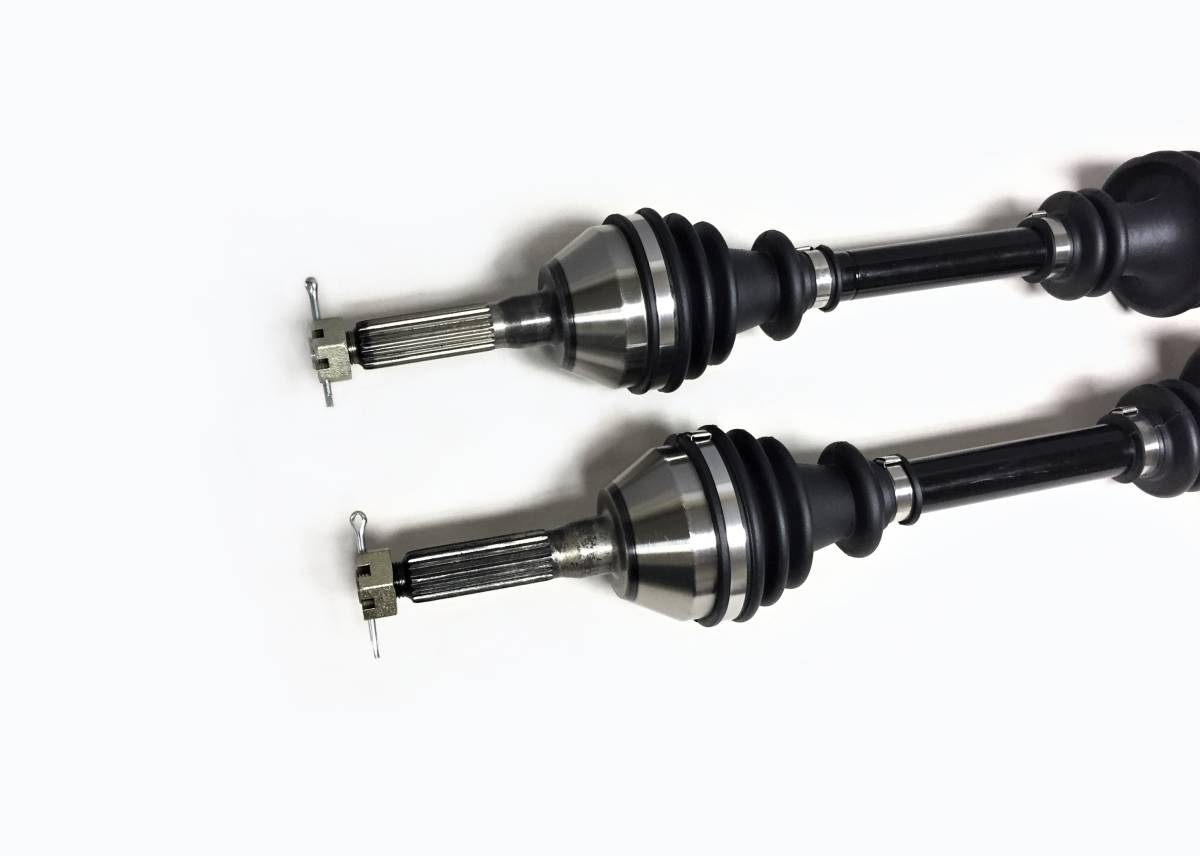

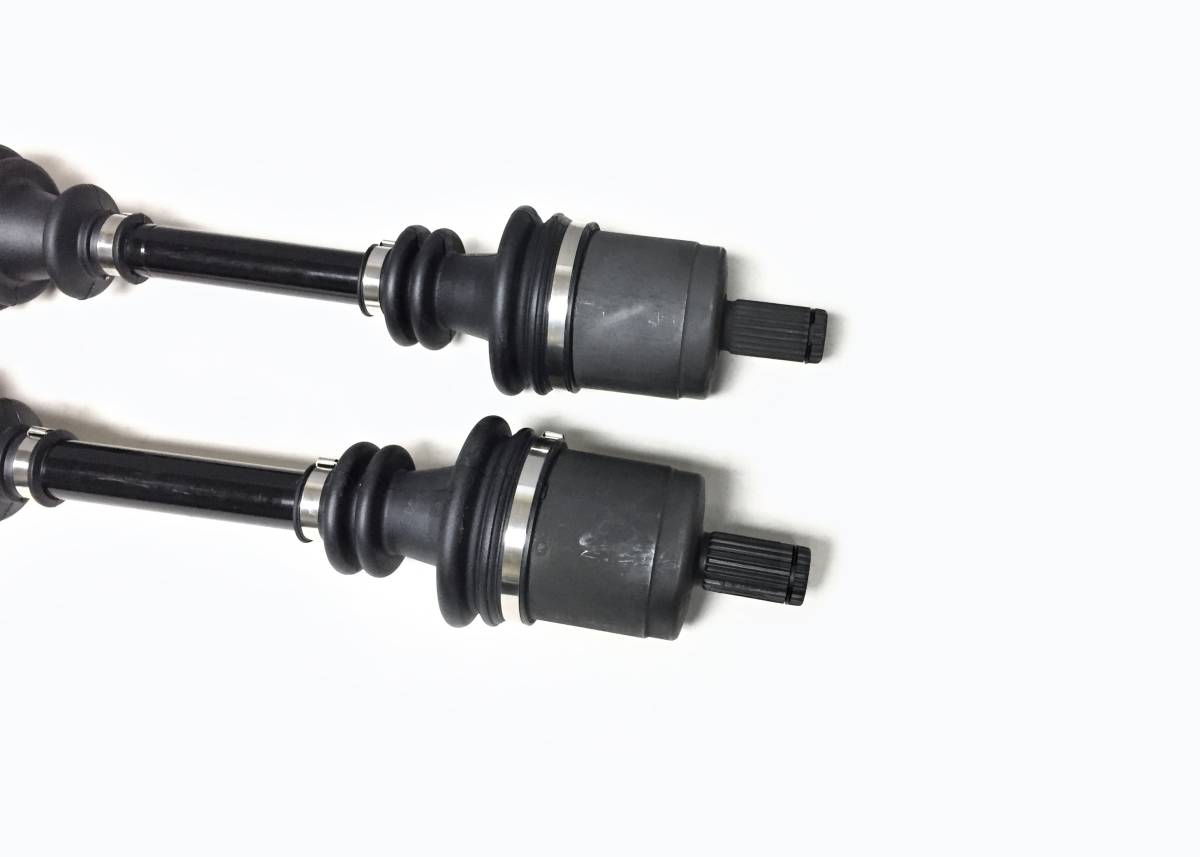

This is a pair of new Front CV axles for a Polaris ATV.

They fit the following 4x4 models:

2005 ... Sportsman 400
2006 ... Sportsman 450
2005 - 2006 ... Sportsman 500
2005 ... Sportsman 600
2005-2006 ... Sportsman 700
2005-2006 ... Sportsman 800

Front, Left & Right

*Not intended for use in lifted vehicles

Product features:

Stronger than OEM chromoly forged steel axle bar
Greased with a moly based grease to provide superior joint lubrication
Fitted with neoprene CV boots for added wear & puncture resistance
Inboard CV joint spline count: 22 (both)
Outboard CV joint spline count: 20 (both)
Compressed overall axle length: 523 mm (both)

Limited Supply: only 5 remaining

Shipping: Free Shipping - Same Day If Ordered Before 3 EST

Pricing: $124.99

Application List
Product Notes
Warranty
Details
Shipping
Reviews

Application List

Year	Make	Model	Submodel
2005	Polaris	Sportsman 400	4X4
2006	Polaris	Sportsman 450	4X4
2006	Polaris	Sportsman 450	4x4 Browning
2006	Polaris	Sportsman 500	4x4 Browning HO EFI
2006	Polaris	Sportsman 500	4x4 HO
2006	Polaris	Sportsman 500	4x4 HO EFI
2005	Polaris	Sportsman 500	4x4 HO
2005	Polaris	Sportsman 600	Twin
2006	Polaris	Sportsman 700	Twin
2006	Polaris	Sportsman 700	Twin Browning EFI
2006	Polaris	Sportsman 700	Twin EFI
2005	Polaris	Sportsman 700	Twin
2005	Polaris	Sportsman 700	Twin EFI
2006	Polaris	Sportsman 800	Twin Browning EFI
2006	Polaris	Sportsman 800	Twin EFI
2005	Polaris	Sportsman 800	Twin EFI
2006	Polaris	Sportsman MV7	--
2005	Polaris	Sportsman MV7	--

Product Notes

Fits the following Polaris 4x4 ATV mmodes: 2005 Sportsman 400, 2006 Sportsman 450, 2005-2006 Sportsman 500 HO, 2005 Sportsman 600, 2005-2006 Sportsman 700, 2005-2006 Sportsman 800, 2005-2006 Sportsman MV7. Set includes 2 axles (as pictured).

Axles feature stronger than OEM chromoly forged steel axle bars. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene boots for added wear and puncture resistance.

Replaces Polaris OE # 1380234.

Compressed Length - 523 mm (both), Inboard Spline Count - 22 (both), Outboard Spline Count - 20 (both).

Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.
