Precision Rear CV Axles for Kawasaki 59266-0046, Left & Right, Quality Tested, Heat-Treated, 4140 Chromoly Steel, Exact Fit, ATVPC

Location on vehicle: Rear,Left,Right

(0) Reviews: Write first review
KW-317/KW-317

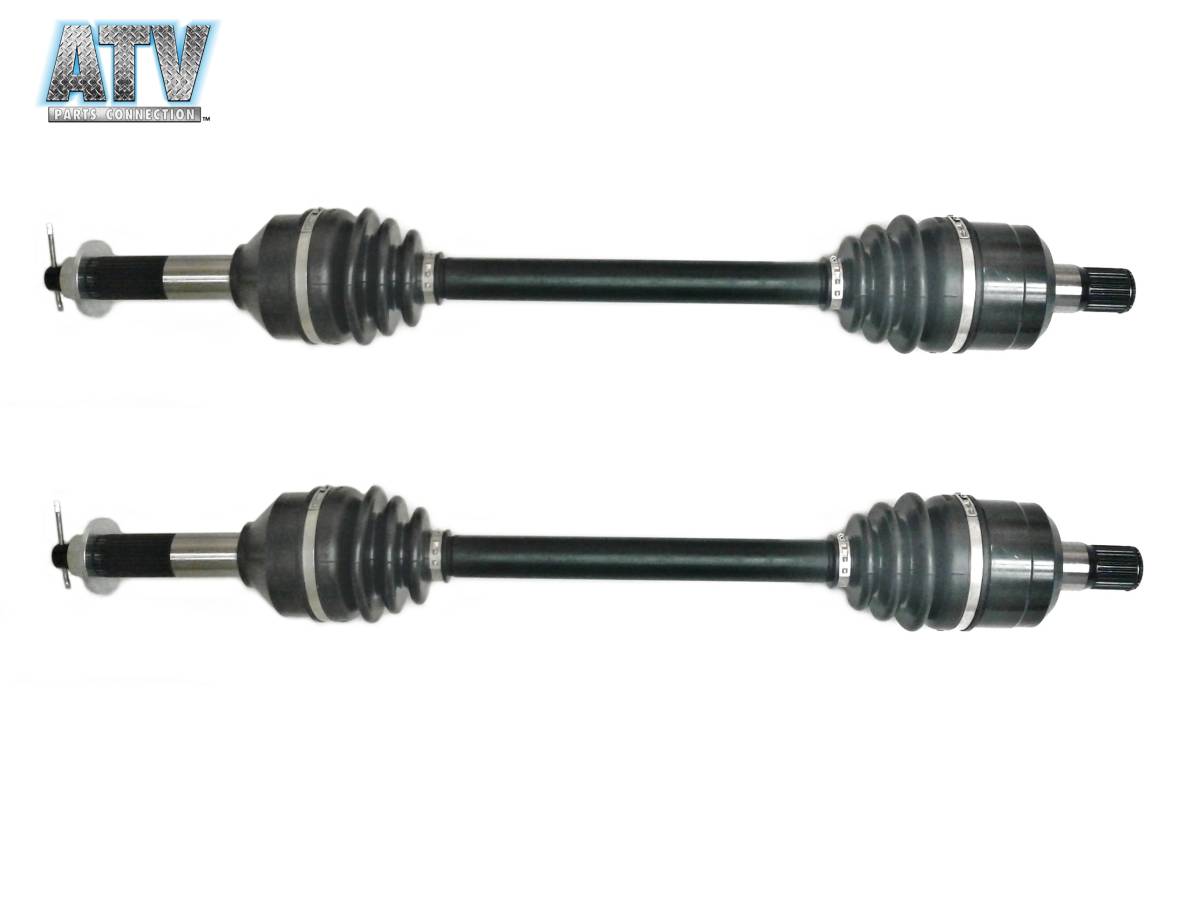

This is a pair of new rear CV axles for a Kawasaki UTV.

They will fit the following 4x4 applications:

2012-2013 ... Teryx4 750

2014-2015 ... Teryx/Teryx4 800

rear, left & right

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance
  • inobard CV joint spline count: 29 (both)
  • outboard CV joint spline count: 29 (both)
  • Compressed overall axle length: 706.5 mm (both)
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $144.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2013KawasakiTeryx4 750KRT750A 4x4
2013KawasakiTeryx4 750KRT750B 4x4 EPS
2013KawasakiTeryx4 750KRT750C 4x4 LE EPS
2013KawasakiTeryx4 750KRT750D 4x4 EPS
2012KawasakiTeryx4 750KRT750A 4x4
2012KawasakiTeryx4 750KRT750B 4x4 EPS
2012KawasakiTeryx4 750KRT750C 4x4 LE EPS
2012KawasakiTeryx4 750KRT750D 4x4 EPS
2015KawasakiTeryx4 800KRT800
2015KawasakiTeryx4 800KRT800 Camo
2015KawasakiTeryx4 800KRT800 LE
2014KawasakiTeryx4 800KRT800B 4x4 FI
2014KawasakiTeryx4 800KRT800C 4x4 LE FI
2014KawasakiTeryx4 800KRT800D 4x4 FI
2014KawasakiTeryx4 800KRT800N 4x4 FI
2014KawasakiTeryx4 800KRT800P 4x4 LE FI
2014KawasakiTeryx4 800KRT800R 4x4 FI
2015KawasakiTeryx 800KRF800
2015KawasakiTeryx 800KRF800 Camo
2015KawasakiTeryx 800KRF800 LE

Product Notes

  • Fits rear, left and right on the following Kawasaki UTV models: Teryx-4 750 2012-2013, Teryx 800 2014-2015, & Teryx-4 800 2014-2015.
  • Features 4140 chromoly steel bars for a higher tensile strenth and more durability. Engineered as a direct replacement, fully-assembled, and ready to install.
  • Joints fitted with neoprene CV boots for flexibility and resistance to hot/cold temperatures. Utilizes high-performance moly grease for protection against the environment and to keep vital components lubricated.
  • Replaces OEM # 59266-0046, 59266-0703. Inner splines: 29 (both), Outer splines: 29 (both), Compressed length 706.5 mm (both).
  • Warranty: 2 Years (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on modified suspensions.

    • What's In The Box

  • 2 axles

    • Warranty

    Limited 2 year, one-time warranty

    Details

    Categories

    Shipping Information

    • Item Requires Shipping
    • 32.0 lbs.
    • W6.0000” x H11.0000” x L32.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
