Rear CV Axle Pair for Kawasaki Teryx 750 4x4 2012-2013 UTV

Location on vehicle: Rear,Left,Right

(0) Reviews: Write first review

SKU: KW-316/KW-316

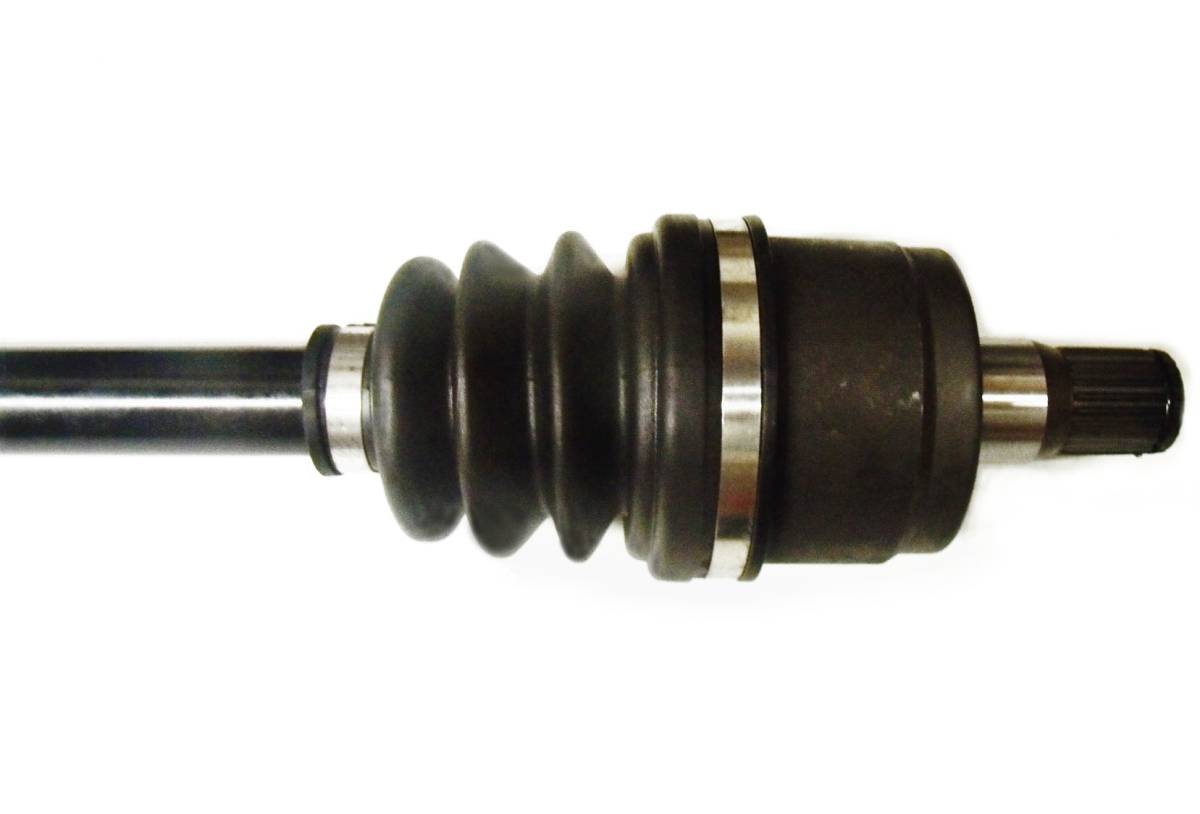

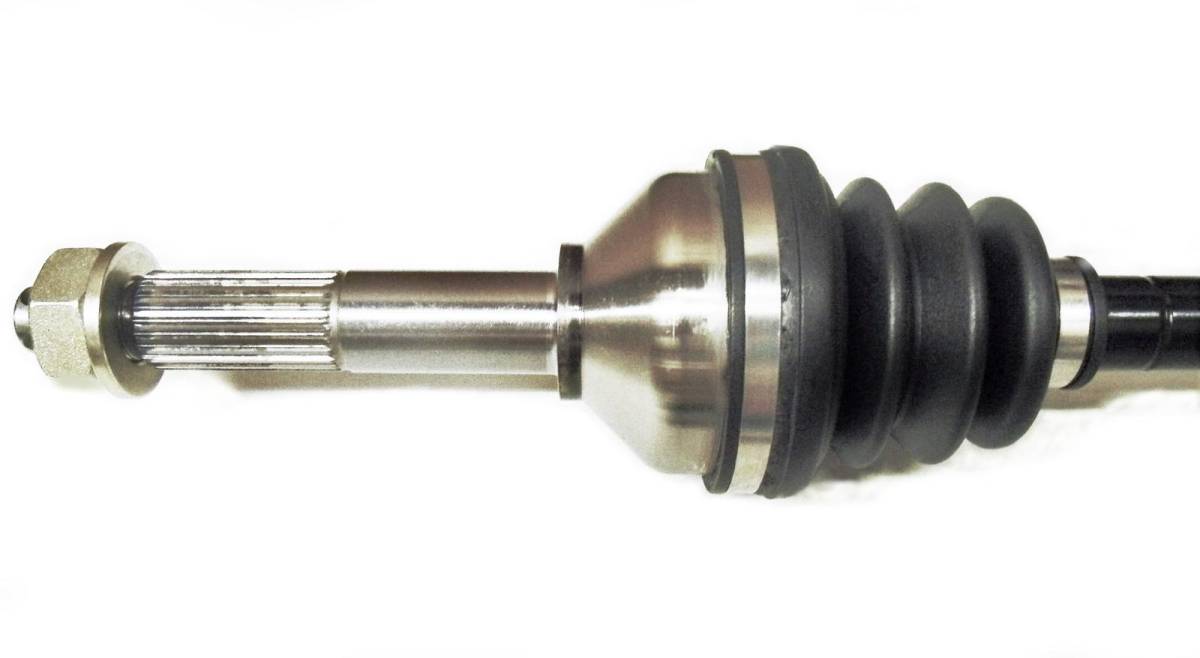

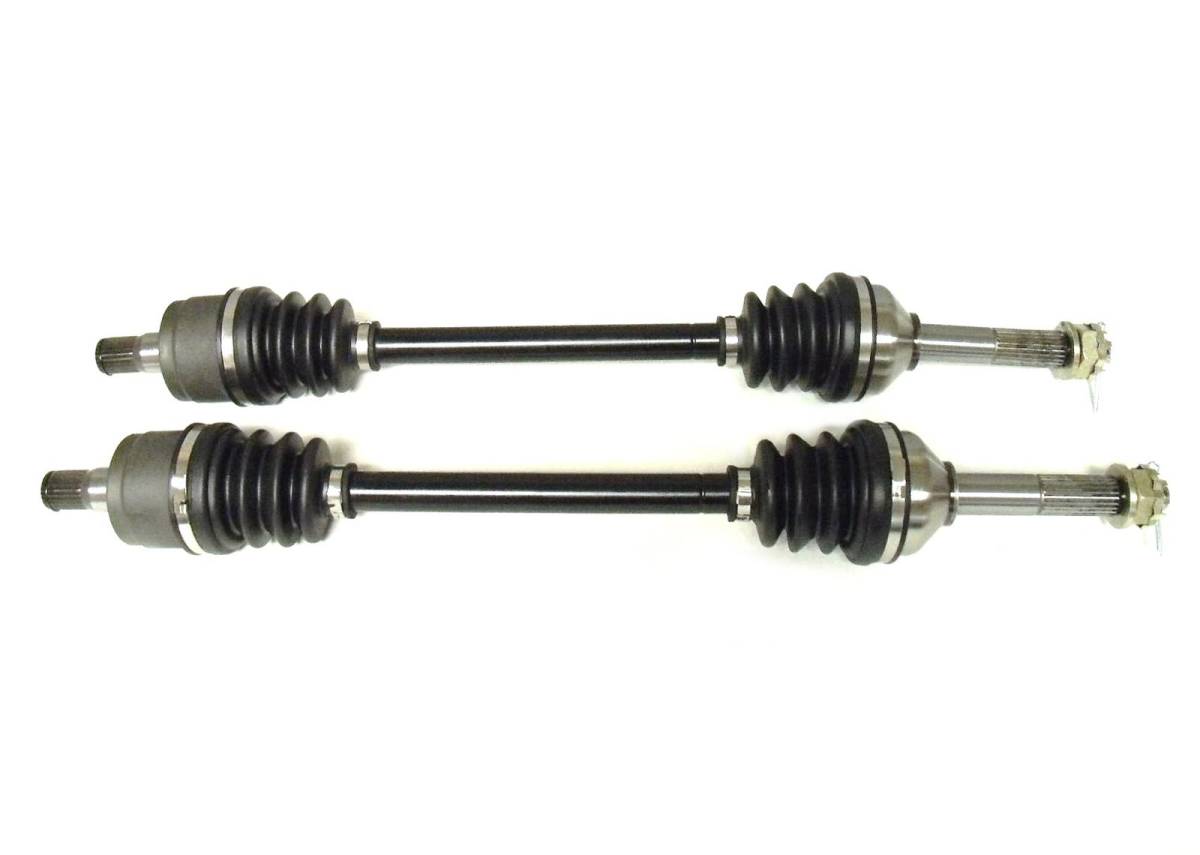

This is a pair of new Rear CV axles for a Kawasaki UTV.

They fit the following 4x4 applications:

2012-2013 ... Teryx 750

(please note these will not fit 4-seater models)

Rear, Left & Right

*Not intended for use in lifted vehicles

Product features:

Stronger than OEM chromoly forged steel axle bar
Greased with a moly based grease to provide superior joint lubrication
Fitted with neoprene CV boots for added wear & puncture resistance
Inboard CV joint spline count: 24 (both)
Outboard CV joint spline count: 24 (both)
Compressed overall axle length: 651 mm (both)

Shipping: Free Shipping - Same Day If Ordered Before 3 EST

Pricing: $137.99

Application List
Product Notes
Warranty
Details
Shipping
Reviews

Application List

Year	Make	Model	Submodel
2013	Kawasaki	Teryx 750	KRF750N 4x4 FI
2013	Kawasaki	Teryx 750	KRF750P 4x4 LE FI
2013	Kawasaki	Teryx 750	KRF750R 4x4 LE FI
2013	Kawasaki	Teryx 750	KRF750S 4x4 Sport FI
2012	Kawasaki	Teryx 750	KRF750N 4x4 FI
2012	Kawasaki	Teryx 750	KRF750P 4x4 LE FI
2012	Kawasaki	Teryx 750	KRF750R 4x4 LE FI
2012	Kawasaki	Teryx 750	KRF750S 4x4 Sport FI
2012	Kawasaki	Teryx 750	KRF750V 4x4 Special Graphics Edition FI

Product Notes

Fits 2012-2013 Teryx 750 - KRF750 (including FI, LE & Sport).

Features a stronger than OEM chromoly steel shaft fitted with neoprene boots filled with moly based grease for added wear and puncture resistance.

Replaces Kawasaki OE # 59266-0702.

Inner Splines: 24 (both), Outer Splines: 24 (both), Compressed length: 651 mm (both).

Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.
