Front CV Axle Pair for Kawasaki Prairie 300 4x4 1999-2002 ATV

Location on vehicle: Front,Left,Right

(0) Reviews: Write first review
KW-304/KW-304

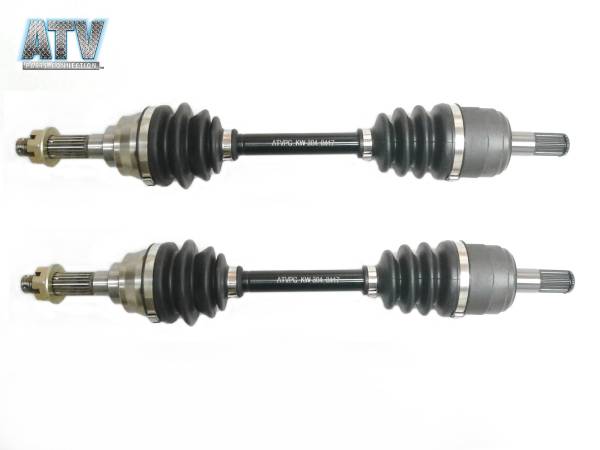

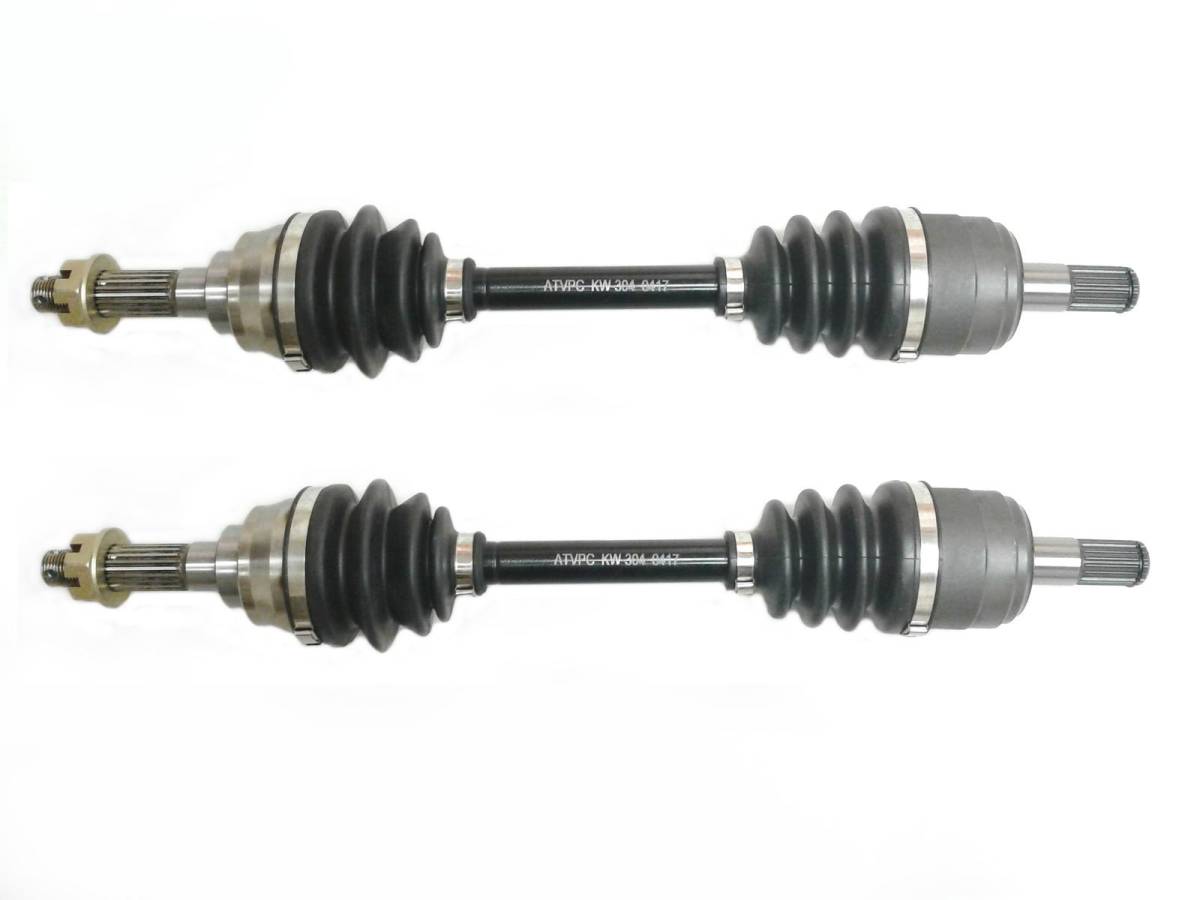

This is a pair of new Front CV axles for a Kawasaki ATV.

They fit the following 4x4 applications:

1999-2002 ... Prairie 300

Front, Left & Right

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance

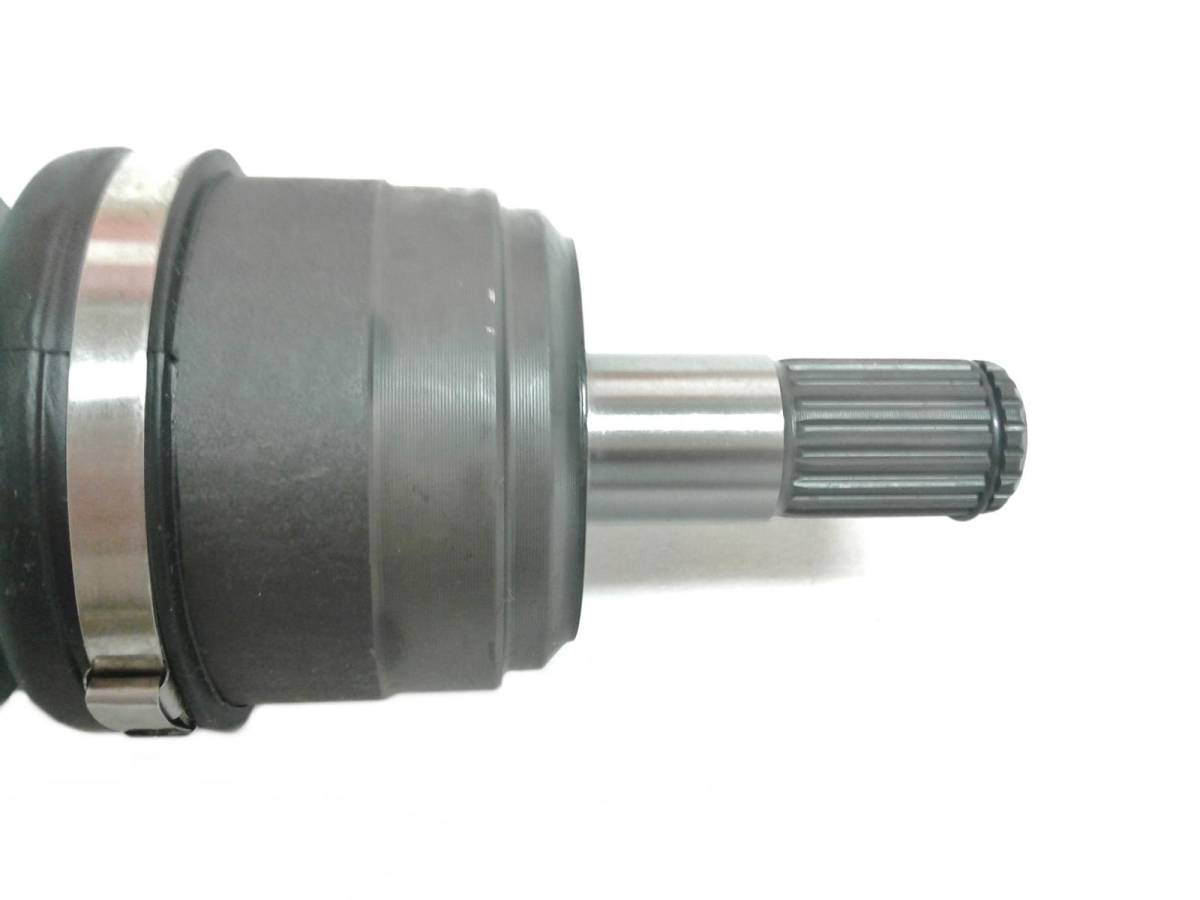

  • Inboard CV joint spline count: 20 (both)

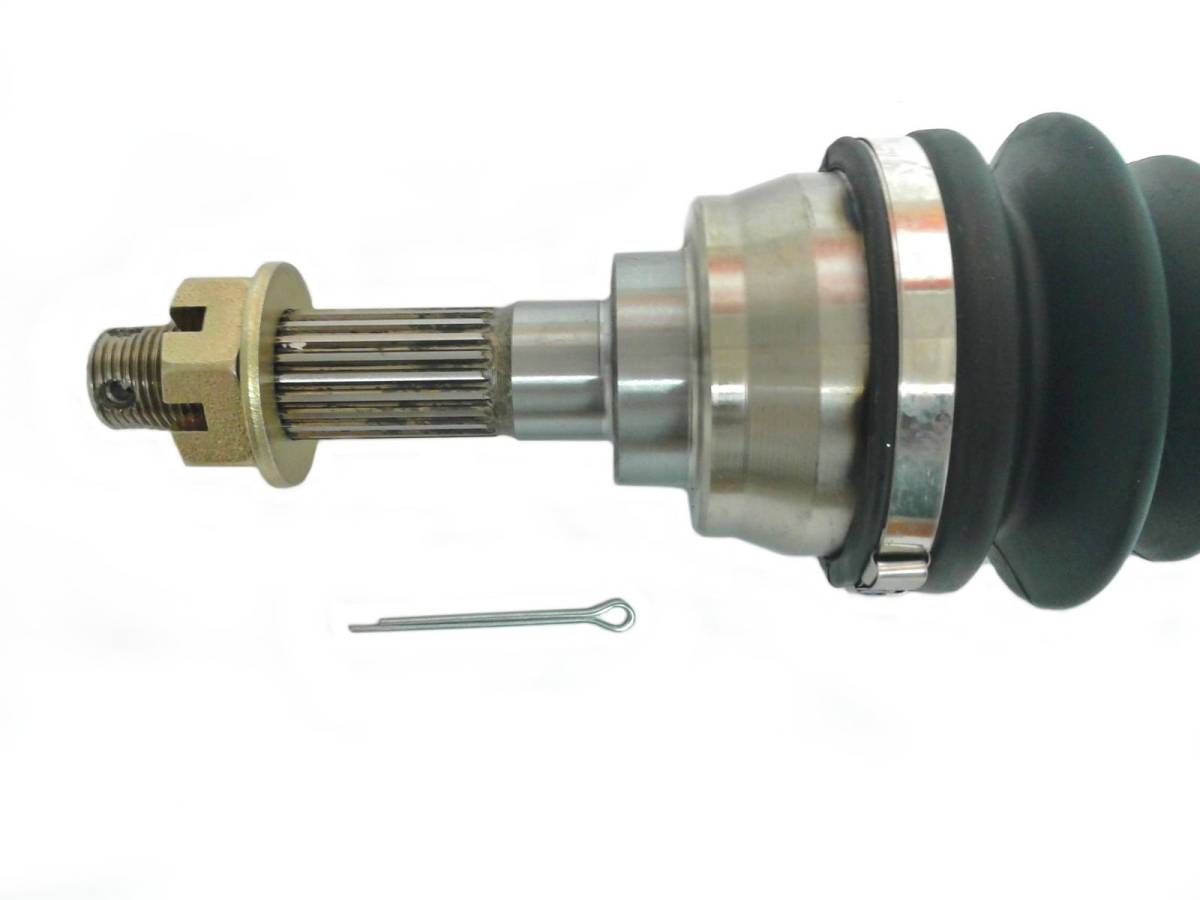

  • Outboard CV joint spline count: 21 (both)
  • Compressed overall axle length: 473 mm (both)
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $124.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2002KawasakiPrairie 300KVF300A 4x4
2001KawasakiPrairie 300KVF300A 4x4
2000KawasakiPrairie 300KVF300A 4x4
1999KawasakiPrairie 300KVF300A 4x4

Product Notes

  • Fits Prairie 300 - KVF300 4x4 models from 1999-2002.
  • Features stronger than OEM chromoly forged steel axle bars * Greased with a moly based grease to provide superior joint lubrication * Fitted with neoprene CV boots for added wear and puncture resistance.
  • Replaces Kawasaki OE # 59266-1104.
  • Inner splines: 20 (both), Outer splines: 21 (both), Compressed axle length: 473 mm (both).
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

    • What's In The Box

  • 2 axles

    • Warranty

    1 year factory defect limited warranty

    Details

    • KW-304/KW-304
    • KW-304/KW-304
    • CUSTOM
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 16.0 lbs.
    • W5.0000” x H10.0000” x L25.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
