Front Left Axle & Wheel Bearing Kit for Arctic Cat 300 1998-2001 & 500 2000-2001

Location on vehicle: Front,Left

AC-118/WB-1434

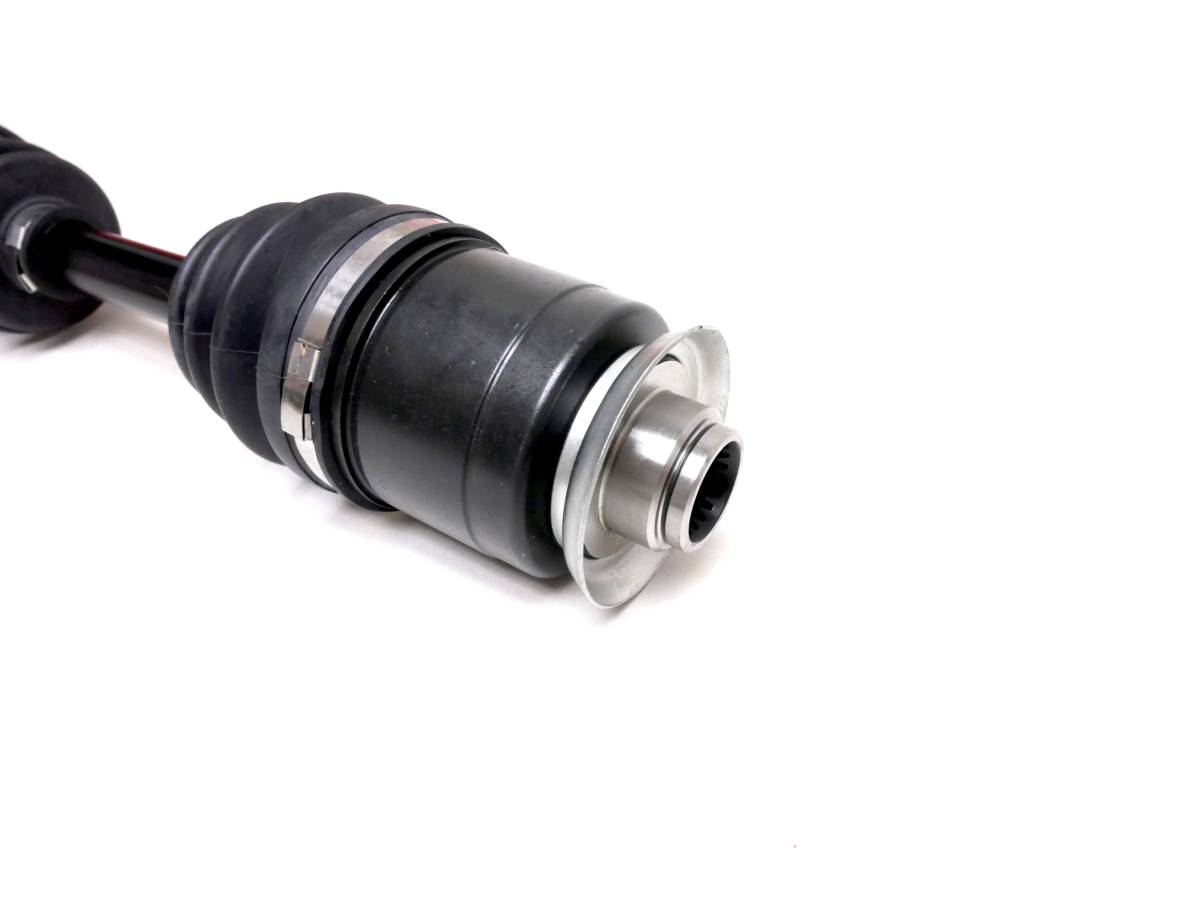

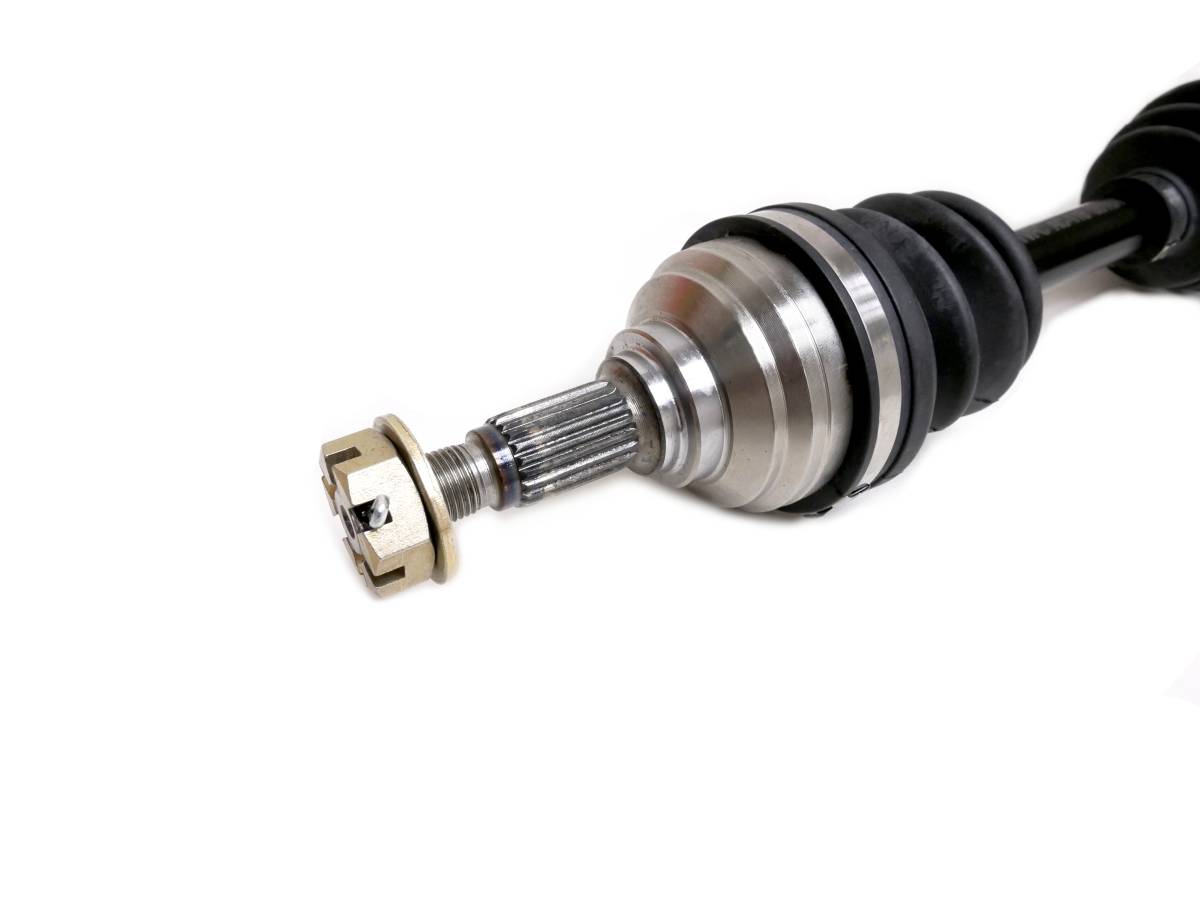

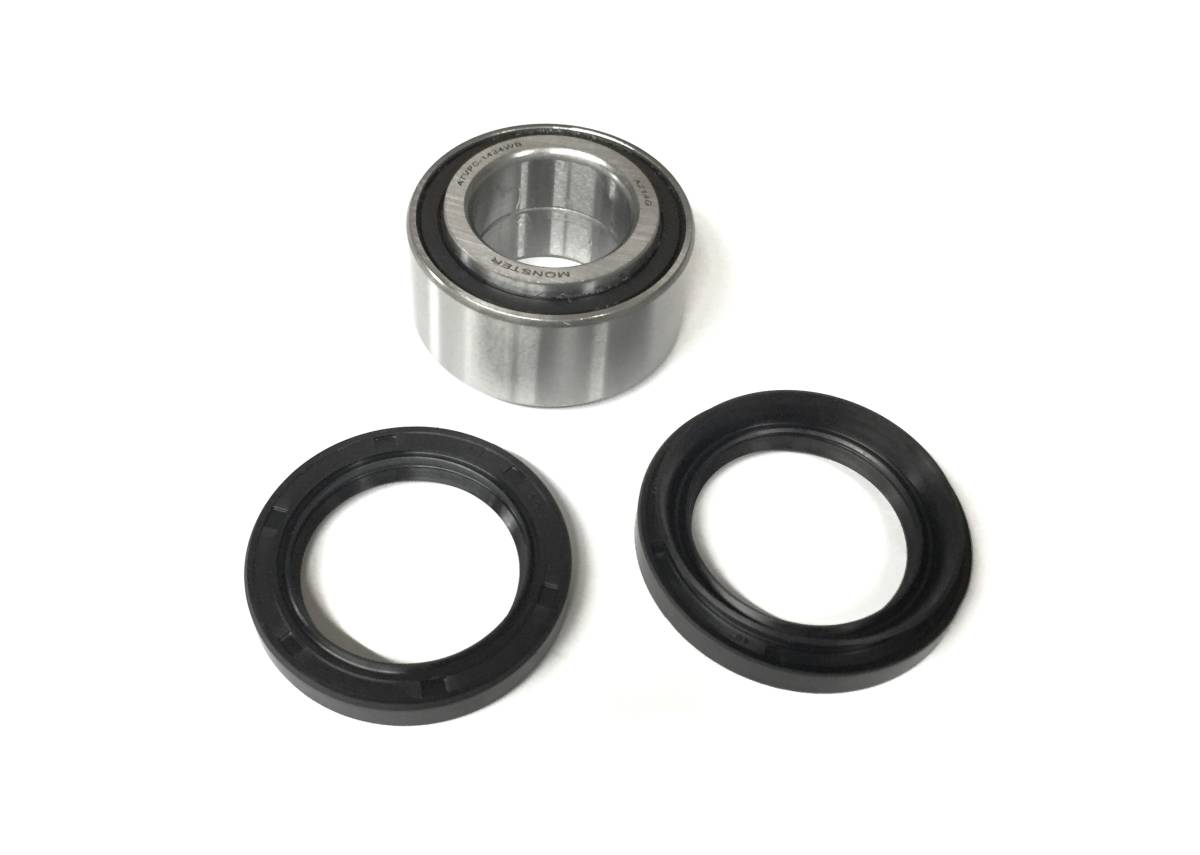

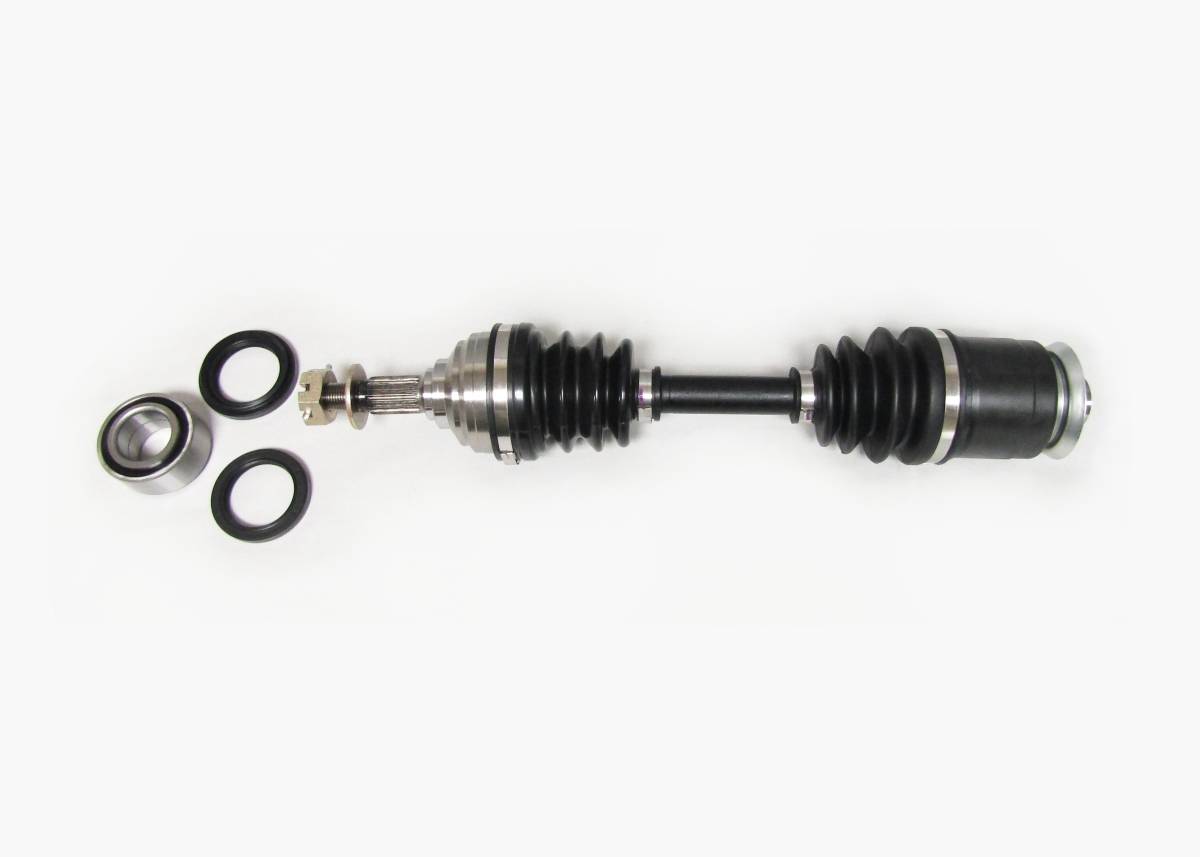

This is a new Front, Left CV axle & wheel bearing/seal kit for a Arctic Cat ATV.

They fit the following 4x4 models:

1998-2001 ... 300

2000-2001 ... 500 Automatic

2001 ... 500 Manual

Front, Left / Driver's Side

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM, chromoly forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear and puncture resistance
  • High speed bearing manufactured for long life
  • Double lip seals made to keep grease in and dirt out
  • Inboard CV joint spline count: 20
  • Outboard CV joint spline count: 21
  • Compressed overall axle length: 417 mm
  • Replaces Arctic Cat OEM # (axle) 0402-249, 1502-441, (bearing & seals) 0402-275, 0402-089, 0402-069
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $79.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2001Arctic Cat2504X4
2001Arctic Cat3004X4
2000Arctic Cat3004X4
1999Arctic Cat3004X4
1998Arctic Cat3004X4
2001Arctic Cat4004X4
2001Arctic Cat5004X4
2001Arctic Cat5004x4 Automatic
2001Arctic Cat5004x4 LE Automatic
2000Arctic Cat5004x4 Automatic

Product Notes

  • Fits 1998-2001 300 4x4, 2000-2001 500 4x4 Automatic, & 2001 500 4x4 Manual 4x4.
  • Features a stronger than OEM chromoly forged steel axle bar. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.
  • Compressed overall axle length: 417 mm, Inboard CV joint spline count: 20, Outboard CV joint spline count: 21.
  • Replaces Arctic Cat OEM # (axle) 0402-249, 1502-441, (bearing & seals) 0402-275, 0402-089, 0402-069.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

  • What's In The Box

  • 1 CV axle & 1 wheel bearing kit
  • Warranty

    1 year factory defect limited warranty

    Details

    • AC-118/WB-1434
    • AC-118/WB-1434
    • CUSTOM
    • ATV Parts Connection
    • Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 9.2 lbs.
    • W5.0000” x H5.0000” x L25.0000”
