Front CV Axle Pair for Yamaha YXZ 1000R 2016-2022, Left & Right

Location on vehicle: Front,Left,Right

(0) Reviews: Write first review
YA-318/YA-318

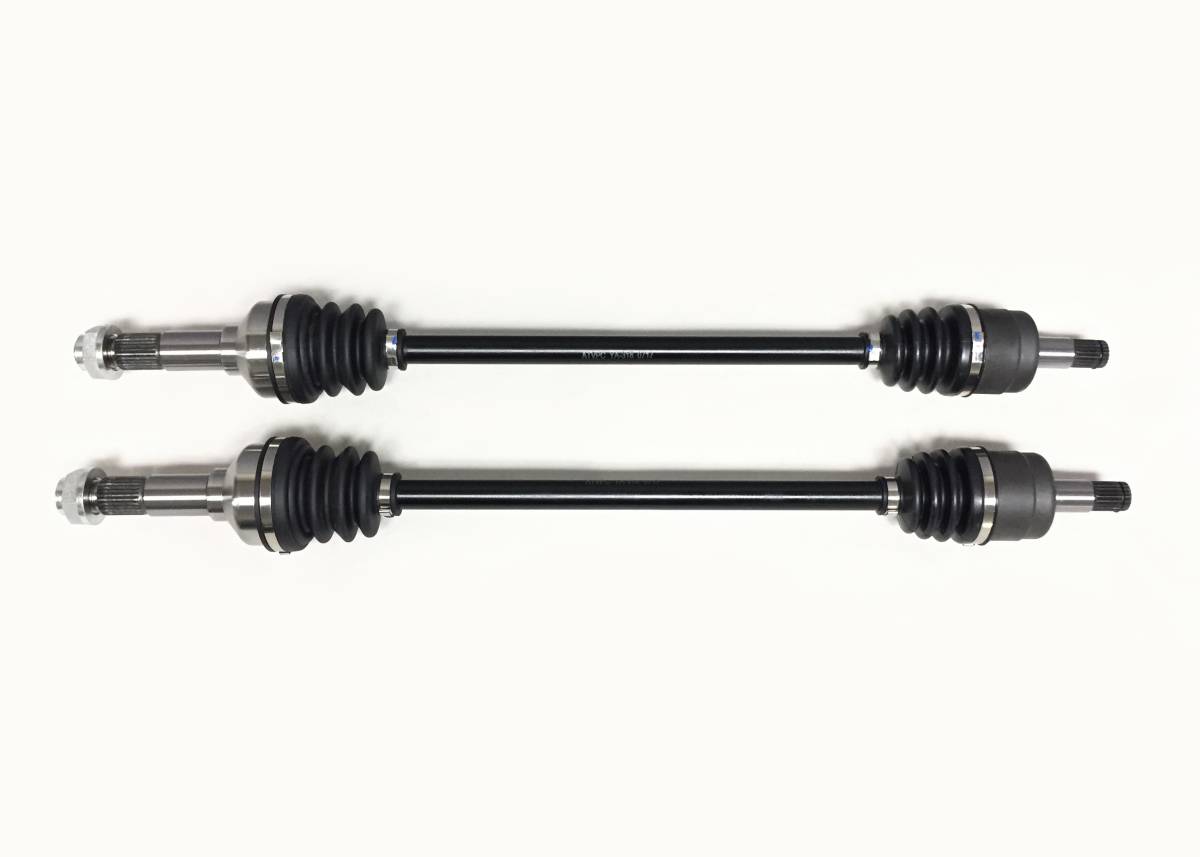

This is a pair of new CV axles for a Yamaha SXS.

They fit FRONT, LEFT & RIGHT on the following 4x4 models:

2016-2022 YXZ1000R (all models including EPS, SE, SS & XTR)

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance
  • Inboard CV joint spline count: 21 (both)
  • Outboard CV joint spline count: 27 (both)
  • Compressed overall axle length: 749 mm (both)
  • Replaces OEM # 2HC-2510F-00-00, 2HC-2510J-00-00, 2HC-2518F-00-00, 2HC-2518F-01-00
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $135.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2022YamahaYXZ1000REPS
2022YamahaYXZ1000RSS EPS
2022YamahaYXZ1000RSS XT-R
2021YamahaYXZ1000REPS
2021YamahaYXZ1000RSE EPS
2021YamahaYXZ1000RSS EPS
2021YamahaYXZ1000RSS SE EPS
2021YamahaYXZ1000RSS XT-R
2020YamahaYXZ1000REPS
2020YamahaYXZ1000RSE EPS
2020YamahaYXZ1000RSS EPS
2020YamahaYXZ1000RSS SE EPS
2020YamahaYXZ1000RSS XT-R
2019YamahaYXZ1000REPS
2019YamahaYXZ1000RSE EPS
2019YamahaYXZ1000RSS EPS
2019YamahaYXZ1000RSS SE EPS
2018YamahaYXZ1000REPS
2018YamahaYXZ1000RSE
2018YamahaYXZ1000RSE EPS
2018YamahaYXZ1000RSS EPS
2018YamahaYXZ1000RSS SE EPS
2017YamahaYXZ1000R--
2017YamahaYXZ1000RSE
2017YamahaYXZ1000RSS
2017YamahaYXZ1000RSS SE
2016YamahaYXZ1000R--
2016YamahaYXZ1000RSpecial Edition

Product Notes

  • Fits FRONT, LEFT & RIGHT on the 2016-2022 Yamaha YXZ1000R (all models including EPS, SE, SS & XTR). Set includes 2 axles.
  • Features stronger than OEM chromoly forged steel axle bars. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.
  • Compressed Length - 749 mm (both), Inner Spline Count - 21 (both), Outer Spline Count - 27 (both).
  • Replaces OEM # 2HC-2510F-00-00, 2HC-2510J-00-00, 2HC-2518F-00-00, 2HC-2518F-01-00.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

    • What's In The Box

  • 2 axles

    • Warranty

    1 year factory defect limited warranty

    Details

    • YA-318/YA-318
    • YA-318/YA-318
    • CUSTOM
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 24.0 lbs.
    • W5.0000” x H10.0000” x L32.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
