Rear CV Axle Pair for Yamaha Grizzly 450 4x4 2011-2014

Location on vehicle: Rear,Left,Right

YA-336/YA-336

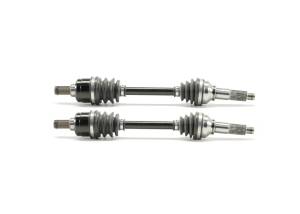

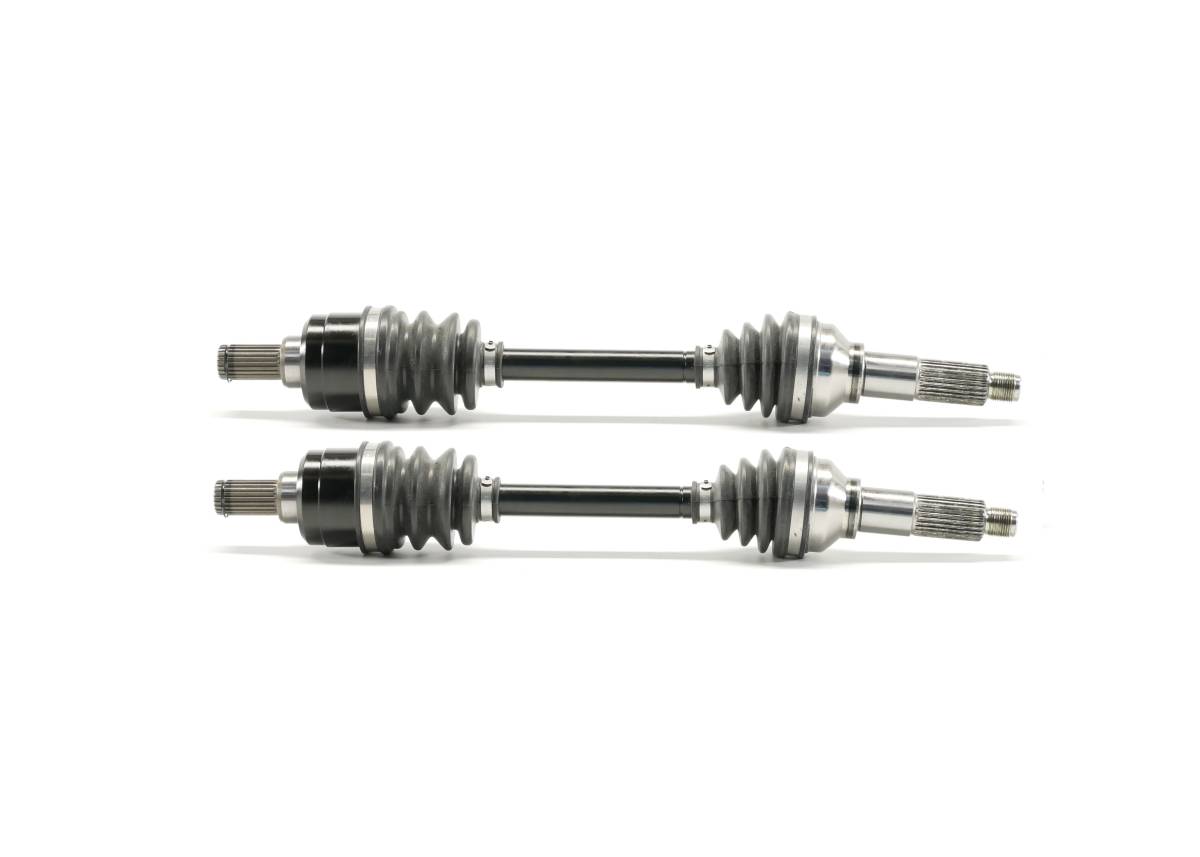

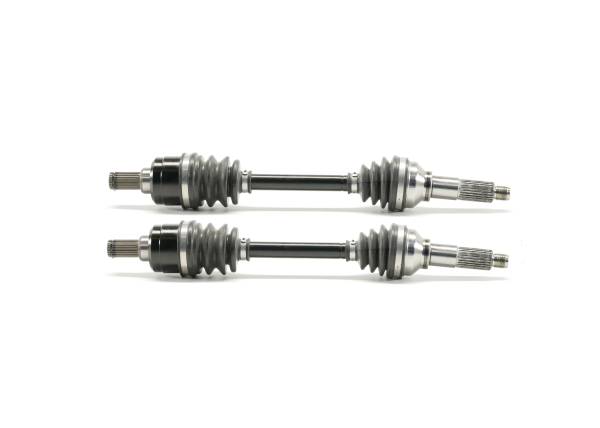

This is a pair of new Rear CV axles for a Yamaha ATV.

They fit the following 4x4 models:

2011-2014 ... Grizzly 450/450 EPS

Rear, Left & Right Side

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear and puncture resistance

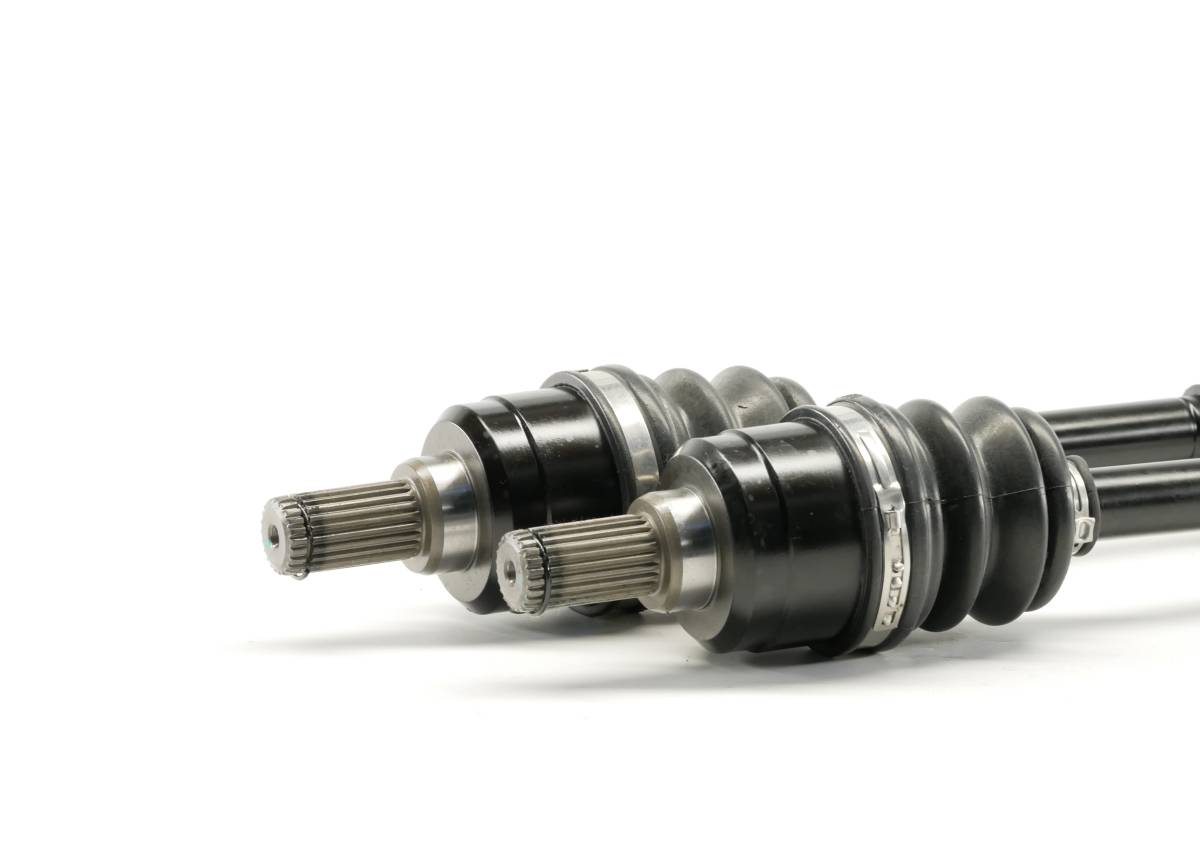

  • Inboard CV joint spline count: 23 (both)

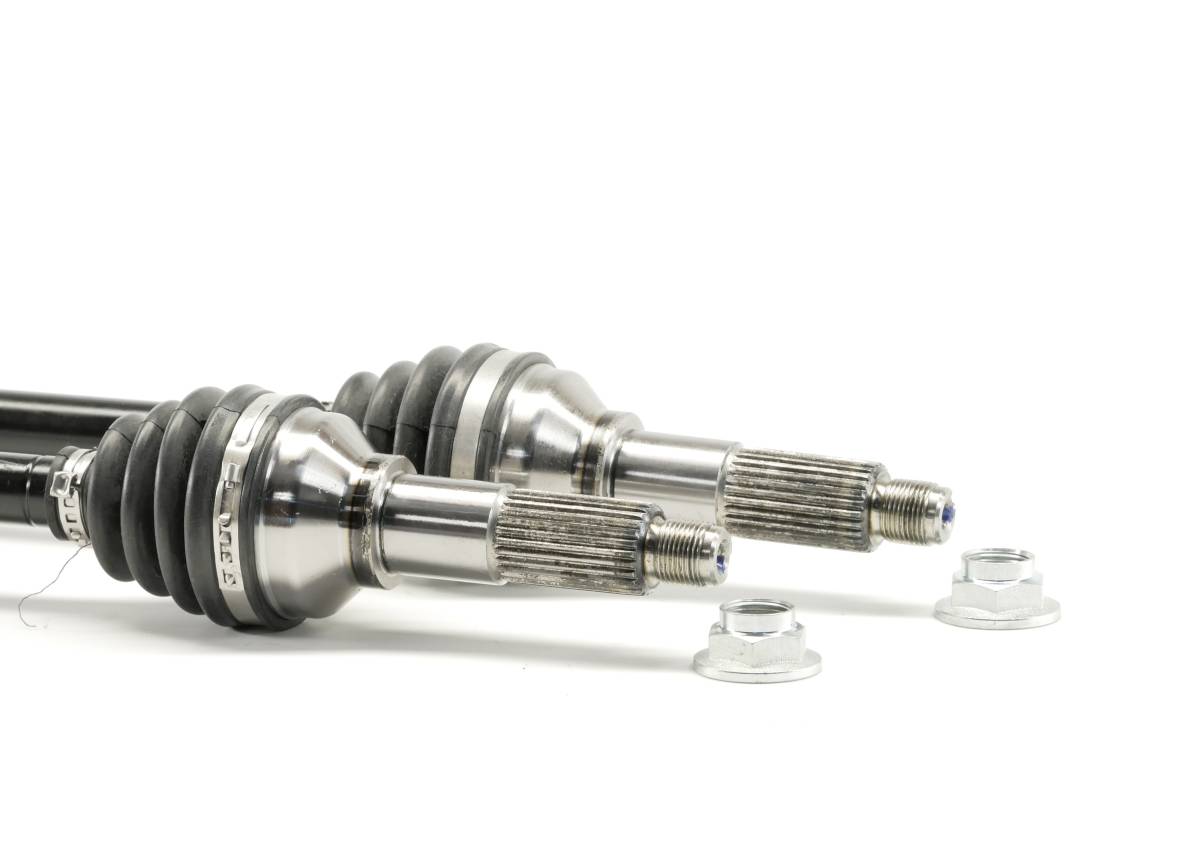

  • Outboard CV joint spline count: 27 (both)
  • Compressed overall axle length: 508 mm (both)
  • Replaces Yamaha OEM # 1CT-2530V-00-00, 1CT-2510F-00-00
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $174.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2014YamahaGrizzly 450YFM450D 4x4
2014YamahaGrizzly 450YFM450DAH 4x4 Hunter Edition
2014YamahaGrizzly 450YFM450P 4x4 EPS
2014YamahaGrizzly 450YFM450PHH 4x4 Hunter Edition EPS
2014YamahaGrizzly 450YFM450RSE 4x4 Special Edition
2013YamahaGrizzly 450YFM450FG 4x4
2013YamahaGrizzly 450YFM450FGH 4x4 Hunter Edition
2013YamahaGrizzly 450YFM450FGP 4x4 EPS
2013YamahaGrizzly 450YFM450FGPH 4x4 Hunter Edition EPS
2012YamahaGrizzly 450YFM450FG 4x4
2012YamahaGrizzly 450YFM450FGH 4x4 Hunter Edition
2012YamahaGrizzly 450YFM450FGP 4x4 EPS
2012YamahaGrizzly 450YFM450FGPH 4x4 Hunter Edition EPS
2011YamahaGrizzly 450YFM450FG 4x4
2011YamahaGrizzly 450YFM450FGH 4x4 Hunter Edition
2011YamahaGrizzly 450YFM450FGP 4x4 EPS
2011YamahaGrizzly 450YFM450FGPH 4x4 Hunter Edition EPS

Product Notes

  • Fits rear, left and right on the following Yamaha ATV models: 2011-2014 Grizzly 450, 2011-2014 Grizzly 450 EPS.
  • Features stronger than OEM, 4340 chromoly steel bars for a higher tensile strenth and more durability. Engineered as a direct replacement, fully-assembled, and ready to install.
  • Joints fitted with neoprene CV boots for added flexibility and resistance to hot/cold temperatures. Also uses high-performance moly grease for additional protection against various environments and to keep vital components lubricated.
  • Replaces OEM # 1CT-2530V-00-00, 1CT-2510F-00-00. Compressed length - 508 mm (both), Inboard spline count - 23 (both), Outboard spline count - 27 (both).
  • Warranty: 1 Year (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on modified suspensions.

  • What's In The Box

  • 2 axles
  • Warranty

    1 year factory defect limited warranty

    Details

    • YA-336/YA-336
    • YA-336/YA-336
    • CUSTOM
    • ATV Parts Connection
    • Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 17.0 lbs.
    • W5.0000” x H10.0000” x L25.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
