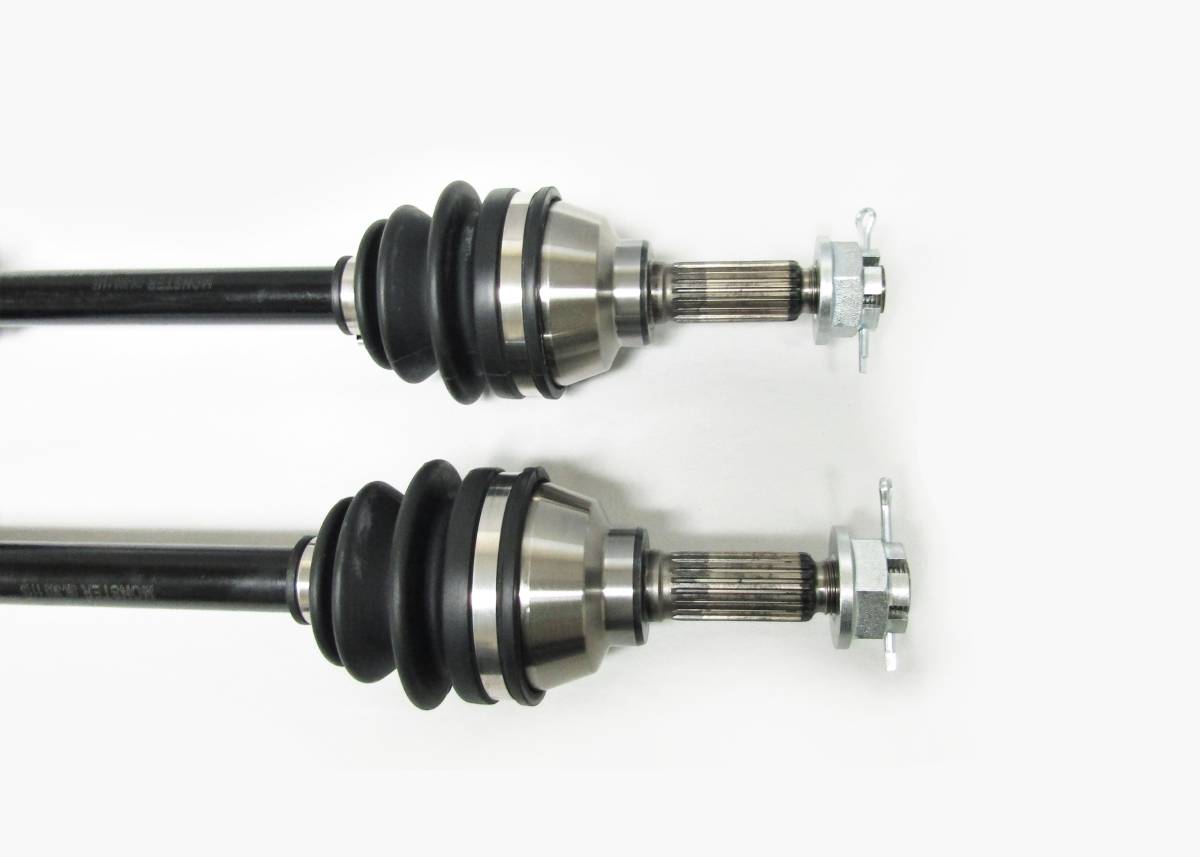

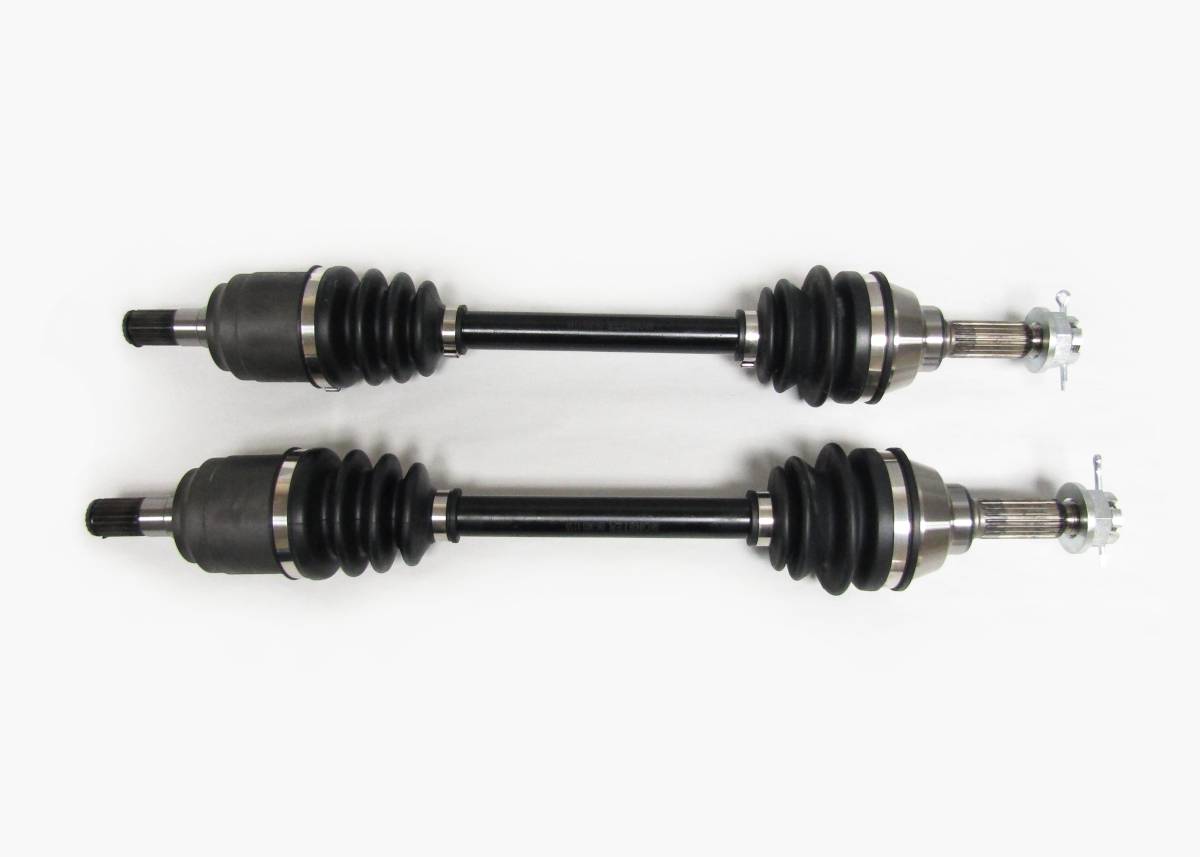

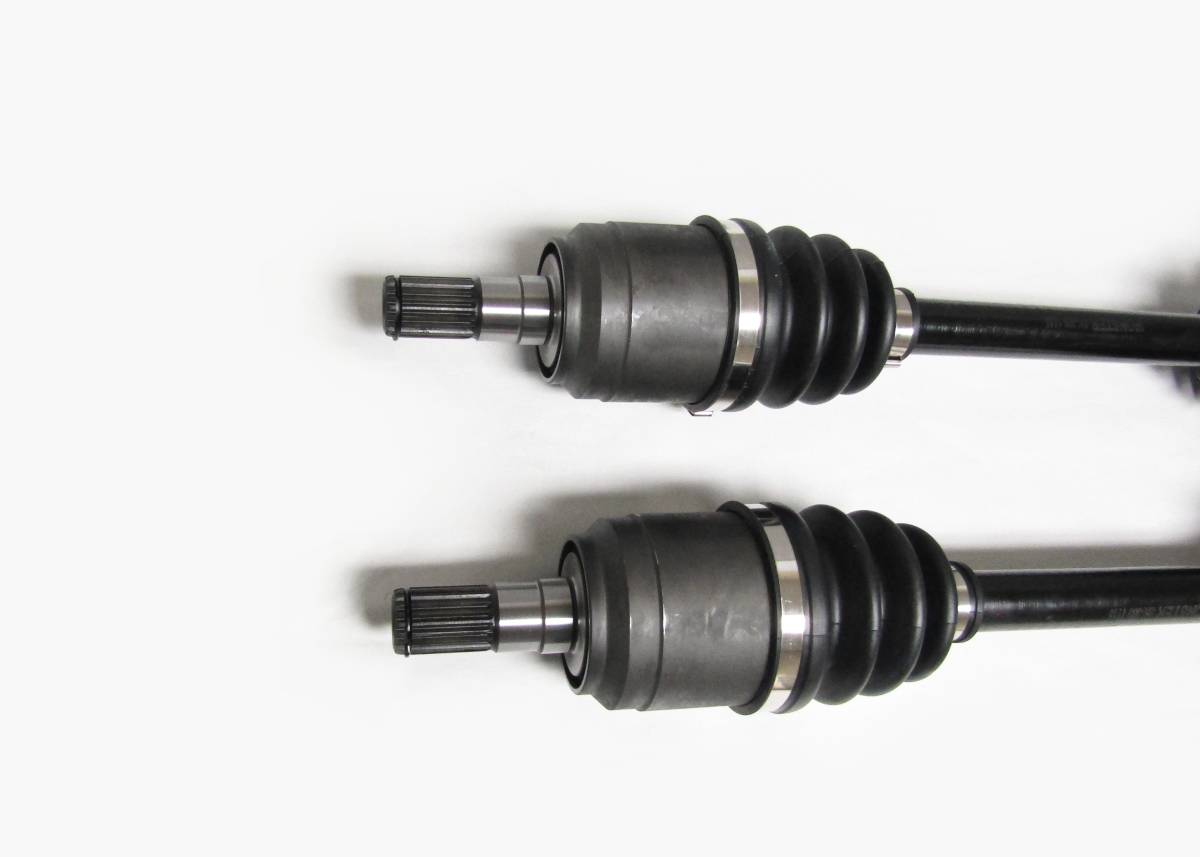

Front CV Axle Pair for Suzuki King Quad 500 & 750 EPS 4x4 2009-2021

Location on vehicle: Front,Left,Right

SK-303/SK-303
This is a pair of new Front CV axles for a Suzuki ATV.

They fit the following 4x4 models:

2009-2018 ... King Quad 500 EPS (EPS models only)

2019-2021 ... King Quad 500 & 500 EPS

2009-2018 ... King Quad 750 EPS (EPS models only)

2019-2021 ... King Quad 750 & 750 EPS

Front, Left & Right side

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance
  • Inboard CV joint spline count: 20 (both)
  • Outboard CV joint spline count: 20 (both)
  • Compressed overall axle length: 517 mm (both)
  • Replaces Suzuki OEM # 54901-31G30, 54901-31G31
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $139.99
Qty:
Free ground shipping for lower 48 states ( some exclusions may apply)

Warranty

1 year factory defect limited warranty

Product Notes

  • Please note these fits models with EPS only up to 2018 and all models from 2019-2021. Fits 2009-2018 King Quad 500 EPS, 2019-2021 King Quad 500 (all), 2009-2018 King Quad 750 EPS, 2019-2021 King Quad 750 (all).
  • Features stronger than OEM chromoly forged steel axle bars. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.
  • Inner splines: 20 (both), Outer splines: 20 (both), Compressed axle length: 517 mm (both).
  • Replaces Suzuki OE # 54901-31G30, 54901-31G31.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

  • What's In The Box

  • 2 axles
  • Application List

    YearMakeModelSubmodelNotes
    2022SuzukiKing Quad 500LTA500 4x4 AXi
    2022SuzukiKing Quad 500LTA500 4x4 AXi EPS
    2022SuzukiKing Quad 500LTA500 4x4 AXi SE+ EPS
    2022SuzukiKing Quad 500LTA500 4x4 AXi SE EPS
    2022SuzukiKing Quad 500LTA500 4x4 Camo AXi SE EPS
    2021SuzukiKing Quad 500LTA500 4x4 AXi
    2021SuzukiKing Quad 500LTA500 4x4 AXi EPS
    2021SuzukiKing Quad 500LTA500 4x4 AXi SE+ EPS
    2021SuzukiKing Quad 500LTA500 4x4 Camo AXi SE EPS
    2020SuzukiKing Quad 500LTA500 4x4 AXi
    2020SuzukiKing Quad 500LTA500 4x4 AXi EPS
    2020SuzukiKing Quad 500LTA500 4x4 AXi EPS Rugged
    2020SuzukiKing Quad 500LTA500 4x4 AXi SE+ EPS
    2020SuzukiKing Quad 500LTA500 4x4 AXi SE+ EPS Rugged
    2020SuzukiKing Quad 500LTA500 4x4 AXi SE EPS
    2020SuzukiKing Quad 500LTA500 4x4 Camo AXi EPS
    2020SuzukiKing Quad 500LTA500XP 4x4 AXi EPS
    2019SuzukiKing Quad 500LTA500 4x4 AXi
    2019SuzukiKing Quad 500LTA500 4x4 AXi EPS
    2019SuzukiKing Quad 500LTA500 4x4 AXi SE+ EPS
    2019SuzukiKing Quad 500LTA500 4x4 AXi SE EPS
    2019SuzukiKing Quad 500LTA500 4x4 Camo AXi EPS
    2019SuzukiKing Quad 500LTA500XP 4x4 AXi EPS
    2018SuzukiKing Quad 500LTA500 4x4 AXi EPS
    2018SuzukiKing Quad 500LTA500 4x4 AXi SE EPS
    2017SuzukiKing Quad 500LTA500 4x4 AXi SE EPS Rugged
    2017SuzukiKing Quad 500LTA500XP 4x4 AXi EPS
    2017SuzukiKing Quad 500LTA500XP 4x4 AXi SE EPS
    2017SuzukiKing Quad 500LTA500XPC 4x4 Camo AXi EPS
    2016SuzukiKing Quad 500LTA500XP 4x4 AXi EPS
    2016SuzukiKing Quad 500LTA500XP 4x4 AXi SE EPS
    2015SuzukiKing Quad 500LTA500XP 4x4 AXi EPS
    2014SuzukiKing Quad 500LTA500XP 4x4 AXi EPS
    2014SuzukiKing Quad 500LTA500XPZ 4x4 Limited AXi EPS
    2013SuzukiKing Quad 500LTA500XP 4x4 AXi EPS
    2013SuzukiKing Quad 500LTA500XPZ 4x4 30th Anniversary Edition AXi EPS
    2012SuzukiKing Quad 500LTA500XP 4x4 AXi EPS
    2011SuzukiKing Quad 500LTA500XP 4x4 AXi EPS
    2009SuzukiKing Quad 500LTA500XP 4x4 AXi EPS
    2009SuzukiKing Quad 500LTA500XPZ 4x4 Limited AXi EPS
    2022SuzukiKing Quad 750LTA750X 4x4 AXi
    2022SuzukiKing Quad 750LTA750XP 4x4 AXi EPS
    2022SuzukiKing Quad 750LTA750XPZ 4x4 SE+ AXi EPS
    2022SuzukiKing Quad 750LTA750XPZ 4x4 SE AXi EPS
    2021SuzukiKing Quad 750LTA750X 4x4 AXi
    2021SuzukiKing Quad 750LTA750XP 4x4 AXi EPS
    2021SuzukiKing Quad 750LTA750XPZ 4x4 SE+ AXi EPS
    2021SuzukiKing Quad 750LTA750XPZ 4x4 SE AXi EPS
    2020SuzukiKing Quad 750LTA750X 4x4 AXi
    2020SuzukiKing Quad 750LTA750XP 4x4 AXi EPS
    2020SuzukiKing Quad 750LTA750XP 4x4 AXi EPS Rugged
    2020SuzukiKing Quad 750LTA750XPZ 4x4 SE+ AXi EPS
    2020SuzukiKing Quad 750LTA750XPZ 4x4 SE+ AXi EPS Rugged
    2020SuzukiKing Quad 750LTA750XPZ 4x4 SE AXi EPS
    2019SuzukiKing Quad 750LTA750X 4x4 AXi
    2019SuzukiKing Quad 750LTA750XP 4x4 AXi EPS
    2019SuzukiKing Quad 750LTA750XPC 4x4 Camo AXi EPS
    2019SuzukiKing Quad 750LTA750XPZ 4x4 SE+ AXi EPS
    2019SuzukiKing Quad 750LTA750XPZ 4x4 SE AXi EPS
    2018SuzukiKing Quad 750LTA750XP 4x4 AXi EPS
    2018SuzukiKing Quad 750LTA750XPZ 4x4 SE AXi EPS
    2017SuzukiKing Quad 750LTA750XP 4x4 AXi EPS
    2017SuzukiKing Quad 750LTA750XPC 4x4 Camo AXi EPS
    2017SuzukiKing Quad 750LTA750XPZ 4x4 SE AXi EPS
    2017SuzukiKing Quad 750LTA750XPZ 4x4 SE AXi EPS Rugged
    2016SuzukiKing Quad 750LTA750XPZ 4x4 SE AXi EPS
    2015SuzukiKing Quad 750LTA750XP 4x4 AXi EPS
    2015SuzukiKing Quad 750LTA750XPZ 4x4 Limited AXi EPS
    2014SuzukiKing Quad 750LTA750XP 4x4 AXi EPS
    2014SuzukiKing Quad 750LTA750XPZ 4x4 Limited AXi EPS
    2014SuzukiKing Quad 750LTS750XP 4x4 Axi EPS
    2013SuzukiKing Quad 750LTA750XP 4x4 AXi EPS
    2013SuzukiKing Quad 750LTA750XPZ 4x4 30th Anniversary Edition AXi EPS
    2012SuzukiKing Quad 750LTA750XP 4x4 AXi EPS
    2011SuzukiKing Quad 750LTA750XP 4x4 AXi EPS
    2009SuzukiKing Quad 750LTA750XP 4x4 AXi EPS
    2009SuzukiKing Quad 750LTA750XPZ 4x4 Limited AXi EPS

    Details

    • SK-303/SK-303
    • SK-303/SK-303
    • ATV Parts Connection
    • Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 16.9 lbs.
    • W5.0000” x H10.0000” x L25.0000”
    • Free ground shipping for lower 48 states ( some exclusions may apply)
    • Free Shipping - Same Day If Ordered Before 3 EST
