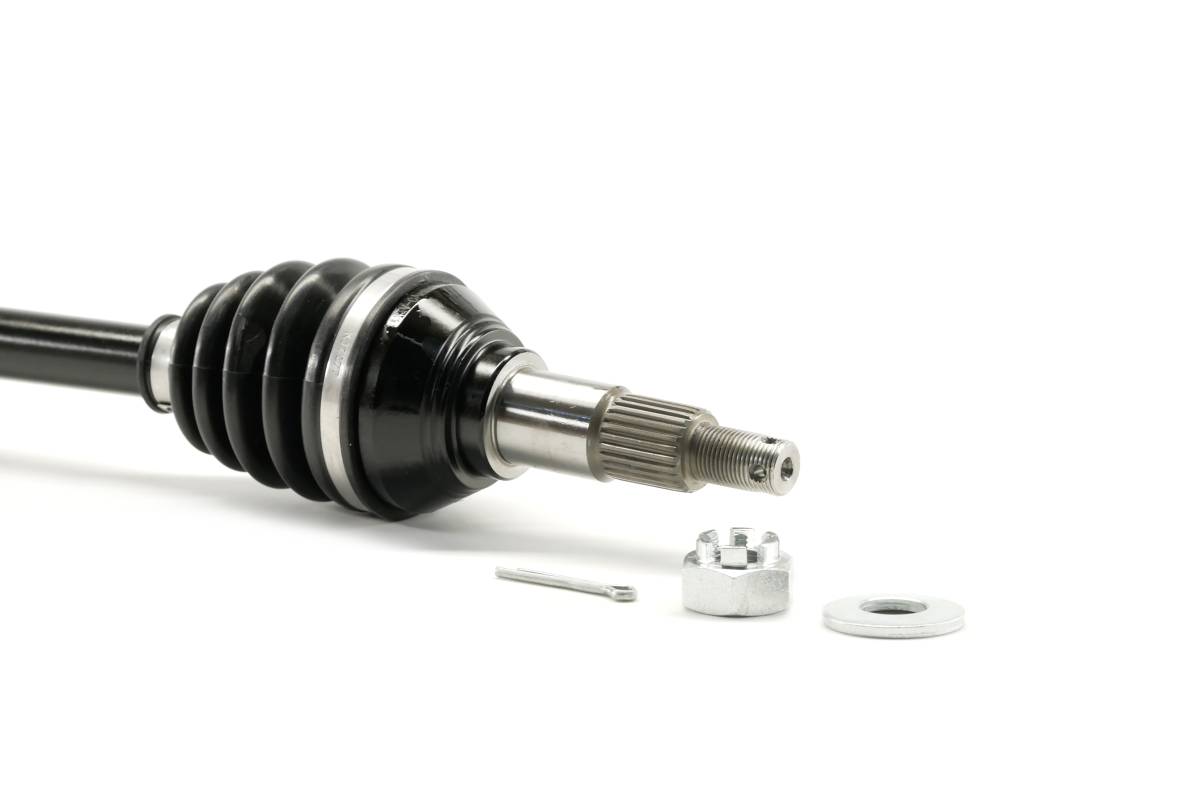

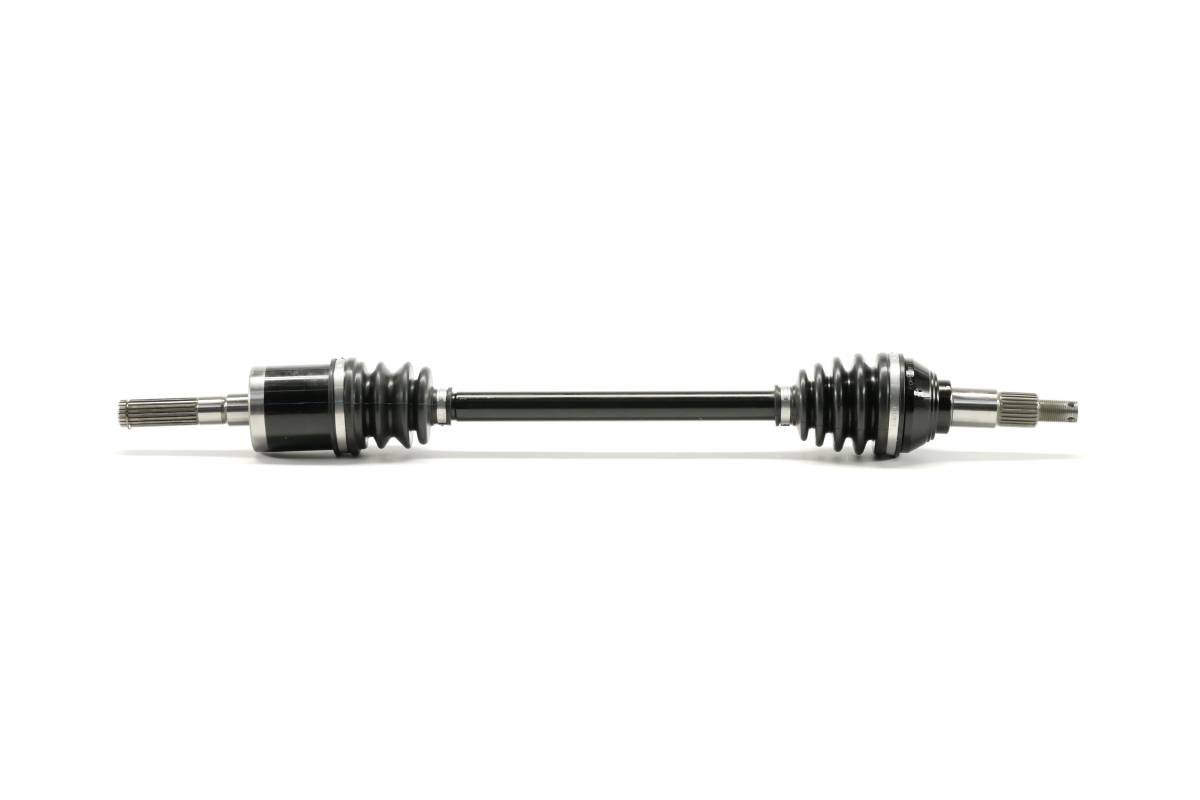

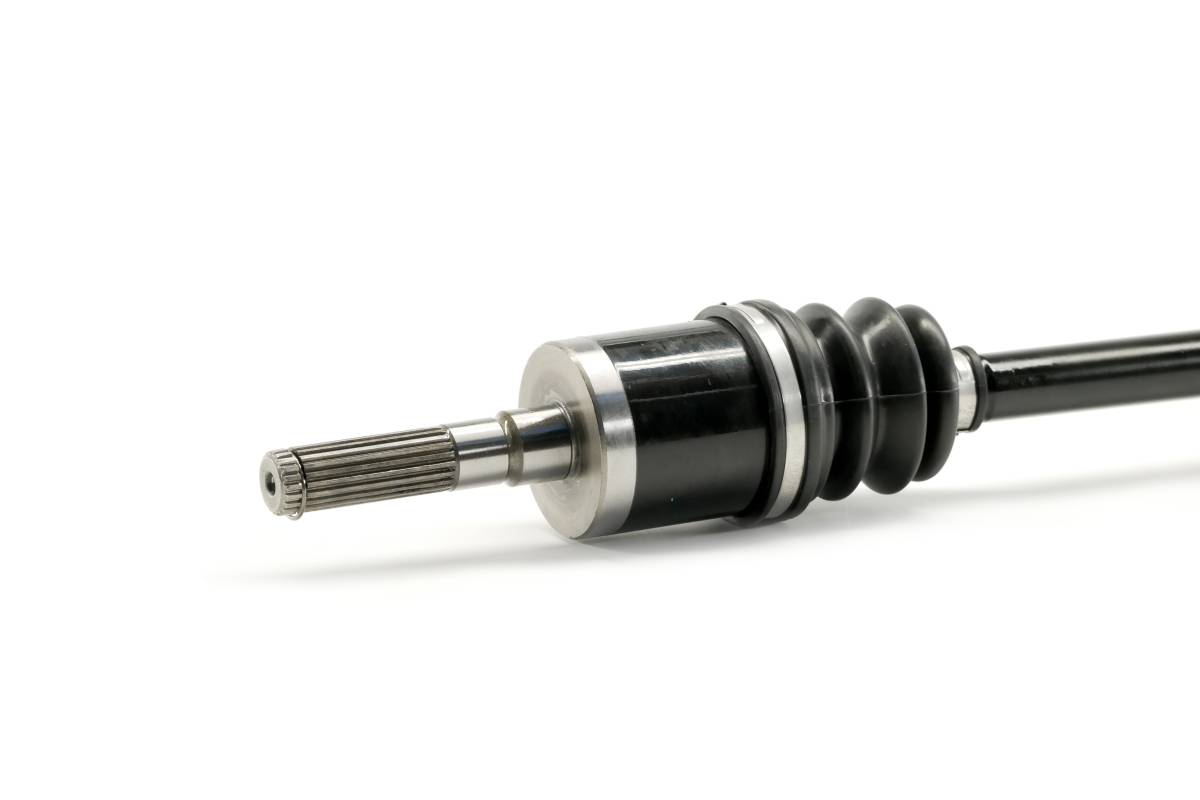

Front Right CV Axle for Can-Am Commander 800 1000 Max 2017-2020 4x4

Location on vehicle: Front,Right

CA-132
This is a new front, right CV axle for a Can-Am UTV.

It will fit the following 4x4 applications:

2017-2020 ... Commander 800 / Max 800

2017-2020 ... Commander 1000 / Max 1000

front, right / Passenger Side

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly hardened steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance
  • inobard CV joint spline count: 21
  • outboard CV joint spline count: 26
  • Compressed overall axle length: 692.5 mm
  • Replaces Can-Am OEM # 705401872
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $57.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2017Can-AmCommander 10004x4 DPS
2017Can-AmCommander 10004x4 Limited DPS
2017Can-AmCommander 10004x4 Mossy Oak Hunting Edition DPS
2017Can-AmCommander 10004x4 XT DPS
2017Can-AmCommander 10004x4 XT-P DPS
2019Can-AmCommander 1000R4x4 DPS
2019Can-AmCommander 1000R4x4 Limited DPS
2019Can-AmCommander 1000R4x4 XT DPS
2018Can-AmCommander 1000R4x4 DPS
2018Can-AmCommander 1000R4x4 Limited DPS
2018Can-AmCommander 1000R4x4 Mossy Oak Hunting Edition DPS
2018Can-AmCommander 1000R4x4 XT DPS
2019Can-AmCommander 800R4X4
2019Can-AmCommander 800R4x4 DPS
2019Can-AmCommander 800R4x4 XT DPS
2018Can-AmCommander 800R4X4
2018Can-AmCommander 800R4x4 DPS
2018Can-AmCommander 800R4x4 XT DPS
2017Can-AmCommander 800R4X4
2017Can-AmCommander 800R4x4 DPS
2017Can-AmCommander 800R4x4 XT DPS
2017Can-AmCommander Max 10004x4 DPS
2017Can-AmCommander Max 10004x4 Limited DPS
2017Can-AmCommander Max 10004x4 XT DPS
2019Can-AmCommander Max 1000R4x4 Limited DPS
2019Can-AmCommander Max 1000R4x4 XT DPS
2018Can-AmCommander Max 1000R4x4 DPS
2018Can-AmCommander Max 1000R4x4 Limited DPS
2018Can-AmCommander Max 1000R4x4 XT DPS
2019Can-AmCommander Max 800R4x4 DPS
2018Can-AmCommander Max 800R4x4 DPS
2017Can-AmCommander Max 800R4x4 DPS

Product Notes

  • Fits front, right (passenger side) on the following Can-Am UTV models: 2017-2020 Commander 800/MAX 800, 2017-2020 Commander 1000/MAX 1000.
  • Features a stronger than OEM, 4340 chromoly steel bar for a higher tensile strenth and more durability. Engineered as a direct replacement, fully-assembled, and ready to install.
  • Joints fitted with neoprene CV boots for added flexibility and resistance to hot/cold temperatures. Also uses high-performance moly grease for additional protection against various environments and to keep vital components lubricated.
  • Replaces OEM # 705401872, 705400952, 705401106, 705401654. Compressed length - 692.5 mm, Inboard spline count - 21, Outboard spline count - 26.
  • Warranty: 1 Year (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on modified suspensions.

  • What's In The Box

  • 1 axle
  • Warranty

    1 year factory defect limited warranty

    Details

    • CA-132
    • CA-132
    • CUSTOM
    • ATV Parts Connection
    • Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 10.3 lbs.
    • W5.0000” x H5.0000” x L31.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
