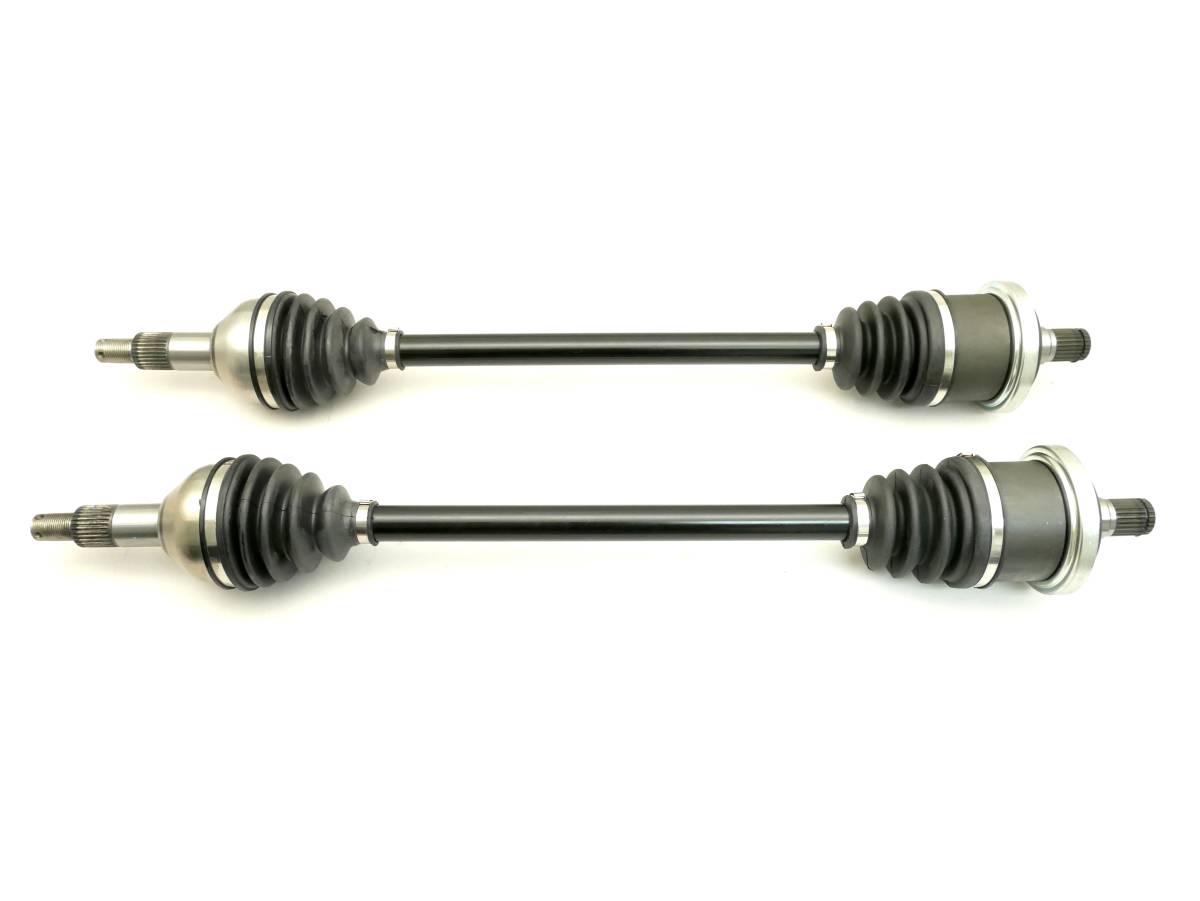

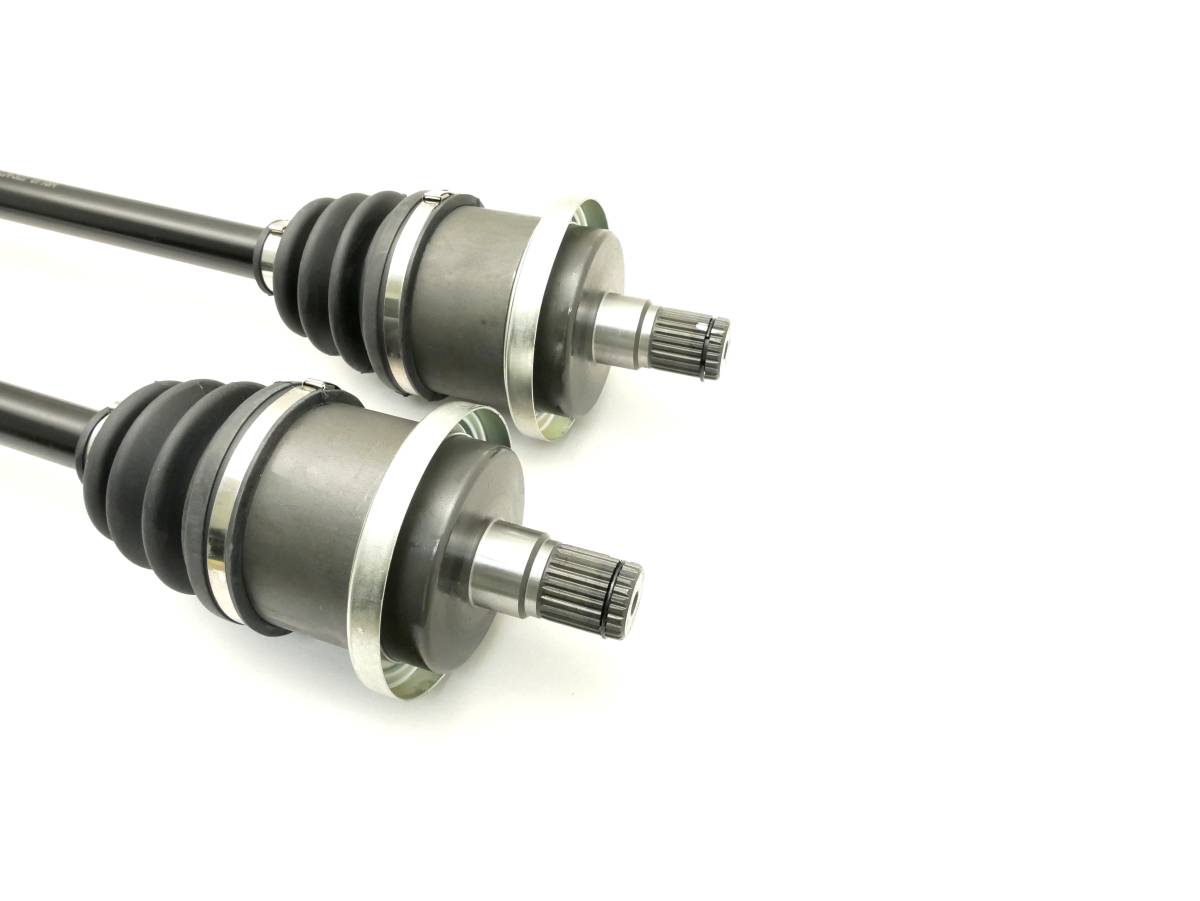

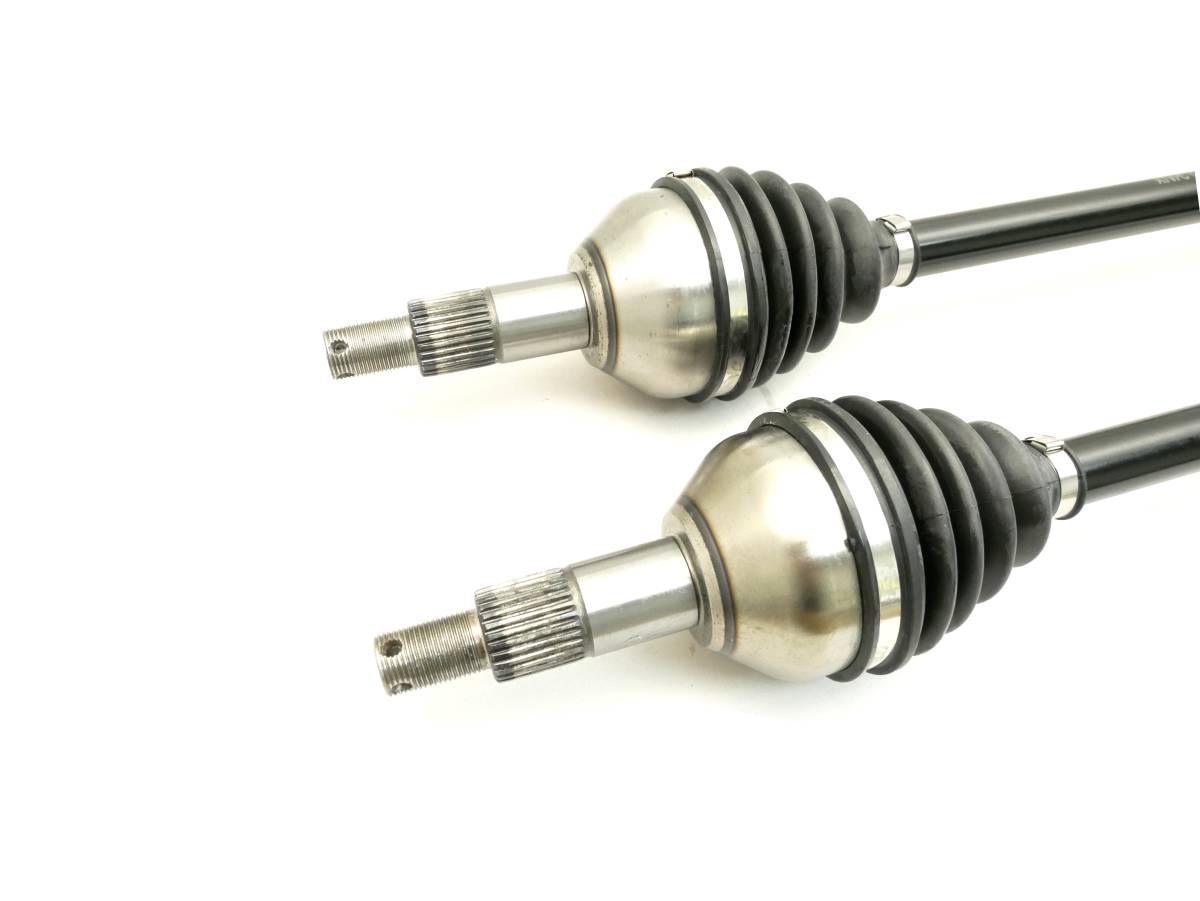

Rear Axle Pair for Can-Am Maverick 1000 Turbo XDS Max 2015-2017 705502412

Location on vehicle: Rear,Left,Right

This is a pair of new Rear CV axles for a Can-Am Turbo Maverick.

They fit the following 4x4 applications:

2015-2017 ... Maverick 1000 XDS

2015-2017 ... Maverick Max 1000 XDS

***Please note these only fit XDS - Turbo models***

Rear, Left & Right side

*Not intended for use in lifted vehicles

Product features:

  • Replacement to OE # 705502412, 705502235, 705502363
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance
  • Inboard CV joint spline count: 24 (both)
  • Outboard CV joint spline count: 29 (both)
  • Compressed overall axle length: 740 mm (both)
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $174.99
Free Ground Shipping


1 year factory defect limited warranty

Product Notes

  • Fits 2015-2017 Maverick 1000 Turbo EFI (XRS/XDS) & 2015-2017 Maverick Max 1000 Turbo.
  • Features a stronger than OEM chromoly steel shaft fitted with neoprene boots filled with moly based grease for added wear and puncture resistance.
  • Replaces OE # 705502412, 705502235, 705502363.
  • Inner splines: 24 (both), Outer splines: 29 (both), Compressed length: 740 mm (both).
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

  • What's In The Box

  • 2 axles
  • Application List

    2017Can-AmMaverick 1000R4x4 Turbo DPS
    2016Can-AmMaverick 1000R4x4 Turbo DPS
    2016Can-AmMaverick 1000R4x4 XDS Turbo DPS
    2016Can-AmMaverick 1000R4x4 XRS Turbo DPS
    2015Can-AmMaverick 1000R4x4 XDS Turbo
    2017Can-AmMaverick Max 1000R4x4 Turbo DPS
    2017Can-AmMaverick Max 1000R4x4 XDS Turbo DPS
    2016Can-AmMaverick Max 1000R4x4 XDS Turbo DPS
    2015Can-AmMaverick Max 1000R4x4 XDS Turbo


    • CA-322/CA-322
    • CA-322/CA-322
    • ATV Parts Connection
    • Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 29.9 lbs.
    • W5.0000” x H10.0000” x L31.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
