Rear Left CV Axle & Wheel Bearing for Yamaha Grizzly 660 4x4 2003-2008

Location on vehicle: Rear,Left

(0) Reviews: Write first review
WB-1496/YA-301
.auto-style1 { font-family: Arial, Helvetica, sans-serif; } .auto-style2 { font-family: Arial, Helvetica, sans-serif; font-size: medium; } .auto-style3 { font-size: large; } .auto-style4 { font-family: Arial, Helvetica, sans-serif; font-size: large; } .auto-style5 { font-size: medium; } This is a new CV axle with wheel bearing for a Yamaha Grizzly ATV

This axle and wheel bearings will fit the following 4x4/em> applications:

2003-2008 ..... Grizzly 660

Rear, Left

*/em>Not intended for use in lifted vehicles

Product features:

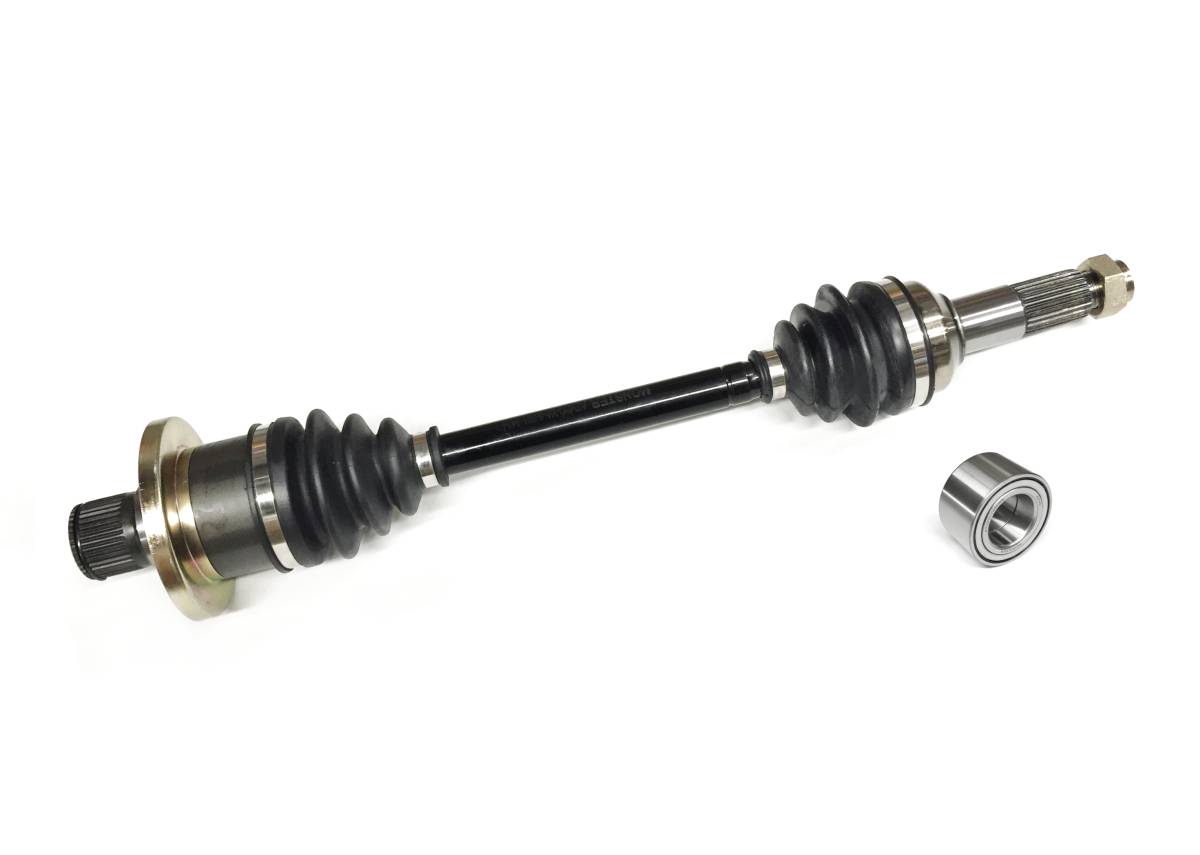

  • IIncluded: 1 left rear axle, 1 wheel bearings
  • Stronger than OEM chromoly forged steel axle bars/em>
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance

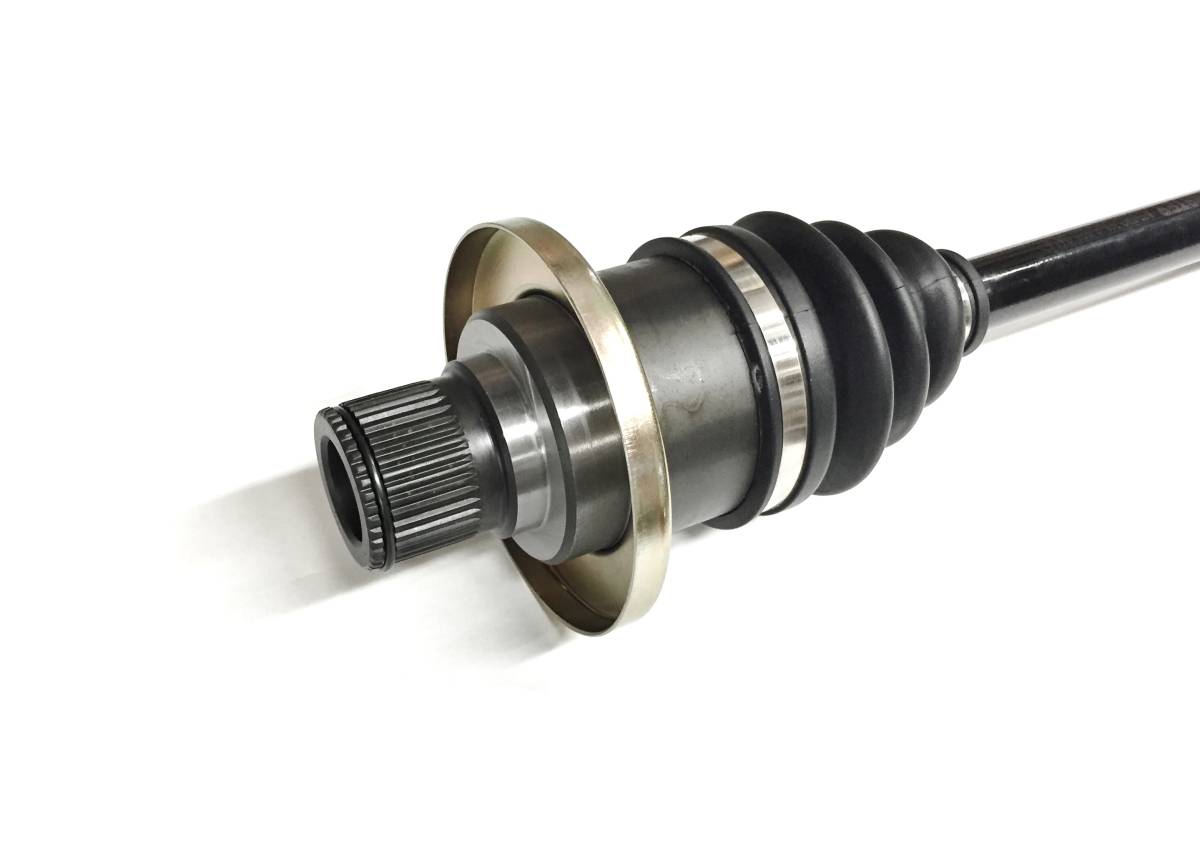

  • Inboard CV joint spline count: 39

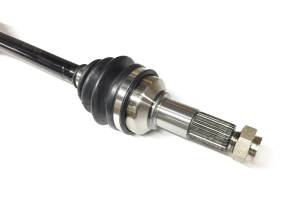

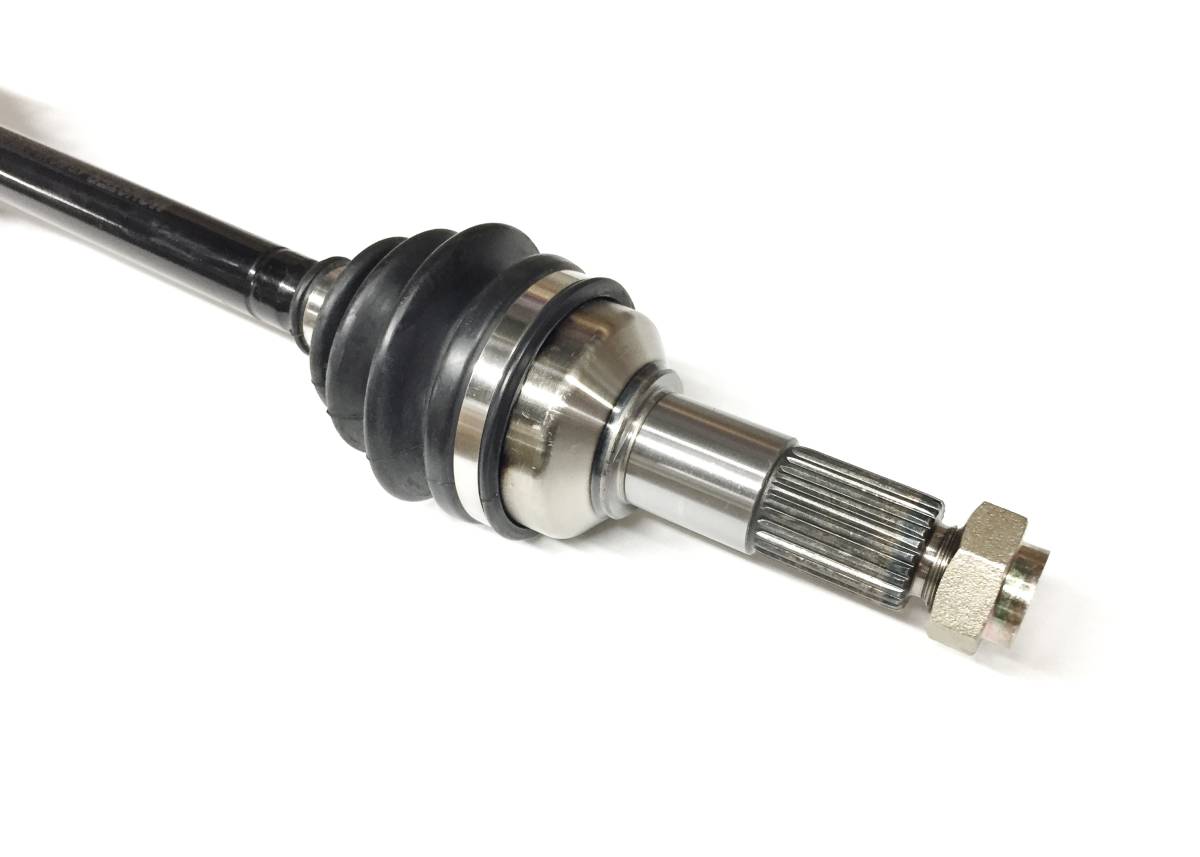

  • Outboard CV joint spline count: 27
  • Compressed overall axle length: Left : 546 mm,
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $89.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2008YamahaGrizzly 660YFM660FA 4x4
2008YamahaGrizzly 660YFM660FG 4x4
2008YamahaGrizzly 660YFM660FGH 4x4 Hunter Edition
2007YamahaGrizzly 660YFM660FG 4x4
2007YamahaGrizzly 660YFM660FGH 4x4 Hunter Edition
2006YamahaGrizzly 660YFM660FA 4x4
2006YamahaGrizzly 660YFM660FAH 4x4 Hardwoods Hunter Edition
2006YamahaGrizzly 660YFM660FAH 4x4 Outdoorsman Edition
2006YamahaGrizzly 660YFM660FAHD 4x4 Ducks Unlimited Edition
2006YamahaGrizzly 660YFM660FASE 4x4 Special Edition
2005YamahaGrizzly 660YFM660FA 4x4
2005YamahaGrizzly 660YFM660FAH 4x4 Hunter Edition
2005YamahaGrizzly 660YFM660FAHW 4x4 Wetlands Hunter Edition
2005YamahaGrizzly 660YFM660FASE 4x4 Special Edition
2004YamahaGrizzly 660YFM660F 4x4
2004YamahaGrizzly 660YFM660FH 4x4 Hardwoods Hunter Edition
2004YamahaGrizzly 660YFM660FHW 4x4 Wetlands Hunter Edition
2004YamahaGrizzly 660YFM660FLE 4x4 Limited Edition
2003YamahaGrizzly 660YFM660F 4x4
2003YamahaGrizzly 660YFM660F 4x4 Limited Edition
2003YamahaGrizzly 660YFM660FH 4x4 Hardwoods Hunter Edition
2003YamahaGrizzly 660YFM660FHW 4x4 Wetlands Hunter Edition

Product Notes

  • Fits all Grizzly 660 models from 2003-2008.
  • Features a stronger than OEM chromoly hardened steel axle bar. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance
  • High speed bearing manufactured for long life. Double lip seal made to keep grease in and dirt out.
  • Replaces Yamaha OEM # 5KM-2530U-10-00, 5KM-2530U-11-00, 5KM-2530U-12-00, 5KM-2530U-13-00, 5KM-2530W-10-00, 5KM-2530W-11-00, 93305-00601-00. Inner splines: 39, Outer splines: 27 Inner, Compressed axle length: 546 mm.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

    • What's In The Box

  • 1 axle & 1 wheel bearing

    • Warranty

    1 year factory defect limited warranty

    Details

    • WB-1496/YA-301
    • WB-1496/YA-301
    • CUSTOM
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 10.7 lbs.
    • W5.0000” x H5.0000” x L39.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
