Rear CV Axle Pair for Yamaha Grizzly 660 4x4 2003-2008 ATV

Location on vehicle: Rear,Left,Right

YA-301/YA-302

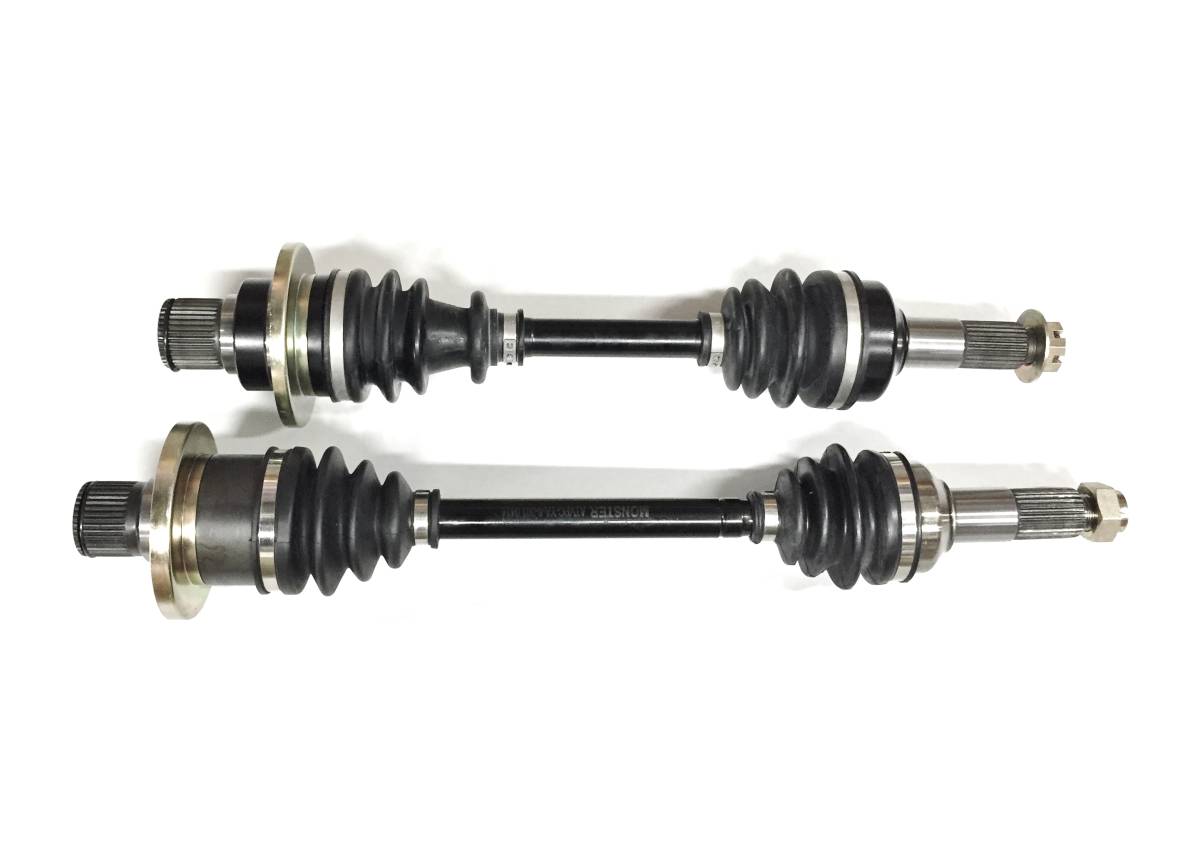

This is pair of new Rear, Left & Right CV axles for a Yamaha ATV.

They will fit the following 4x4 applications:

2003-2008 ... Grizzly 660

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly hardened steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance

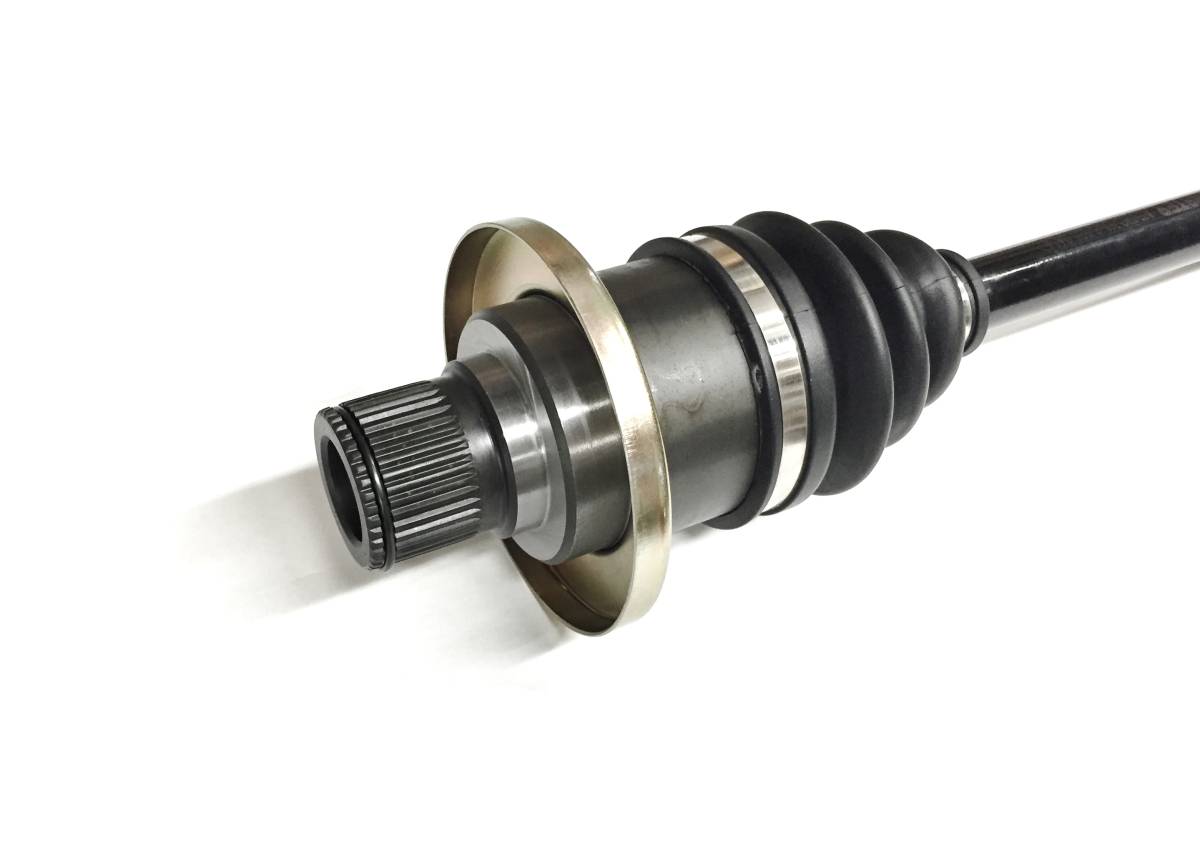

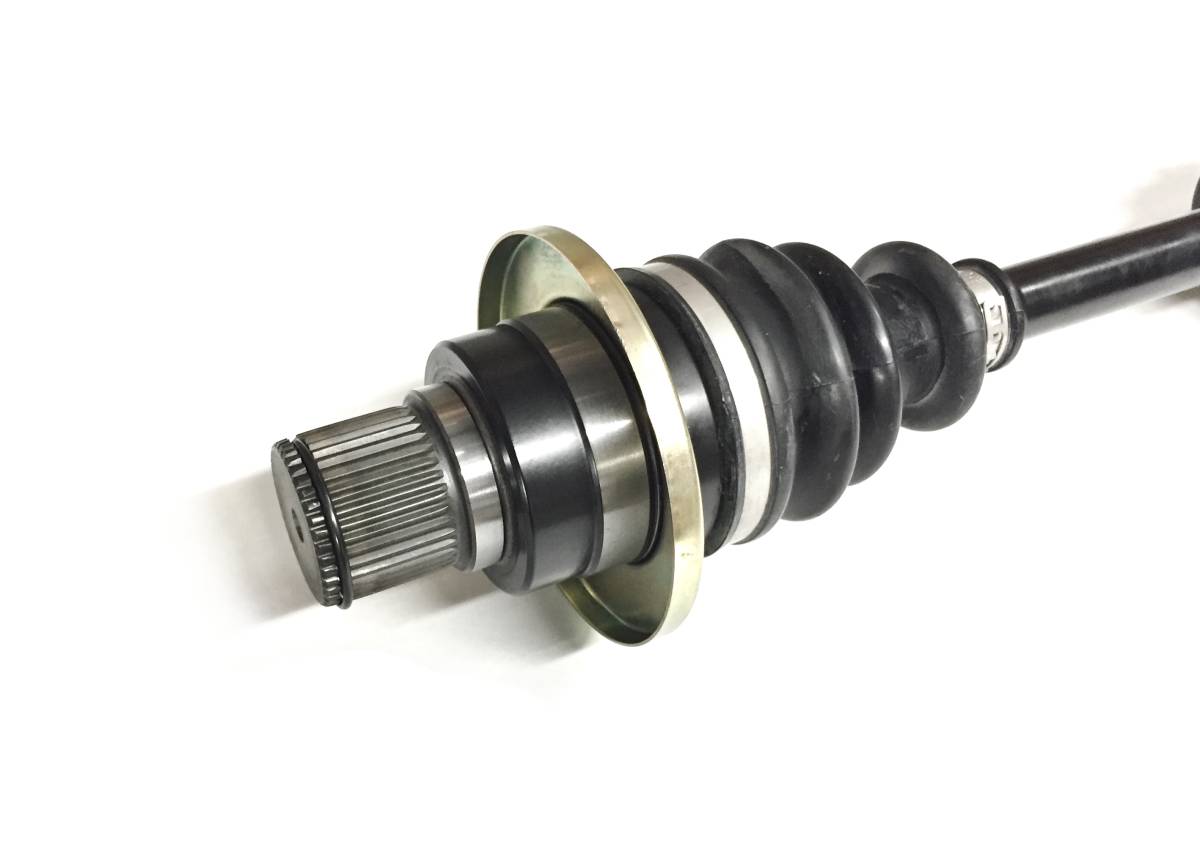

  • Inboard CV joint spline count: 39 (both)

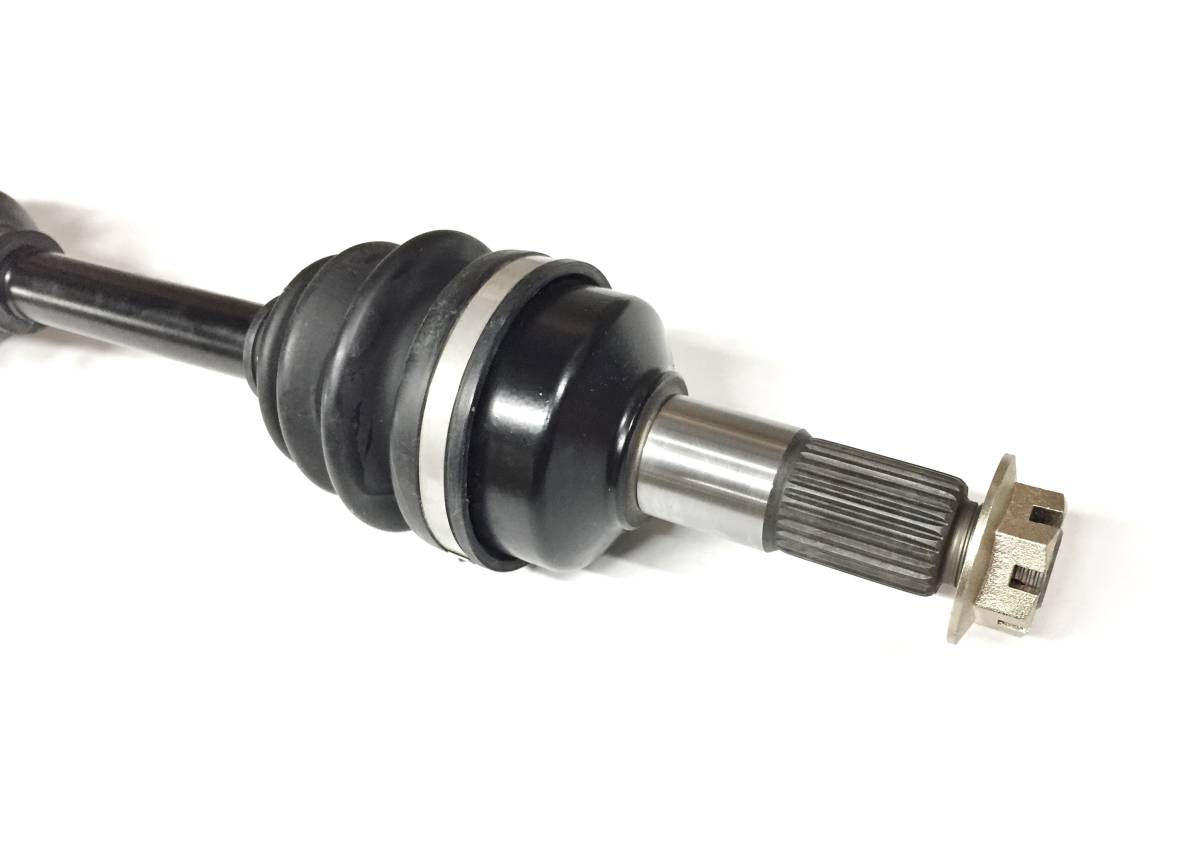

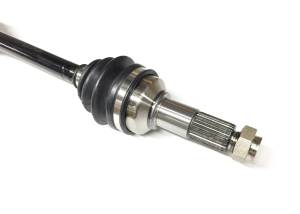

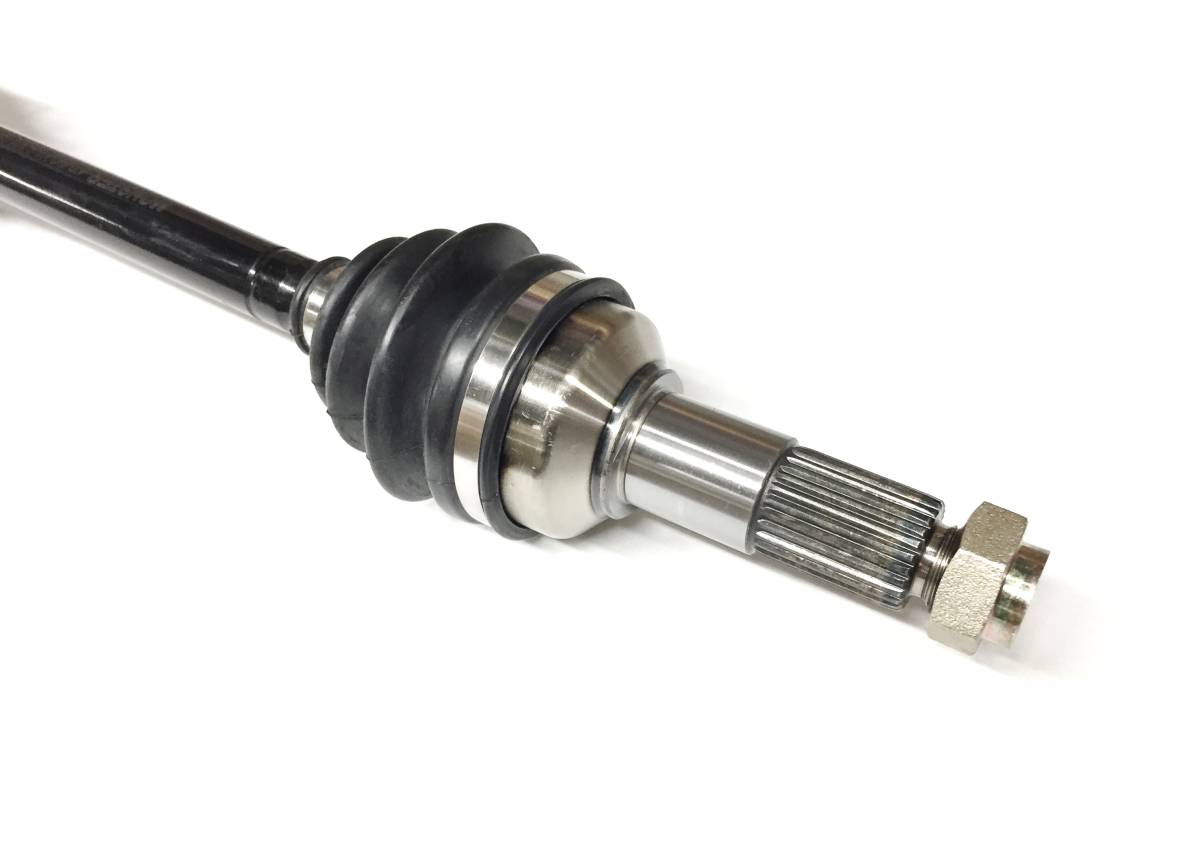

  • Outboard CV joint spline count: 27 (both)
  • Compressed overall axle length: Left 546 mm,, Right 502 mm
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $125.99
Qty:
Free Standard Ground Shipping

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits all Grizzly 660 models from 2003-2008.
  • Features stronger than OEM chromoly hardened steel axle bars. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.
  • Inner splines: 39 (both), Outer splines: 27 (both), Compressed axle length: L-546 mm, R-502 mm.
  • Replaces OE # 5KM-2530U-10-00, 5KM-2530U-13-00, 5KM-2530T-10-00, 5KM-2530T-13-00
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

  • What's In The Box

  • 2 axles
  • Application List

    YearMakeModelSubmodelNotes
    2008YamahaGrizzly 660YFM660FA 4x4
    2008YamahaGrizzly 660YFM660FG 4x4
    2008YamahaGrizzly 660YFM660FGH 4x4 Hunter Edition
    2007YamahaGrizzly 660YFM660FG 4x4
    2007YamahaGrizzly 660YFM660FGH 4x4 Hunter Edition
    2006YamahaGrizzly 660YFM660FA 4x4
    2006YamahaGrizzly 660YFM660FAH 4x4 Hardwoods Hunter Edition
    2006YamahaGrizzly 660YFM660FAH 4x4 Outdoorsman Edition
    2006YamahaGrizzly 660YFM660FAHD 4x4 Ducks Unlimited Edition
    2006YamahaGrizzly 660YFM660FASE 4x4 Special Edition
    2005YamahaGrizzly 660YFM660FA 4x4
    2005YamahaGrizzly 660YFM660FAH 4x4 Hunter Edition
    2005YamahaGrizzly 660YFM660FAHW 4x4 Wetlands Hunter Edition
    2005YamahaGrizzly 660YFM660FASE 4x4 Special Edition
    2004YamahaGrizzly 660YFM660F 4x4
    2004YamahaGrizzly 660YFM660FH 4x4 Hardwoods Hunter Edition
    2004YamahaGrizzly 660YFM660FHW 4x4 Wetlands Hunter Edition
    2004YamahaGrizzly 660YFM660FLE 4x4 Limited Edition
    2003YamahaGrizzly 660YFM660F 4x4
    2003YamahaGrizzly 660YFM660F 4x4 Limited Edition
    2003YamahaGrizzly 660YFM660FH 4x4 Hardwoods Hunter Edition
    2003YamahaGrizzly 660YFM660FHW 4x4 Wetlands Hunter Edition

    Details

    • YA-301/YA-302
    • YA-301/YA-302
    • ATV Parts Connection
    • Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 19.2 lbs.
    • W5.0000” x H10.0000” x L32.0000”
    • Free Standard Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
