Front CV Axle Pair for Honda Rincon 650 4x4 2003-2004 ATV

Location on vehicle: Front,Left,Right

HO-116/HO-216

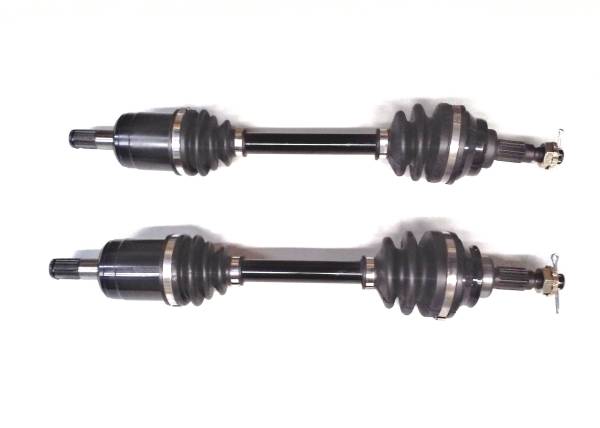

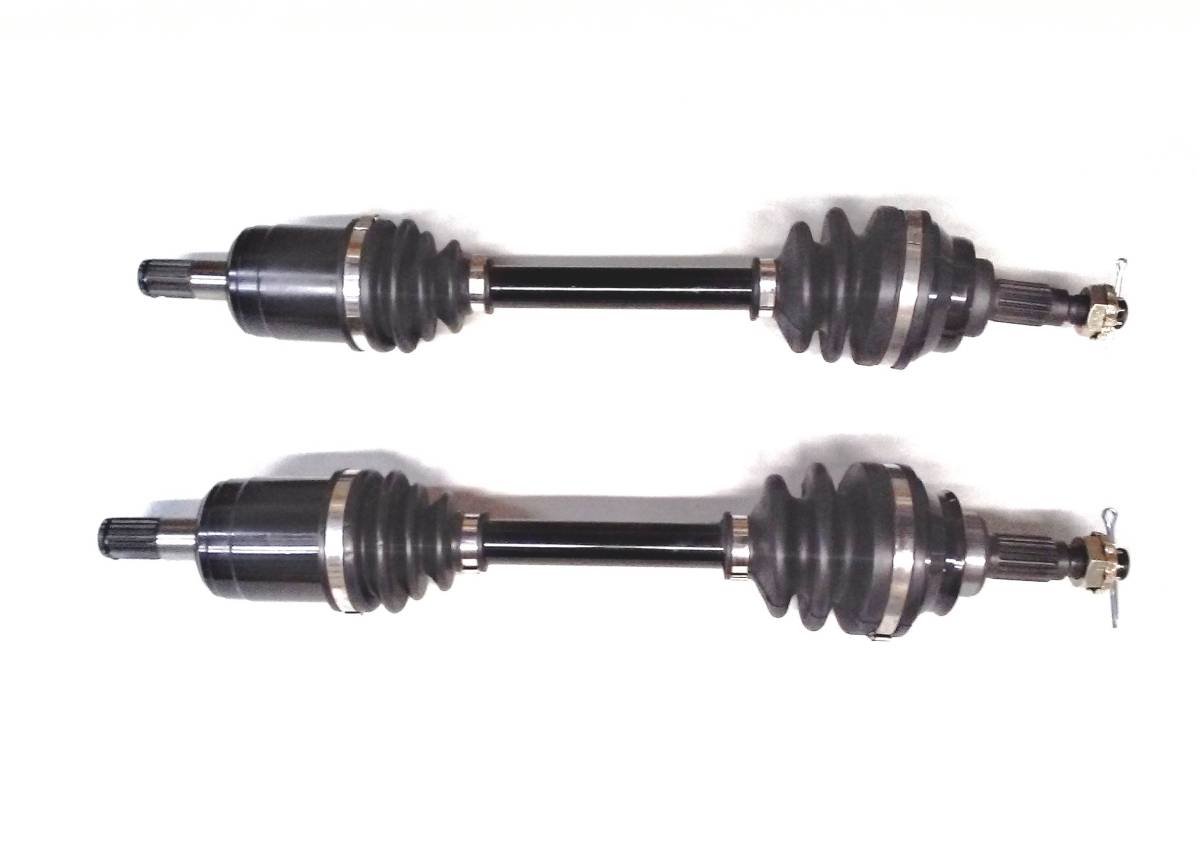

This is a pair of new Front CV axles for a Honda ATV.

They fit the following 4x4 applications:

2003-2004 ... Rincon 650

Front, Left & Right

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly hardened steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear and puncture resistance
  • Inboard CV joint spline count: 20 (both)
  • Outboard CV joint spline count: 21 (both)
  • Compressed overall axle length: Left- 464.5 mm, Right- 484.5 mm
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $124.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2004HondaRincon 650TRX650FA 4x4
2004HondaRincon 650TRX650FGA 4x4 GPScape
2003HondaRincon 650TRX650FA 4x4

Product Notes

  • Fits front left & right on the following Honda ATV models: 2003-2004 Rincon 650 -TRX650.
  • Features stronger than OEM, 4340 chromoly steel bars for a higher tensile strenth and more durability. Engineered as a direct replacement, fully-assembled, and ready to install.
  • Joints fitted with neoprene CV boots for added flexibility and resistance to hot/cold temperatures. Also uses high-performance moly grease for additional protection against various environments and to keep vital components lubricated.
  • Replaces OEM # 44350-HN8-003, 44350-HN8-013 & 44220-HN8-003, 44250-HN8-003. Compressed length: left- 464.5 mm, right- 484.5 mm. Inboard spline count - 20 (both). Outboard spline count - 21 (both).
  • Warranty: 1 Year (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

  • What's In The Box

  • 2 axles
  • Warranty

    1 year factory defect limited warranty

    Details

    • HO-116/HO-216
    • HO-116/HO-216
    • CUSTOM
    • ATV Parts Connection
    • Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 15.4 lbs.
    • W5.0000” x H10.0000” x L25.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
