Rear Axle Pair for Can-Am Maverick 1000 STD XRS 2013-2015 705502356

Location on vehicle: Rear,Left,Right

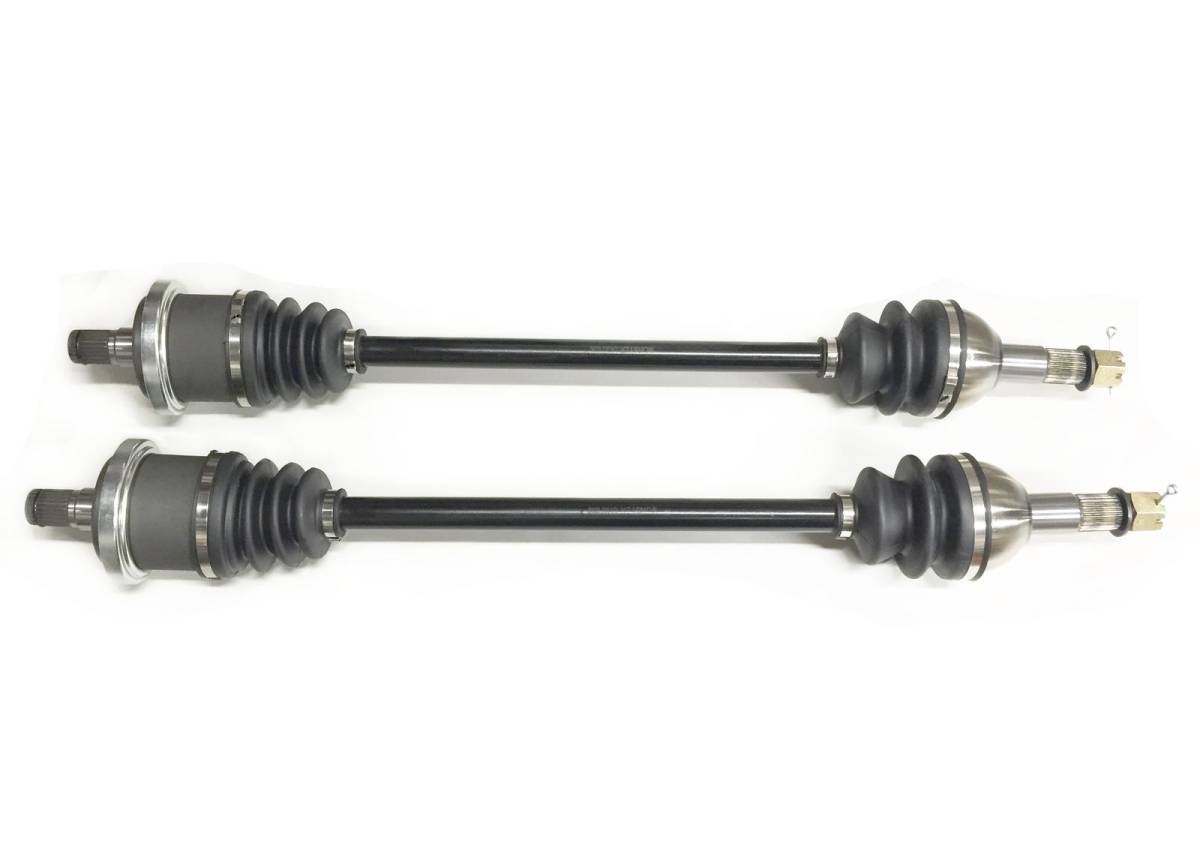

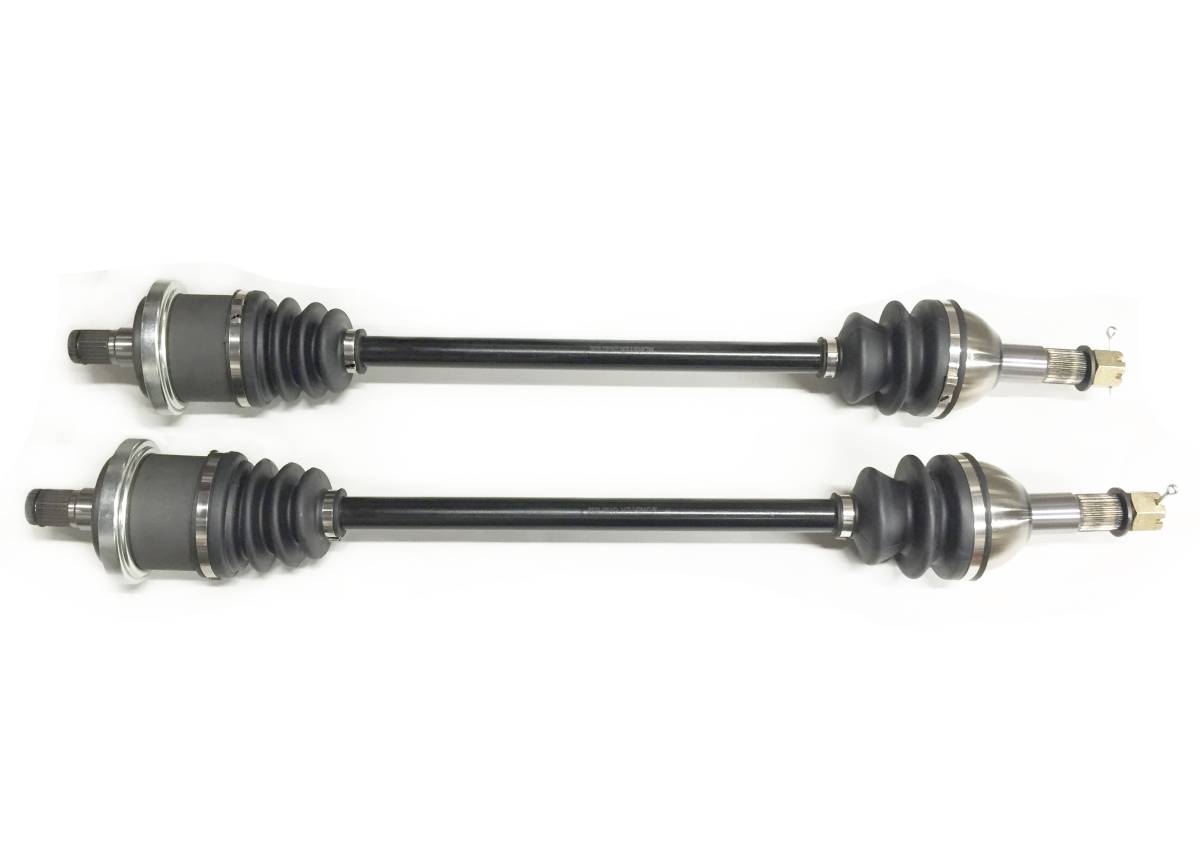

This is a pair of new CV axles for a Can-Am SXS.

They fit REAR, LEFT & RIGHT on the following Maverick models:

2013-2015 Maverick 1000 STD

2013-2015 Maverick 1000 XRS & XRS-DPS

2014-2015 Maverick MAX 1000 STD, XRS, & XRS-DPS

*Please note these will not fit XMR, XXC, or Turbo models

*Axles made as an OE replacement, and not intended for lifted/ modified vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bars
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance

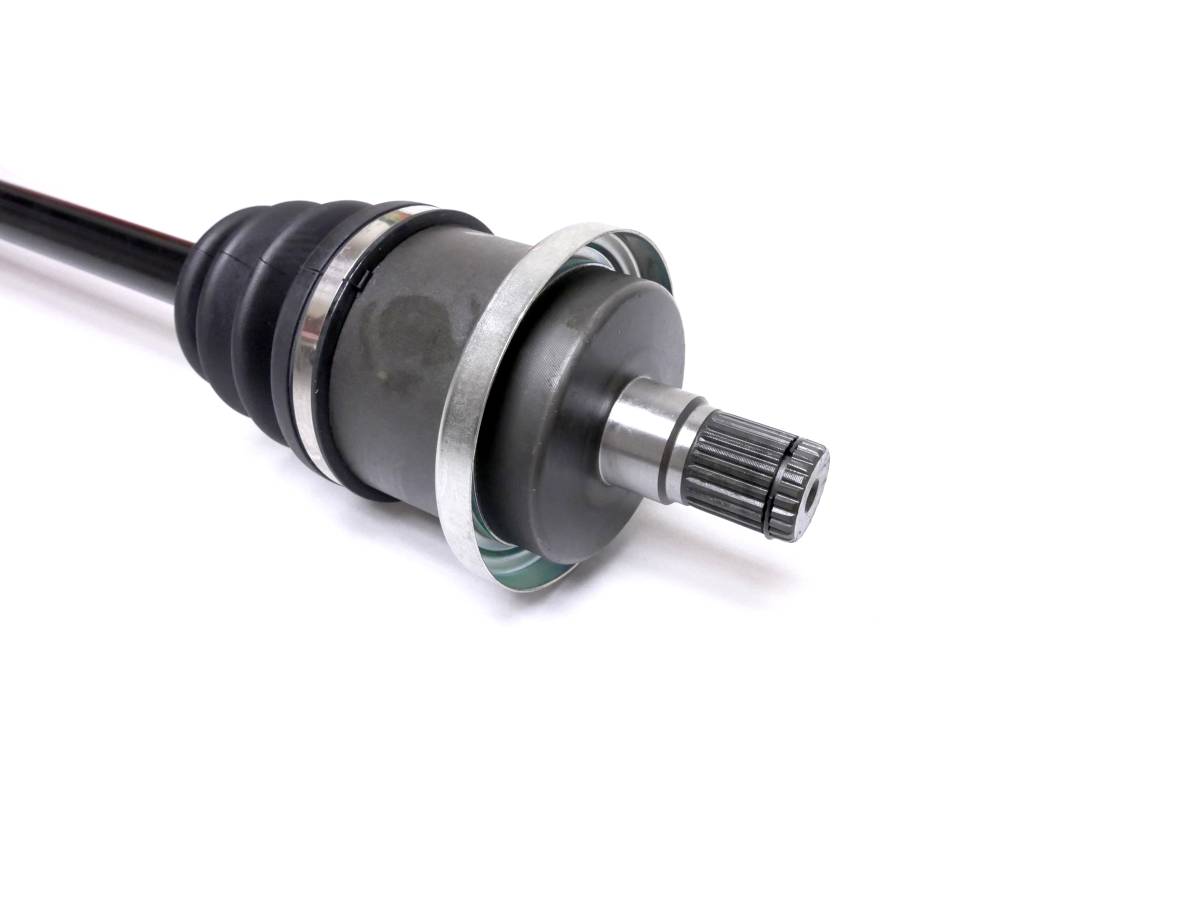

  • Inboard CV joint spline count: 24 (both)

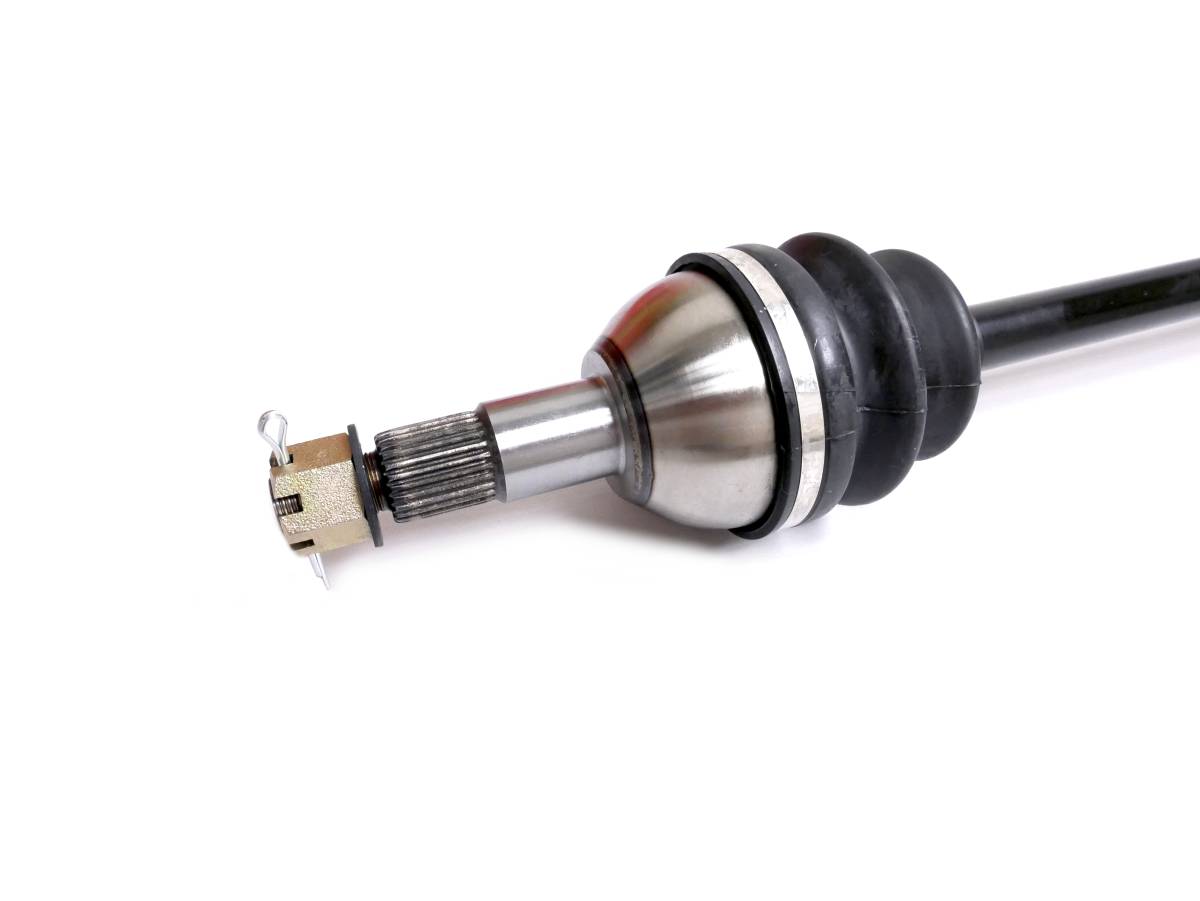

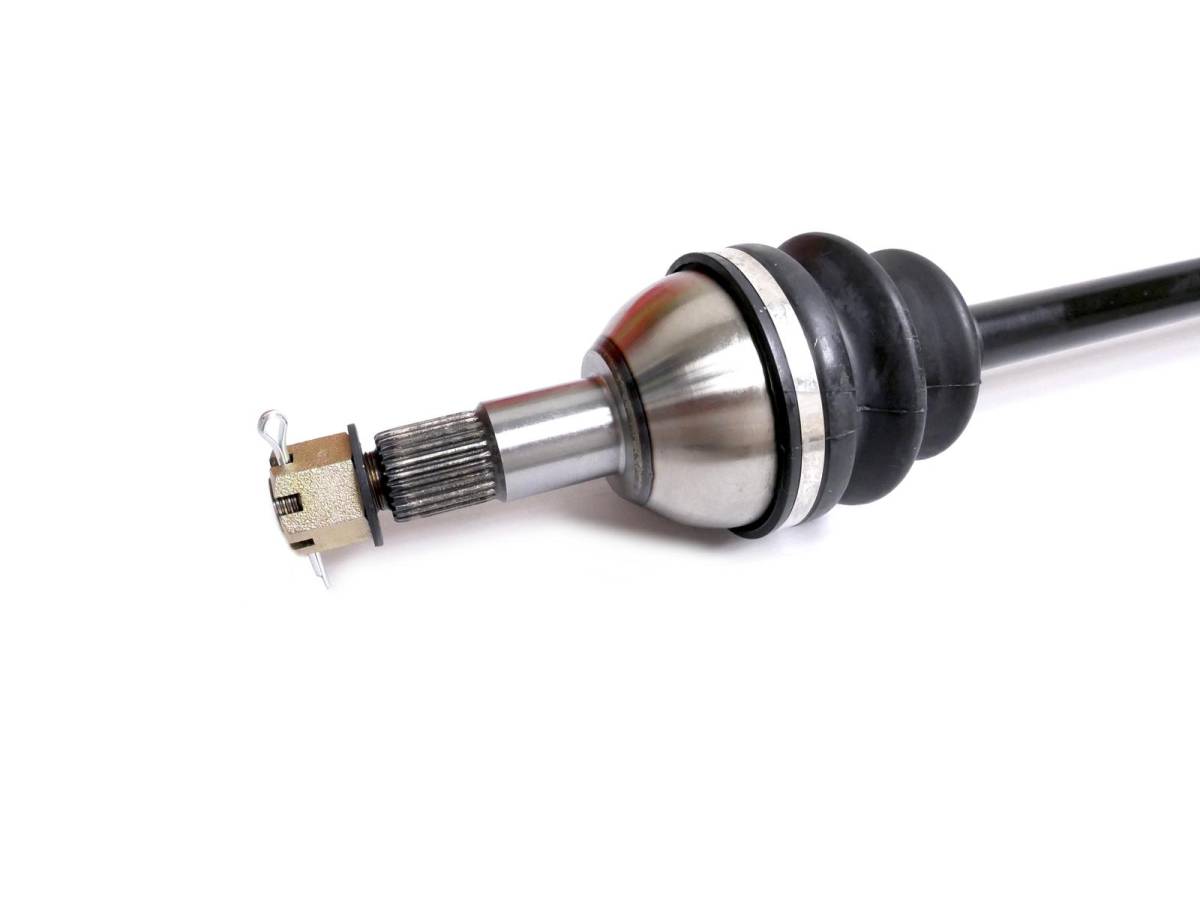

  • Outboard CV joint spline count: 26 (both)
  • Compressed overall axle length: 758 mm (both)
  • Replaces OEM # 705501948, 705502356
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $159.99
Free Ground Shipping


1 year factory defect limited warranty

Product Notes

  • Fits REAR, LEFT & RIGHT on the following Can-Am models: 2013-2015 Maverick 1000 STD, 2013-2015 Maverick 1000 XRS & XRS-DPS, & 2014-2015 Maverick MAX 1000 STD, XRS, & XRS-DPS. Please note these will not fit Turbo, XMR, or XXC models.
  • Features stronger than OEM, 4340 chromoly steel bars. Joints fitted with neoprene boots for added flexibility and resistance to hot/cold temperatures.
  • Uses high-performance moly grease for additional protection against extreme temperatures and to keep vital components lubricated.
  • Replaces OEM # 705501948, 705502356. Inner splines: 24 (both), Outer splines: 26 (both), Compressed length: 758 mm (both).
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

  • What's In The Box

  • 2 axles
  • Application List

    2015Can-AmMaverick 1000R4X4
    2015Can-AmMaverick 1000R4x4 XDS
    2015Can-AmMaverick 1000R4x4 XRS DPS
    2014Can-AmMaverick 1000R4X4
    2014Can-AmMaverick 1000R4x4 XRS
    2014Can-AmMaverick 1000R4x4 XRS DPS
    2013Can-AmMaverick 1000R4X4
    2015Can-AmMaverick Max 1000R4X4
    2015Can-AmMaverick Max 1000R4x4 XRS DPS
    2014Can-AmMaverick Max 1000R4X4
    2014Can-AmMaverick Max 1000R4x4 XRS DPS
