Rear CV Axle & Wheel Bearing for Yamaha Grizzly 700 4x4 2014-2015

Location on vehicle: Rear,Left,Right

WB-1496/YA-346

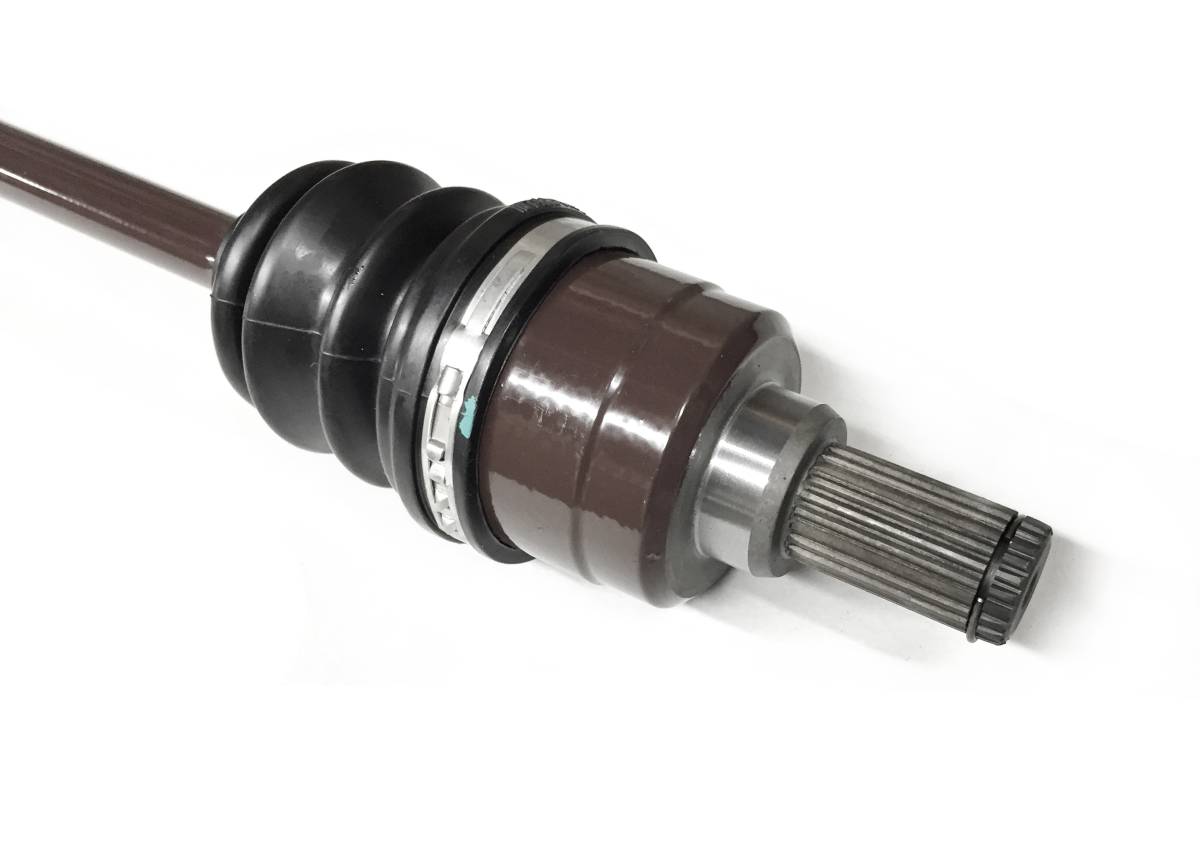

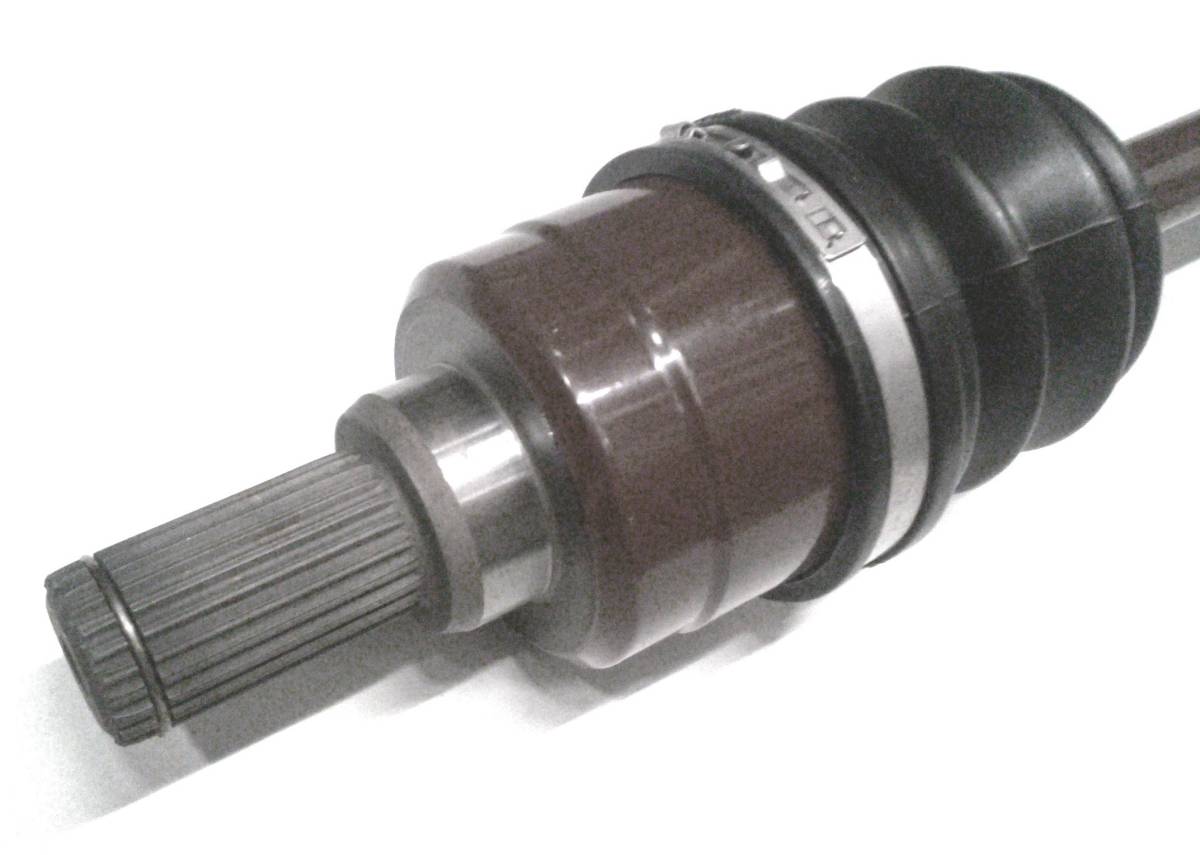

This is a new Rear CV axle & wheel bearing for a Yamaha ATV.

They fit the following 4x4 models:

2014-2015 ... Grizzly 700

Rear, Left or Right Side

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene boots for added wear & puncture resistance
  • High speed bearing manufactured for long life
  • Double lip seal made to keep grease in and dirt out
  • Inboard CV joint spline count: 23
  • Outboard CV joint spline count: 27
  • Compressed overall axle length: 552.5 mm
  • Replaces Yamaha OEM # (axle) 28P-2530V-01-00, 28P-2510F-02-00, 2BG-2518E-10-00, (bearing) 93305-00601-00, 93305-00602-00
Limited Supply: only 7 remaining
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $74.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2015YamahaGrizzly 700YFM700D 4x4 FI
2015YamahaGrizzly 700YFM700DHH 4x4 Hunter Edition FI
2015YamahaGrizzly 700YFM700FGP 4x4 FI EPS
2015YamahaGrizzly 700YFM700FGPSE 4x4 Special Edition FI EPS
2015YamahaGrizzly 700YFM700PHFH 4x4 Hunter Edition FI EPS
2014YamahaGrizzly 700YFM700D 4x4 FI
2014YamahaGrizzly 700YFM700DHH 4x4 Hunter Edition FI
2014YamahaGrizzly 700YFM700P 4x4 FI EPS
2014YamahaGrizzly 700YFM700PHH 4x4 Hunter Edition FI EPS
2014YamahaGrizzly 700YFM700PSE 4x4 Special Edition FI EPS

Product Notes

  • Fits REAR, LEFT or RIGHT on the 2014-2015 Yamaha Grizzly 700 (inlcuduing standard, EPS, FI, & SE models).
  • Features a stronger than OEM chromoly forged steel axle bar. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.
  • High speed bearing manufactured for long life. Double lip seal made to keep grease in and dirt out.
  • Compressed Length - 552.5 mm, Inboard splines - 23, Outboard splines - 27. Replaces OEM # (axle) 28P-2530V-01-00, 28P-2510F-02-00, 2BG-2518E-10-00, (bearing) 93305-00601-00, 93305-00602-00.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

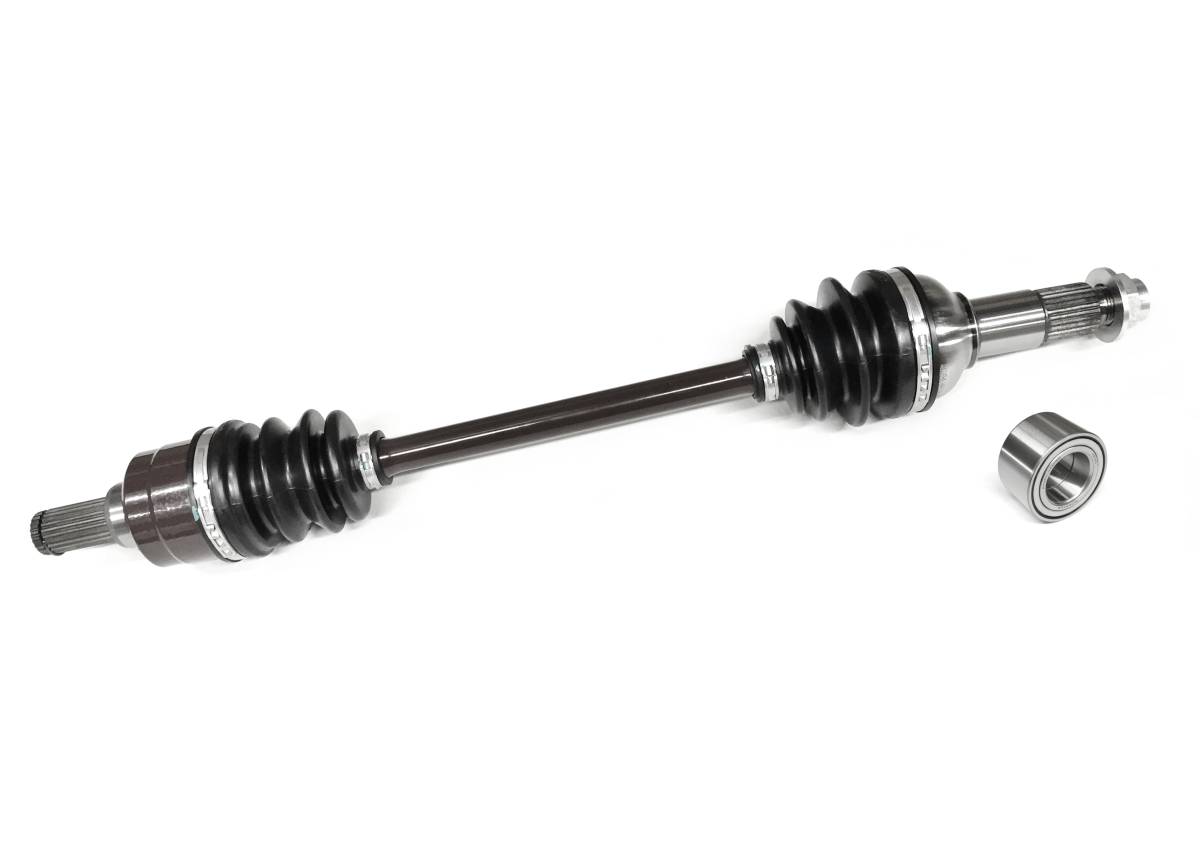

  • What's In The Box

  • 1 CV axle & 1 wheel bearing
  • Warranty

    1 year factory defect limited warranty

    Details

    • WB-1496/YA-346
    • WB-1496/YA-346
    • CUSTOM
    • ATV Parts Connection
    • Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 8.8 lbs.
    • W5.0000” x H5.0000” x L24.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
