Rear CV Axles & Bearings for Can-Am Commander 800, 1000, MAX 1000 2011-2015, Left & Right, 4140 Chromoly Steel, Heat-Treated, Quality Tested, ATVPC

Location on vehicle: Rear,Left,Right

(0) Reviews: Write first review
CA-306/CA-306/WB-1516/WB-1516

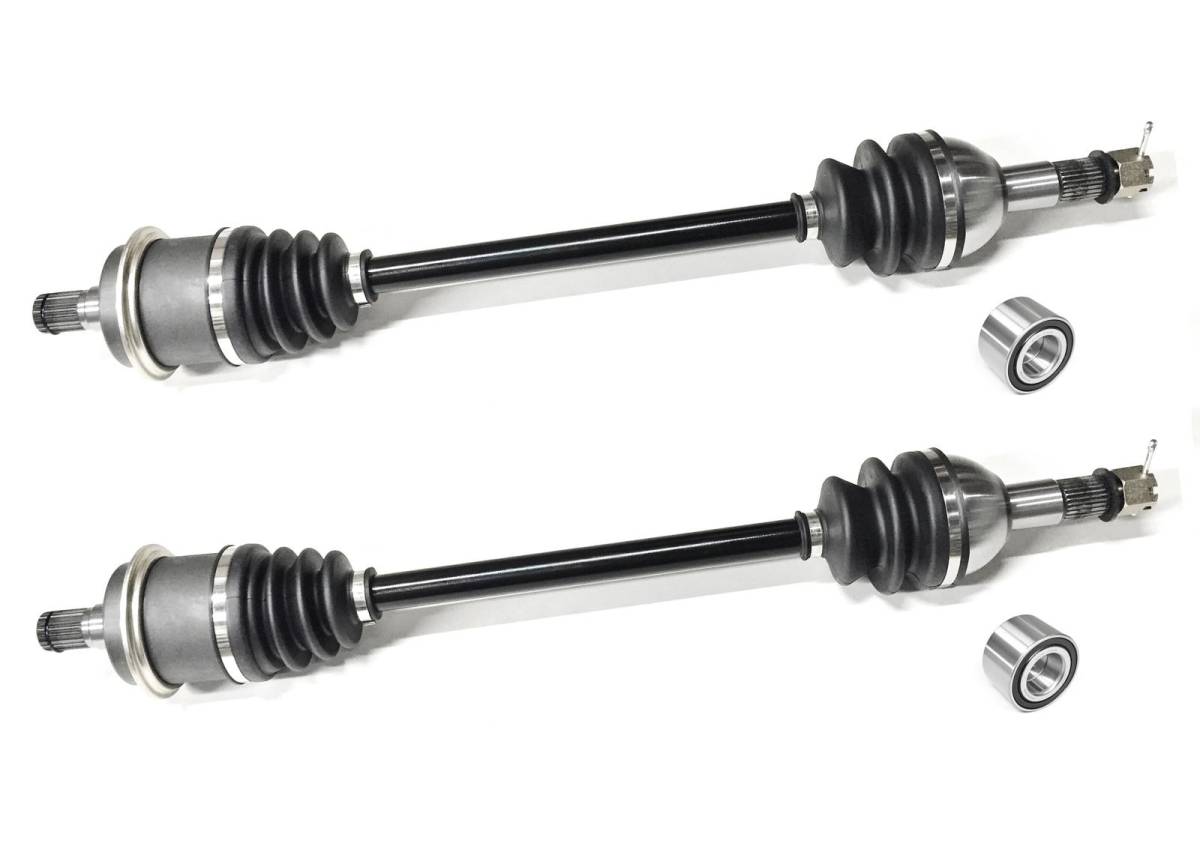

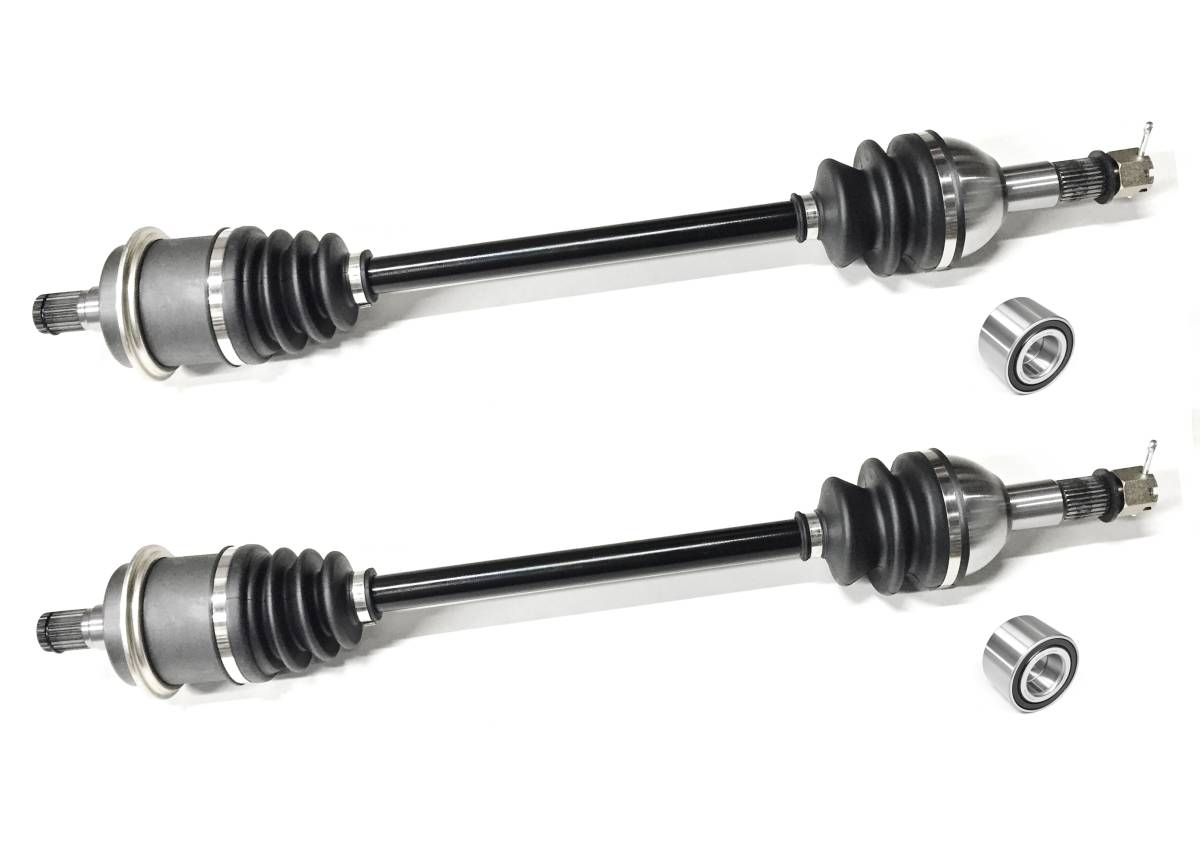

This is a pair of new rear CV axles & wheel bearings for a Can-Am UTV.

They will fit the following 4x4 applications:

2011-2015 ... Commander 800

2011-2015 ... Commander 1000/Max 1000

rear, left or right

(please note this will not work on models with a locking rear differential)

*Not intended for use in lifted / modified suspensions

Product features:

  • Stronger than OEM chromoly forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance
  • inobard CV joint spline count: 24 (both)
  • outboard CV joint spline count: 26 (both)
  • Compressed overall axle length: 680 mm (both)
Limited Supply: only 6 remaining
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $199.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2015Can-AmCommander 8004X4
2015Can-AmCommander 8004x4 DPS
2015Can-AmCommander 8004x4 XT
2015Can-AmCommander 8004x4 XT Rear Open Differential
2014Can-AmCommander 8004X4
2014Can-AmCommander 8004x4 DPS
2014Can-AmCommander 8004x4 XT
2014Can-AmCommander 8004x4 XT Rear Open Differential
2011Can-AmCommander 8004x4 XT
2015Can-AmCommander 800R4X4
2015Can-AmCommander 800R4x4 DPS
2015Can-AmCommander 800R4x4 XT
2013Can-AmCommander 800R4x4 DPS EFI
2013Can-AmCommander 800R4x4 EFI
2013Can-AmCommander 800R4x4 XT EFI
2012Can-AmCommander 800R4x4 EFI
2012Can-AmCommander 800R4x4 XT EFI
2011Can-AmCommander 800R4X4
2011Can-AmCommander 800R4x4 XT
2015Can-AmCommander 10004X4
2015Can-AmCommander 10004x4 DPS
2015Can-AmCommander 10004x4 LTD
2015Can-AmCommander 10004x4 XT
2015Can-AmCommander 10004x4 XTP
2014Can-AmCommander 10004X4
2014Can-AmCommander 10004x4 DPS
2014Can-AmCommander 10004x4 LTD
2014Can-AmCommander 10004x4 XT
2014Can-AmCommander 10004x4 XTP
2013Can-AmCommander 10004x4 DPS EFI
2013Can-AmCommander 10004x4 EFI
2013Can-AmCommander 10004x4 LTD
2013Can-AmCommander 10004x4 X EFI
2013Can-AmCommander 10004x4 XT EFI
2012Can-AmCommander 10004x4 EFI
2012Can-AmCommander 10004x4 LTD EFI
2012Can-AmCommander 10004x4 X EFI
2012Can-AmCommander 10004x4 XT EFI
2011Can-AmCommander 10004X4
2011Can-AmCommander 10004x4 X
2011Can-AmCommander 10004x4 XT
2015Can-AmCommander Max 10004x4 DPS
2015Can-AmCommander Max 10004x4 LTD
2015Can-AmCommander Max 10004x4 XT
2014Can-AmCommander Max 10004X4
2014Can-AmCommander Max 10004x4 DPS
2014Can-AmCommander Max 10004x4 XT

Product Notes

  • Fits rear, left & right on the following Can-Am UTV models: : 2011-2015 Commander 800, 2011-2015 Commander 1000/MAX 1000 (Please note these will not fit models with locking rear differential).
  • Features 4140 chromoly steel bars for a higher tensile strenth and more durability. Engineered as a direct replacement, fully-assembled, and ready to install. Please note the bearings are usually shipped inside the axle boxes.
  • Joints fitted with neoprene CV boots for flexibility and resistance to hot/cold temperatures. Utilizes high-performance moly grease for protection against the environment and to keep vital components lubricated. High speed bearings manufactured for long life. Double lip seals made to keep grease in and dirt out.
  • Replaces OEM # 705501481, 705502359, 705500960, 705501456, 293350040, 705400088, 293350118. Inner splines: 24 (both), Outer splines: 26 (both), Compressed length: 680 mm (both).
  • Warranty: 2 Years (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on modified suspensions.

    • What's In The Box

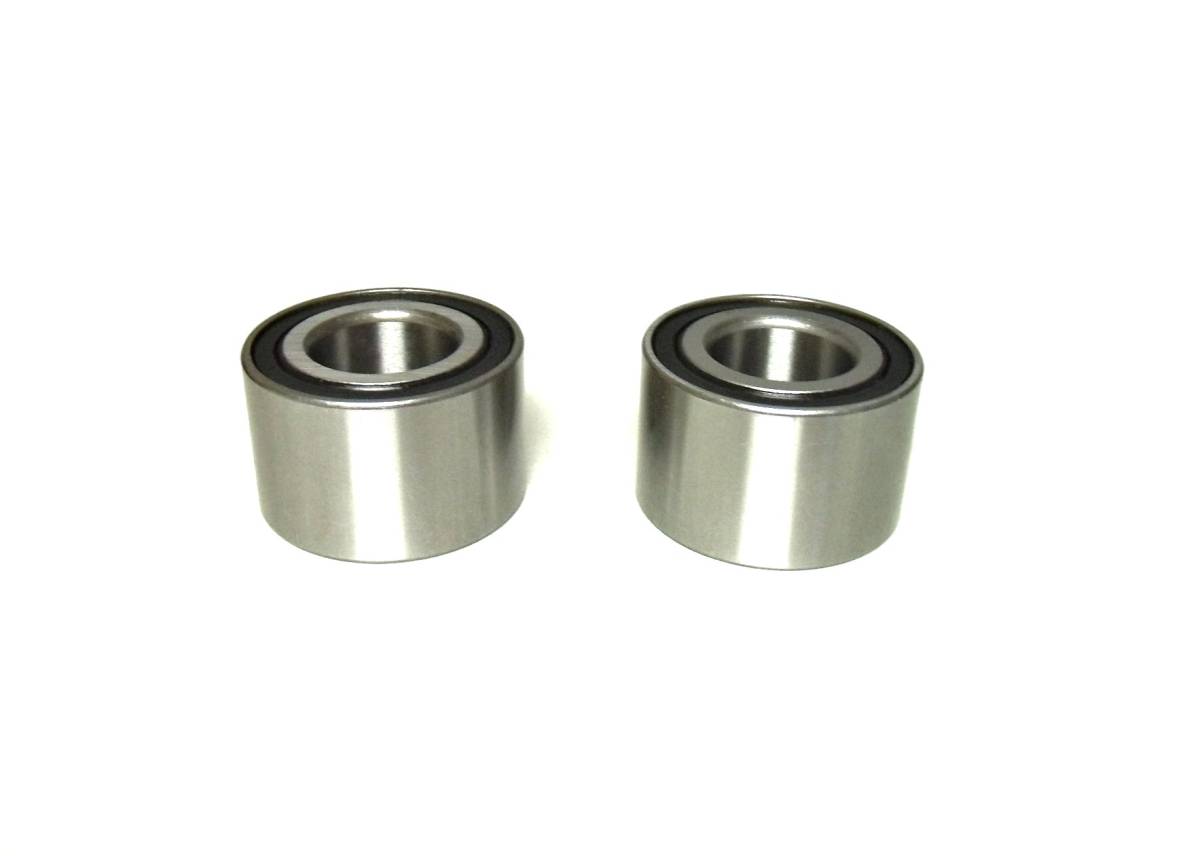

  • 2 CV Axles, 2 Wheel Bearings

    • Warranty

    Limited 2 year, one-time warranty

    Details

    • CA-306/CA-306/WB-1516/WB-1516
    • CA-306/CA-306/WB-1516/WB-1516
    • CUSTOM
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 31.3 lbs.
    • W6.0000” x H10.0000” x L36.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
