Rear Axle Pair with Wheel Bearings for Polaris Ranger 500 2010 & 800 2010-2014

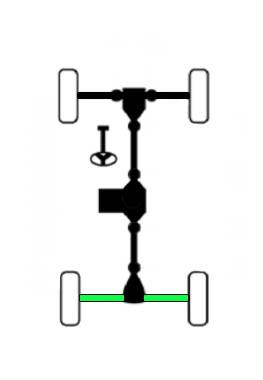

Location on vehicle: Rear,Left,Right

PO-334/PO-334/WB-1150

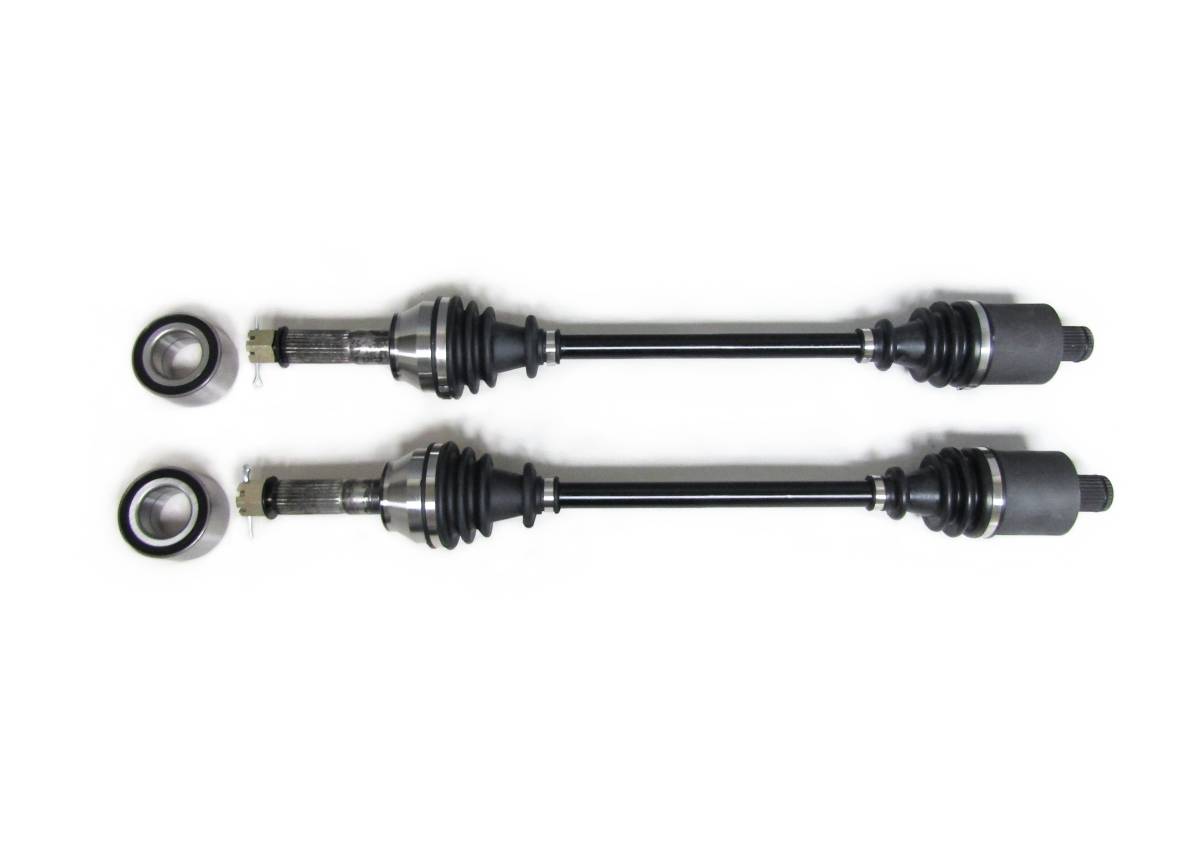

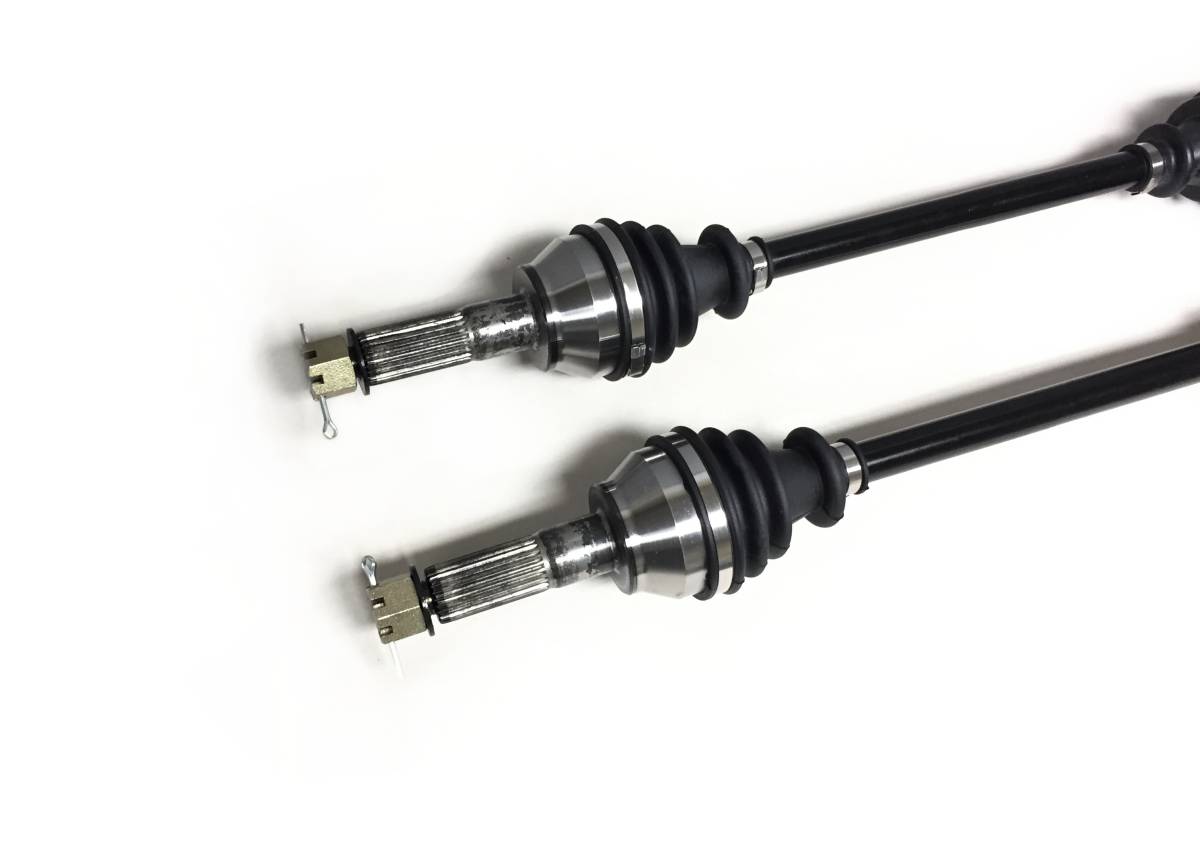

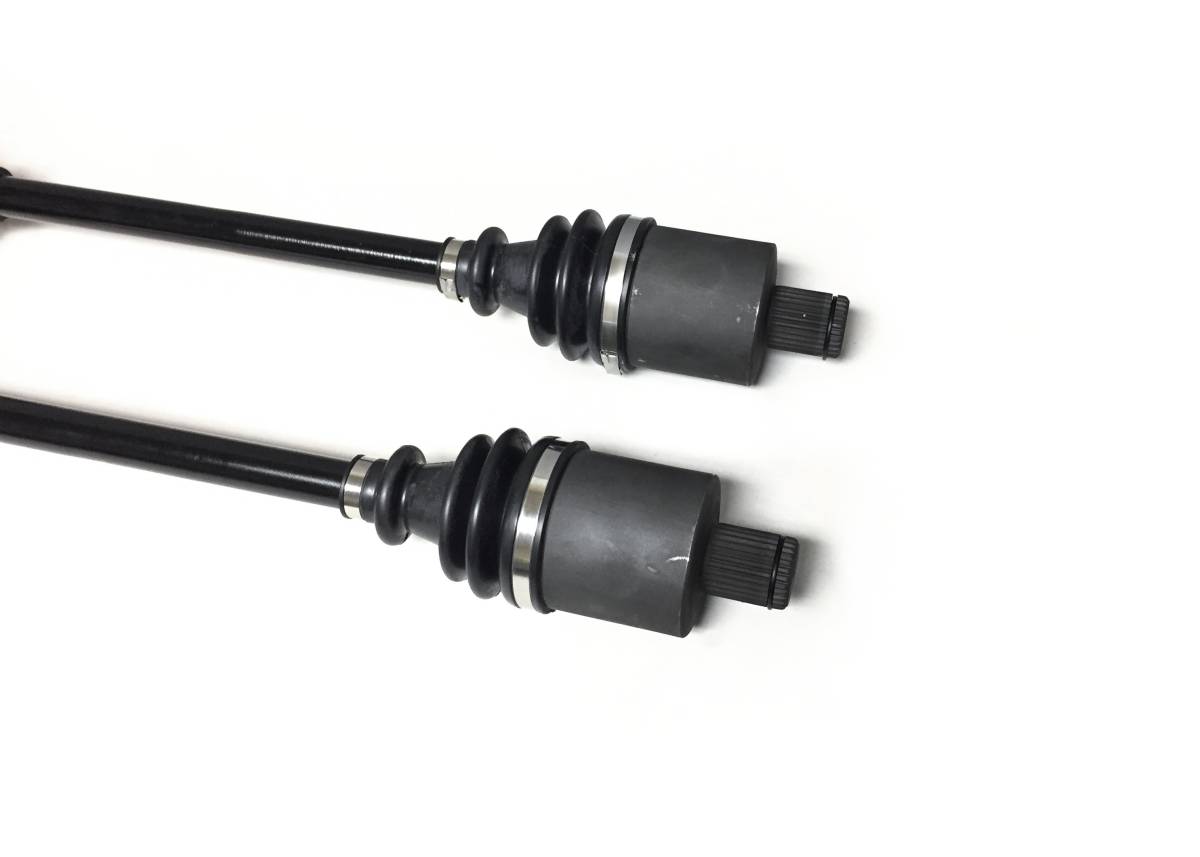

This is a set of new Rear CV axles & wheel bearings for a Polaris UTV.

They fit the following 4x4 applications:

2010 ... Ranger 500

2010-2014 ... Ranger 800 / Crew 800

(excluding 2013-2014 'Midsize' 800 models)

Rear, Left & Right

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance

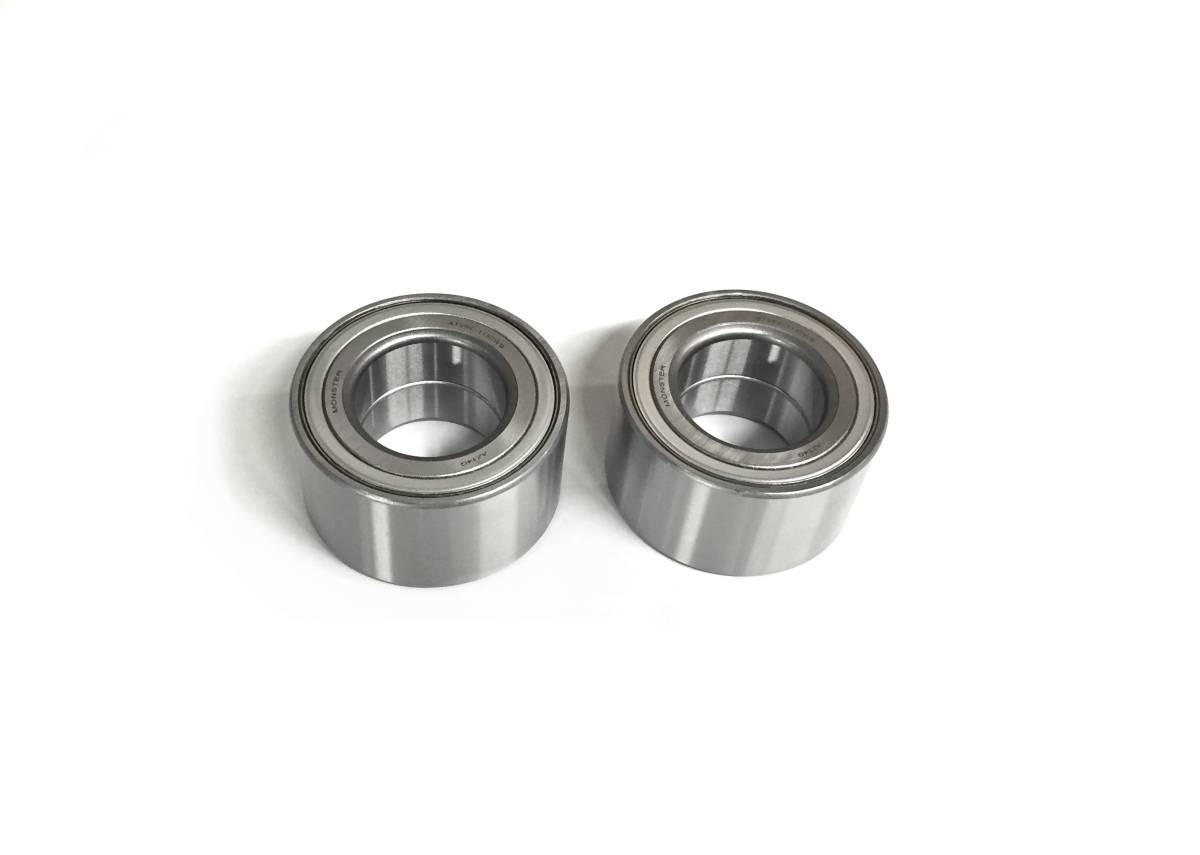

  • High speed bearings manufactured for long life
  • Double lip seals made to keep grease in and dirt out
  • Inboard CV joint spline count: 28 (both)
  • Outboard CV joint spline count: 26 (both)
  • Compressed overall axle length: 673 mm (both)
  • Replaces Polaris OEM # (axles) 1332814, 1333233, (bearings) 3514635, 3585502
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $189.99
Qty:
Free ground shipping for lower 48 states ( some exclusions may apply)

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits 2010 Ranger 500 4x4, 2010-2014 Ranger 800 / Crew 800 4x4. Please note these do not fit 6x6 or 'Midsize' 800 models.
  • Features stronger than OEM chromoly forged steel axle bars. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.
  • High speed bearings manufactured for long life. Double lip seals made to keep grease in and dirt out.
  • Compressed Length - 673 mm (both), Inboard Spline Count - 28 (both), Outboard Spline Count - 26 (both) * Replaces Polaris OEM # (axles) 1332814, 1333233, (bearings) 3514635, 3585502.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

  • What's In The Box

  • 2 CV axles & 2 wheel bearings
  • Application List

    YearMakeModelSubmodelNotes
    2010PolarisRanger XP 8004x4 Pursuit Browning EFI
    2010PolarisRanger XP 8004x4 LE EFI
    2010PolarisRanger XP 8004x4 EFI EPS
    2010PolarisRanger XP 8004x4 EFI
    2011PolarisRanger XP 8004x4 Pursuit EFI
    2011PolarisRanger XP 8004x4 EFI EPS
    2011PolarisRanger XP 8004x4 EFI
    2011PolarisRanger XP 8004x4 Browning EFI
    2012PolarisRanger XP 8004x4 LE EPS
    2012PolarisRanger XP 8004x4 LE
    2012PolarisRanger XP 8004x4 EPS
    2012PolarisRanger XP 8004x4 EFI
    2012PolarisRanger XP 8004x4 Browning EPS
    2012PolarisRanger XP 8004X4

    Details

    • PO-334/PO-334/WB-1150
    • PO-334/PO-334/WB-1150
    • ATV Parts Connection
    • Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 28.0 lbs.
    • W5.0000” x H10.0000” x L32.0000”
    • Free ground shipping for lower 48 states ( some exclusions may apply)
    • Free Shipping - Same Day If Ordered Before 3 EST
