Front CV Axle Pair for Arctic Cat 650 V2 4x4 2004

Location on vehicle: Front,Left,Right

(0) Reviews: Write first review
AC-144/AC-244

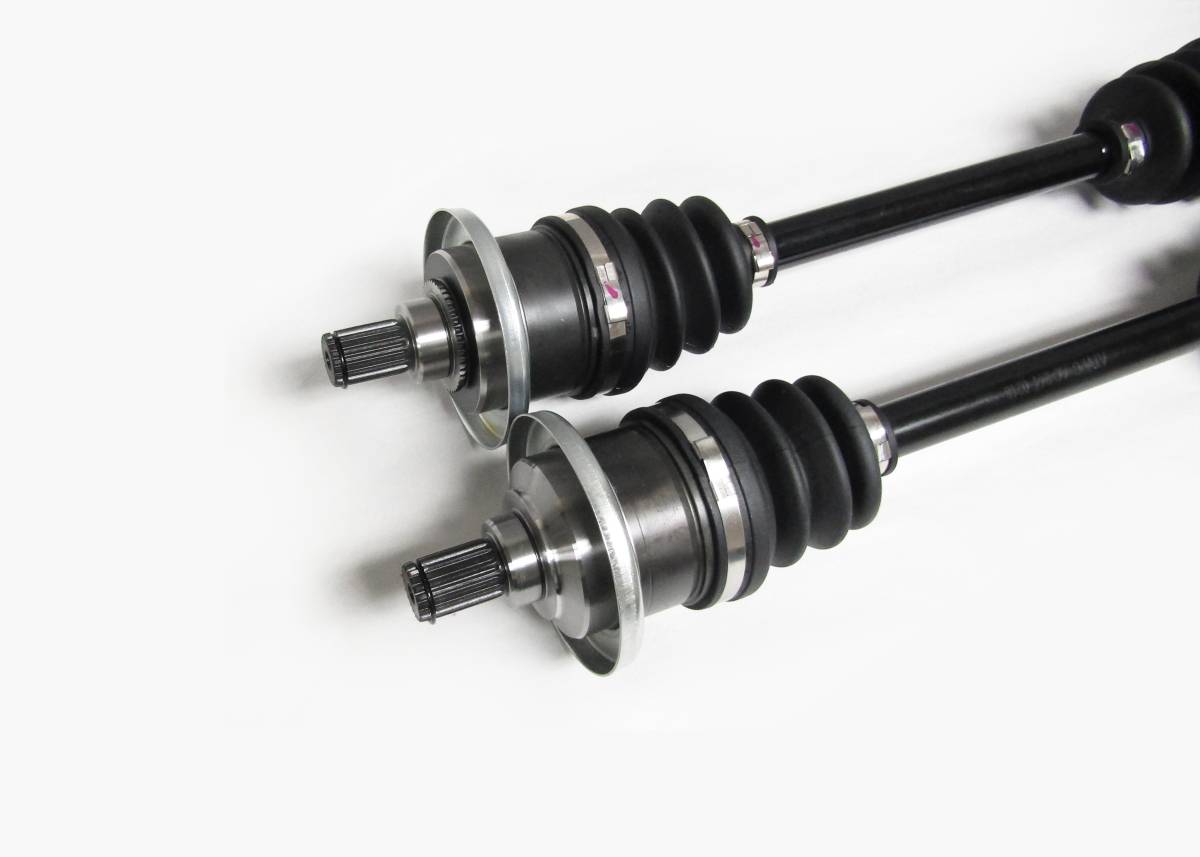

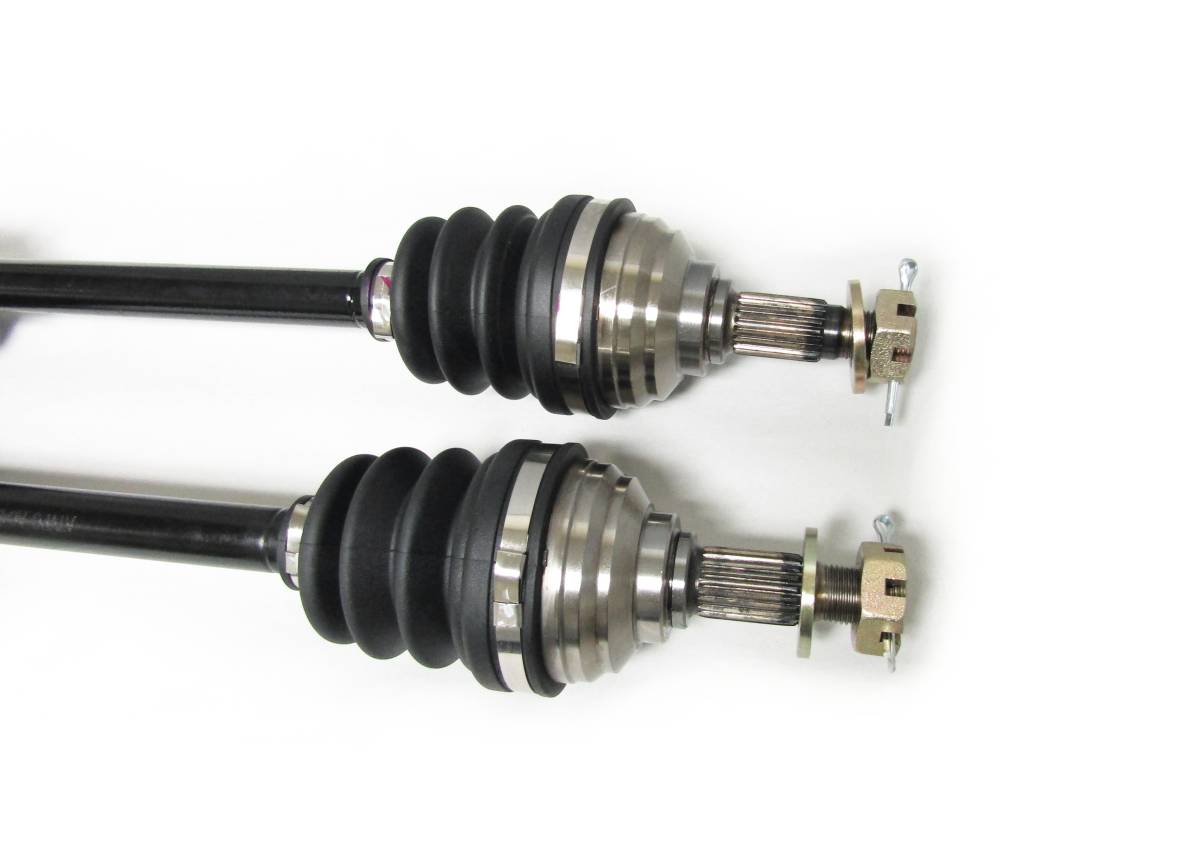

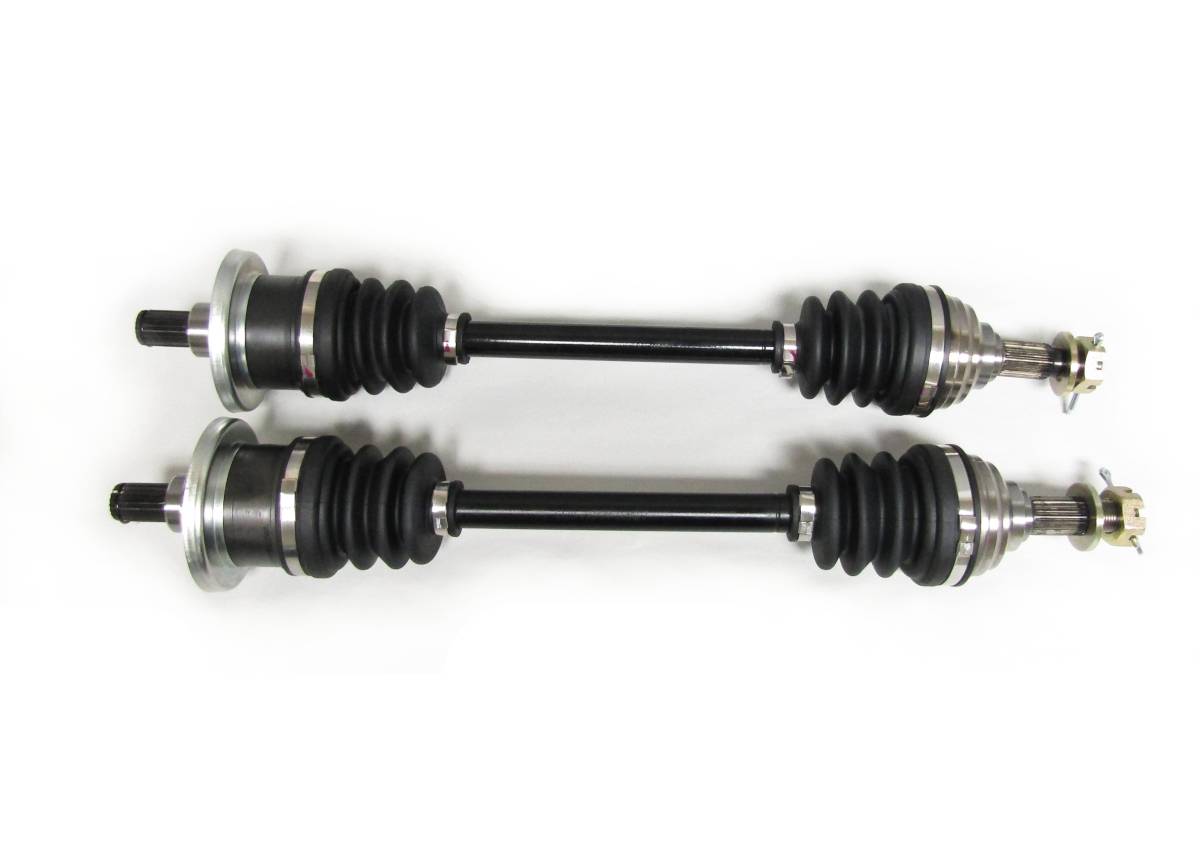

This is a pair of new Front CV axles for an Arctic Cat ATV.

They fit the following 4x4 models:

2004 ... 650

(A2004ISR4BUS-G/R/Z, A2004ISR4BUS-S/T/V MRP, A2004ISR4BUSA SE)

Front, Left & Right

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly hardened steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear and puncture resistance
  • Inboard CV joint spline count: 21 (both)
  • Outboard CV joint spline count: 21 (both)
  • Compressed overall axle length: Left: 551 mm, Right: 548 mm
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $139.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2004Arctic Cat6504x4 Automatic
2004Arctic Cat6504x4 LE Automatic
2004Arctic Cat6504x4 MRP Automatic
2004Arctic Cat6504x4 V2 Automatic
2004Arctic Cat6504x4 V2 LE Automatic
2004Arctic Cat6504x4 V2 MRP Automatic

Product Notes

  • Fits front left & right on the following Arctic Cat ATV models: 2004 650 V2 4x4.
  • Features stronger than OEM, 4340 chromoly steel bars for a higher tensile strenth and more durability. Engineered as a direct replacement, fully-assembled, and ready to install.
  • Joints fitted with neoprene CV boots for added flexibility and resistance to hot/cold temperatures. Also uses high-performance moly grease for additional protection against various environments and to keep vital components lubricated.
  • Replaces OEM # 0502-546, 0402-907, 0502-544, 1502-442. Compressed Length: Left: 551 mm, Right: 548 mm, Inboard Spline Count: 21 (both), Outboard Spline Count: 21 (both).
  • Warranty: 1 Year (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

    • What's In The Box

  • 2 axles

    • Warranty

    1 year factory defect limited warranty

    Details

    • AC-144/AC-244
    • AC-144/AC-244
    • CUSTOM
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 18.9 lbs.
    • W5.0000” x H10.0000” x L25.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
