CV Axle Set for Yamaha Rhino 700 2008-2013 UTV

Location on vehicle: Front,Rear,Left,Right

(0) Reviews: Write first review
YA-319/YA-319/YA-322/YA-330

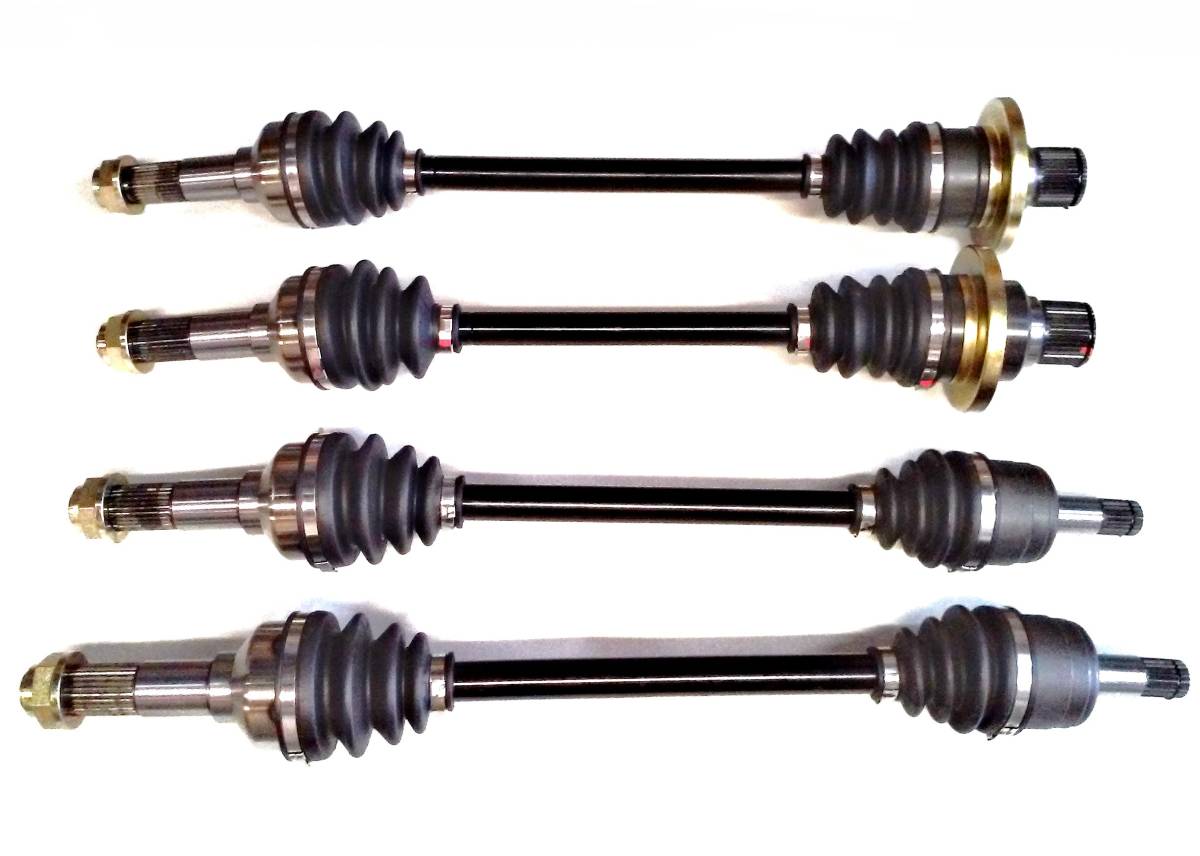

This is a set of new Front & Rear CV axles for a Yamaha UTV.

They will fit the following 4x4 applications:

2008-2013 ... Rhino 700

Front & Rear, Left & Right

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance
  • Inboard CV joint spline count: FL- 21, FR- 21, RL- 39, RR- 39
  • Outboard CV joint spline count: FL- 27, FR- 27, RL- 27, RR- 27
  • Compressed overall axle length (mm): FL- 616, FR- 616, RL- 597, RR- 648
Limited Supply: only 1 remaining
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $189.99
Qty:
Free Ground Shipping

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits all Rhino 700 models from 2008-2013 (including FI, SE & Sport).
  • Axles feature a stronger than OEM chromoly steel shaft fitted with neoprene boots filled with moly based grease for added wear and puncture resistance.
  • Replaces OE # OEM replacement # 5B4-F518F-00-00, 5UG-F531H-21-00, 5UG-F531H-20-00, 5B4-F53B0-00-00.
  • Compressed Length (mm) - FL 616, FR 616, RL 597, RR 648 *Inboard Spline Count - Fronts - 21, Rears - 39 * Outboard Spline Count - Fronts - 27, Rears 27.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

    • What's In The Box

  • 4 axles

    • Application List

    YearMakeModelSubmodelNotes
    2013YamahaRhino 700YXR700F 4x4 FI
    2013YamahaRhino 700YXR700FH 4x4 Hunter Edition FI
    2013YamahaRhino 700YXR700FSP 4x4 Specialt Edition FI
    2013YamahaRhino 700YXR700FSP 4x4 Sport Edition FI
    2012YamahaRhino 700YXR700F 4x4 FI
    2012YamahaRhino 700YXR700FH 4x4 Hunter Edition FI
    2012YamahaRhino 700YXR700FSE 4x4 Special Edition FI
    2012YamahaRhino 700YXR700FSP 4x4 Sport Edition FI
    2011YamahaRhino 700YXR700F 4x4 FI
    2011YamahaRhino 700YXR700FSE 4x4 Special Edition FI
    2011YamahaRhino 700YXR700FSP 4x4 Sport Edition FI
    2009YamahaRhino 700YXR700F 4x4 FI
    2009YamahaRhino 700YXR700FDU 4x4 Ducks Unlimited Edition FI
    2009YamahaRhino 700YXR700FH 4x4 Hunter Edition
    2009YamahaRhino 700YXR700FSE 4x4 Special Edition FI
    2009YamahaRhino 700YXR700FSP 4x4 Sport Edition FI
    2008YamahaRhino 700YXR700F 4x4 FI
    2008YamahaRhino 700YXR700FDU 4x4 Ducks Unlimited Edition FI
    2008YamahaRhino 700YXR700FH 4x4 Hunter Edition FI
    2008YamahaRhino 700YXR700FSEP 4x4 Special Edition FI
    2008YamahaRhino 700YXR700FSP2 4x4 Special Edition II FI
    2008YamahaRhino 700YXR700FSP 4x4 Sport Edition FI

    Details

    • YA-319/YA-319/YA-322/YA-330
    • YA-319/YA-319/YA-322/YA-330
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 43.0 lbs.
    • W10.0000” x H10.0000” x L31.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
