Precision Full CV Axle Set for Yamaha Rhino 700 2008-2013, Front & Rear, Quality Tested, Heat-Treated, 4140 Chromoly Steel, Exact Fit, ATVPC

Location on vehicle: Front,Rear,Left,Right

(0) Reviews: Write first review
YA-319/YA-319/YA-322/YA-330

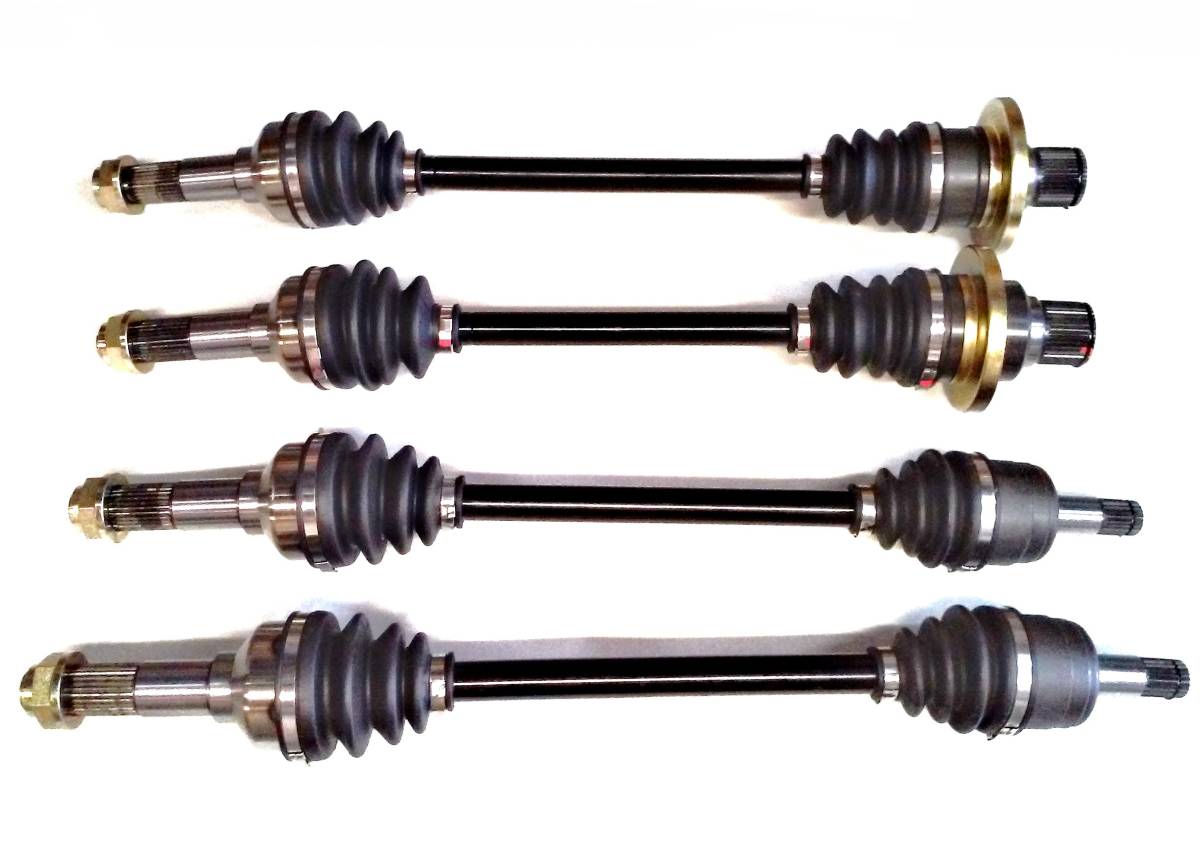

This is a set of new front & rear CV axles for a Yamaha UTV.

They will fit the following 4x4 applications:

2008-2013 ... Rhino 700

front & rear, left & right

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance

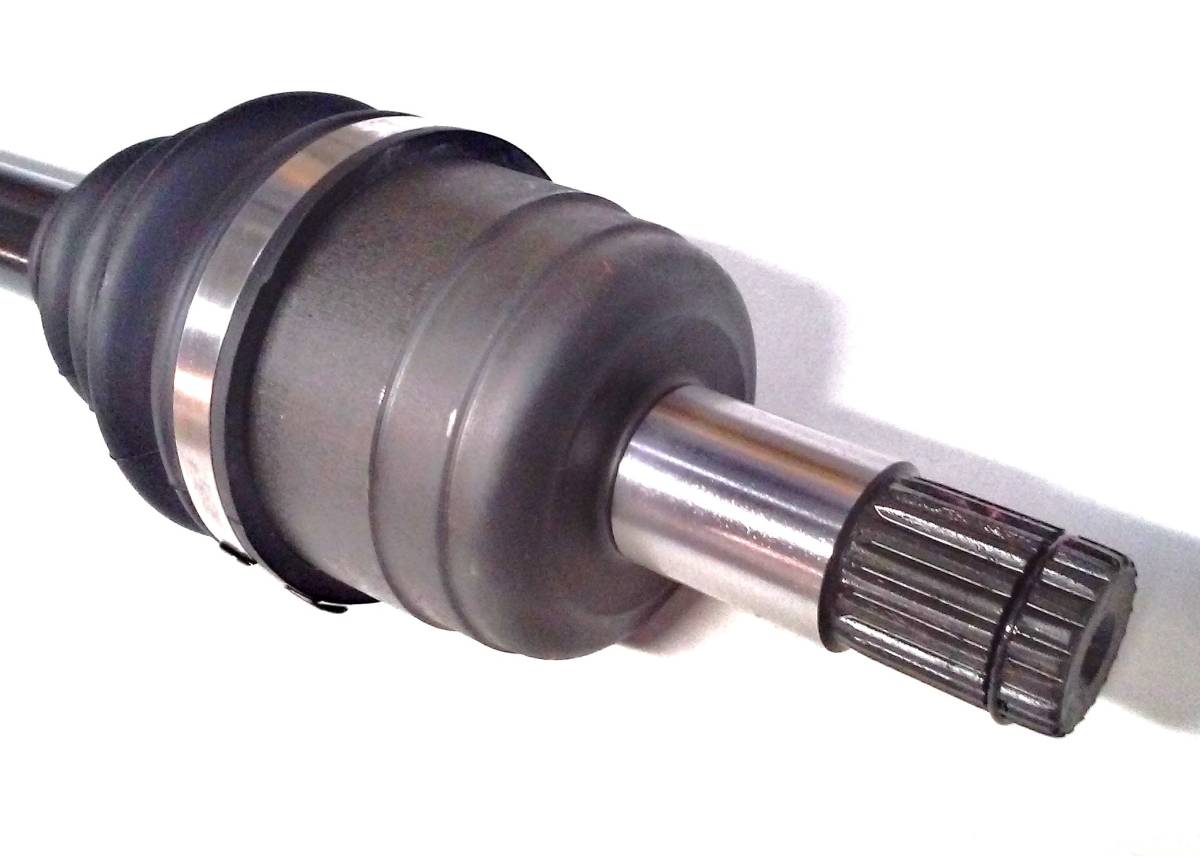

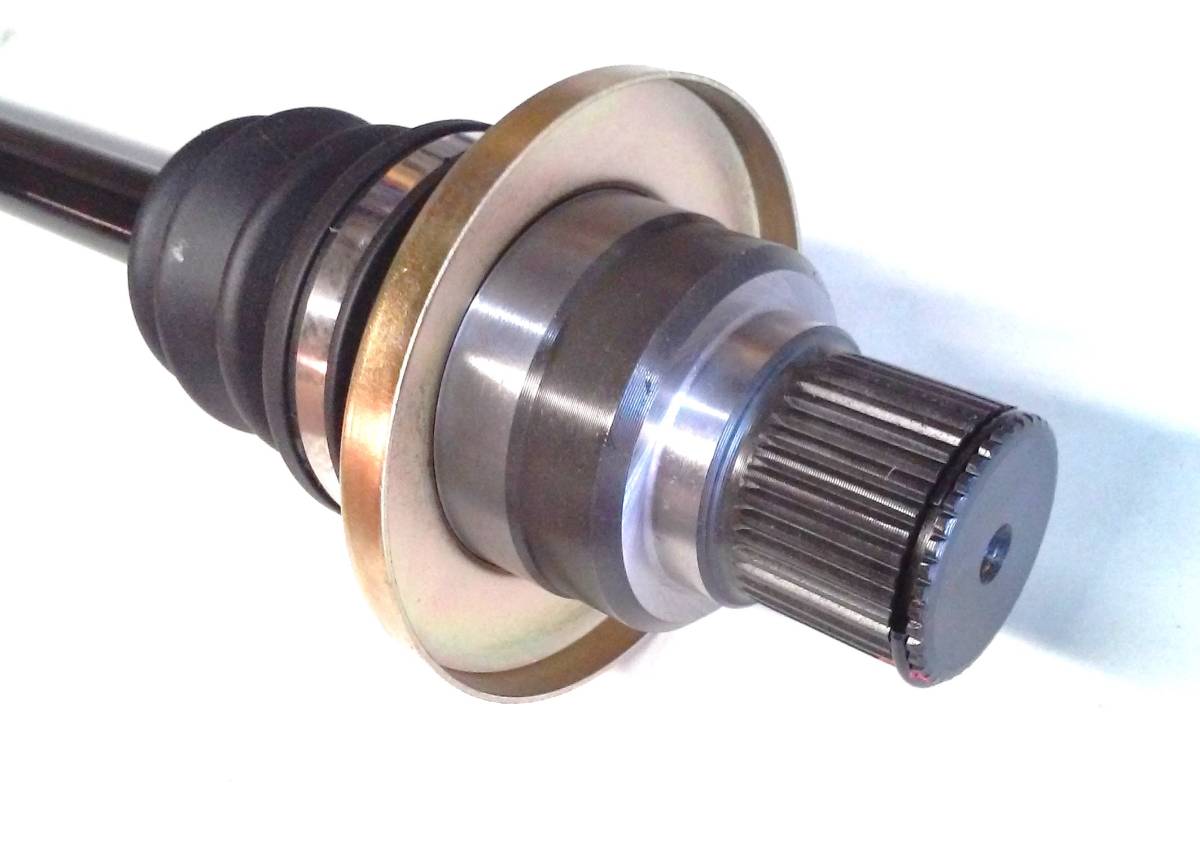

  • inobard CV joint spline count: FL- 21, FR- 21, RL- 39, RR- 39

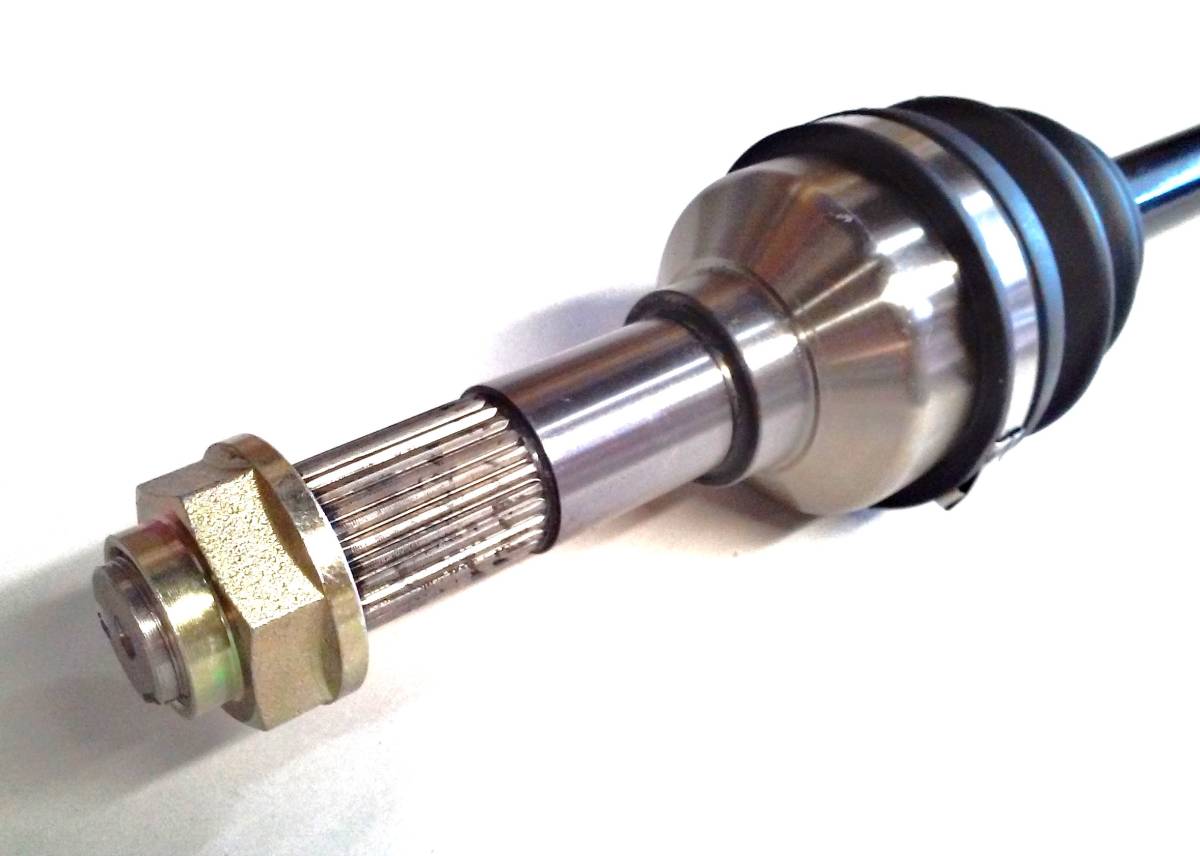

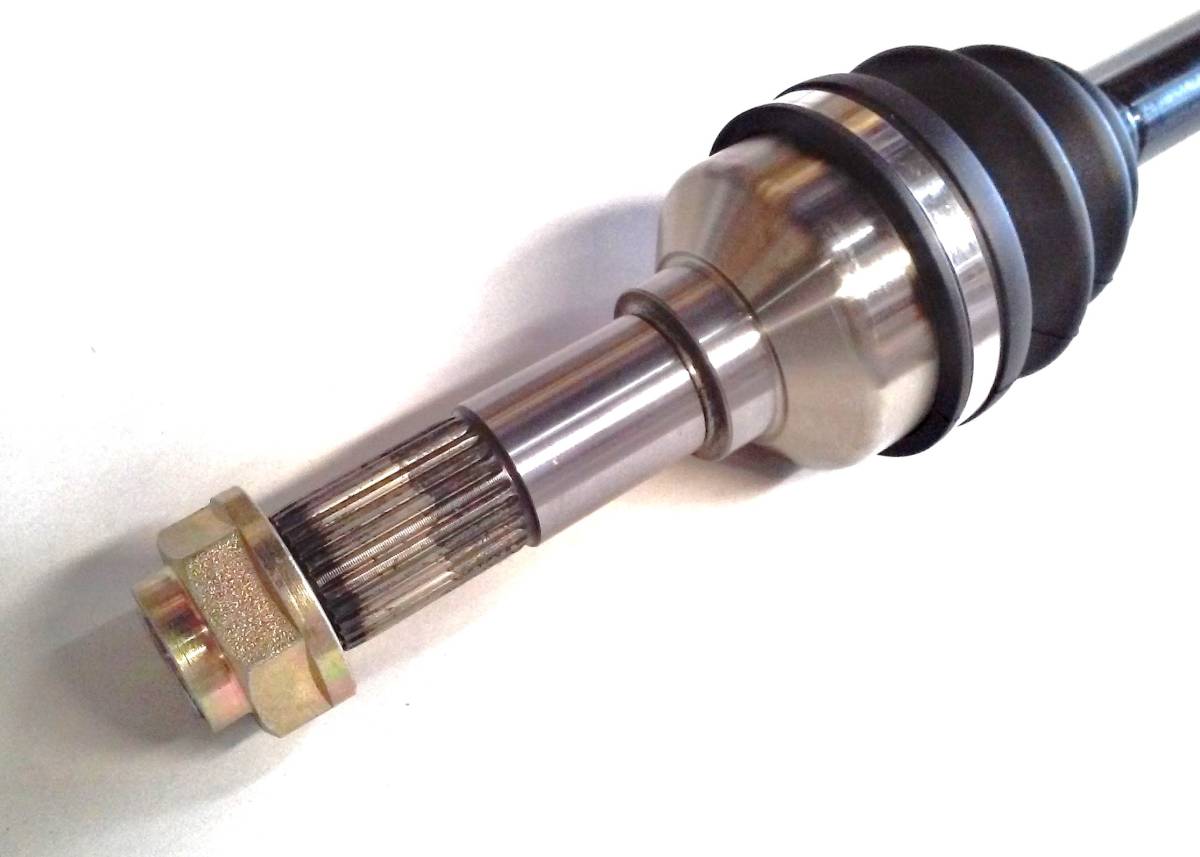

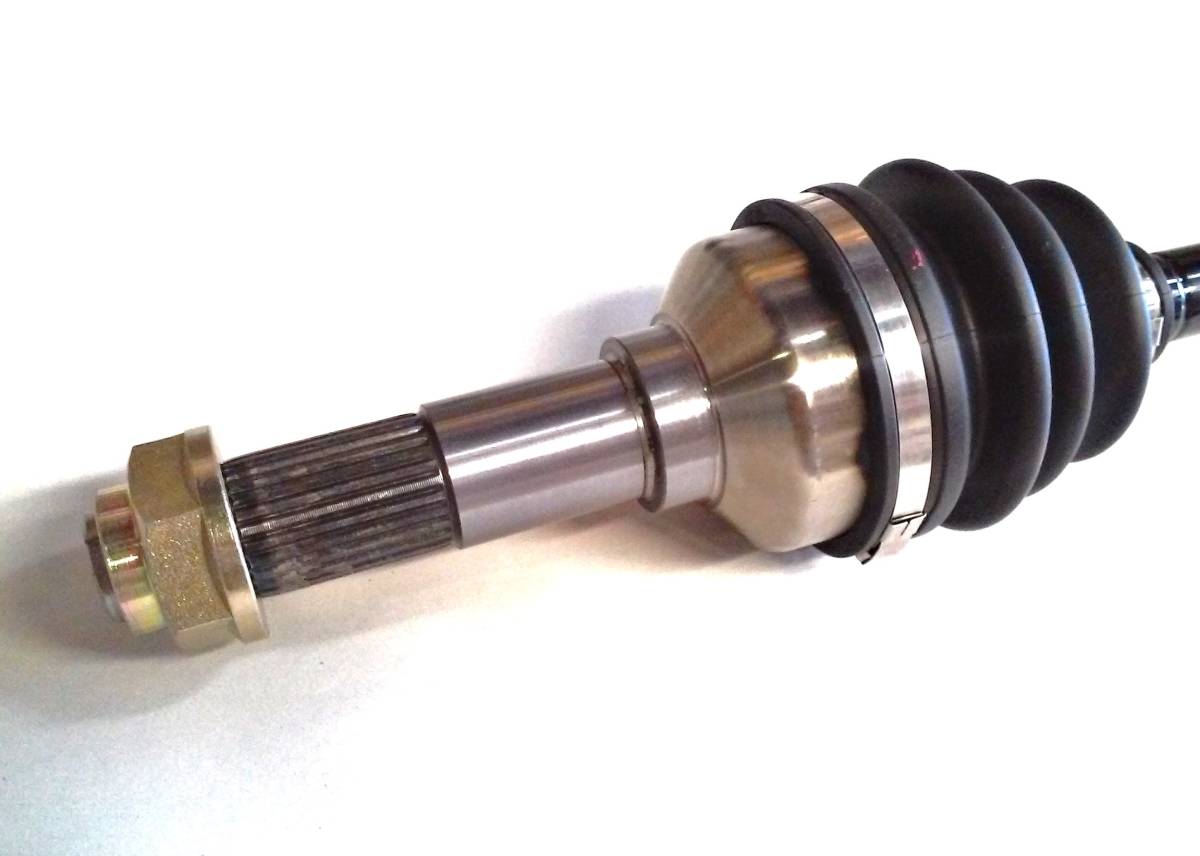

  • outboard CV joint spline count: FL- 27, FR- 27, RL- 27, RR- 27
  • Compressed overall axle length (mm): FL- 616, FR- 616, RL- 597, RR- 648
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $264.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2013YamahaRhino 700YXR700F 4x4 FI
2013YamahaRhino 700YXR700FH 4x4 Hunter Edition FI
2013YamahaRhino 700YXR700FSP 4x4 Specialt Edition FI
2013YamahaRhino 700YXR700FSP 4x4 Sport Edition FI
2012YamahaRhino 700YXR700F 4x4 FI
2012YamahaRhino 700YXR700FH 4x4 Hunter Edition FI
2012YamahaRhino 700YXR700FSE 4x4 Special Edition FI
2012YamahaRhino 700YXR700FSP 4x4 Sport Edition FI
2011YamahaRhino 700YXR700F 4x4 FI
2011YamahaRhino 700YXR700FSE 4x4 Special Edition FI
2011YamahaRhino 700YXR700FSP 4x4 Sport Edition FI
2009YamahaRhino 700YXR700F 4x4 FI
2009YamahaRhino 700YXR700FDU 4x4 Ducks Unlimited Edition FI
2009YamahaRhino 700YXR700FH 4x4 Hunter Edition
2009YamahaRhino 700YXR700FSE 4x4 Special Edition FI
2009YamahaRhino 700YXR700FSP 4x4 Sport Edition FI
2008YamahaRhino 700YXR700F 4x4 FI
2008YamahaRhino 700YXR700FDU 4x4 Ducks Unlimited Edition FI
2008YamahaRhino 700YXR700FH 4x4 Hunter Edition FI
2008YamahaRhino 700YXR700FSEP 4x4 Special Edition FI
2008YamahaRhino 700YXR700FSP2 4x4 Special Edition II FI
2008YamahaRhino 700YXR700FSP 4x4 Sport Edition FI

Product Notes

  • Fits the following Yamaha UTV models: 2008-2013 Rhino 700 (including FI, SE & Sport).
  • Features 4140 chromoly steel bars for a higher tensile strenth and more durability. Ships as a complete set, fully assembled and ready to install.
  • Joints fitted with neoprene CV boots for flexibility and resistance to hot/cold temperatures. Utilizes high-performance moly grease for protection against the environment and to keep vital components lubricated.
  • Replaces OEM # 5B4-F518F-00-00, 5UG-F531H-21-00, 5UG-F531H-20-00, 5B4-F53B0-00-00. Compressed length (mm): FL - 616, FR - 616, RL - 597, RR - 648, Inboard spline count - fronts - 21, rears - 39, Outboard spline count - fronts - 27, rears 27.
  • Warranty: 2 Years (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on modified suspensions.

    • What's In The Box

  • 4 axles

    • Warranty

    Limited 2 year, one-time warranty

    Details

    Categories

    Shipping Information

    • Item Requires Shipping
    • 43.0 lbs.
    • W10.0000” x H10.0000” x L31.0000”
