CV Axle Set for Yamaha Grizzly 550 700 & Kodiak 450 700 4x4

Location on vehicle: Front,Rear,Left,Right

(0) Reviews: Write first review
YA-300/YA-300/YA-331/YA-331

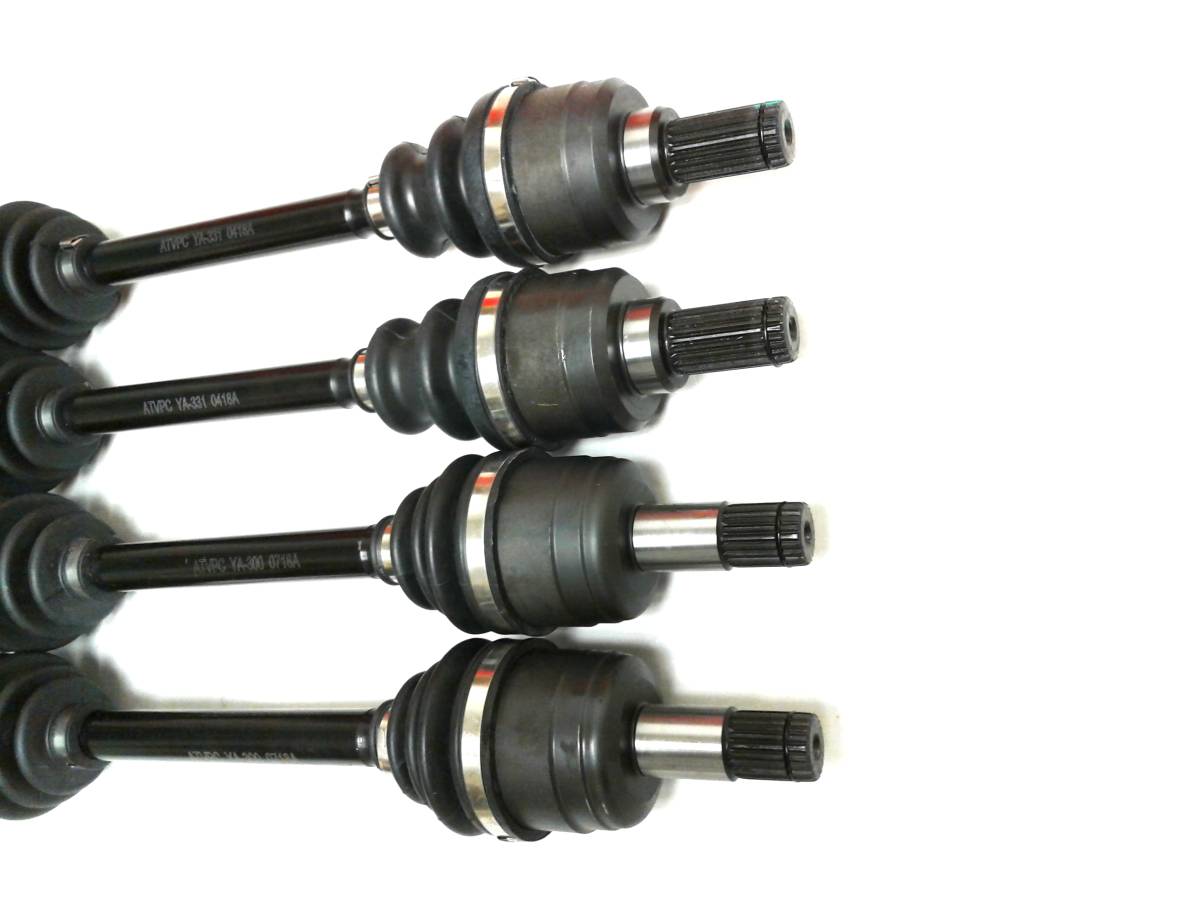

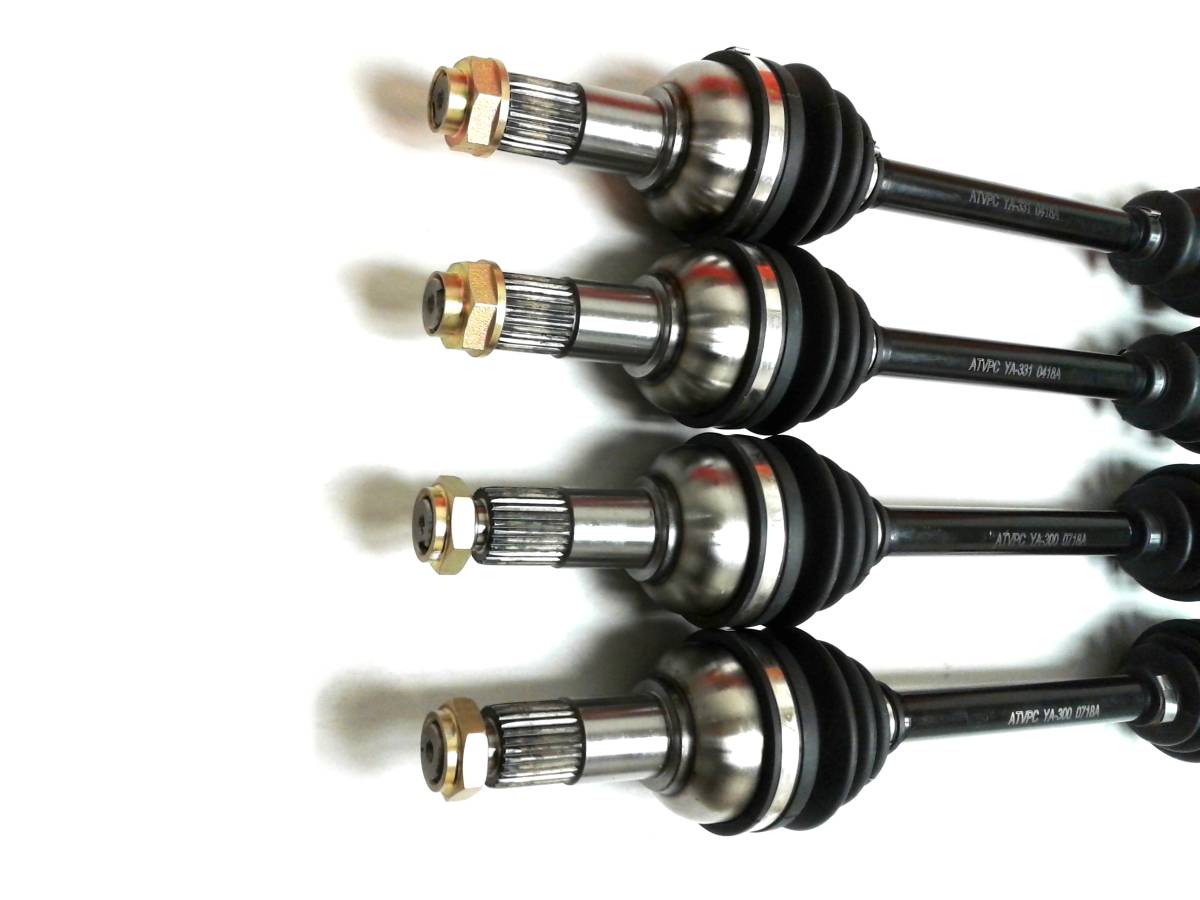

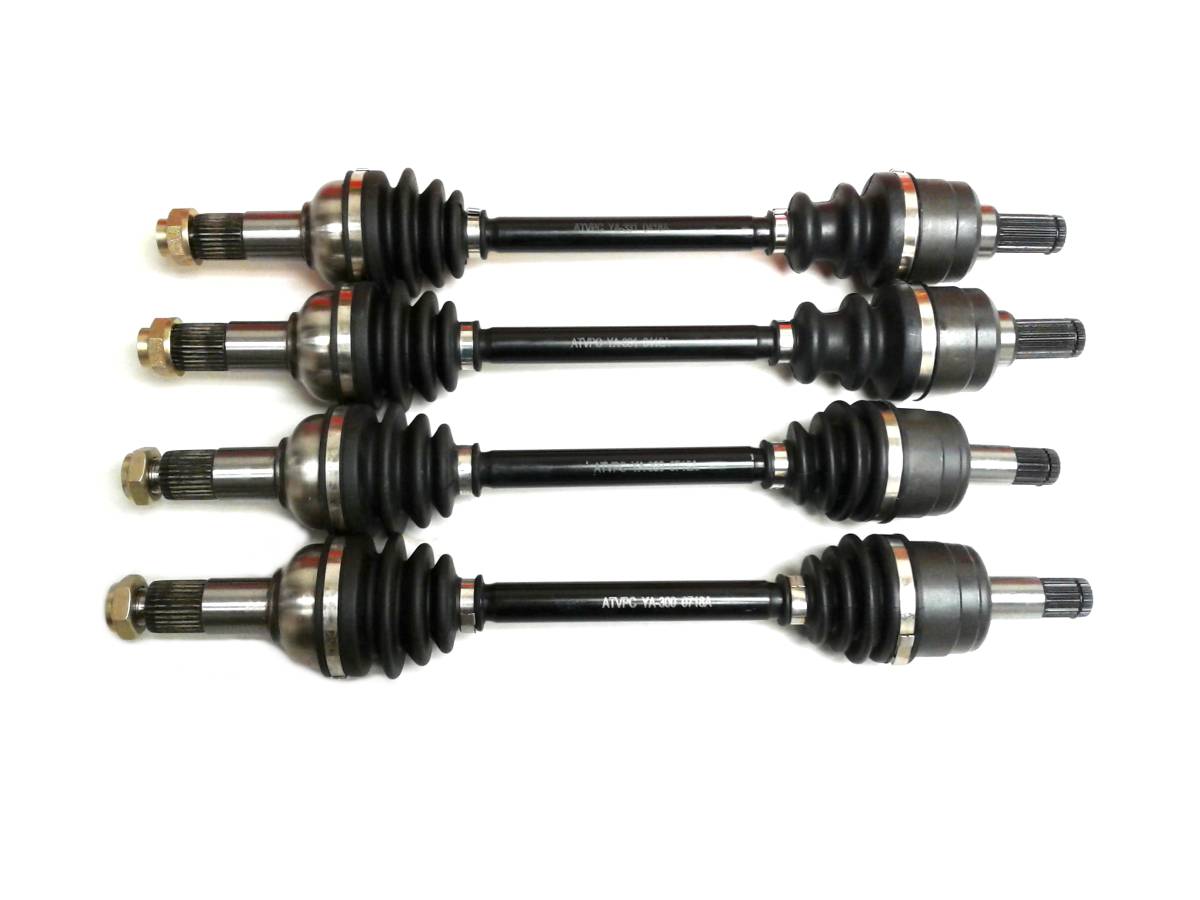

This is a set of new Front & Rear CV axles for a Yamaha ATV.

They will fit the following 4x4 applications:

2009-2014 ... Grizzly 550

2007-2013 ... Grizzly 700

2018-2019 ... Kodiak 450

2016-2021 ... Kodiak 700

*Not intended for use in lifted vehicles

Product features:

  • Set includes: 2 front and 2 rear CV axles
  • Stronger than OEM chromoly forged steel axle bars
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance
  • Inboard CV joint spline count: Fronts - 21, Rears - 23
  • Outboard CV joint spline count: Fronts - 27, Rears - 27
  • Compressed overall axle length: Fronts - 507 mm, Rears - 530 mm
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $284.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2014YamahaGrizzly 550YFM550D 4x4 FI
2014YamahaGrizzly 550YFM550DHH 4x4 Hunter Edition FI
2014YamahaGrizzly 550YFM550P 4x4 FI EPS
2014YamahaGrizzly 550YFM550PHH 4x4 Hunter Edition FI EPS
2013YamahaGrizzly 550YFM550FG 4x4 FI
2013YamahaGrizzly 550YFM550FGH 4x4 Hunter Edition FI
2013YamahaGrizzly 550YFM550FGP 4x4 FI EPS
2013YamahaGrizzly 550YFM550FGPH 4x4 Hunter Edition FI EPS
2012YamahaGrizzly 550YFM550FG 4x4 FI
2012YamahaGrizzly 550YFM550FGH 4x4 Hunter Edition FI
2012YamahaGrizzly 550YFM550FGP 4x4 FI EPS
2012YamahaGrizzly 550YFM550FGPH 4x4 Hunter Edition FI EPS
2011YamahaGrizzly 550YFM550FG 4x4 FI
2011YamahaGrizzly 550YFM550FGH 4x4 Hunter Edition FI
2011YamahaGrizzly 550YFM550FGP 4x4 FI EPS
2011YamahaGrizzly 550YFM550FGPH 4x4 Hunter Edition FI EPS
2010YamahaGrizzly 550YFM550FG 4x4 FI
2010YamahaGrizzly 550YFM550FGH 4x4 Hunter Edition FI
2010YamahaGrizzly 550YFM550FGP 4x4 FI EPS
2010YamahaGrizzly 550YFM550FGPH 4x4 Hunter Edition FI EPS
2009YamahaGrizzly 550YFM550FG 4x4 FI
2009YamahaGrizzly 550YFM550FGH 4x4 Hunter Edition FI
2009YamahaGrizzly 550YFM550FGP 4x4 FI EPS
2009YamahaGrizzly 550YFM550FGPH 4x4 Hunter Edition FI EPS
2009YamahaGrizzly 550YFM550FGPSE 4x4 Special Edition FI EPS
2013YamahaGrizzly 700YFM700FG 4x4 FI
2013YamahaGrizzly 700YFM700FGH 4x4 Hunter Edition FI
2013YamahaGrizzly 700YFM700FGP 4x4 FI EPS
2013YamahaGrizzly 700YFM700FGPH 4x4 Hunter Edition FI EPS
2013YamahaGrizzly 700YFM700FGPSE 4x4 Special Edition FI EPS
2012YamahaGrizzly 700YFM700FG 4x4 FI
2012YamahaGrizzly 700YFM700FGH 4x4 Hunter Edition FI
2012YamahaGrizzly 700YFM700FGP 4x4 FI EPS
2012YamahaGrizzly 700YFM700FGPH 4x4 Hunter Edition FI EPS
2012YamahaGrizzly 700YFM700FGPSE 4x4 Special Edition FI EPS
2011YamahaGrizzly 700YFM700FG 4x4 FI
2011YamahaGrizzly 700YFM700FGH 4x4 Hunter Edition FI
2011YamahaGrizzly 700YFM700FGP 4x4 FI EPS
2011YamahaGrizzly 700YFM700FGPH 4x4 Hunter Edition FI EPS
2011YamahaGrizzly 700YFM700FGPSE 4x4 Special Edition FI EPS
2010YamahaGrizzly 700YFM700FG 4x4 FI
2010YamahaGrizzly 700YFM700FGH 4x4 Hunter Edition FI
2010YamahaGrizzly 700YFM700FGP 4x4 FI EPS
2010YamahaGrizzly 700YFM700FGPH 4x4 Hunter Edition FI EPS
2010YamahaGrizzly 700YFM700FGPSE 4x4 Special Edition FI EPS
2009YamahaGrizzly 700YFM700FG 4x4 FI
2009YamahaGrizzly 700YFM700FGH 4x4 Hunter Edition FI
2009YamahaGrizzly 700YFM700FGP 4x4 FI EPS
2009YamahaGrizzly 700YFM700FGPDU 4x4 Ducks Unlimited Edition FI EPS
2009YamahaGrizzly 700YFM700FGPH 4x4 Hunter Edition FI EPS
2009YamahaGrizzly 700YFM700FGPSE 4x4 Special Edition FI EPS
2008YamahaGrizzly 700YFM700FG 4x4 FI
2008YamahaGrizzly 700YFM700FGP 4x4 FI EPS
2008YamahaGrizzly 700YFM700FGPDU 4x4 Ducks Unlimited Edition FI
2008YamahaGrizzly 700YFM700FGPH 4x4 Hunter Edition FI
2007YamahaGrizzly 700YFM700FG 4x4 Exploring Edition FI
2007YamahaGrizzly 700YFM700FGP 4x4 FI
2007YamahaGrizzly 700YFM700FGP 4x4 FI EPS
2007YamahaGrizzly 700YFM700FGPDU 4x4 Ducks Unlimited Edition FI
2007YamahaGrizzly 700YFM700FGPH 4x4 Hunter Edition FI
2007YamahaGrizzly 700YFM700FGPOH 4x4 Outdoorsman Edition FI
2007YamahaGrizzly 700YFM700FGPSE 4x4 Special Edition FI
2021YamahaKodiak 450YFM450 4x4 Auto
2021YamahaKodiak 450YFM450 4x4 Auto EPS
2021YamahaKodiak 450YFM450 4x4 Auto EPS SE
2020YamahaKodiak 450YFM450 4x4 Auto
2020YamahaKodiak 450YFM450 4x4 Auto EPS
2020YamahaKodiak 450YFM450 4x4 Auto EPS SE
2019YamahaKodiak 450YFM450 4x4 Auto
2019YamahaKodiak 450YFM450 4x4 Auto EPS
2019YamahaKodiak 450YFM450 4x4 Auto EPS SE
2018YamahaKodiak 450YFM450 4x4 Auto
2018YamahaKodiak 450YFM450 4x4 Auto EPS
2021YamahaKodiak 700YFM700K 4x4 FI
2021YamahaKodiak 700YFM700KP 4x4 FI EPS
2021YamahaKodiak 700YFM700KPSE 4x4 Special Edition FI EPS
2020YamahaKodiak 700YFM700K 4x4 FI
2020YamahaKodiak 700YFM700KP 4x4 FI EPS
2020YamahaKodiak 700YFM700KPSE 4x4 Special Edition FI EPS
2019YamahaKodiak 700YFM700K 4x4 FI
2019YamahaKodiak 700YFM700KP 4x4 FI EPS
2019YamahaKodiak 700YFM700KPSE 4x4 Special Edition FI EPS
2018YamahaKodiak 700YFM700K 4x4 FI
2018YamahaKodiak 700YFM700KP 4x4 FI EPS
2018YamahaKodiak 700YFM700KPSE 4x4 Special Edition FI EPS
2017YamahaKodiak 700YFM700K 4x4 FI
2017YamahaKodiak 700YFM700KP 4x4 FI EPS
2017YamahaKodiak 700YFM700KPSE 4x4 Special Edition FI EPS
2016YamahaKodiak 700KYFM700K 4x4 FI
2016YamahaKodiak 700KYFM700KP 4x4 FI EPS
2016YamahaKodiak 700KYFM700KPSE 4x4 Special Edition FI EPS

Product Notes

  • Fits 2009-2014 Grizzly 550, 2007-2013 Grizzly 700, 2018-2019 Kodiak 450, & 2016-2021 Kodiak 700 4x4.
  • Features stronger than OEM chromoly forged steel axle bars. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.
  • Compressed axle length: Fronts - 507 mm, Rears - 530 mm, Inboard splines: Fronts - 21, Rears - 23, Outboard splines: Fronts - 27, Rears - 27.
  • Replaces OE # 3B4-2510J-00-00, 28P-2510J-00-00, 28P-2510J-01-00, 3B4-2510F-00-00, 28P-2510F-00-00, 28P-2510F-01-00, 28P-2510F-04-00, 28P-2530V-00-00, 28P-2510F-00-00, 28P-2518E-10-00, 28P-2530V-01-00, 28P-2510F-01-00, 28P-2510F-04-00.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

    • What's In The Box

  • 4 axles

    • Warranty

    1 year factory defect limited warranty

    Details

    • YA-300/YA-300/YA-331/YA-331
    • YA-300/YA-300/YA-331/YA-331
    • CUSTOM
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 32.1 lbs.
    • W10.0000” x H10.0000” x L25.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
