Front CV Axle Pair for Arctic Cat Wildcat Trail 700 4x4 2014-2020

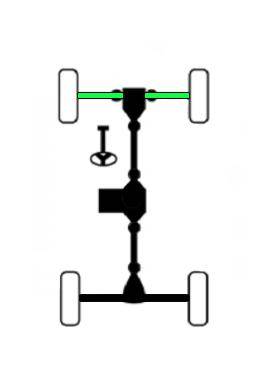

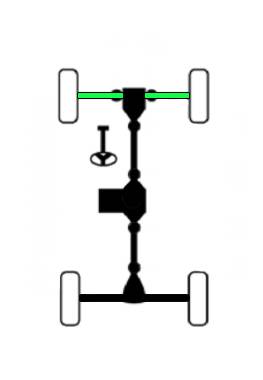

Location on vehicle: Front,Left,Right

AC-308/AC-308

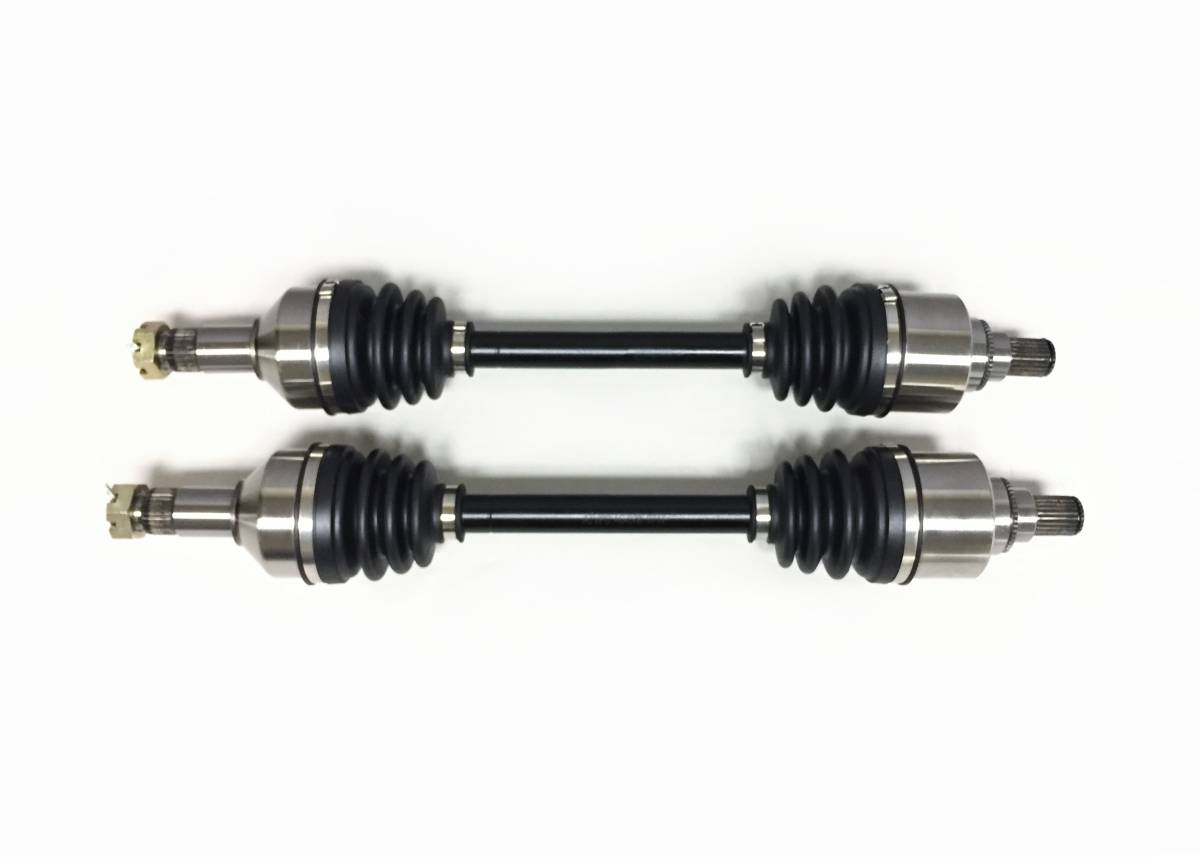

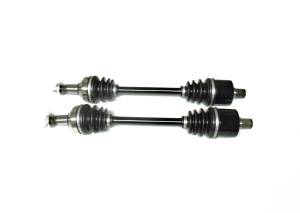

This is a pair of new Front CV axles for an Arctic Cat UTV.

They fit the following 4x4 models:

2014-2020 ... Wildcat Trail 700

(including all XT, SE, and EPS models)

Front Left or Right side

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly hardened steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance

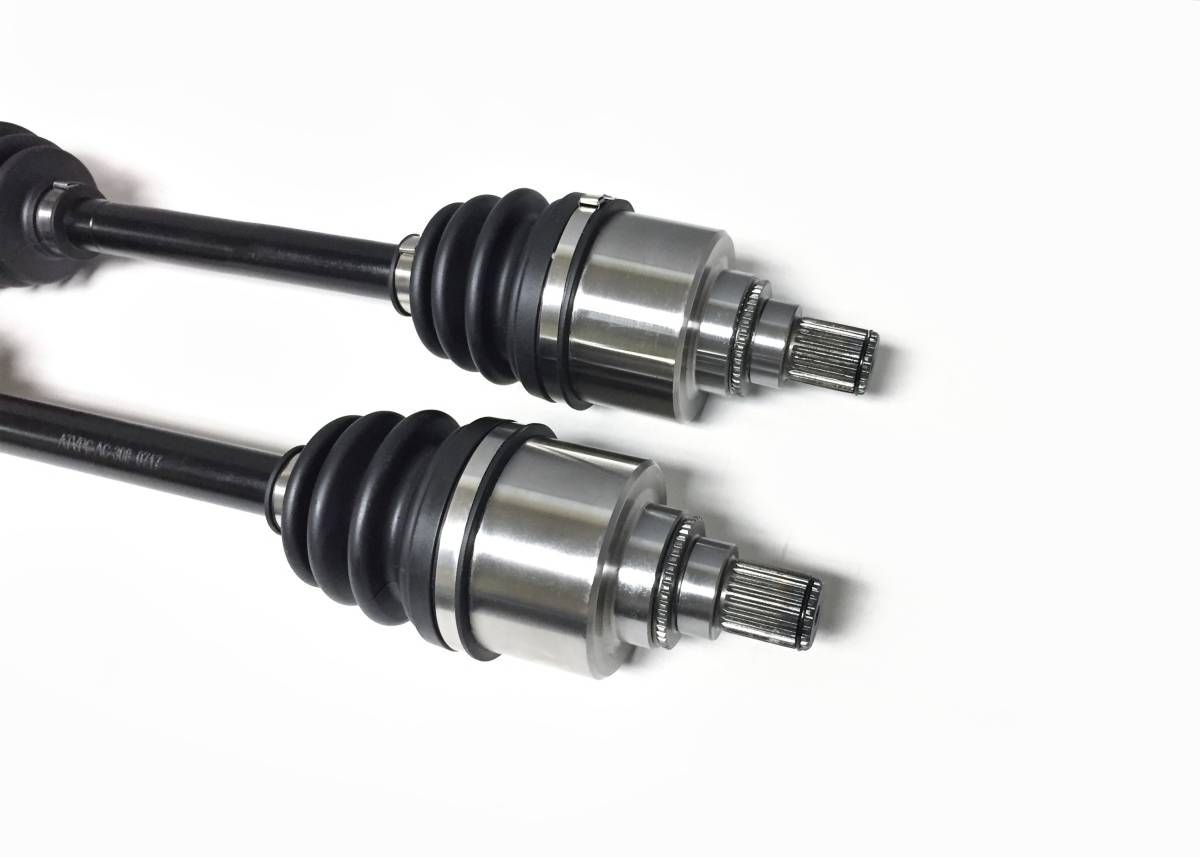

  • Inboard CV joint spline count: 24 (both)

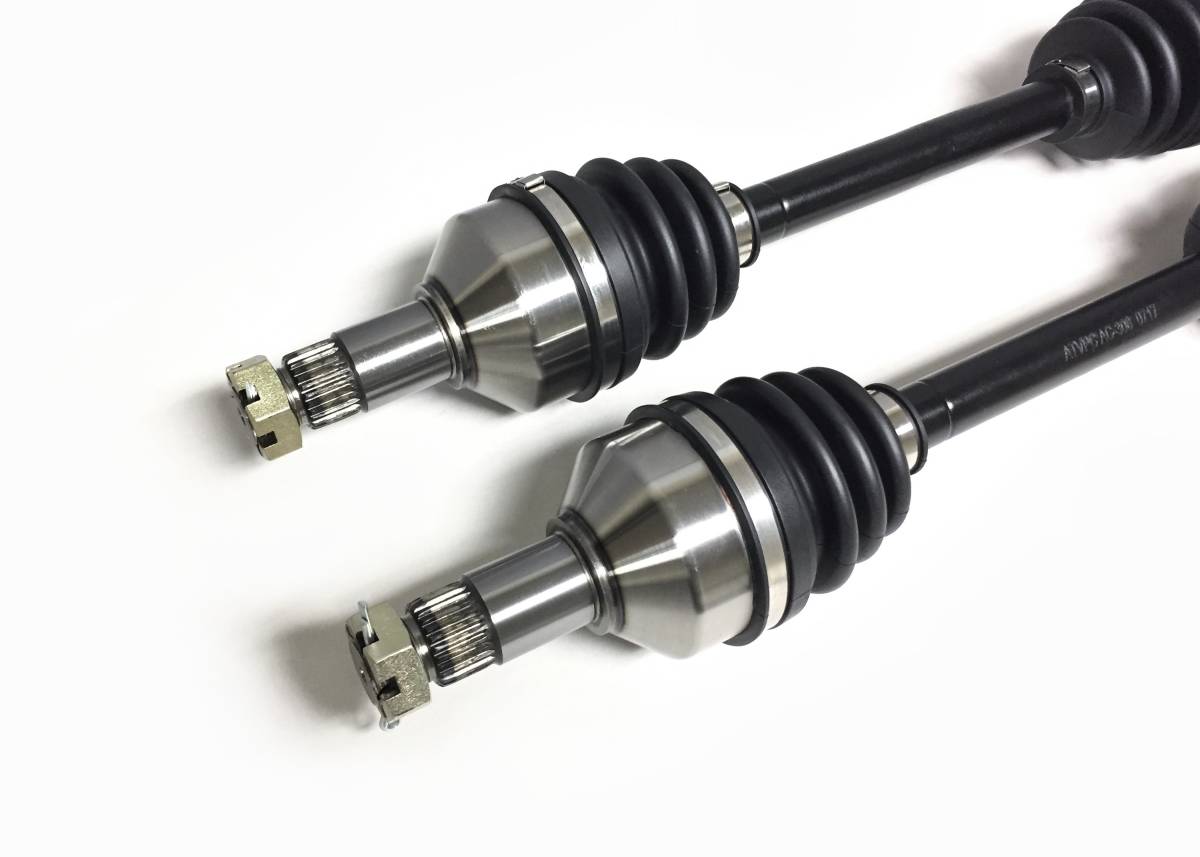

  • Outboard CV joint spline count: 27 (both)
  • Compressed overall axle length: 560 mm (both)
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $149.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2020Arctic CatWildcat Trail 7004x4 LTD EPS
2020Arctic CatWildcat Trail 7004x4 XT EPS
2017Arctic CatWildcat Trail 7004X4
2017Arctic CatWildcat Trail 7004x4 Limited EPS
2017Arctic CatWildcat Trail 7004x4 SE EPS
2017Arctic CatWildcat Trail 7004x4 XT EPS
2016Arctic CatWildcat Trail 7004X4
2016Arctic CatWildcat Trail 7004x4 Limited EPS
2016Arctic CatWildcat Trail 7004x4 SE Hunter Edition EPS
2016Arctic CatWildcat Trail 7004x4 XT EPS
2015Arctic CatWildcat Trail 7004X4
2015Arctic CatWildcat Trail 7004x4 Limited EPS
2015Arctic CatWildcat Trail 7004x4 XT
2014Arctic CatWildcat Trail 7004X4
2014Arctic CatWildcat Trail 7004x4 XT
2019Textron Off RoadWildcat Trail4X4
2019Textron Off RoadWildcat Trail4x4 LTD EPS
2019Textron Off RoadWildcat Trail4x4 XT EPS
2018Textron Off RoadWildcat Trail 7004X4
2018Textron Off RoadWildcat Trail 7004x4 Limited EPS
2018Textron Off RoadWildcat Trail 7004x4 XT EPS

Product Notes

  • Fits front, left & right on the following Arctic Cat models: 2014-2020 Wildcat Trail 700 (including XT & LTD models).
  • Features stronger than OEM, 4340 chromoly steel bars for a higher tensile strenth and more durability. Engineered as a direct replacement, fully-assembled, and ready to install.
  • Joints fitted with neoprene CV boots for added flexibility and resistance to hot/cold temperatures. Also uses high-performance moly grease for additional protection against various environments and to keep vital components lubricated.
  • Replaces OEM # 2502-348, 1502-954. Inboard spline count: 24 (both), Outboard spline count: 27 (both), Compressed length: 560 mm (both).
  • Warranty: 1 Year (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on modified suspensions.

  • What's In The Box

  • 2 axles
  • Warranty

    1 year factory defect limited warranty

    Details

    • AC-308/AC-308
    • AC-308/AC-308
    • CUSTOM
    • ATV Parts Connection
    • Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 24.0 lbs.
    • W5.0000” x H10.0000” x L31.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
