Front CV Axle & Wheel Bearing for Arctic Cat Wildcat Trail 700 4x4 2014-2020

Location on vehicle: Front,Left,Right

(0) Reviews: Write first review
AC-308/WB-1496

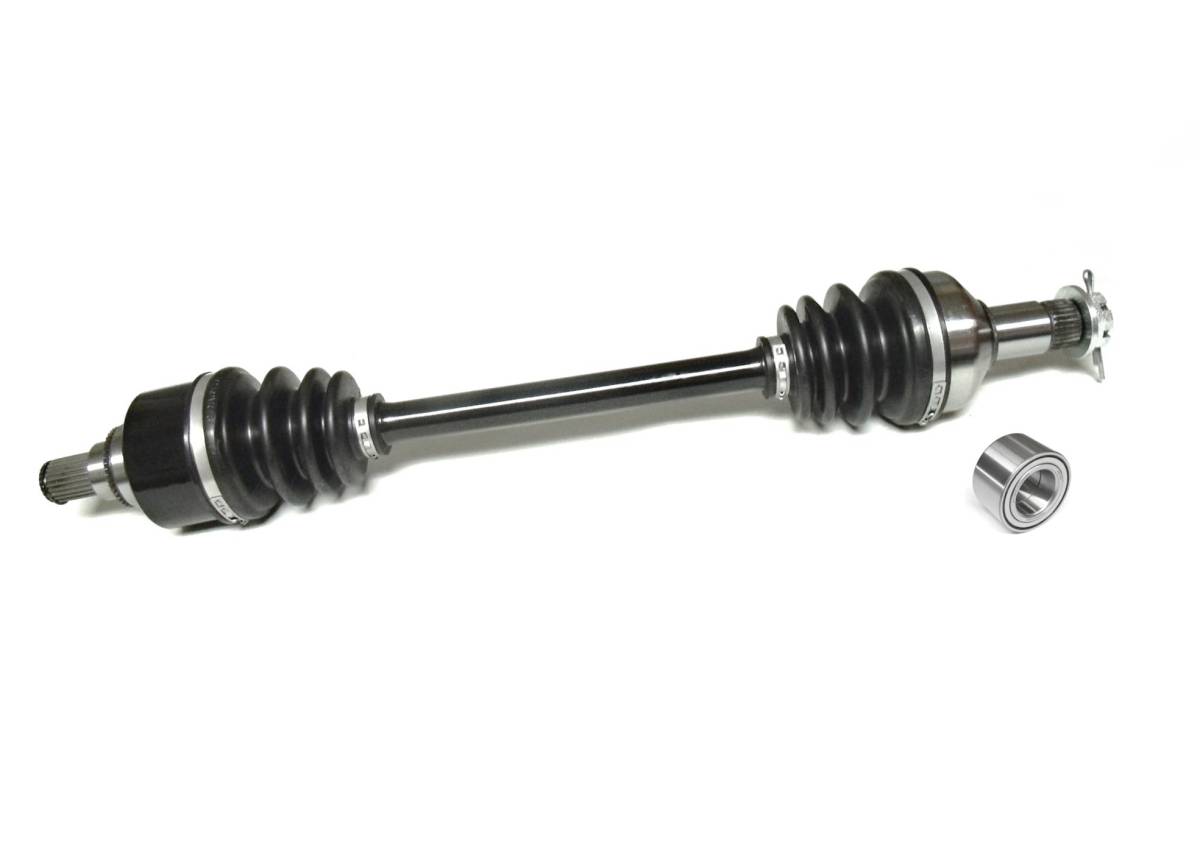

This is a new Front CV axle & wheel bearing for an Arctic Cat UTV.

They fit the following 4x4 models:

2014-2020 ... Wildcat Trail 700

(including all XT, SE, and EPS models)

Front Left or Right side

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly hardened steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance

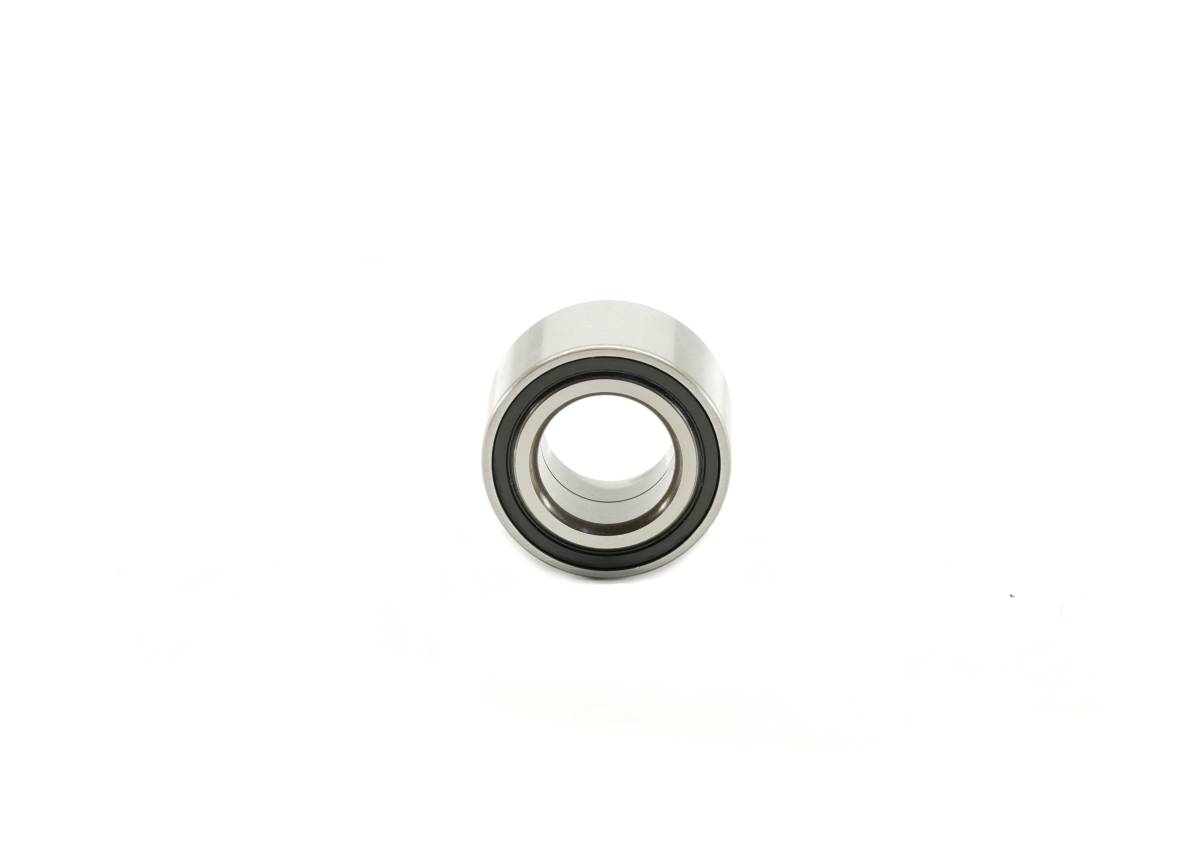

  • High speed bearing manufactured for long life
  • Double lip seal made to keep grease in and dirt out

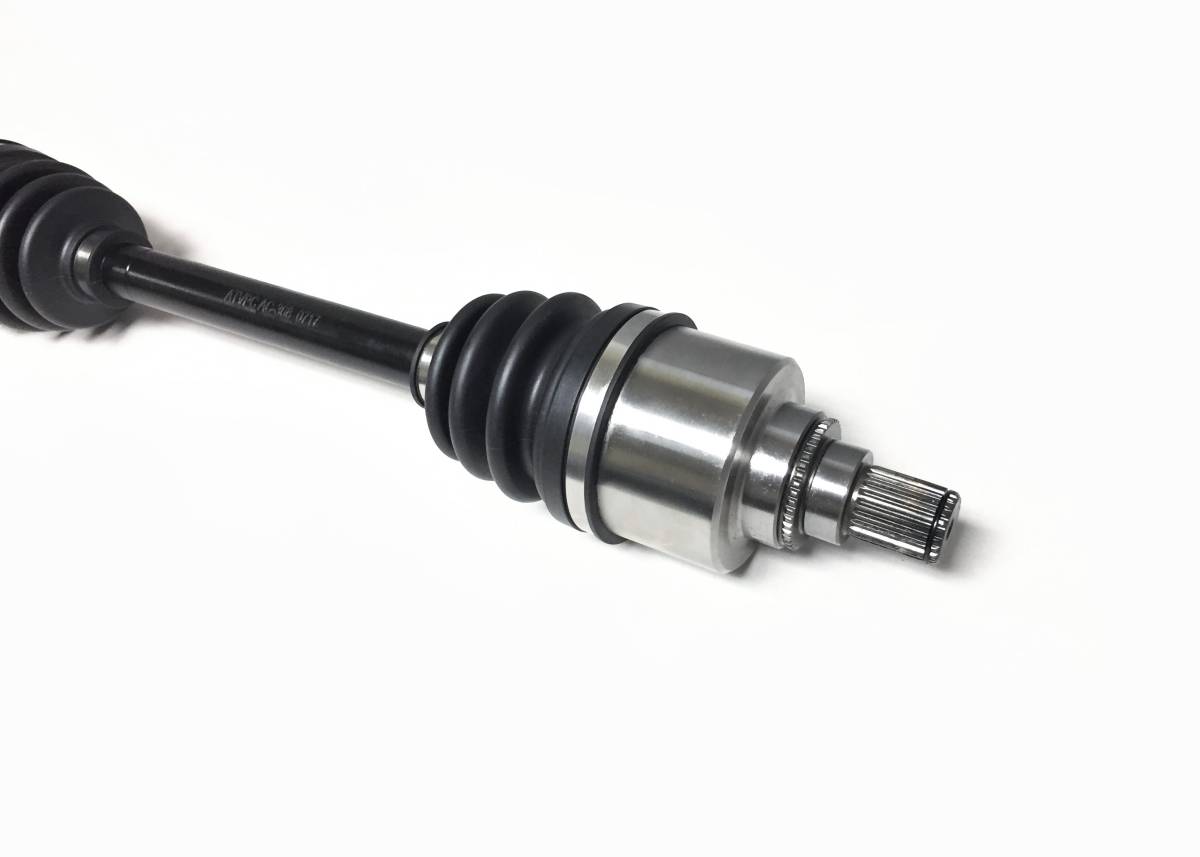

  • Inboard CV joint spline count: 24

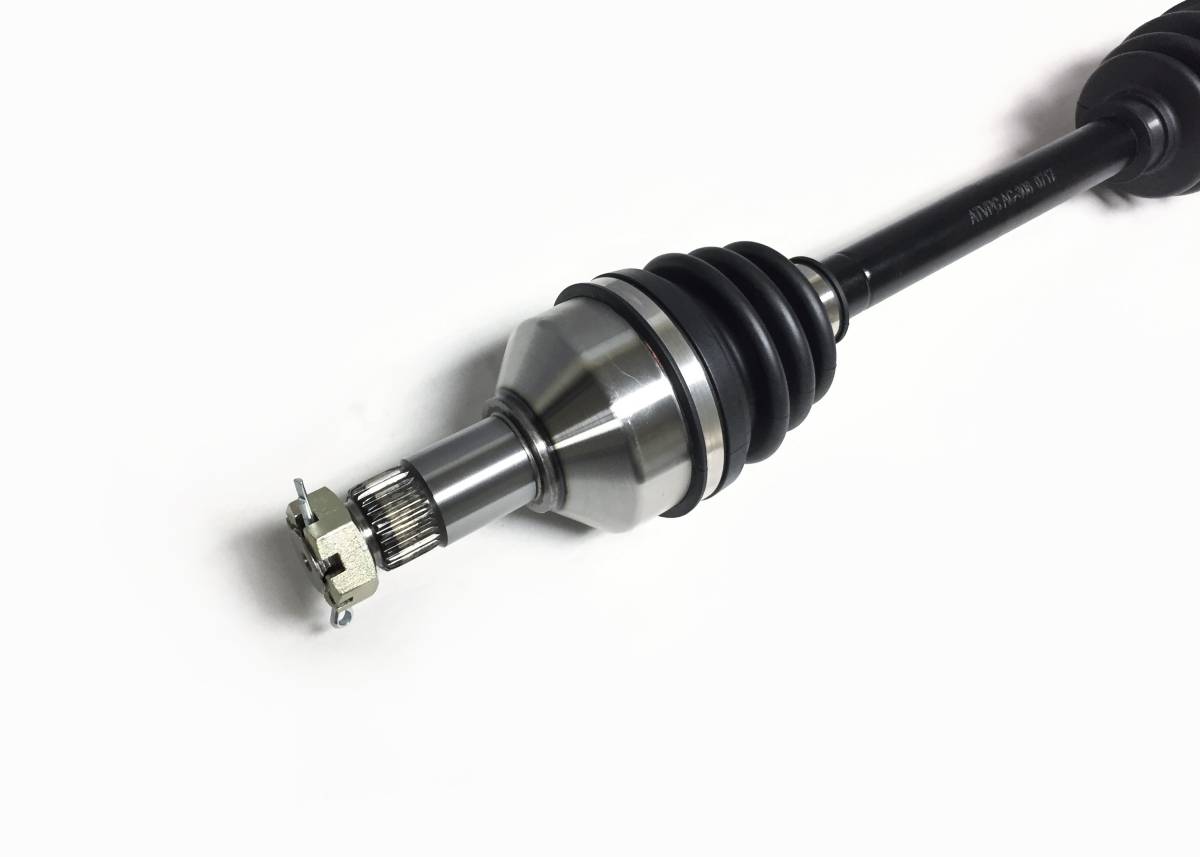

  • Outboard CV joint spline count: 27
  • Compressed overall axle length: 560 mm
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $84.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2020Arctic CatWildcat Trail 7004x4 LTD EPS
2020Arctic CatWildcat Trail 7004x4 XT EPS
2017Arctic CatWildcat Trail 7004X4
2017Arctic CatWildcat Trail 7004x4 Limited EPS
2017Arctic CatWildcat Trail 7004x4 SE EPS
2017Arctic CatWildcat Trail 7004x4 XT EPS
2016Arctic CatWildcat Trail 7004X4
2016Arctic CatWildcat Trail 7004x4 Limited EPS
2016Arctic CatWildcat Trail 7004x4 SE Hunter Edition EPS
2016Arctic CatWildcat Trail 7004x4 XT EPS
2015Arctic CatWildcat Trail 7004X4
2015Arctic CatWildcat Trail 7004x4 Limited EPS
2015Arctic CatWildcat Trail 7004x4 XT
2014Arctic CatWildcat Trail 7004X4
2014Arctic CatWildcat Trail 7004x4 XT
2019Textron Off RoadWildcat Trail4X4
2019Textron Off RoadWildcat Trail4x4 LTD EPS
2019Textron Off RoadWildcat Trail4x4 XT EPS
2018Textron Off RoadWildcat Trail 7004X4
2018Textron Off RoadWildcat Trail 7004x4 Limited EPS
2018Textron Off RoadWildcat Trail 7004x4 XT EPS

Product Notes

  • Fits FRONT, LEFT or RIGHT on the 2014-2020 Arctic Cat Wildcat Trail 700 (including XT & LTD models).
  • Features a stronger than OEM chromoly forged steel axle bar. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.
  • High speed bearing manufactured for long life. Double lip seal made to keep grease in and dirt out.
  • Replaces OEM # 2502-348, 1502-954, 1402-027, 1402-809. Compressed Length: 560 mm, Inboard Spline Count: 24, Outboard Spline Count: 27.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

    • What's In The Box

  • 1 CV Axle & 1 Wheel Bearing

    • Warranty

    1 year factory defect limited warranty

    Details

    • AC-308/WB-1496
    • AC-308/WB-1496
    • CUSTOM
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 12.6 lbs.
    • W5.0000” x H5.0000” x L23.5000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
