CV Axle Set for Polaris Ranger 500 & 700 4x4 2009 & 800 6x6 2010-2017

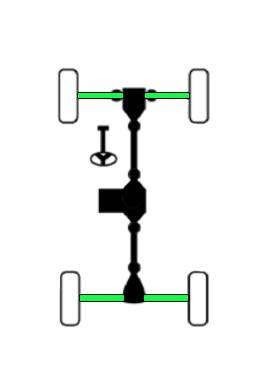

Location on vehicle: Front,Rear,Left,Right

(0) Reviews: Write first review
PO-311/PO-311/PO-347/PO-348

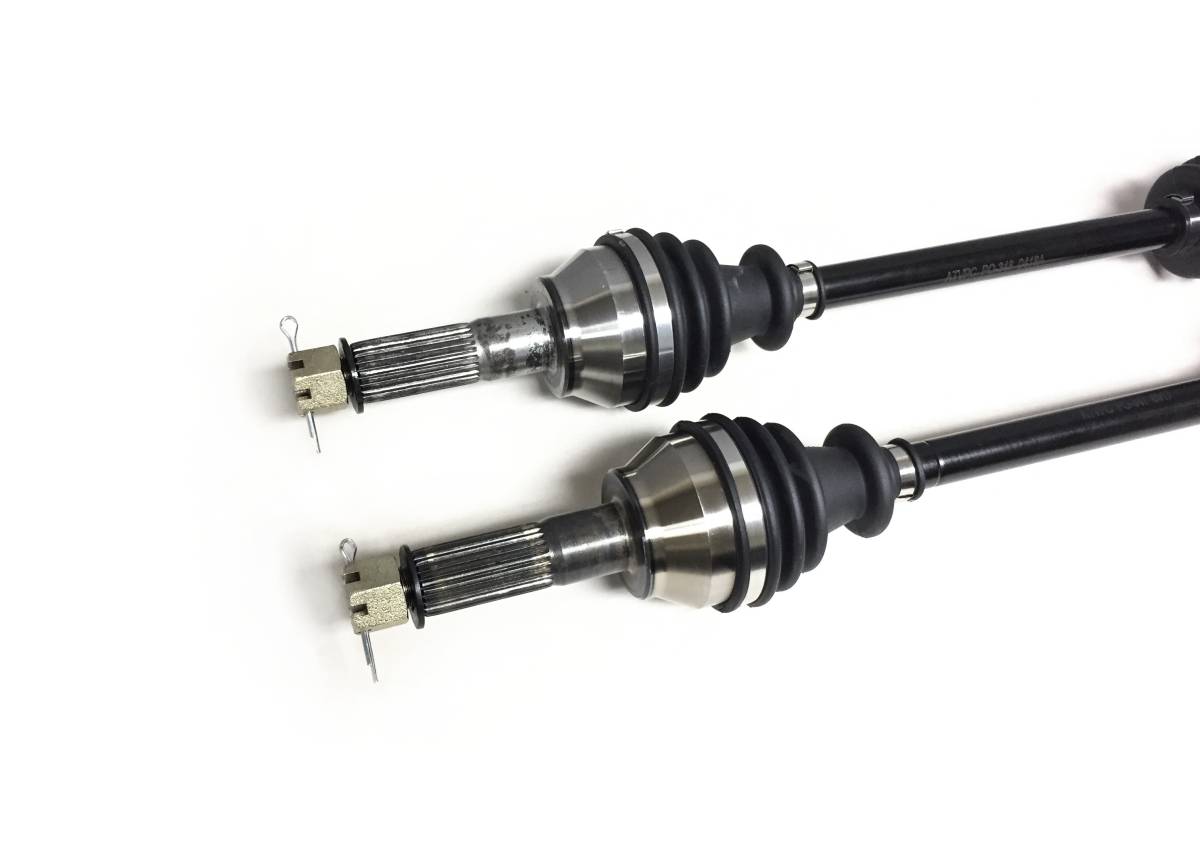

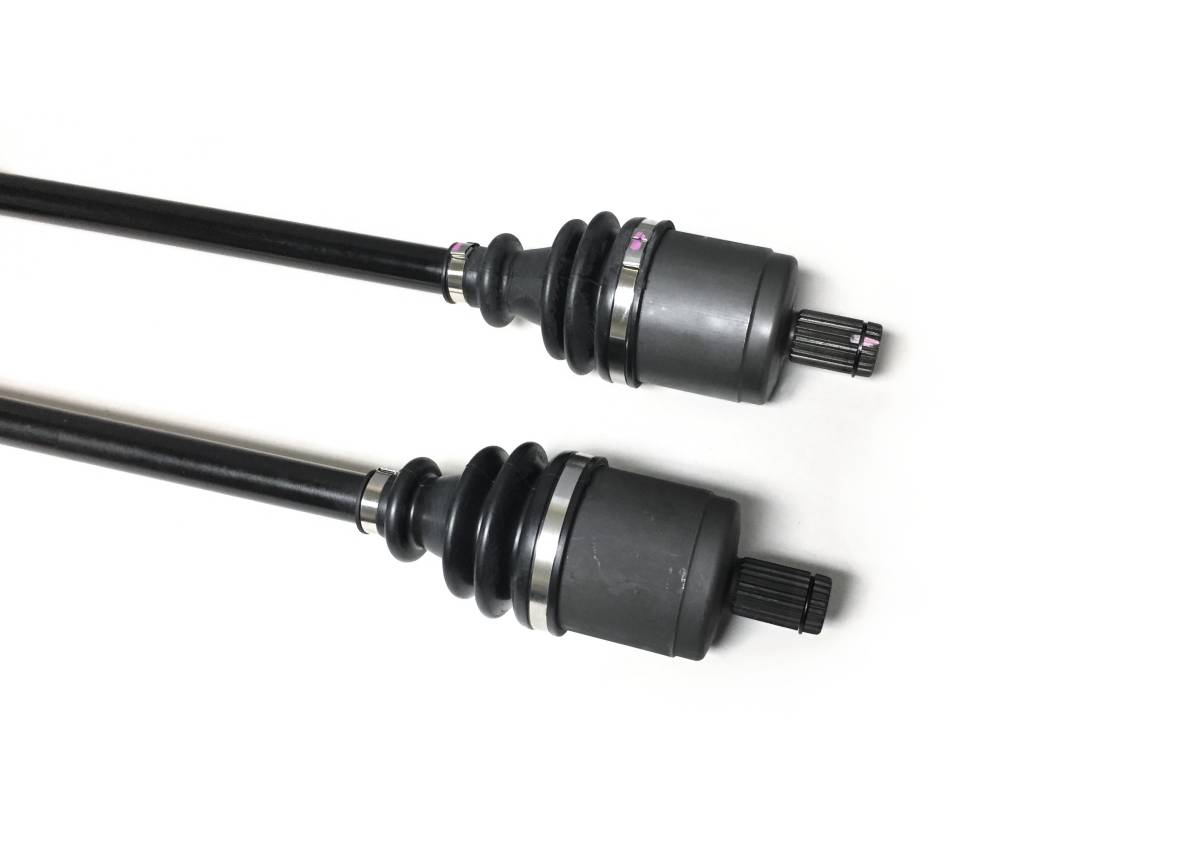

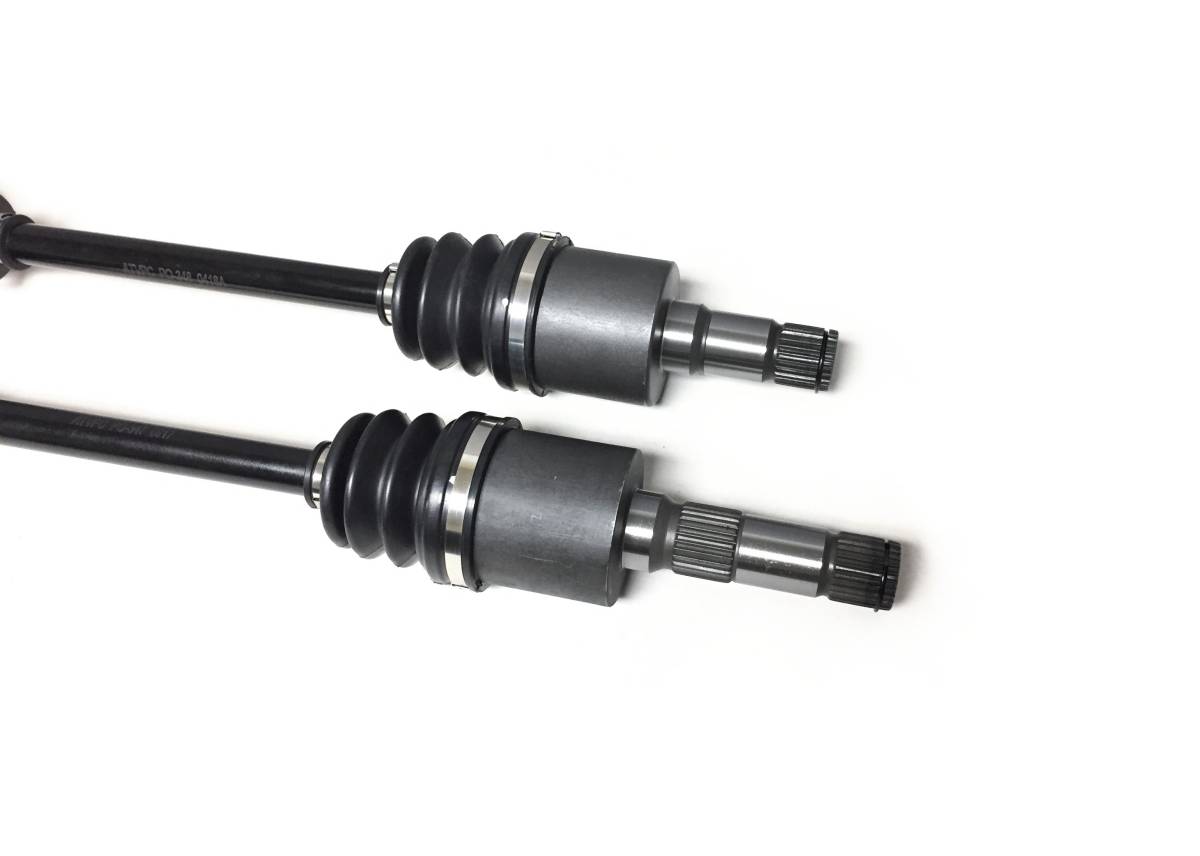

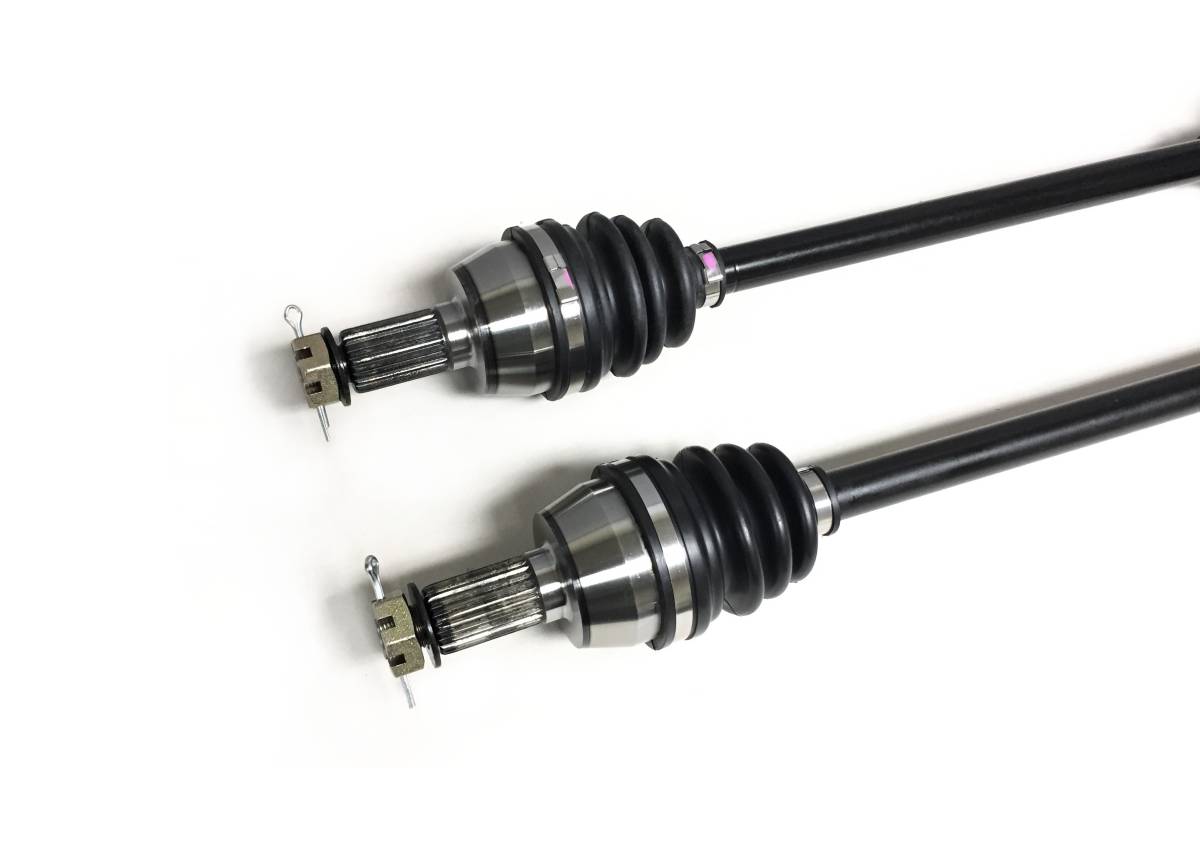

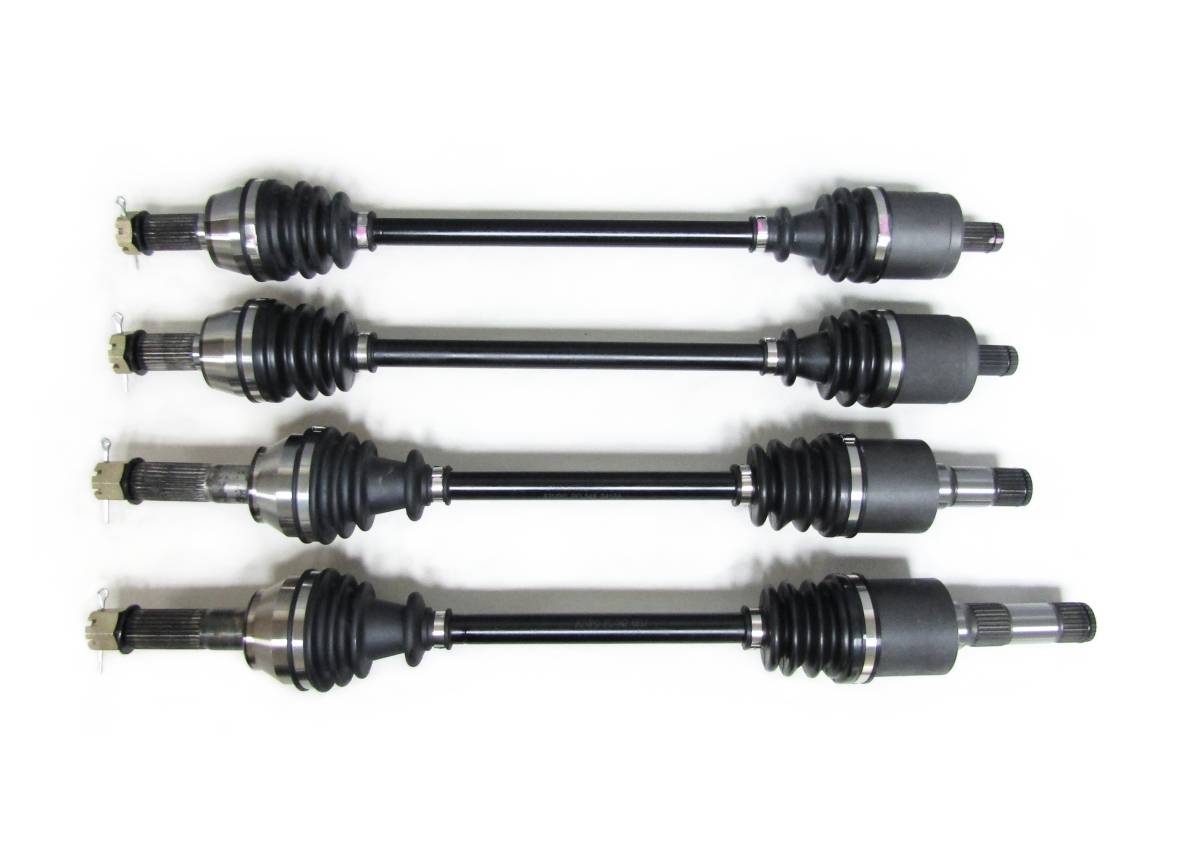

This is a set of 4 new CV axles for a Polaris UTV

They will fit the following models:

2009 4x4 Ranger 500

2009 Ranger 4x4 XP 700 (excluding Crew)

2010-2017 6x6 Ranger 800

*Axles made as an OE replacement, and not intended for lifted/ modified vehicles

Product features:

  • Stronger than OEM, 4340 chromoly steel axle bars
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance
  • inobard CV joint spline count: FL - 22, FR - 22, RL - 29/27, RR - 27
  • outboard CV joint spline count: fronts - 26, rears - 26
  • Compressed overall axle length: FL - 664 mm, FR - 664 mm, RL - 705 mm, RR - 660 mm
Limited Supply: only 5 remaining
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $249.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2009PolarisRanger 5004x4 EFI
2016PolarisRanger 8006x6
2015PolarisRanger 8006x6
2014PolarisRanger 8006x6 EFI
2013PolarisRanger 8006x6
2012PolarisRanger 8006x6
2011PolarisRanger 8006x6 EFI
2010PolarisRanger 8006x6 EFI
2009PolarisRanger XP 7004x4 Browning EFI
2009PolarisRanger XP 7004x4 EFI
2009PolarisRanger XP 7004x4 LE EFI

Product Notes

  • Fits the following Polaris UTV models: 2009 4x4 Ranger 500, 2009 Ranger 4x4 XP 700 (excluding Crew), 2010-2017 6x6 Ranger 800.
  • Features stronger than OEM, 4340 chromoly steel bars for a higher tensile strenth and more durability. Ships as a complete set, fully assembled and ready to install.
  • Joints fitted with neoprene CV boots for added flexibility and resistance to hot/cold temperatures. Also uses high-performance moly grease for additional protection against various environments and to keep vital components lubricated.
  • Replaces OEM # (FL) 1332502, 1332575, 1332647, 1332876, (FR) 1332503, 1332576, 1332648, 1332877, (BR) 1332606 1332856. Compressed length: FL - 664 mm, FR - 664 mm, RL - 705 mm, RR - 660 mm, Inboard spline count: FL - 22, FR - 22, RL - 29/27, RR - 27, Outboard Spine count: fronts - 26, rears - 26.
  • Warranty: 1 Year (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on modified suspensions.

    • What's In The Box

  • 4 axles

    • Warranty

    1 year factory defect limited warranty

    Details

    • PO-311/PO-311/PO-347/PO-348
    • PO-311/PO-311/PO-347/PO-348
    • CUSTOM
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 49.0 lbs.
    • W10.0000” x H10.0000” x L32.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
