CV Axle Set for Polaris Sportsman 400 500, Worker 500, & Diesel 455 ATV

Location on vehicle: Rear,Front,Left,Right

PO-302/PO-302/PO-322/PO-322

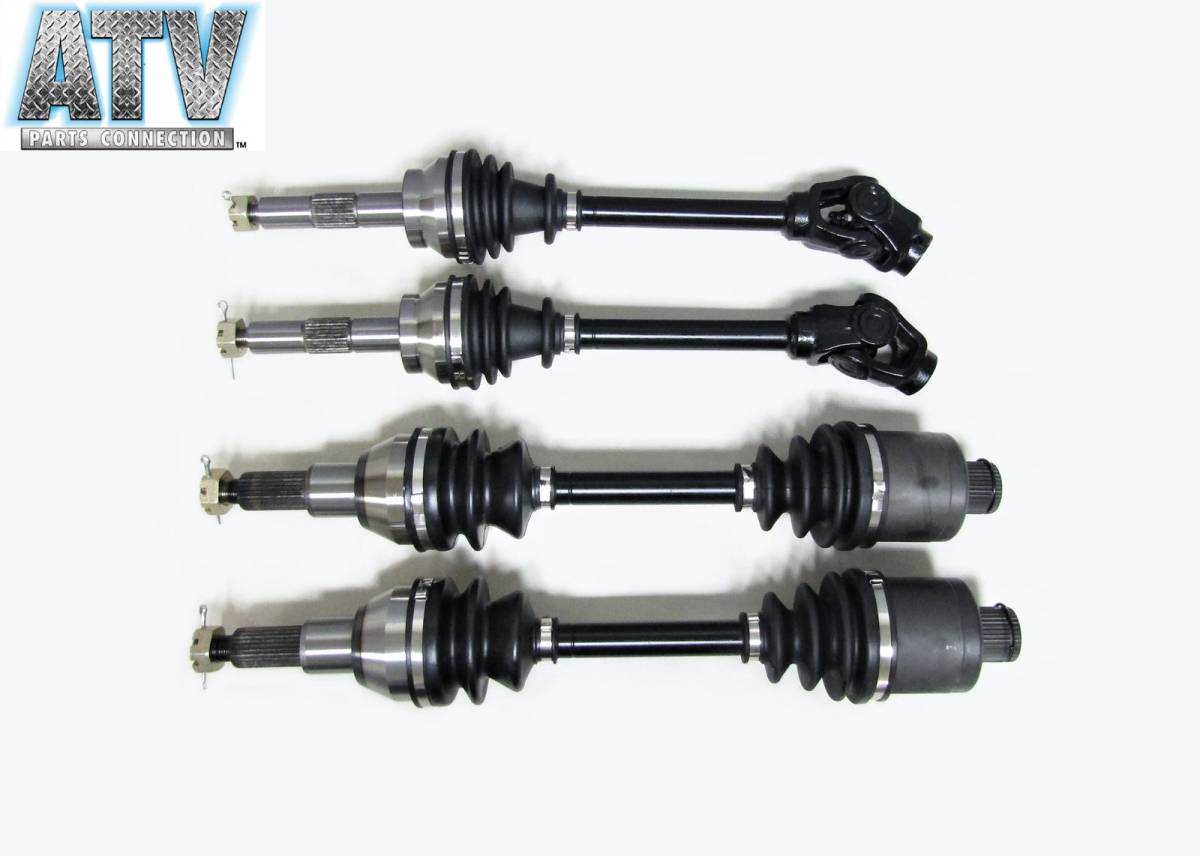

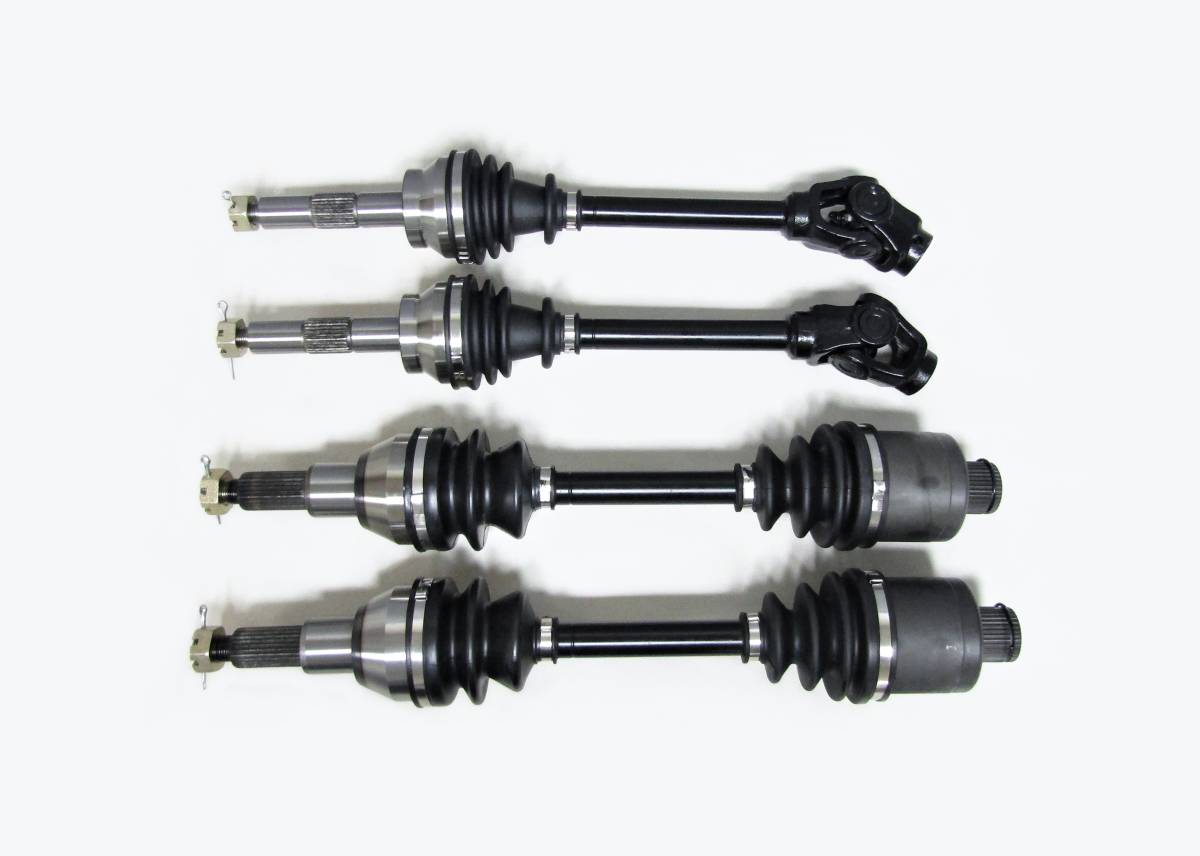

This is a set of new Rear CV axles for a Polaris ATV.

They fit the following 4x4 models:

2001-2002 ... Sportsman 400

2000-2002 ... Diesel 455

1999-2002 ... Sportsman 500

1999 ... Worker 500

Front & Rear, Left & Right

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly hardened steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear and puncture resistance
  • Inboard CV joint spline count: Fronts- 22 (female type), Rears- 36
  • Outboard CV joint spline count: Fronts- 26, Rears- 26
  • Compressed overall axle length: Fronts- 523 mm, Rears- 545.5 mm
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $294.99
Qty:
Free ground shipping for lower 48 states ( some exclusions may apply)

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits: 2000-2001 Sportsman 400, 2000-2002 Diesel 455, 1999-2002 Sportsman 500 4x4, 1999 Worker 500.
  • Features stronger than OEM chromoly hardened steel axle bars. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.
  • Compressed Length: Fronts- 523 mm, Rears- 545.5 mm, Inboard Spline Count: Fronts- 22 (female type), Rears- 36, Outboard Spline Count: Fronts- 26, Rears- 26.
  • Replaces Polaris OE # 1380142, 1380063, 1380066, 1380114, 2200960.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

  • What's In The Box

  • 4 axles
  • Application List

    YearMakeModelSubmodelNotes
    2002PolarisDiesel 4554X4
    2001PolarisDiesel 4554X4
    2000PolarisDiesel 4554X4
    2002PolarisSportsman 4004X4
    2001PolarisSportsman 4004X4
    2002PolarisSportsman 5004X4
    2002PolarisSportsman 5004x4 DUSE
    2002PolarisSportsman 5004x4 HO
    2002PolarisSportsman 5004x4 RSE
    2002PolarisSportsman 5004x4 Richard Petty Edition
    2001PolarisSportsman 5004x4 DUSE
    2001PolarisSportsman 5004x4 HO
    2001PolarisSportsman 5004x4 RSE HO
    2000PolarisSportsman 5004X4
    2000PolarisSportsman 5004x4 RSE
    1999PolarisSportsman 5004X4
    1999PolarisSportsman 5004x4 Remington Special Edition
    1999PolarisWorker 500--

    Details

    • PO-302/PO-302/PO-322/PO-322
    • PO-302/PO-302/PO-322/PO-322
    • ATV Parts Connection
    • Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 47.0 lbs.
    • W10.0000” x H10.0000” x L25.0000”
    • Free ground shipping for lower 48 states ( some exclusions may apply)
    • Free Shipping - Same Day If Ordered Before 3 EST
