CV Axle Set for Polaris Ranger 500 2010 & Ranger 800 2010-2013

Location on vehicle: Front,Rear,Left,Right

PO-311/PO-311/PO-334/PO-334

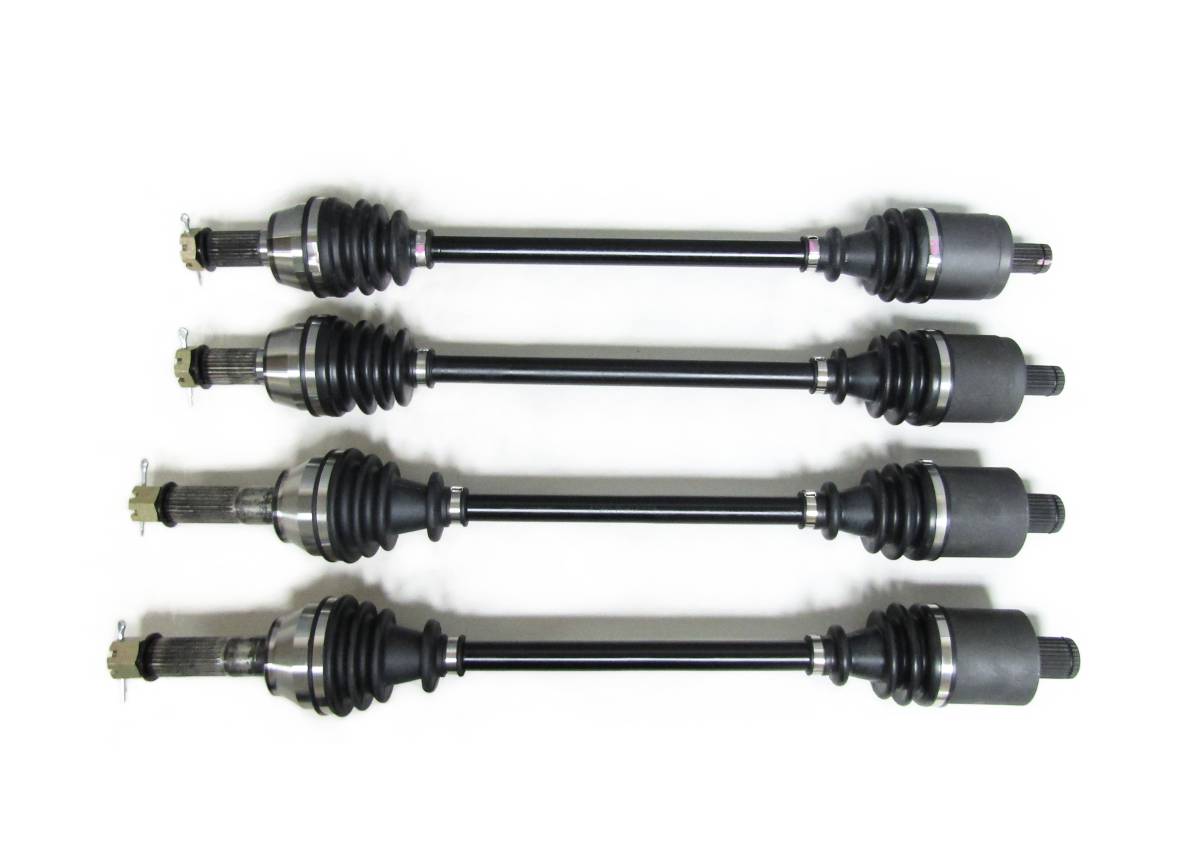

This is a set of 4 new Front & Rear axles for a Polaris UTV.

They fit the following 4x4 applications:

2010 ... Ranger 500

2010-2013 ... Ranger 800 (excluding Midsize)

Front & Rear, Left & Right

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly hardened steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance
  • FL/FR Inboard CV joint spline count: 22
  • FL/FR Outboard CV joint spline count: 26
  • RL/RR Inboard CV joint spline count: 28
  • RL/RR Outboard CV joint spline count: 26
  • Compressed overall axle length: FL/FR :664 mm/ RL/RR 673 mm
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $279.99
Qty:
Free ground shipping for lower 48 states ( some exclusions may apply)

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits: 2010 Ranger 500 4x4 & 2010-2013 Ranger 800 4x4 (excluding Midsize models).
  • Axles feature a stronger than OEM chromoly steel shaft fitted with neoprene boots filled with moly based grease for added wear and puncture resistance.
  • Replaces OE # 1332606 1332856 1332814 1332878 1333008.
  • Compressed Length (mm): FL- 664, FR- 664, RL- 673, RR- 673, Inboard Spline Count - Fronts - 22, Rears - 28, Outboard Spline Count - Fronts - 26, Rears: 26
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

  • What's In The Box

  • 4 axles
  • Application List

    YearMakeModelSubmodelNotes
    2009PolarisRanger 5004x4 EFI
    2010PolarisRanger 5004x4 HO EFI
    2010PolarisRanger XP 8004x4 Pursuit Browning EFI
    2010PolarisRanger XP 8004x4 LE EFI
    2010PolarisRanger XP 8004x4 EFI EPS
    2010PolarisRanger XP 8004x4 EFI
    2011PolarisRanger XP 8004x4 Pursuit EFI
    2011PolarisRanger XP 8004x4 EFI EPS
    2011PolarisRanger XP 8004x4 EFI
    2011PolarisRanger XP 8004x4 Browning EFI
    2012PolarisRanger XP 8004x4 LE EPS
    2012PolarisRanger XP 8004x4 LE
    2012PolarisRanger XP 8004x4 EPS
    2012PolarisRanger XP 8004x4 EFI
    2012PolarisRanger XP 8004x4 Browning EPS
    2012PolarisRanger XP 8004X4
    2010PolarisRanger Crew 8004x4 EFI EPS
    2010PolarisRanger Crew 8004x4 EFI
    2011PolarisRanger Crew 8004x4 Pursuit EFI
    2011PolarisRanger Crew 8004x4 LE EFI
    2011PolarisRanger Crew 8004x4 EFI EPS
    2011PolarisRanger Crew 8004x4 EFI
    2012PolarisRanger Crew 8004x4 Pursuit EFI
    2012PolarisRanger Crew 8004x4 LE EFI EPS
    2012PolarisRanger Crew 8004x4 EFI EPS
    2012PolarisRanger Crew 8004x4 EFI
    2013PolarisRanger Crew 800LE EPS
    2013PolarisRanger Crew 800--
    2014PolarisRanger Crew 800--

    Details

    • PO-311/PO-311/PO-334/PO-334
    • PO-311/PO-311/PO-334/PO-334
    • ATV Parts Connection
    • Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 48.0 lbs.
    • W10.0000” x H10.0000” x L32.0000”
    • Free ground shipping for lower 48 states ( some exclusions may apply)
    • Free Shipping - Same Day If Ordered Before 3 EST
