Rear Right CV Axle & Wheel Bearing Kit for Yamaha Rhino 700 4x4 2008-2013

Location on vehicle: Rear,Right

(0) Reviews: Write first review
WB-1542/YA-330

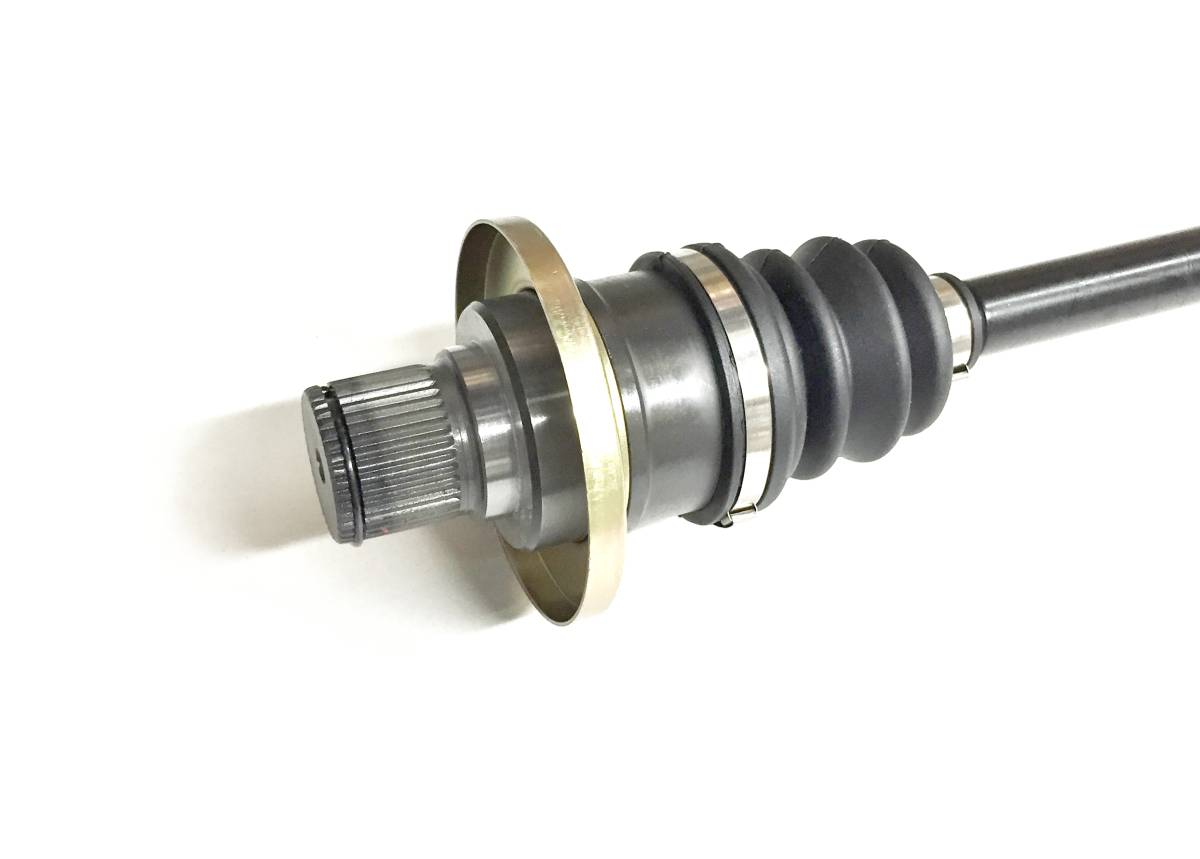

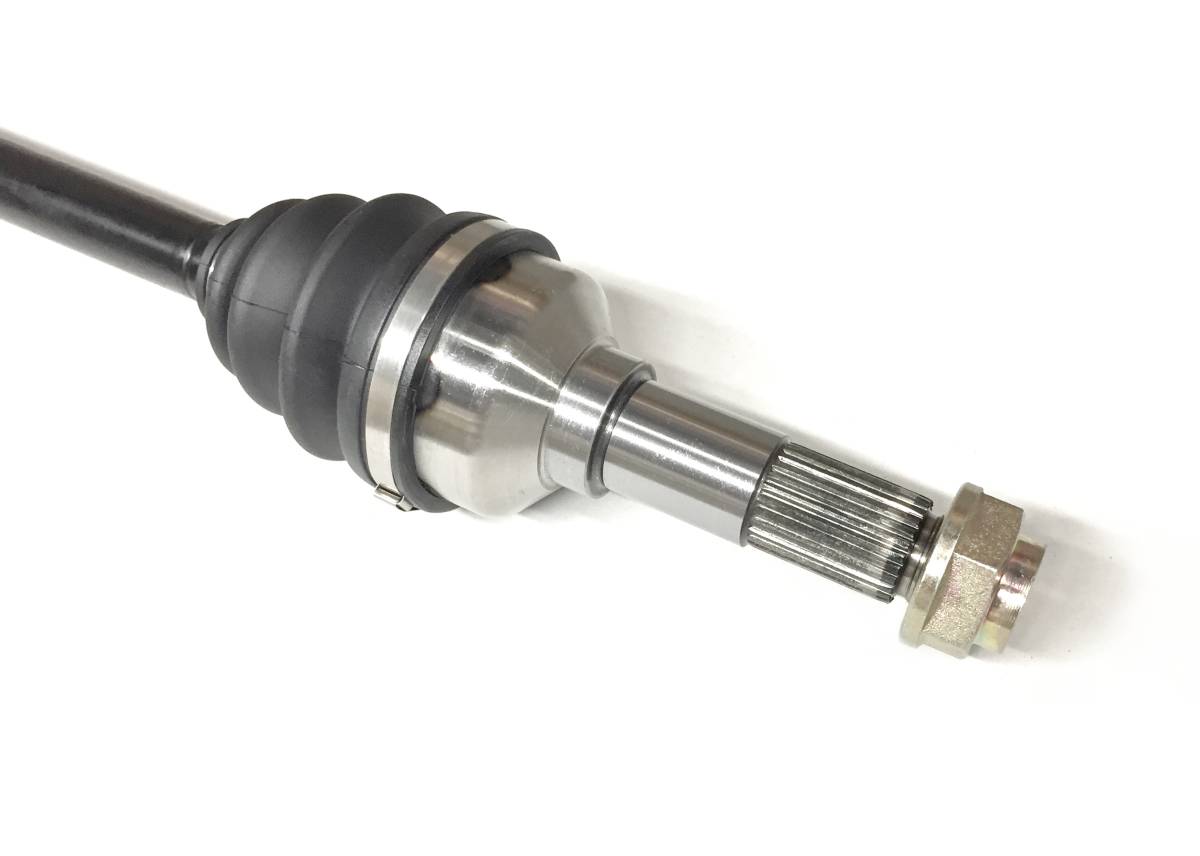

This is a new Rear, Right CV axle & wheel bearing/seal kit for a Yamaha UTV.

They fit the following 4x4 models:

2008-2013 ... Rhino 700

Rear, Right (passenger side)

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly hardened steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance
  • High speed bearings manufactured for long life
  • Double lip seals made to keep grease in and dirt out
  • Inboard CV joint spline count: 39
  • Outboard CV joint spline count: 27
  • Compressed overall axle length: 648 mm
  • Replaces Yamaha OEM # (axle) 5B4-F530U-00-00, 5UG-F530W-02-00, (bearings & seals) 93306-206Y2-00, 93106-42800-00, 93106-38800-00
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $94.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2013YamahaRhino 700YXR700F 4x4 FI
2013YamahaRhino 700YXR700FH 4x4 Hunter Edition FI
2013YamahaRhino 700YXR700FSP 4x4 Specialt Edition FI
2013YamahaRhino 700YXR700FSP 4x4 Sport Edition FI
2012YamahaRhino 700YXR700F 4x4 FI
2012YamahaRhino 700YXR700FH 4x4 Hunter Edition FI
2012YamahaRhino 700YXR700FSE 4x4 Special Edition FI
2012YamahaRhino 700YXR700FSP 4x4 Sport Edition FI
2011YamahaRhino 700YXR700F 4x4 FI
2011YamahaRhino 700YXR700FSE 4x4 Special Edition FI
2011YamahaRhino 700YXR700FSP 4x4 Sport Edition FI
2010YamahaRhino 700YXR700F 4x4 FI
2010YamahaRhino 700YXR700FSE 4x4 Special Edition FI
2010YamahaRhino 700YXR700FSP 4x4 Sport Edition FI
2009YamahaRhino 700YXR700F 4x4 FI
2009YamahaRhino 700YXR700FDU 4x4 Ducks Unlimited Edition FI
2009YamahaRhino 700YXR700FH 4x4 Hunter Edition
2009YamahaRhino 700YXR700FSE 4x4 Special Edition FI
2009YamahaRhino 700YXR700FSP 4x4 Sport Edition FI
2008YamahaRhino 700YXR700F 4x4 FI
2008YamahaRhino 700YXR700FDU 4x4 Ducks Unlimited Edition FI
2008YamahaRhino 700YXR700FH 4x4 Hunter Edition FI
2008YamahaRhino 700YXR700FSEP 4x4 Special Edition FI
2008YamahaRhino 700YXR700FSP2 4x4 Special Edition II FI
2008YamahaRhino 700YXR700FSP 4x4 Sport Edition FI

Product Notes

  • Fits rear right (passenger side) on the following Yamaha UTV models: 2008-2013 Rhino 700 (including FI, SE & Sport).
  • Features a stronger than OEM, 4340 chromoly steel bar for a higher tensile strenth and more durability. Engineered as a direct replacement, fully-assembled, and ready to install. Please note the bearing kit is usually shipped inside the axle box.
  • Joints fitted with neoprene CV boots for added flexibility and resistance to hot/cold temperatures. Also uses high-performance moly grease to keep vital components lubricated. High speed bearing manufactured for long life. Double lip seals made to keep grease in and dirt out.
  • Replaces OEM # (axle) 5B4-F530U-00-00, 5UG-F530W-02-00, (bearings & seals) 93306-206Y2-00, 93106-42800-00, 93106-38800-00. Compressed axle length - 648 mm, Inboard spline count: 39, Outboard spline count 27.
  • Warranty: 1 Year (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on modified suspensions.

    • What's In The Box

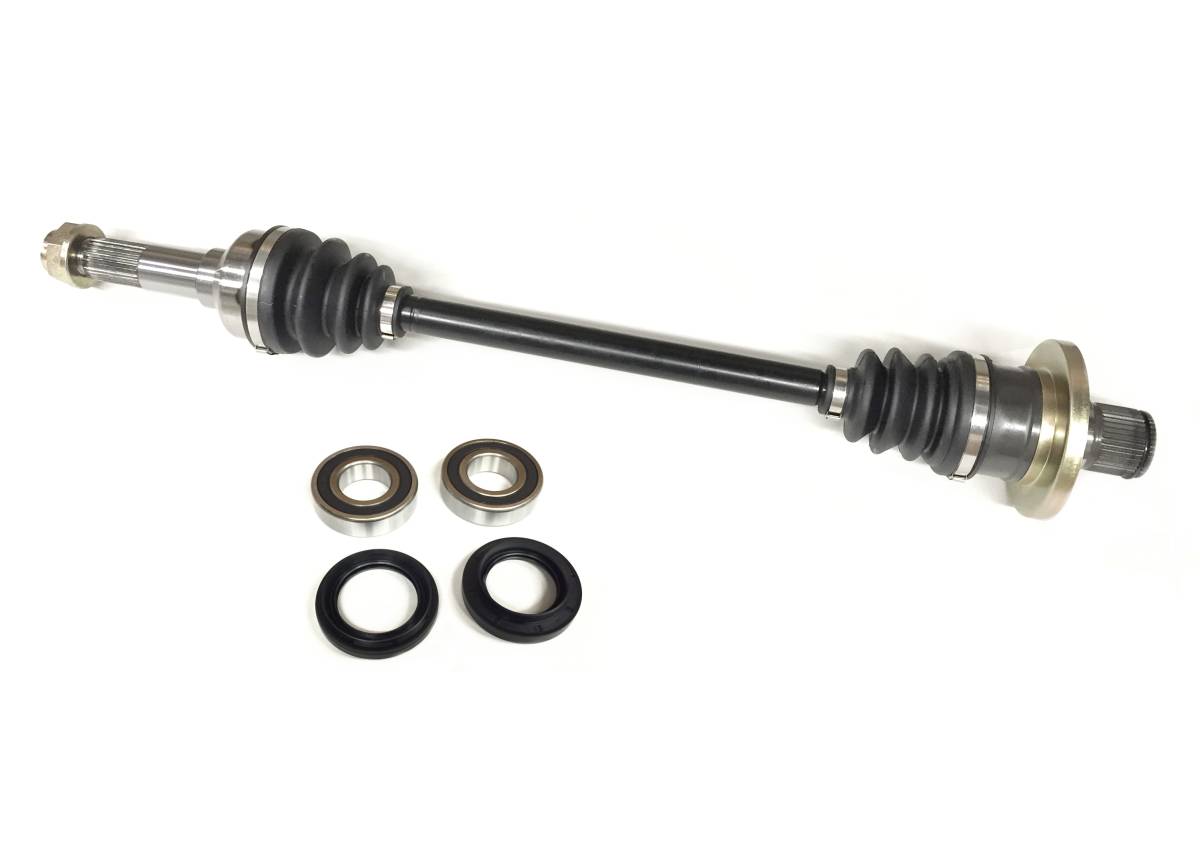

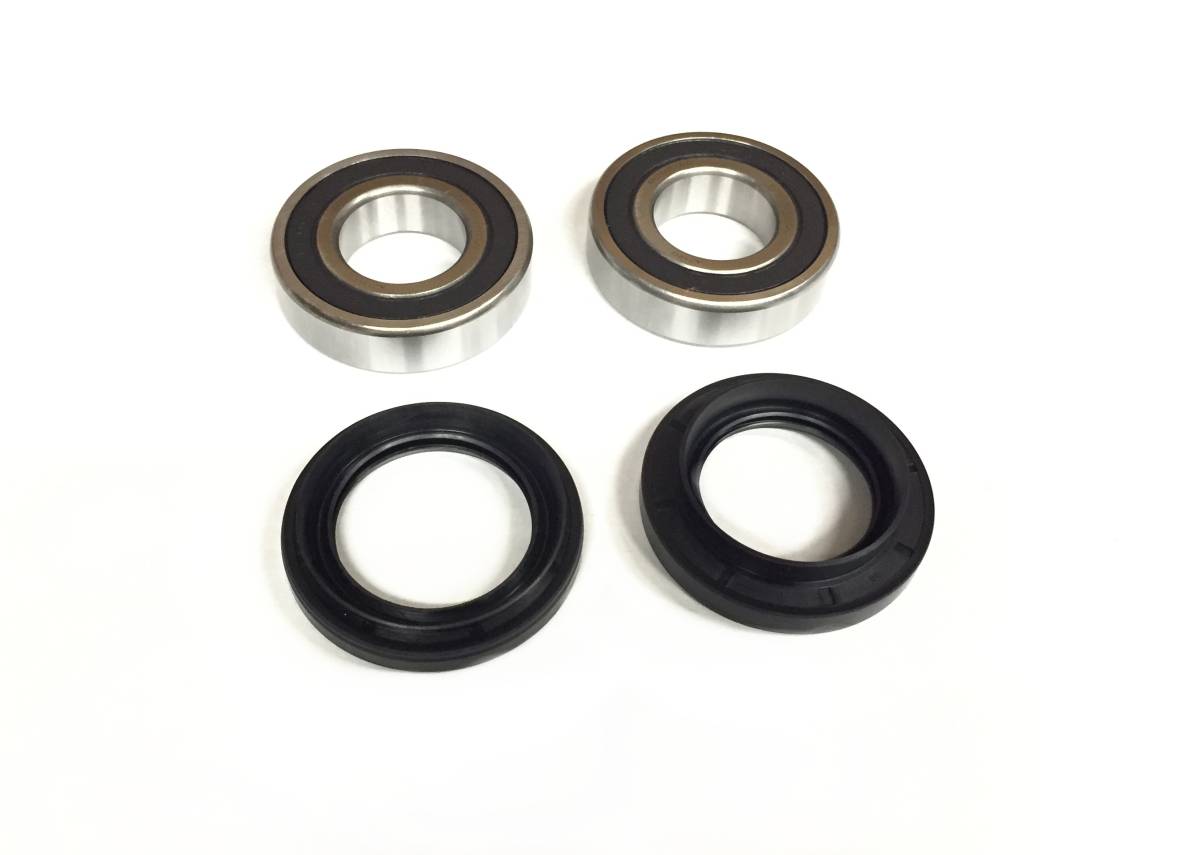

  • 1 CV axle & 1 wheel bearing kit

    • Warranty

    1 year factory defect limited warranty

    Details

    • WB-1542/YA-330
    • WB-1542/YA-330
    • CUSTOM
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 12.7 lbs.
    • W5.0000” x H5.0000” x L31.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
