Front Outer CV Joint Set for Can-Am Outlander & Renegade ATV, 705500560

Placement on halfshaft: Outer - Front,Left,Right

OJ814/OJ814

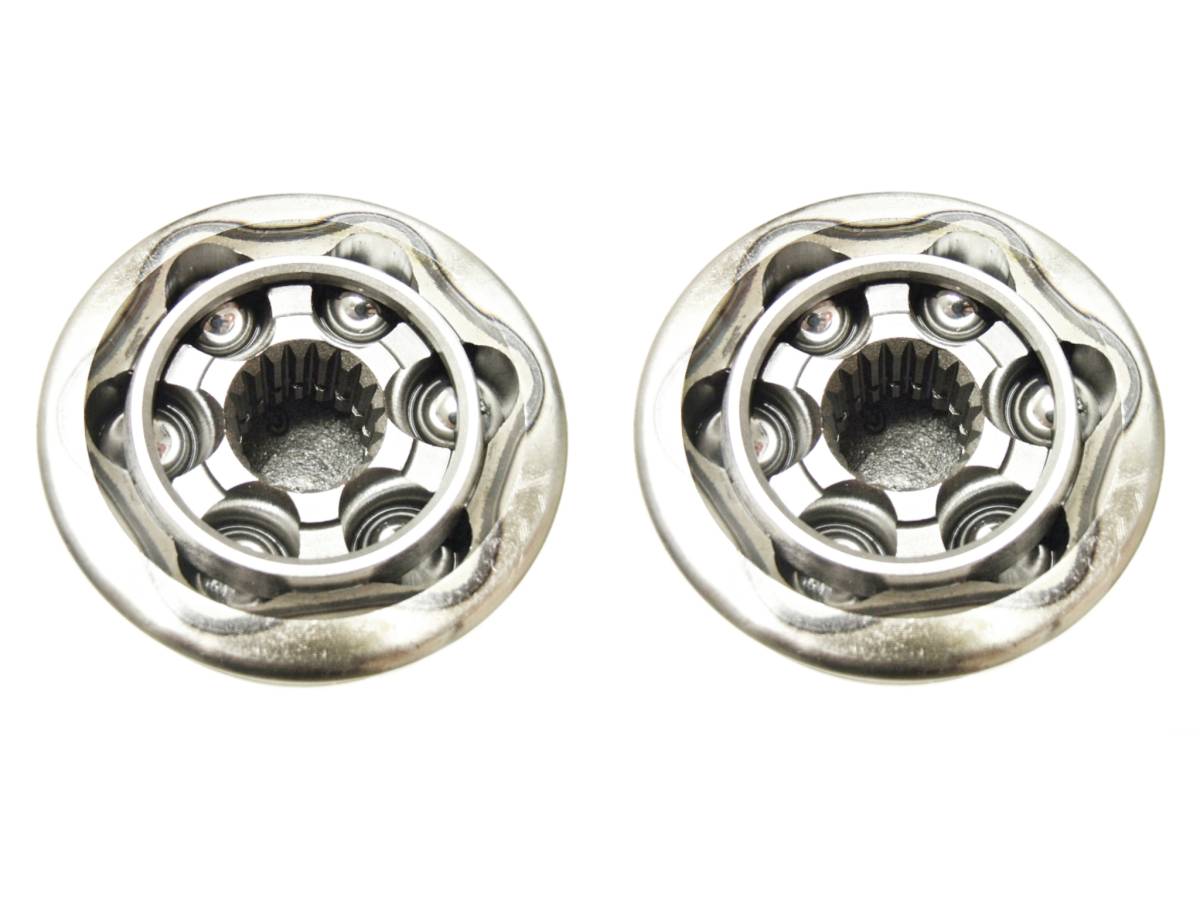

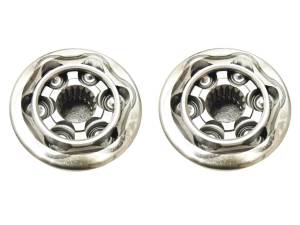

This is a pair of new CV joint and boot kits for a Can-Am ATV.

They fit FRONT, OUTER on the following 4x4 models:

2006-2012 Outlander 400/MAX 400, 2007-2012 Outlander 500/MAX 500, 2006-2012 Outlander 650/MAX 650, 2006-2012 Outlander 800/MAX 800 (excluding XMR), 2012 Outlander 1000, 2008-2012 Renegade 500, 2007-2012 Renegade 800, 2012 Renegade 1000

*Joints are an OEM replacement and not intended for use in lifted/modified vehicles

Product features:

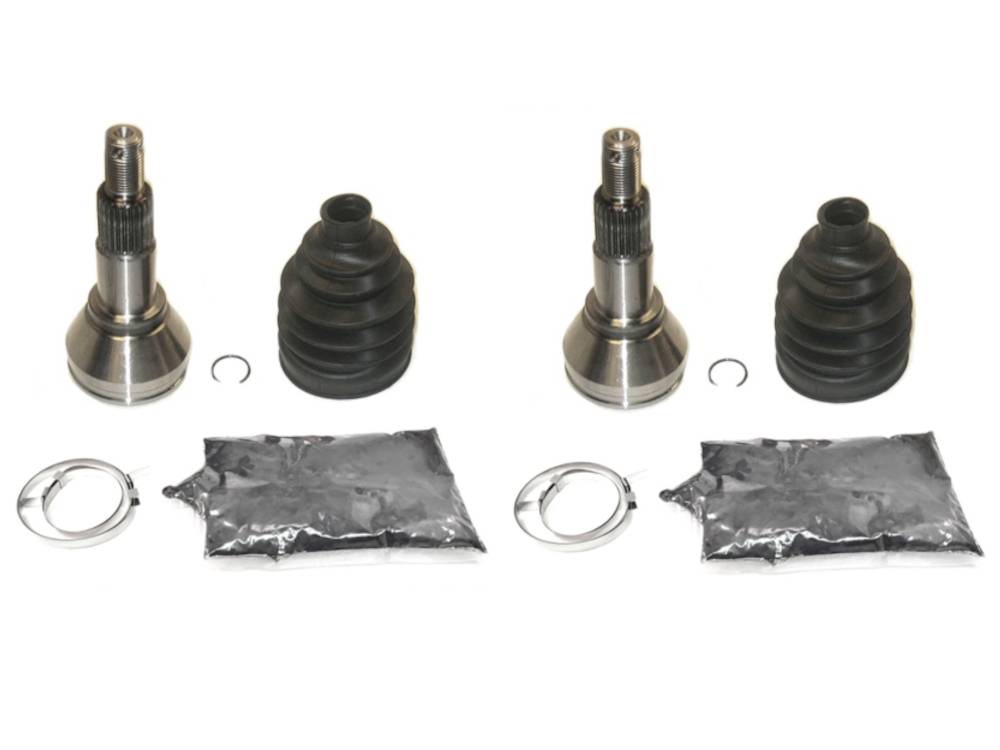

  • Set includes 2 fully assembled CV joints, 2 boots, 2 grease packs & 4 clamps
  • Stub height: 4.125 in
  • Inner Race Splines: 18
  • Outer CV Housing Splines: 26
  • Housing diameter: 2.580 in
  • Spline Diameter: 1.055 in
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $66.99
Qty:
Free ground shipping for lower 48 states ( some exclusions may apply)

Warranty

1 year factory defect warranty

Product Notes

  • Fits the following Can-Am ATVs: 2006-2012 Outlander 400/MAX 400, 2007-2012 Outlander 500/MAX 500, 2006-2012 Outlander 650/MAX 650, 2006-2012 Outlander 800/MAX 800 (excluding XMR), 2012 Outlander 1000, 2008-2012 Renegade 500, 2007-2012 Renegade 800, 2012 Renegade 1000.
  • Replaces the FRONT, OUTER (wheel side) positions. Set includes 2 fully assembled CV joints, 2 boots, 2 grease packs, 4 clamps.
  • Stub height: 4.125 in, Inner Race Splines: 18, Outer CV Housing Splines: 26, Housing diameter: 2.580 in, Spline Diameter: 1.055 in.
  • Replaces OEM # 705500560.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

  • What's In The Box

  • 2 CV joints, 2 boots, 2 grease packs, 4 clamps
  • Application List

    YearMakeModelSubmodelNotes
    2006BombardierOutlander 4004x4 HO
    2006BombardierOutlander 4004x4 XT HO
    2006BombardierOutlander 6504x4 EFI HO
    2006BombardierOutlander 6504x4 XT EFI HO
    2006BombardierOutlander 8004x4 EFI HO
    2006BombardierOutlander 8004x4 XT EFI HO
    2006BombardierOutlander Max 4004x4 HO
    2006BombardierOutlander Max 4004x4 XT HO
    2006BombardierOutlander Max 6504x4 EFI HO
    2006BombardierOutlander Max 6504x4 XT EFI HO
    2006BombardierOutlander Max 8004x4 EFI HO
    2006BombardierOutlander Max 8004x4 XT EFI HO
    2012Can-AmOutlander 4004x4 EFI
    2012Can-AmOutlander 4004x4 XT EFI
    2011Can-AmOutlander 4004x4 EFI
    2011Can-AmOutlander 4004x4 XT EFI
    2010Can-AmOutlander 4004x4 HO EFI
    2010Can-AmOutlander 4004x4 XT HO EFI
    2009Can-AmOutlander 4004x4 HO EFI
    2009Can-AmOutlander 4004x4 XT HO EFI
    2008Can-AmOutlander 4004x4 HO
    2008Can-AmOutlander 4004x4 HO EFI
    2008Can-AmOutlander 4004x4 XT HO
    2008Can-AmOutlander 4004x4 XT HO EFI
    2007Can-AmOutlander 4004x4 HO
    2007Can-AmOutlander 4004x4 XT HO
    2012Can-AmOutlander 5004x4 EFI
    2012Can-AmOutlander 5004x4 XT EFI
    2011Can-AmOutlander 5004x4 EFI
    2011Can-AmOutlander 5004x4 XT EFI
    2010Can-AmOutlander 5004x4 HO EFI
    2010Can-AmOutlander 5004x4 XT HO EFI
    2010Can-AmOutlander 5004x4 XTP HO EFI
    2009Can-AmOutlander 5004x4 HO EFI
    2009Can-AmOutlander 5004x4 XT HO EFI
    2008Can-AmOutlander 5004x4 HO EFI
    2008Can-AmOutlander 5004x4 XT HO EFI
    2007Can-AmOutlander 5004x4 HO EFI
    2007Can-AmOutlander 5004x4 XT HO EFI
    2012Can-AmOutlander 6504x4 EFI
    2012Can-AmOutlander 6504x4 XT EFI
    2011Can-AmOutlander 6504x4 EFI
    2011Can-AmOutlander 6504x4 XT EFI
    2011Can-AmOutlander 6504x4 XTP EFI
    2010Can-AmOutlander 6504x4 HO EFI
    2010Can-AmOutlander 6504x4 XT HO EFI
    2010Can-AmOutlander 6504x4 XTP EFI
    2010Can-AmOutlander 6504x4 XTP HO EFI
    2009Can-AmOutlander 6504x4 HO EFI
    2009Can-AmOutlander 6504x4 XT HO EFI
    2008Can-AmOutlander 6504x4 HO EFI
    2008Can-AmOutlander 6504x4 XT HO EFI
    2007Can-AmOutlander 6504x4 HO EFI
    2007Can-AmOutlander 6504x4 XT HO EFI
    2008Can-AmOutlander 8004x4 HO EFI
    2008Can-AmOutlander 8004x4 XT HO EFI
    2007Can-AmOutlander 8004x4 HO EFI
    2007Can-AmOutlander 8004x4 XT HO EFI
    2011Can-AmOutlander 800R4x4 EFI
    2011Can-AmOutlander 800R4x4 XT EFI
    2011Can-AmOutlander 800R4x4 XTP EFI
    2010Can-AmOutlander 800R4x4 HO EFI
    2010Can-AmOutlander 800R4x4 XT HO EFI
    2010Can-AmOutlander 800R4x4 XTP EFI
    2010Can-AmOutlander 800R4x4 XTP HO EFI
    2009Can-AmOutlander 800R4x4 HO EFI
    2009Can-AmOutlander 800R4x4 XT HO EFI
    2012Can-AmOutlander 10004x4 EFI
    2012Can-AmOutlander 10004x4 XT EFI
    2012Can-AmOutlander Max 4004x4 EFI
    2012Can-AmOutlander Max 4004x4 XT EFI
    2011Can-AmOutlander Max 4004x4 EFI
    2011Can-AmOutlander Max 4004x4 XT EFI
    2010Can-AmOutlander Max 4004x4 HO EFI
    2010Can-AmOutlander Max 4004x4 XT HO EFI
    2009Can-AmOutlander Max 4004x4 HO EFI
    2009Can-AmOutlander Max 4004x4 XT HO EFI
    2008Can-AmOutlander Max 4004x4 HO
    2008Can-AmOutlander Max 4004x4 HO EFI
    2008Can-AmOutlander Max 4004x4 XT HO
    2008Can-AmOutlander Max 4004x4 XT HO EFI
    2007Can-AmOutlander Max 4004x4 HO
    2007Can-AmOutlander Max 4004x4 XT HO
    2012Can-AmOutlander Max 5004X4
    2012Can-AmOutlander Max 5004x4 EFI
    2012Can-AmOutlander Max 5004x4 XT EFI
    2011Can-AmOutlander Max 5004x4 EFI
    2011Can-AmOutlander Max 5004x4 XT EFI
    2010Can-AmOutlander Max 5004x4 HO EFI
    2010Can-AmOutlander Max 5004x4 LTD HO EFI
    2010Can-AmOutlander Max 5004x4 XT HO EFI
    2010Can-AmOutlander Max 5004x4 XTP HO EFI
    2009Can-AmOutlander Max 5004x4 HO EFI
    2009Can-AmOutlander Max 5004x4 XT HO EFI
    2008Can-AmOutlander Max 5004x4 HO EFI
    2008Can-AmOutlander Max 5004x4 XT HO EFI
    2007Can-AmOutlander Max 5004x4 HO EFI
    2007Can-AmOutlander Max 5004x4 XT HO EFI
    2012Can-AmOutlander Max 6504x4 EFI
    2012Can-AmOutlander Max 6504x4 XT EFI
    2012Can-AmOutlander Max 6504x4 XTP EFI
    2011Can-AmOutlander Max 6504x4 EFI
    2011Can-AmOutlander Max 6504x4 XT EFI
    2011Can-AmOutlander Max 6504x4 XTP EFI
    2010Can-AmOutlander Max 6504x4 HO EFI
    2010Can-AmOutlander Max 6504x4 XT HO EFI
    2010Can-AmOutlander Max 6504x4 XTP EFI
    2010Can-AmOutlander Max 6504x4 XTP HO EFI
    2009Can-AmOutlander Max 6504x4 HO EFI
    2009Can-AmOutlander Max 6504x4 XT HO EFI
    2008Can-AmOutlander Max 6504x4 HO EFI
    2008Can-AmOutlander Max 6504x4 XT HO EFI
    2007Can-AmOutlander Max 6504x4 HO EFI
    2007Can-AmOutlander Max 6504x4 XT HO EFI
    2008Can-AmOutlander Max 8004x4 HO EFI
    2008Can-AmOutlander Max 8004x4 LTD HO EFI
    2008Can-AmOutlander Max 8004x4 XT HO EFI
    2007Can-AmOutlander Max 8004x4 HO EFI
    2007Can-AmOutlander Max 8004x4 LTD HO EFI
    2007Can-AmOutlander Max 8004x4 XT HO EFI
    2012Can-AmOutlander Max 800R4x4 EFI
    2012Can-AmOutlander Max 800R4x4 LTD EFI
    2012Can-AmOutlander Max 800R4x4 XT EFI
    2012Can-AmOutlander Max 800R4x4 XTP EFI
    2011Can-AmOutlander Max 800R4x4 EFI
    2011Can-AmOutlander Max 800R4x4 LTD EFI
    2011Can-AmOutlander Max 800R4x4 XT EFI
    2011Can-AmOutlander Max 800R4x4 XTP EFI
    2010Can-AmOutlander Max 800R4x4 HO EFI
    2010Can-AmOutlander Max 800R4x4 LTD HO EFI
    2010Can-AmOutlander Max 800R4x4 XT HO EFI
    2010Can-AmOutlander Max 800R4x4 XTP EFI
    2010Can-AmOutlander Max 800R4x4 XTP HO EFI
    2009Can-AmOutlander Max 800R4x4 HO EFI
    2009Can-AmOutlander Max 800R4x4 LTD HO EFI
    2009Can-AmOutlander Max 800R4x4 XT HO EFI
    2012Can-AmRenegade 5004x4 EFI
    2011Can-AmRenegade 5004x4 EFI
    2010Can-AmRenegade 5004x4 EFI
    2009Can-AmRenegade 5004X4
    2008Can-AmRenegade 5004x4 HO EFI
    2008Can-AmRenegade 8004x4 HO EFI
    2008Can-AmRenegade 8004x4 X HO EFI
    2012Can-AmRenegade 800R4x4 EFI
    2012Can-AmRenegade 800R4x4 XXC EFI
    2011Can-AmRenegade 800R4x4 EFI
    2011Can-AmRenegade 800R4x4 XXC EFI
    2010Can-AmRenegade 800R4x4 EFI
    2010Can-AmRenegade 800R4x4 XXC EFI
    2009Can-AmRenegade 800R4x4 EFI
    2009Can-AmRenegade 800RX 4x4 EFI
    2012Can-AmRenegade 10004x4 EFI
    2012Can-AmRenegade 10004x4 XXC EFI
