Front CV Axle Pair with Wheel Bearings for Arctic Cat Prowler 550 650 700 & 1000

Location on vehicle: Front,Left,Right

(0) Reviews: Write first review
AC-147/AC-247/WB-1496/WB-1496

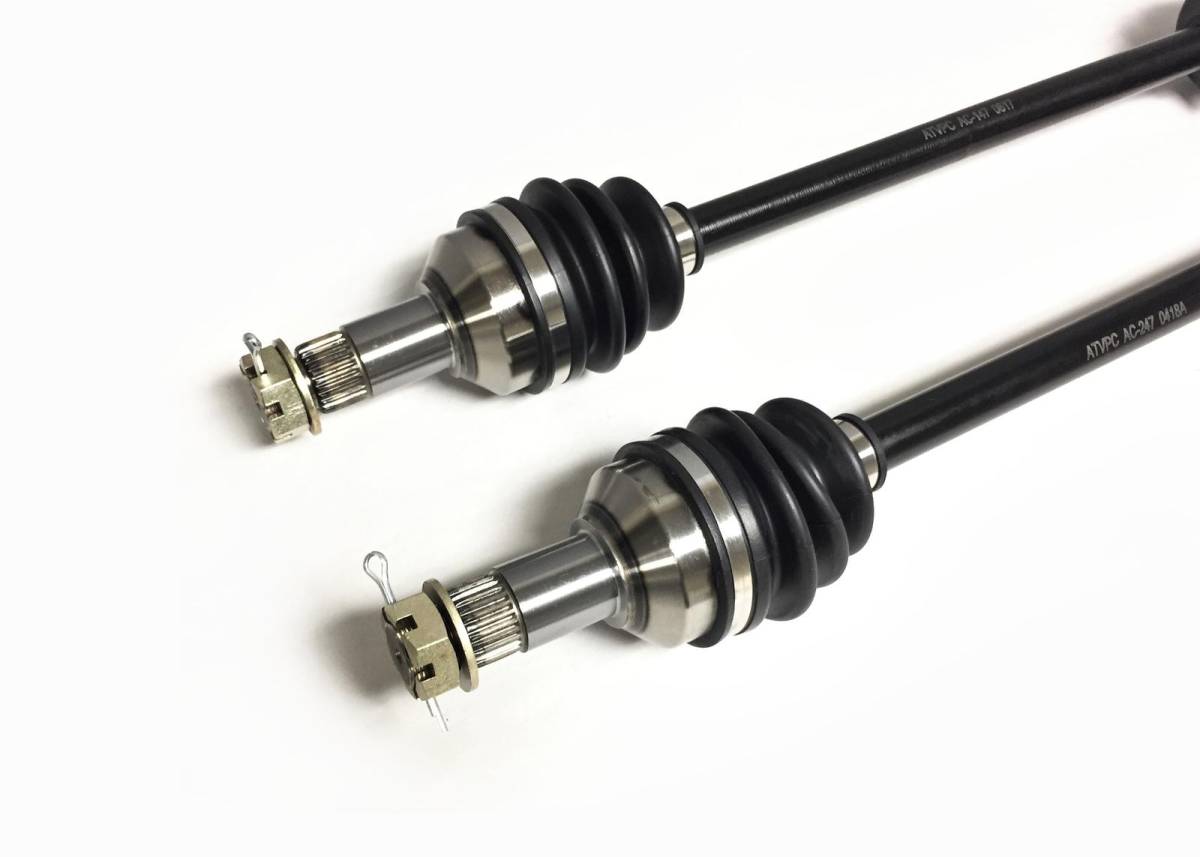

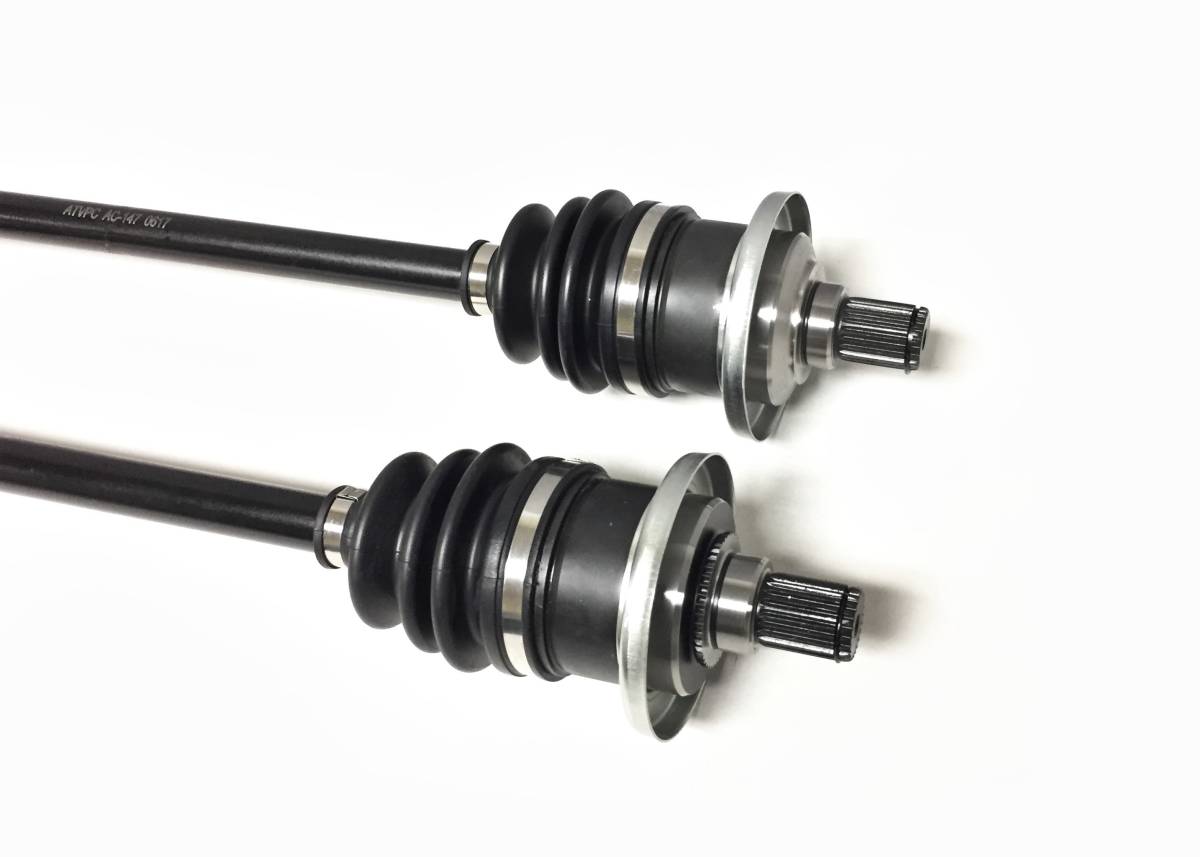

This is a set of new Front CV axles & wheel bearings for an Arctic Cat UTV.

They fit the following 4x4 models:

2009-2015 ... Prowler 550 / XT 550

2006-2009 ... Prowler 650 / XT 650

2008-2014 ... Prowler XT 700 / XTX 700

2011-2015 ... Prowler HDX 700

2009-2014 ... Prowler XTZ 1000

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear and puncture resistance

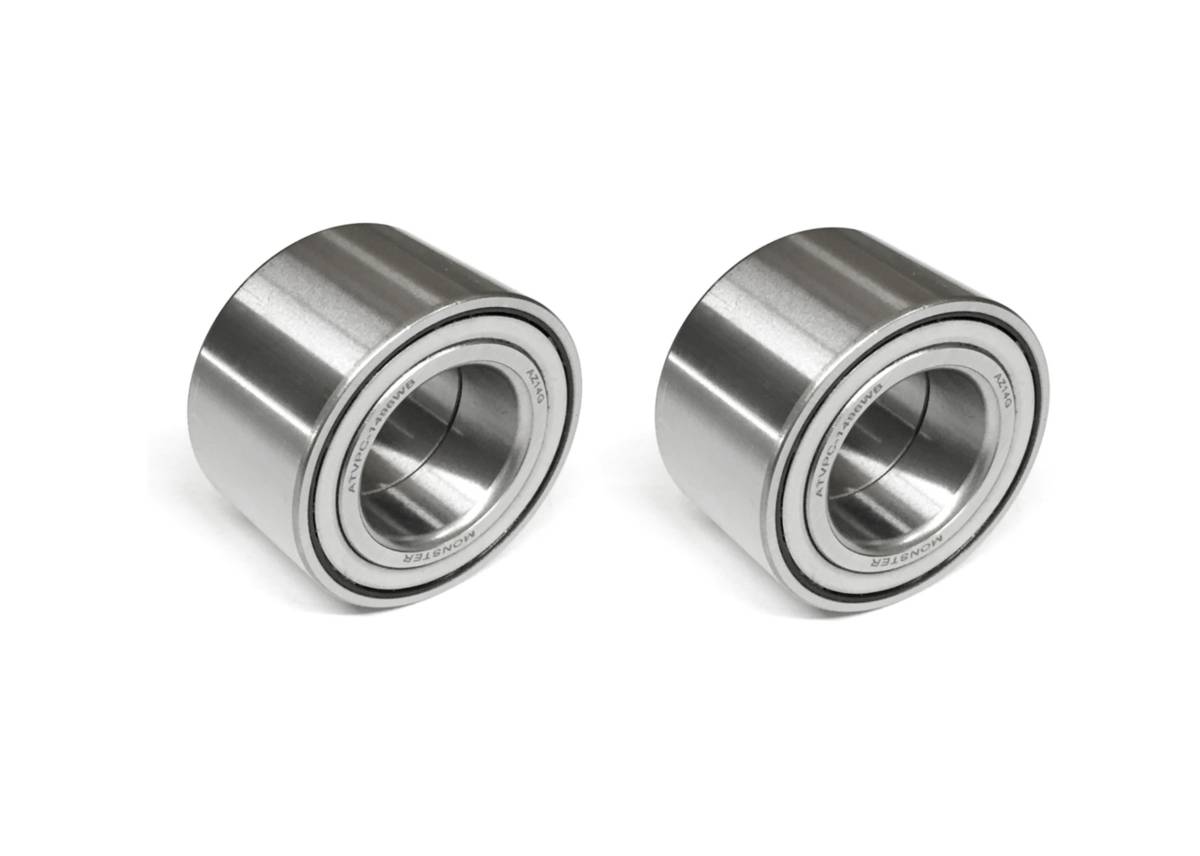

  • High speed bearings manufactured for long life
  • Double lip seals made to keep grease in and dirt and water out
  • Inboard CV joint spline count: 24 (both)
  • Outboard CV joint spline count: 27 (both)
  • Compressed overall axle length: 695 mm and 662 mm
  • Replaces OE # (axles) 502-940, 1502-347, 1502-803, 1502-939, 1502-348, 1502-802, (bearings) 1402-027, 1402-809
Limited Supply: only 9 remaining
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $174.99
Qty:
Free Ground Shipping

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits front left & right: 2009-2014 Prowler 550, 2006-2009 Prowler 650, 2008-2015 Prowler XTX 700/HDX 700, & 2009-2014 Prowler XTZ 1000.
  • Features stronger than OEM chromoly forged steel axle bars. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance
  • High speed bearings manufactured for long life. Double lip seals made to keep grease in and dirt and water out.
  • Replaces OE # (axles) 502-940, 1502-347, 1502-803, 1502-939, 1502-348, 1502-802, (bearings) 1402-027, 1402-809. Compressed Length - 695 mm, 662 mm, Inboard Spline Count - 24 (both), Outboard Spline Count - 27 (both).
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

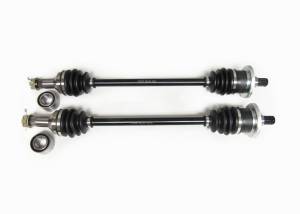

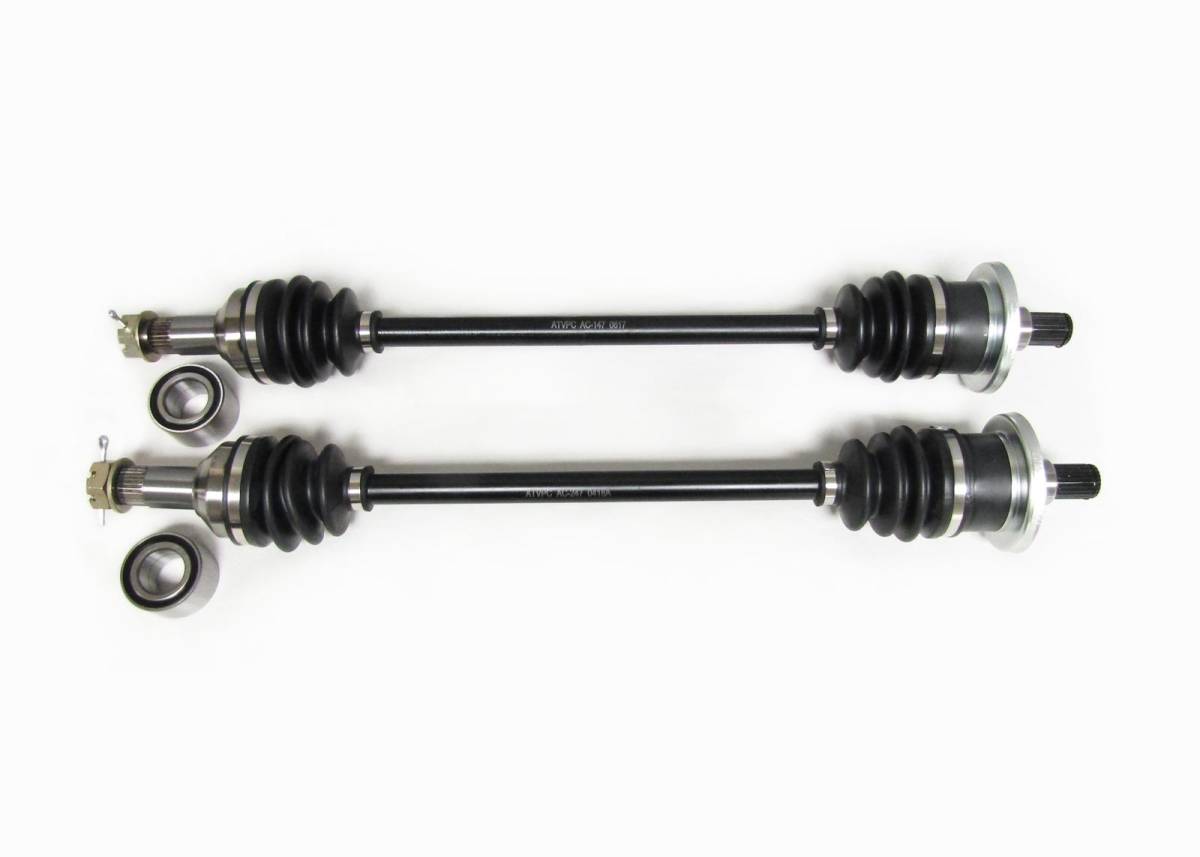

    • What's In The Box

  • 2 CV axles & 2 wheel bearings

    • Application List

    YearMakeModelSubmodelNotes
    2009Arctic CatProwler 5504x4 Flatbed
    2008Arctic CatProwler 6504x4 H1 Automatic
    2007Arctic CatProwler 6504x4 H1 Automatic
    2006Arctic CatProwler 6504x4 H1 Automatic
    2014Arctic CatProwler HDX 7004X4
    2014Arctic CatProwler HDX 7004x4 Limited
    2013Arctic CatProwler HDX 7004X4
    2012Arctic CatProwler HDX 7004x4 EFI
    2012Arctic CatProwler HDX 7004x4 EPS
    2011Arctic CatProwler HDX 7004x4 EPS
    2011Arctic CatProwler HDX 7004x4 H1 EFI
    2014Arctic CatProwler XT 5504X4
    2013Arctic CatProwler XT 5504X4
    2012Arctic CatProwler XT 5504x4 EFI
    2011Arctic CatProwler XT 5504x4 H1 EFI
    2010Arctic CatProwler XT 5504X4
    2009Arctic CatProwler XT 6504x4 H1 Automatic
    2008Arctic CatProwler XT 6504x4 H1 Automatic
    2008Arctic CatProwler XT 6504x4 H1 M4 Automatic
    2007Arctic CatProwler XT 6504x4 H1 Automatic
    2006Arctic CatProwler XT 6504x4 H1 Automatic
    2014Arctic CatProwler XTX 7004X4
    2013Arctic CatProwler XTX 7004X4
    2012Arctic CatProwler XTX 7004x4 EFI
    2011Arctic CatProwler XTX 7004x4 EPS
    2011Arctic CatProwler XTX 7004x4 H1 EFI
    2010Arctic CatProwler XTX 7004X4
    2010Arctic CatProwler XTX 7004x4 H1 EFI
    2009Arctic CatProwler XTX 7004X4
    2009Arctic CatProwler XTX 7004x4 LE
    2009Arctic CatProwler XTX 7004x4 M4
    2008Arctic CatProwler XTX 7004x4 H1 Automatic
    2014Arctic CatProwler XTZ 10004X4
    2013Arctic CatProwler XTZ 10004X4
    2012Arctic CatProwler XTZ 10004x4 EFI
    2011Arctic CatProwler XTZ 10004x4 H2 EFI
    2010Arctic CatProwler XTZ 10004X4
    2010Arctic CatProwler XTZ 10004x4 H2 EFI
    2009Arctic CatProwler XTZ 10004x4 Baja
    2009Arctic CatProwler XTZ 10004x4 H2 EFI

    Details

    • AC-147/AC-247/WB-1496/WB-1496
    • AC-147/AC-247/WB-1496/WB-1496
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 23.6 lbs.
    • W6.0000” x H12.0000” x L32.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
