Front CV Axle Pair for Arctic Cat Prowler HDX 500 4x4 2014-2015

Location on vehicle: Front,Left,Right

AC-147/AC-147

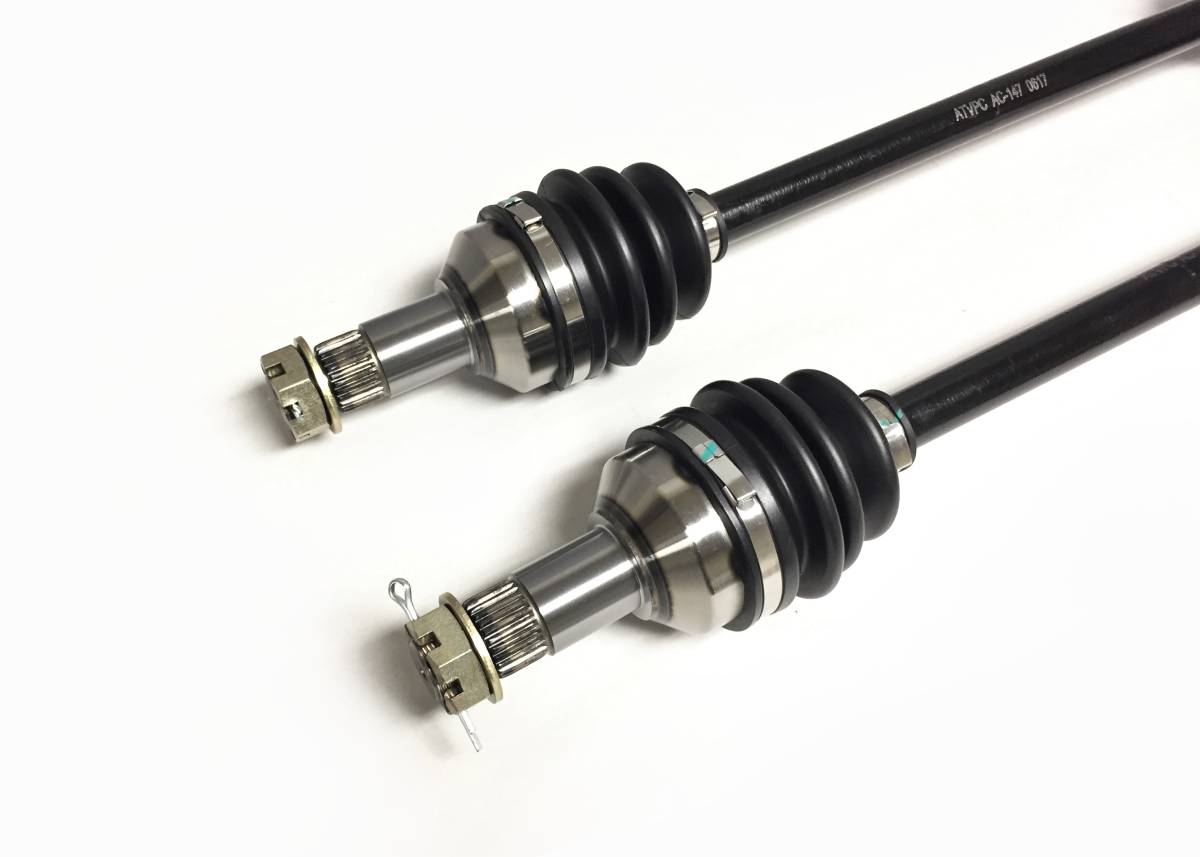

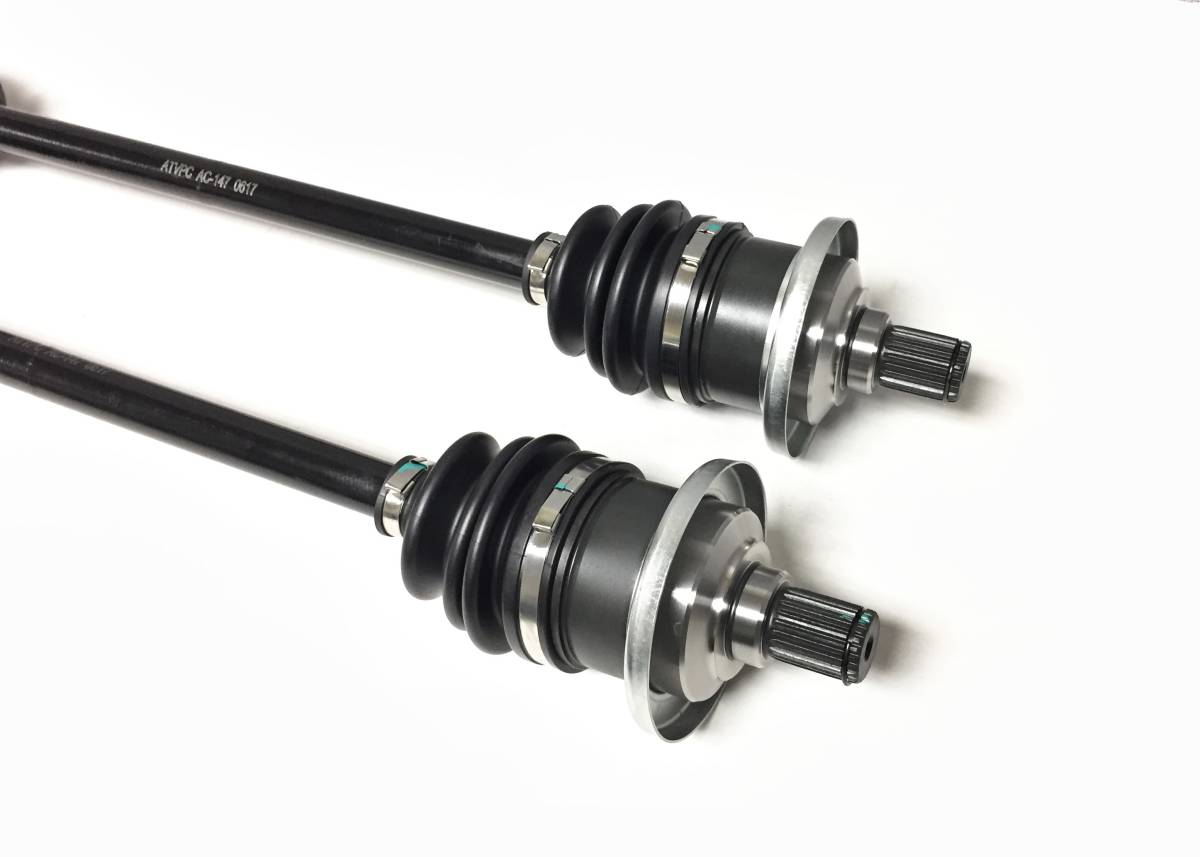

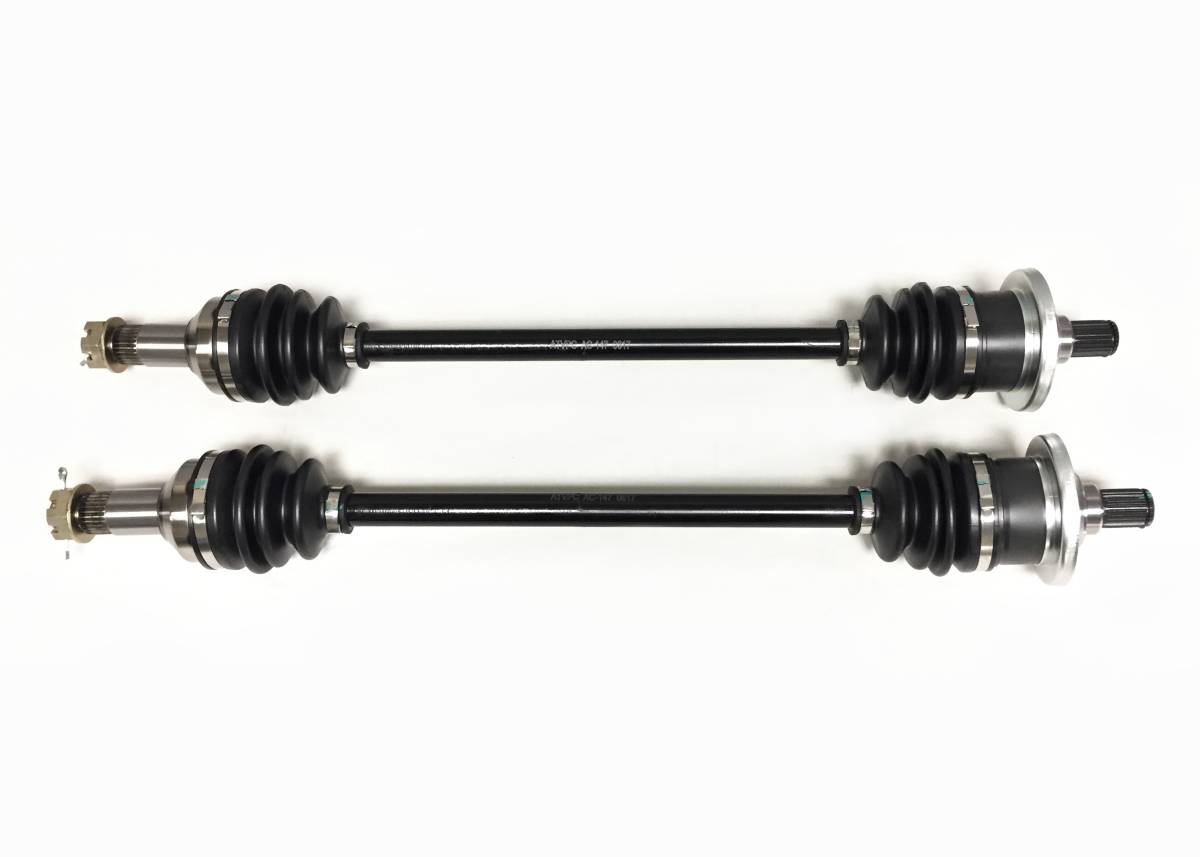

This is a pair of new Front CV axles for an Arctic Cat ATV.

They fit the following 4x4 models:

2014-2015 ... Prowler HDX 500

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance
  • Inboard CV joint spline count: 24 (both)
  • Outboard CV joint spline count: 27 (both)
  • Compressed overall axle length: 695 mm (both)
  • Replaces Arctic Cat OEM # 1502-940, 0502-733, 1502-347, 1502-803
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $159.99
Qty:
Free ground shipping for lower 48 states ( some exclusions may apply)

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits front left or right on the Arctic Cat Prowler HDX 500 4x4.
  • Features stronger than OEM chromoly forged steel axle bars. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.
  • Compressed Length - 695 mm (both), Inboard Spline Count - 24 (both), Outboard Spline Count - 27 (both).
  • Replaces Arctic Cat OEM # 1502-940, 0502-733, 1502-347, 1502-803.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

  • What's In The Box

  • 2 axles
  • Application List

    YearMakeModelSubmodelNotes
    2014Arctic CatProwler HDX 5004x4 XT
    2014Arctic CatProwler HDX 5004x4 Limited
    2014Arctic CatProwler HDX 5004X4
    2015Arctic CatProwler HDX 5004X4

    Details

    • AC-147/AC-147
    • AC-147/AC-147
    • ATV Parts Connection
    • Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 22.8 lbs.
    • W6.0000” x H12.0000” x L32.0000”
    • Free ground shipping for lower 48 states ( some exclusions may apply)
    • Free Shipping - Same Day If Ordered Before 3 EST
