Front CV Axle Pair for Can-Am ATV 705401578 705401579

Location on vehicle: Front,Left,Right

CA-111/CA-211

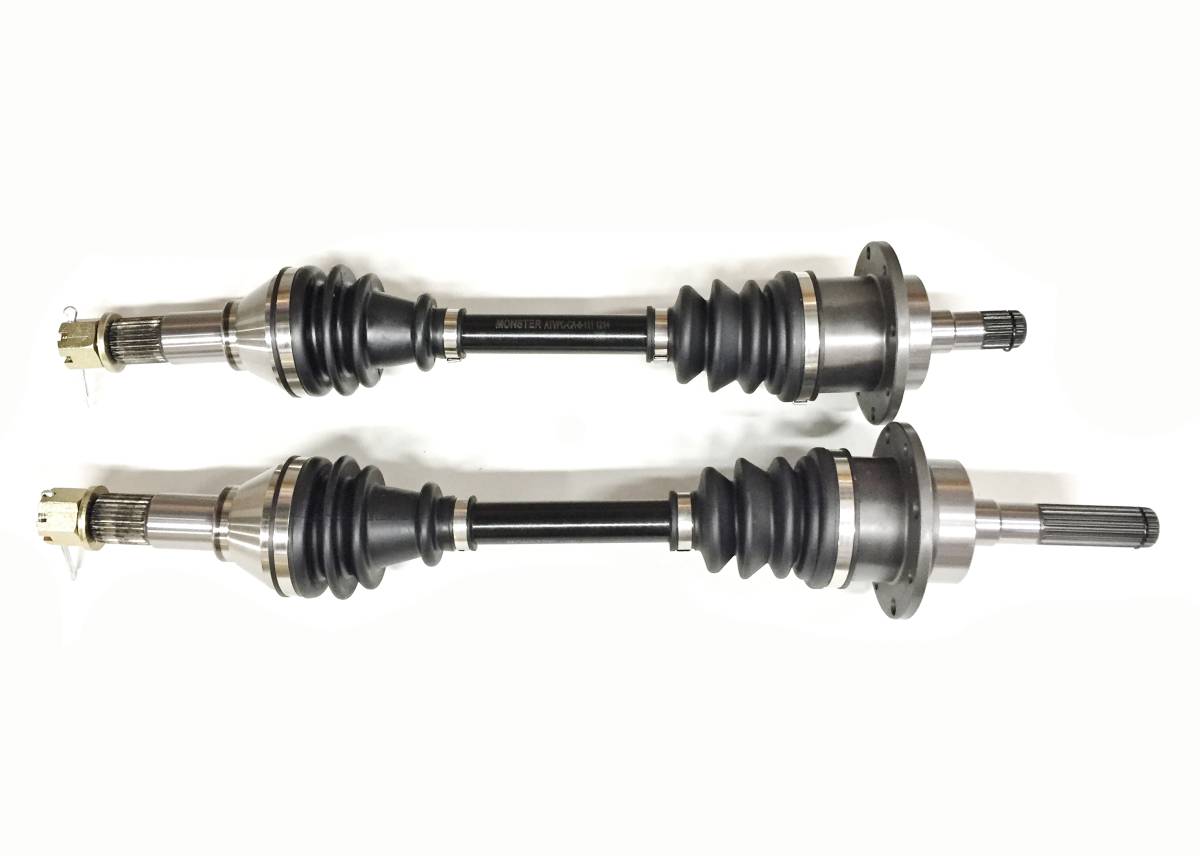

This is a pair of new Front CV axles for a Can-Am ATV.

They fit the following 4x4 applications:

2006-2015 ... Outlander 400/Max 400

2007-2012 ... Outlander 500/Max 500

2006-2012 ... Outlander 650/Max 650

2006-2011 ... Outlander 800/Max 800

(excluding XMR models)

2008-2010 ... Renegade 500

2007-2011 ... Renegade 800

Front, Left & Right

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly hardened steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance
  • Inboard CV joint spline count: 21 (both)
  • Outboard CV joint spline count: 26 (both)
  • Compressed overall axle length: Left: 515.5 mm, Right: 558 mm
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $136.99
Qty:
Free ground shipping for lower 48 states ( some exclusions may apply)

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits: 2006-2015 Outlander 400/Max, 2007-2012 Outlander 500/Max, 2006-2012 Outlander 650/Max, 2006-2011 Outlander 800/Max (non XMR), 2008-2010 Renegade 500, 2007-2011 Renegade 800.
  • Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear & puncture resistance.
  • Inboard CV joint spline count: 21 (both), Outboard CV joint spline count: 26 (both), Compressed overall axle length: Left: 515.5 mm, Right: 558 mm.
  • Replaces OE # Left: 705401578, 705400510, 705400934, Right: 705401579, 705400660, 705400935.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

  • What's In The Box

  • 2 axles
  • Application List

    YearMakeModelSubmodelNotes
    2006BombardierOutlander 4004x4 HO
    2006BombardierOutlander 4004x4 XT HO
    2006BombardierOutlander 6504x4 EFI HO
    2006BombardierOutlander 6504x4 XT EFI HO
    2006BombardierOutlander 8004x4 EFI HO
    2006BombardierOutlander 8004x4 XT EFI HO
    2006BombardierOutlander Max 4004x4 HO
    2006BombardierOutlander Max 4004x4 XT HO
    2006BombardierOutlander Max 6504x4 EFI HO
    2006BombardierOutlander Max 6504x4 XT EFI HO
    2006BombardierOutlander Max 8004x4 EFI HO
    2006BombardierOutlander Max 8004x4 XT EFI HO
    2014Can-AmOutlander 4004x4 EFI
    2014Can-AmOutlander 4004x4 XT EFI
    2014Can-AmOutlander 4004x4 XTP
    2013Can-AmOutlander 4004x4 EFI
    2013Can-AmOutlander 4004x4 XT EFI
    2012Can-AmOutlander 4004x4 EFI
    2012Can-AmOutlander 4004x4 XT EFI
    2011Can-AmOutlander 4004x4 EFI
    2011Can-AmOutlander 4004x4 XT EFI
    2010Can-AmOutlander 4004x4 HO EFI
    2010Can-AmOutlander 4004x4 XT HO EFI
    2009Can-AmOutlander 4004x4 HO EFI
    2009Can-AmOutlander 4004x4 XT HO EFI
    2008Can-AmOutlander 4004x4 HO
    2008Can-AmOutlander 4004x4 HO EFI
    2008Can-AmOutlander 4004x4 XT HO
    2008Can-AmOutlander 4004x4 XT HO EFI
    2007Can-AmOutlander 4004x4 HO
    2007Can-AmOutlander 4004x4 XT HO
    2012Can-AmOutlander 5004x4 EFI
    2012Can-AmOutlander 5004x4 XT EFI
    2011Can-AmOutlander 5004x4 EFI
    2011Can-AmOutlander 5004x4 XT EFI
    2010Can-AmOutlander 5004x4 HO EFI
    2010Can-AmOutlander 5004x4 XT HO EFI
    2010Can-AmOutlander 5004x4 XTP HO EFI
    2009Can-AmOutlander 5004x4 HO EFI
    2009Can-AmOutlander 5004x4 XT HO EFI
    2008Can-AmOutlander 5004x4 HO EFI
    2008Can-AmOutlander 5004x4 XT HO EFI
    2007Can-AmOutlander 5004x4 HO EFI
    2007Can-AmOutlander 5004x4 XT HO EFI
    2012Can-AmOutlander 6504x4 EFI
    2012Can-AmOutlander 6504x4 XT EFI
    2011Can-AmOutlander 6504x4 EFI
    2011Can-AmOutlander 6504x4 XT EFI
    2011Can-AmOutlander 6504x4 XTP EFI
    2010Can-AmOutlander 6504x4 HO EFI
    2010Can-AmOutlander 6504x4 XT HO EFI
    2010Can-AmOutlander 6504x4 XTP EFI
    2010Can-AmOutlander 6504x4 XTP HO EFI
    2009Can-AmOutlander 6504x4 HO EFI
    2009Can-AmOutlander 6504x4 XT HO EFI
    2008Can-AmOutlander 6504x4 HO EFI
    2008Can-AmOutlander 6504x4 XT HO EFI
    2007Can-AmOutlander 6504x4 HO EFI
    2007Can-AmOutlander 6504x4 XT HO EFI
    2008Can-AmOutlander 8004x4 HO EFI
    2008Can-AmOutlander 8004x4 XT HO EFI
    2007Can-AmOutlander 8004x4 HO EFI
    2007Can-AmOutlander 8004x4 XT HO EFI
    2011Can-AmOutlander 800R4x4 EFI
    2011Can-AmOutlander 800R4x4 XT EFI
    2011Can-AmOutlander 800R4x4 XTP EFI
    2010Can-AmOutlander 800R4x4 HO EFI
    2010Can-AmOutlander 800R4x4 XT HO EFI
    2010Can-AmOutlander 800R4x4 XTP EFI
    2010Can-AmOutlander 800R4x4 XTP HO EFI
    2009Can-AmOutlander 800R4x4 HO EFI
    2009Can-AmOutlander 800R4x4 XT HO EFI
    2014Can-AmOutlander Max 4004x4 EFI
    2014Can-AmOutlander Max 4004x4 XT EFI
    2013Can-AmOutlander Max 4004x4 EFI
    2013Can-AmOutlander Max 4004x4 XT EFI
    2012Can-AmOutlander Max 4004x4 EFI
    2012Can-AmOutlander Max 4004x4 XT EFI
    2011Can-AmOutlander Max 4004x4 EFI
    2011Can-AmOutlander Max 4004x4 XT EFI
    2010Can-AmOutlander Max 4004x4 HO EFI
    2010Can-AmOutlander Max 4004x4 XT HO EFI
    2009Can-AmOutlander Max 4004x4 HO EFI
    2009Can-AmOutlander Max 4004x4 XT HO EFI
    2008Can-AmOutlander Max 4004x4 HO
    2008Can-AmOutlander Max 4004x4 HO EFI
    2008Can-AmOutlander Max 4004x4 XT HO
    2008Can-AmOutlander Max 4004x4 XT HO EFI
    2007Can-AmOutlander Max 4004x4 HO
    2007Can-AmOutlander Max 4004x4 XT HO
    2012Can-AmOutlander Max 5004X4
    2012Can-AmOutlander Max 5004x4 EFI
    2012Can-AmOutlander Max 5004x4 XT EFI
    2011Can-AmOutlander Max 5004x4 EFI
    2011Can-AmOutlander Max 5004x4 XT EFI
    2010Can-AmOutlander Max 5004x4 HO EFI
    2010Can-AmOutlander Max 5004x4 LTD HO EFI
    2010Can-AmOutlander Max 5004x4 XT HO EFI
    2010Can-AmOutlander Max 5004x4 XTP HO EFI
    2009Can-AmOutlander Max 5004x4 HO EFI
    2009Can-AmOutlander Max 5004x4 XT HO EFI
    2008Can-AmOutlander Max 5004x4 HO EFI
    2008Can-AmOutlander Max 5004x4 XT HO EFI
    2007Can-AmOutlander Max 5004x4 HO EFI
    2007Can-AmOutlander Max 5004x4 XT HO EFI
    2012Can-AmOutlander Max 6504x4 EFI
    2012Can-AmOutlander Max 6504x4 XT EFI
    2012Can-AmOutlander Max 6504x4 XTP EFI
    2011Can-AmOutlander Max 6504x4 EFI
    2011Can-AmOutlander Max 6504x4 XT EFI
    2011Can-AmOutlander Max 6504x4 XTP EFI
    2010Can-AmOutlander Max 6504x4 HO EFI
    2010Can-AmOutlander Max 6504x4 XT HO EFI
    2010Can-AmOutlander Max 6504x4 XTP EFI
    2010Can-AmOutlander Max 6504x4 XTP HO EFI
    2009Can-AmOutlander Max 6504x4 HO EFI
    2009Can-AmOutlander Max 6504x4 XT HO EFI
    2008Can-AmOutlander Max 6504x4 HO EFI
    2008Can-AmOutlander Max 6504x4 XT HO EFI
    2007Can-AmOutlander Max 6504x4 HO EFI
    2007Can-AmOutlander Max 6504x4 XT HO EFI
    2008Can-AmOutlander Max 8004x4 HO EFI
    2008Can-AmOutlander Max 8004x4 LTD HO EFI
    2008Can-AmOutlander Max 8004x4 XT HO EFI
    2007Can-AmOutlander Max 8004x4 HO EFI
    2007Can-AmOutlander Max 8004x4 LTD HO EFI
    2007Can-AmOutlander Max 8004x4 XT HO EFI
    2012Can-AmOutlander Max 800R4x4 EFI
    2012Can-AmOutlander Max 800R4x4 LTD EFI
    2012Can-AmOutlander Max 800R4x4 XT EFI
    2012Can-AmOutlander Max 800R4x4 XTP EFI
    2011Can-AmOutlander Max 800R4x4 EFI
    2011Can-AmOutlander Max 800R4x4 LTD EFI
    2011Can-AmOutlander Max 800R4x4 XT EFI
    2011Can-AmOutlander Max 800R4x4 XTP EFI
    2010Can-AmOutlander Max 800R4x4 HO EFI
    2010Can-AmOutlander Max 800R4x4 LTD HO EFI
    2010Can-AmOutlander Max 800R4x4 XT HO EFI
    2010Can-AmOutlander Max 800R4x4 XTP EFI
    2010Can-AmOutlander Max 800R4x4 XTP HO EFI
    2009Can-AmOutlander Max 800R4x4 HO EFI
    2009Can-AmOutlander Max 800R4x4 LTD HO EFI
    2009Can-AmOutlander Max 800R4x4 XT HO EFI
    2010Can-AmRenegade 5004x4 EFI
    2009Can-AmRenegade 5004X4
    2008Can-AmRenegade 5004x4 HO EFI
    2008Can-AmRenegade 8004x4 HO EFI
    2008Can-AmRenegade 8004x4 X HO EFI
    2007Can-AmRenegade 8004x4 HO EFI
    2011Can-AmRenegade 800R4x4 EFI
    2011Can-AmRenegade 800R4x4 XXC EFI
    2010Can-AmRenegade 800R4x4 EFI
    2010Can-AmRenegade 800R4x4 XXC EFI
    2009Can-AmRenegade 800R4x4 EFI
    2009Can-AmRenegade 800RX 4x4 EFI

    Details

    • CA-111/CA-211
    • CA-111/CA-211
    • ATV Parts Connection
    • Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 19.6 lbs.
    • W5.0000” x H10.0000” x L25.0000”
    • Free ground shipping for lower 48 states ( some exclusions may apply)
    • Free Shipping - Same Day If Ordered Before 3 EST
