Front CV Axle Pair for Suzuki Eiger 400 4x4 2002-2007 ATV

Location on vehicle: Front,Left,Right

SK-131/SK-132

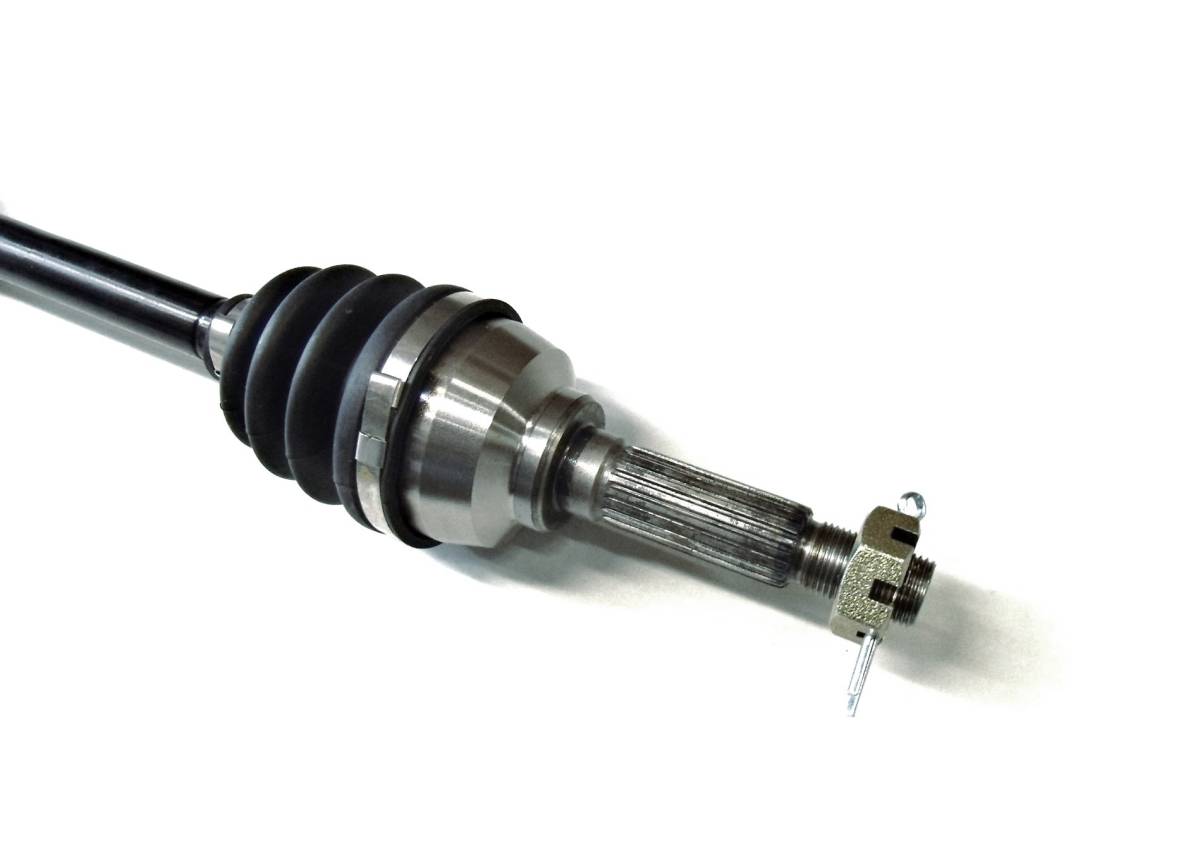

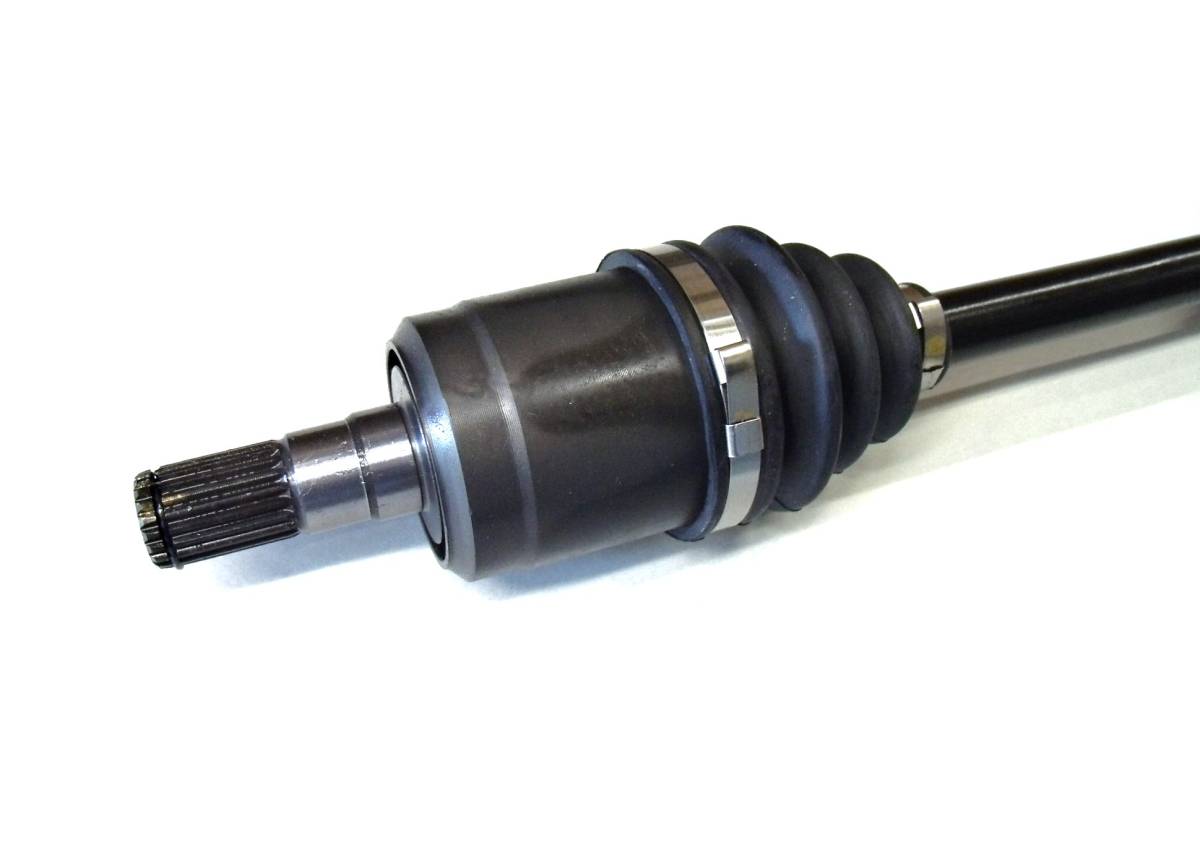

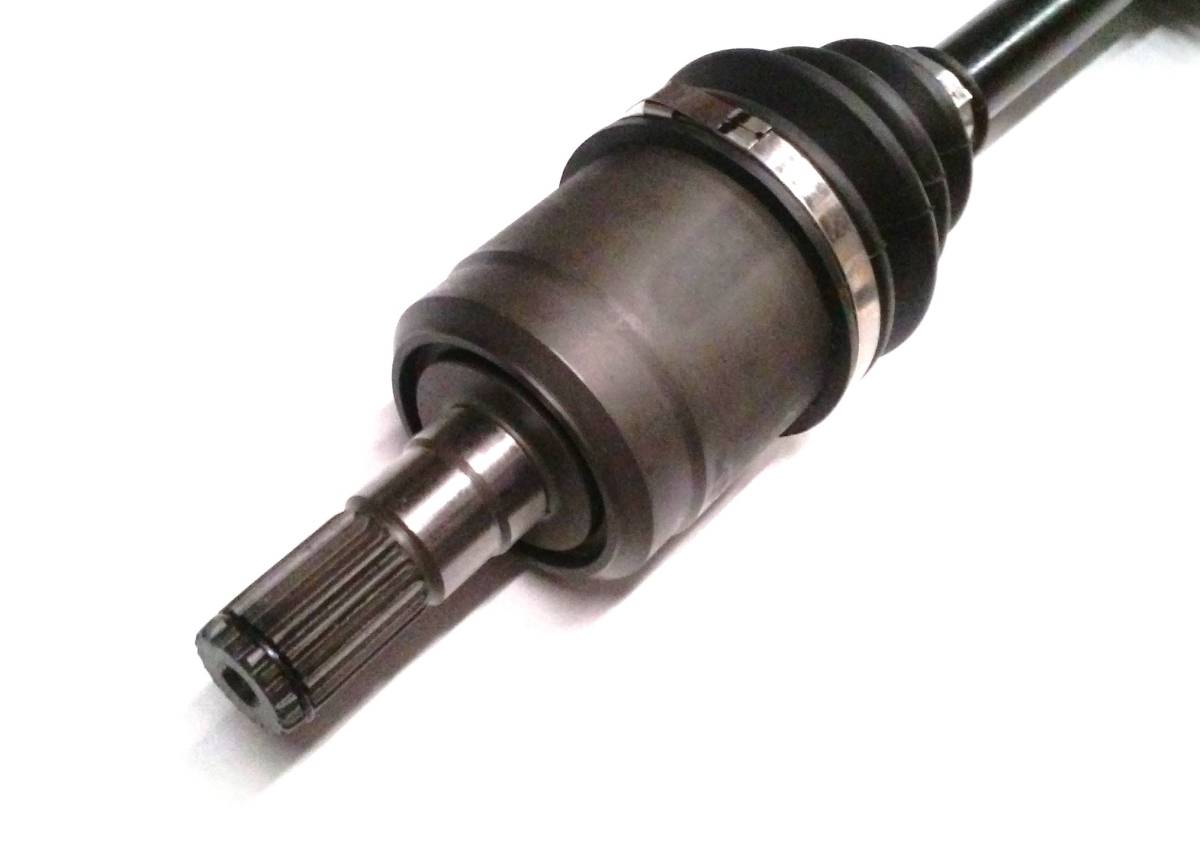

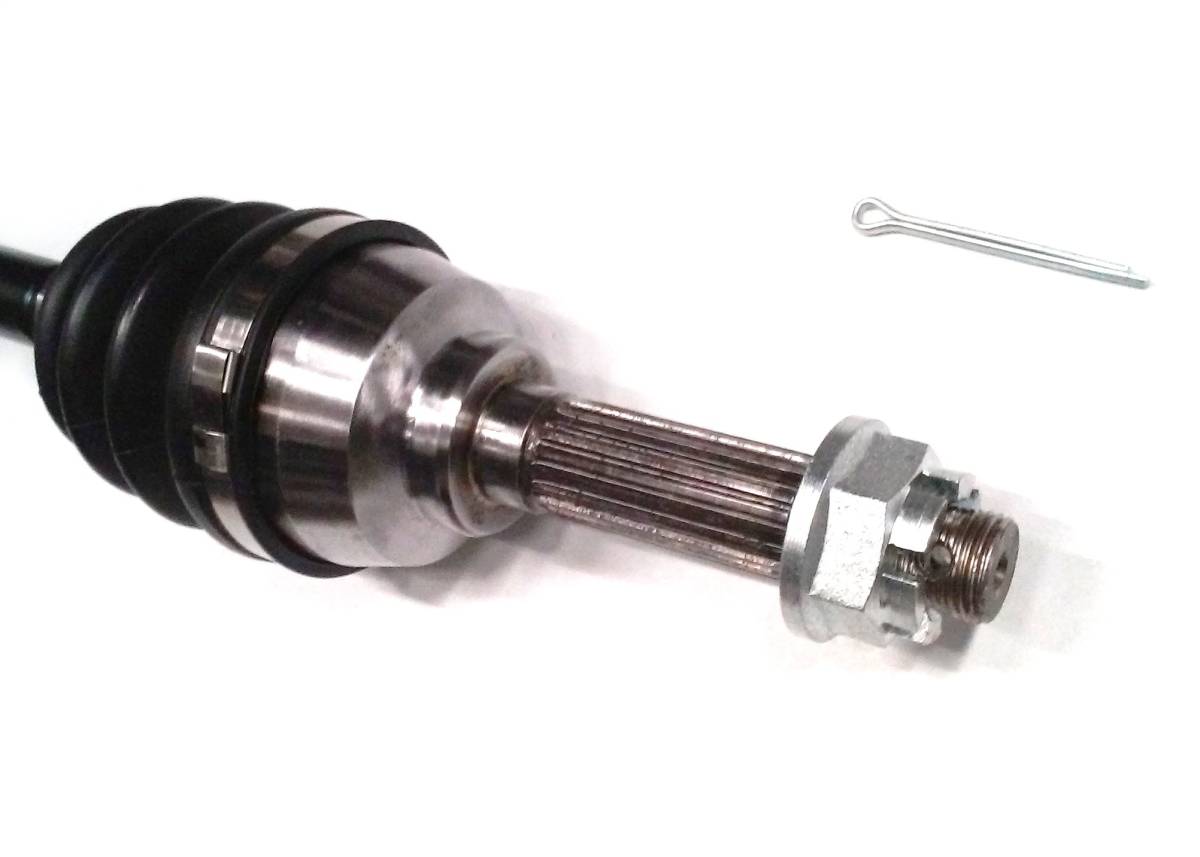

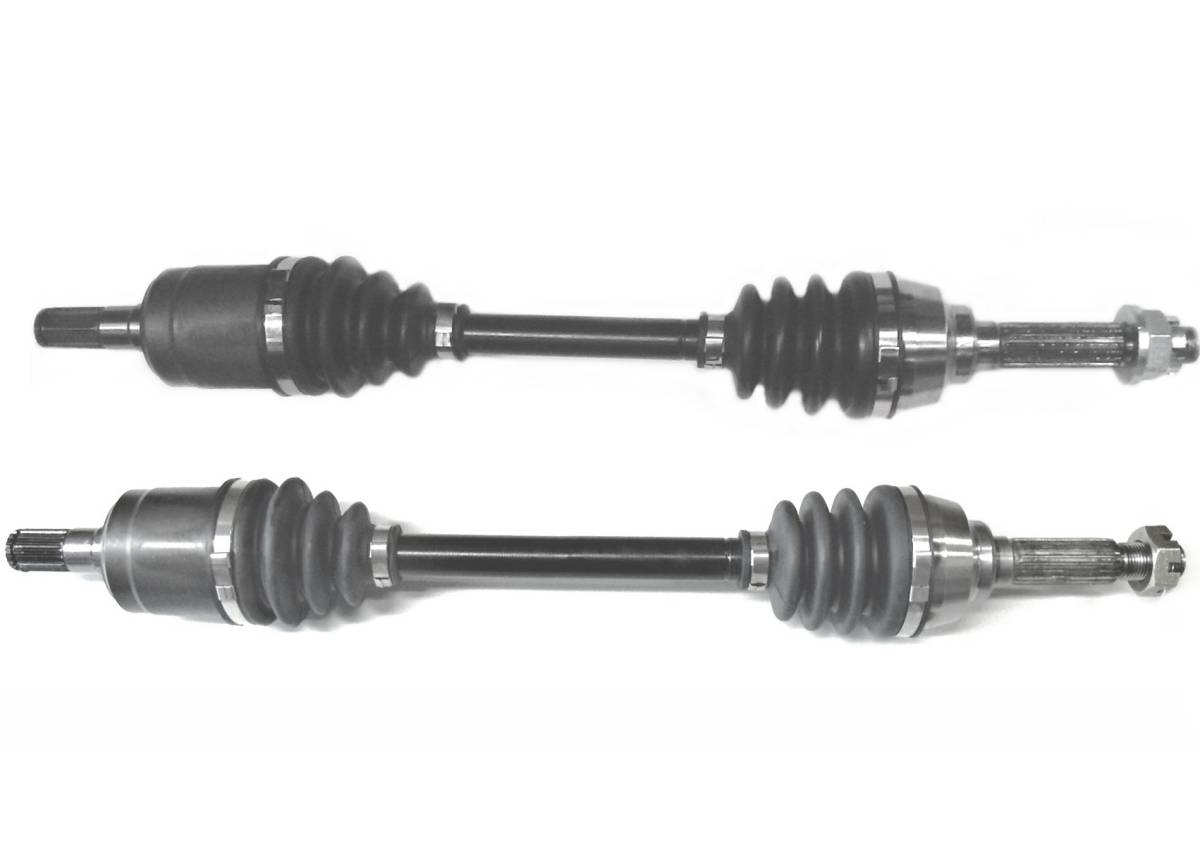

This is a pair of Front CV axles for a Suzuki ATV.

These axles will fit the following 4x4 applications:

2002-2007 ..... Eiger 400

Front, Left & Right

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance
  • Inboard CV joint spline count: 20 (both)
  • Outboard CV joint spline count: 20 (both)
  • Compressed overall axle length: Left -479 mm, Right -529 mm
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $157.99
Qty:
Free ground shipping for lower 48 states ( some exclusions may apply)

Warranty

1 year factory defect warranty

Product Notes

  • Fits all Eiger 400 LT-F400F LT-A400F models from 2002-2007.
  • Features stronger than OEM chromoly forged steel axle bars. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.
  • Replaces Suzuki OE # 54902-38F00, 54902-38F01, 54901-38F00, 54901-38F01.
  • Inner Splines: 20 (both), Outer splines: 20 (both), Compressed length: Left -479 mm, Right -529 mm.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

  • What's In The Box

  • 2 axles
  • Application List

    YearMakeModelSubmodelNotes
    2007SuzukiEiger 400LTA400F 4x4 Auto
    2007SuzukiEiger 400LTA400FC 4x4 Auto Advantage
    2007SuzukiEiger 400LTA400FH 4x4 Hunter X Edition
    2007SuzukiEiger 400LTF400F 4x4 Manual
    2007SuzukiEiger 400LTF400FC 4x4 Manual Advantage
    2006SuzukiEiger 400LTA400F 4x4 Auto
    2006SuzukiEiger 400LTA400F 4x4 Celebration Edition
    2006SuzukiEiger 400LTA400FC 4x4 Auto Advantage
    2006SuzukiEiger 400LTF400F 4x4 Manual
    2006SuzukiEiger 400LTF400FC 4x4 Manual Advantage
    2005SuzukiEiger 400LTA400F 4x4 Auto
    2005SuzukiEiger 400LTA400FC 4x4 Auto Advantage
    2005SuzukiEiger 400LTF400F 4x4 Manual
    2005SuzukiEiger 400LTF400FC 4x4 Manual Advantage
    2004SuzukiEiger 400LTA400F 4x4 Auto
    2004SuzukiEiger 400LTA400FC 4x4 Auto Advantage
    2004SuzukiEiger 400LTF400F 4x4 Manual
    2003SuzukiEiger 400LTA400F 4x4 Auto
    2003SuzukiEiger 400LTF400F 4x4 Manual
    2002SuzukiEiger 400LTA400F 4x4
    2002SuzukiEiger 400LTF400F 4x4 Manual

    Details

    • SK-131/SK-132
    • SK-131/SK-132
    • ATV Parts Connection
    • Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 13.7 lbs.
    • W5.0000” x H9.0000” x L24.0000”
    • Free ground shipping for lower 48 states ( some exclusions may apply)
    • Free Shipping - Same Day If Ordered Before 3 EST
