Front CV Axles & Bearings for Arctic Cat TRV 400 2013-2014, Left & Right, 4140 Chromoly Steel, Heat-Treated, Quality Tested, ATVPC

Location on vehicle: Front,Left,Right

(0) Reviews: Write first review
AC-245/AC-245/WB-1496/WB-1496

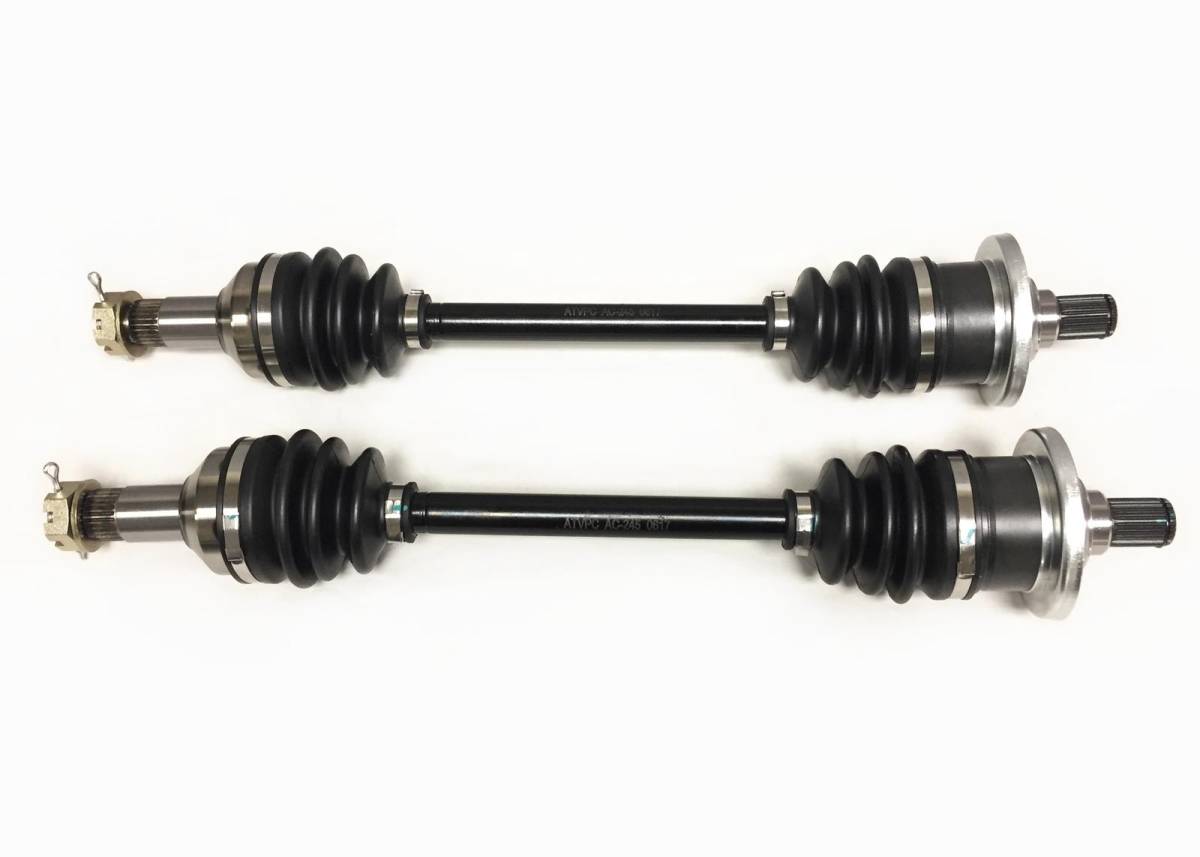

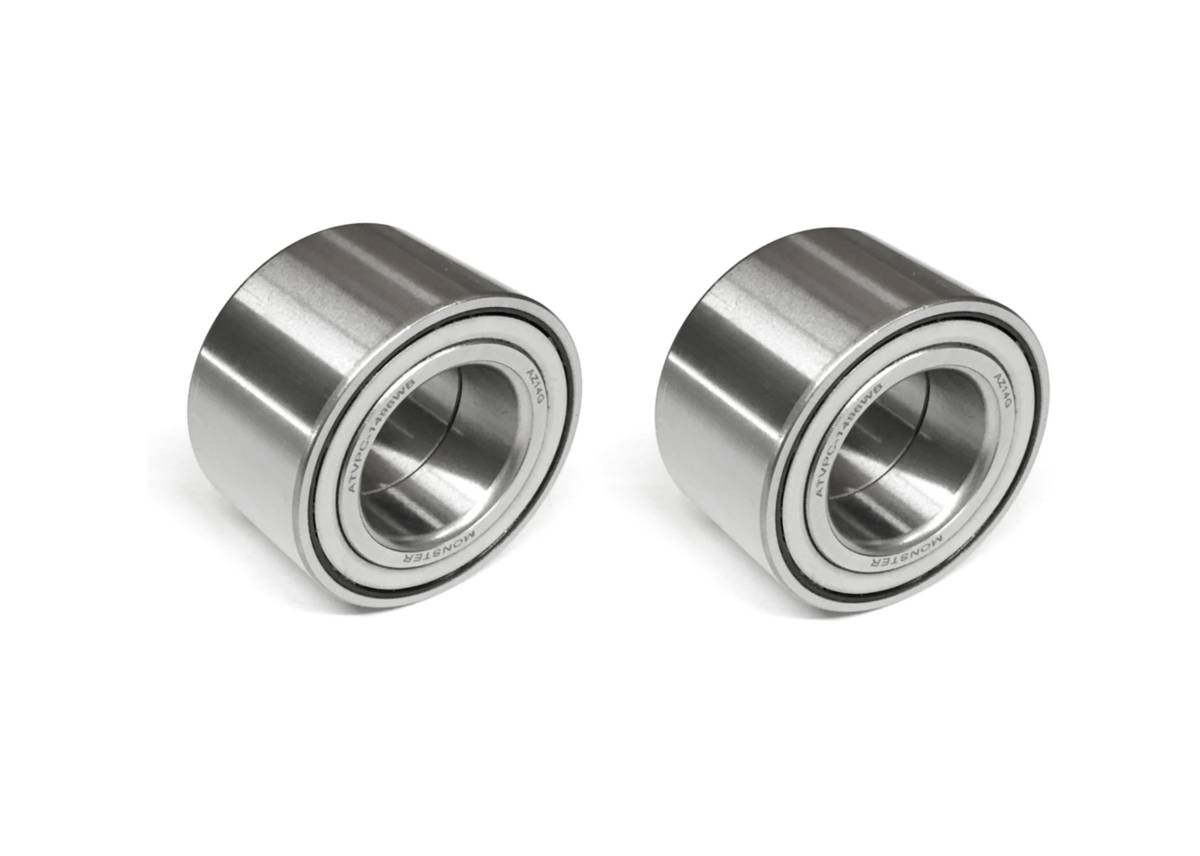

This is a set of new front CV axles & wheel bearings for an Arctic Cat ATV.

They fit the following 4x4 models:

2013-2014 ... TRV 400

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM, chromoly forged steel axle bar
  • High speed bearings manufactured for long life
  • Double lip seals made to keep grease in and dirt out
  • inobard CV joint spline count: 24 (both)
  • outboard CV joint spline count: 27 (both)
  • Compressed overall axle length: 548 mm (both)
  • Replaces Arctic Cat OEM # (axles) 1502-874, 0502-812, 1502-344, 1502-800, (bearings) 1402-027, 1402-809
Not Available
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $169.99

Application List

YearMakeModelSubmodelNotes
2014Arctic Cat400TRV
2013Arctic Cat400TRV CR

Product Notes

  • Fits front left and right on the following Arctic Cat ATV models: 2013-2014 TRV 400 4x4.
  • Features 4140 chromoly steel bars for a higher tensile strenth and more durability. Engineered as a direct replacement, fully-assembled, and ready to install. Please note the bearings are usually shipped inside the axle boxes.
  • Joints fitted with neoprene CV boots for flexibility and resistance to hot/cold temperatures. Utilizes high-performance moly grease for protection against the environment and to keep vital components lubricated. High speed bearings manufactured for long life. Double lip seals made to keep grease in and dirt out.
  • Replaces OEM # (axles) 1502-874, 0502-812, 1502-344, 1502-800, (bearings) 1402-027, 1402-809. Inboard CV joint spline count: 24 (both), Outboard CV joint spline count: 27 (both), Compressed overall axle length: 548 mm (both).
  • Warranty: 2 Years (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on modified suspensions.

    • What's In The Box

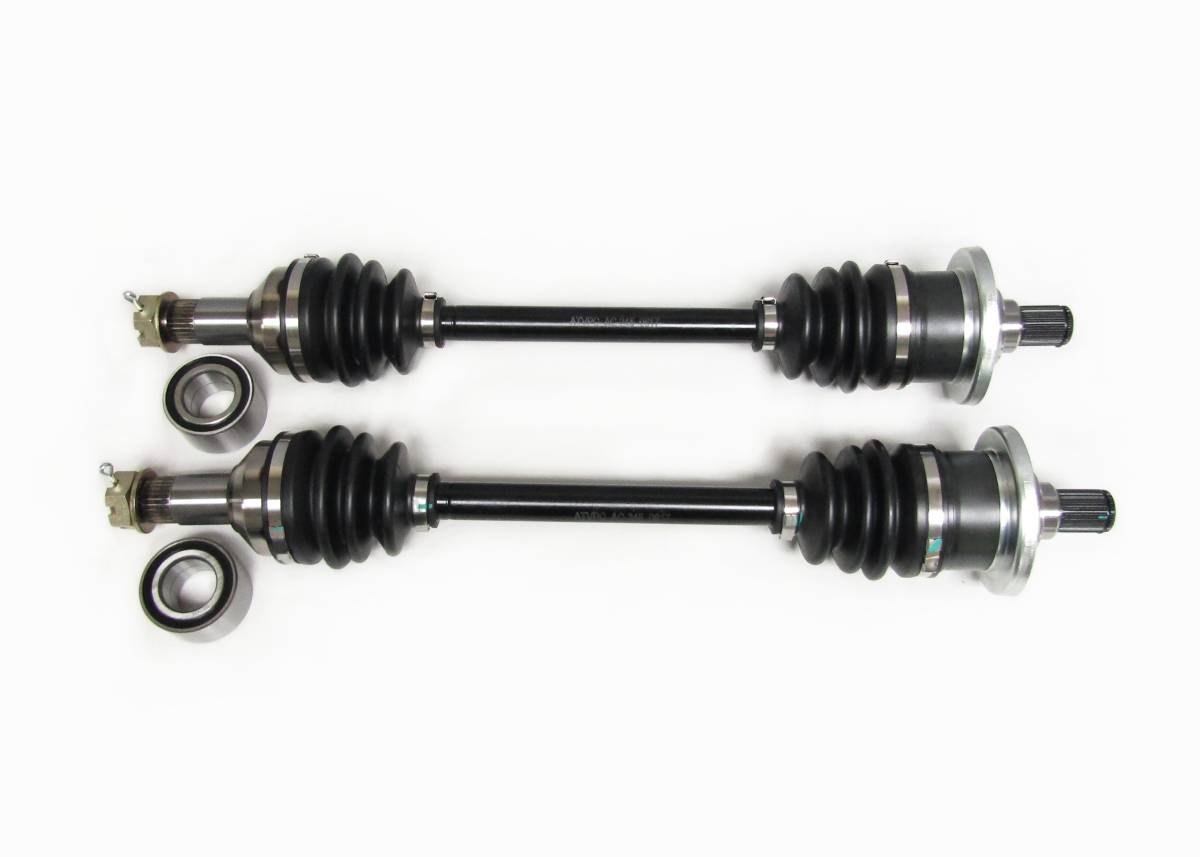

  • 2 CV axles, 2 wheel bearings

    • Warranty

    Limited 2 year, one-time warranty

    Details

    • AC-245/AC-245/WB-1496/WB-1496
    • AC-245/AC-245/WB-1496/WB-1496
    • CUSTOM
    • ATV Parts Connection
    • Temporarily Not Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 22.0 lbs.
    • W10.0000” x H5.0000” x L31.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
