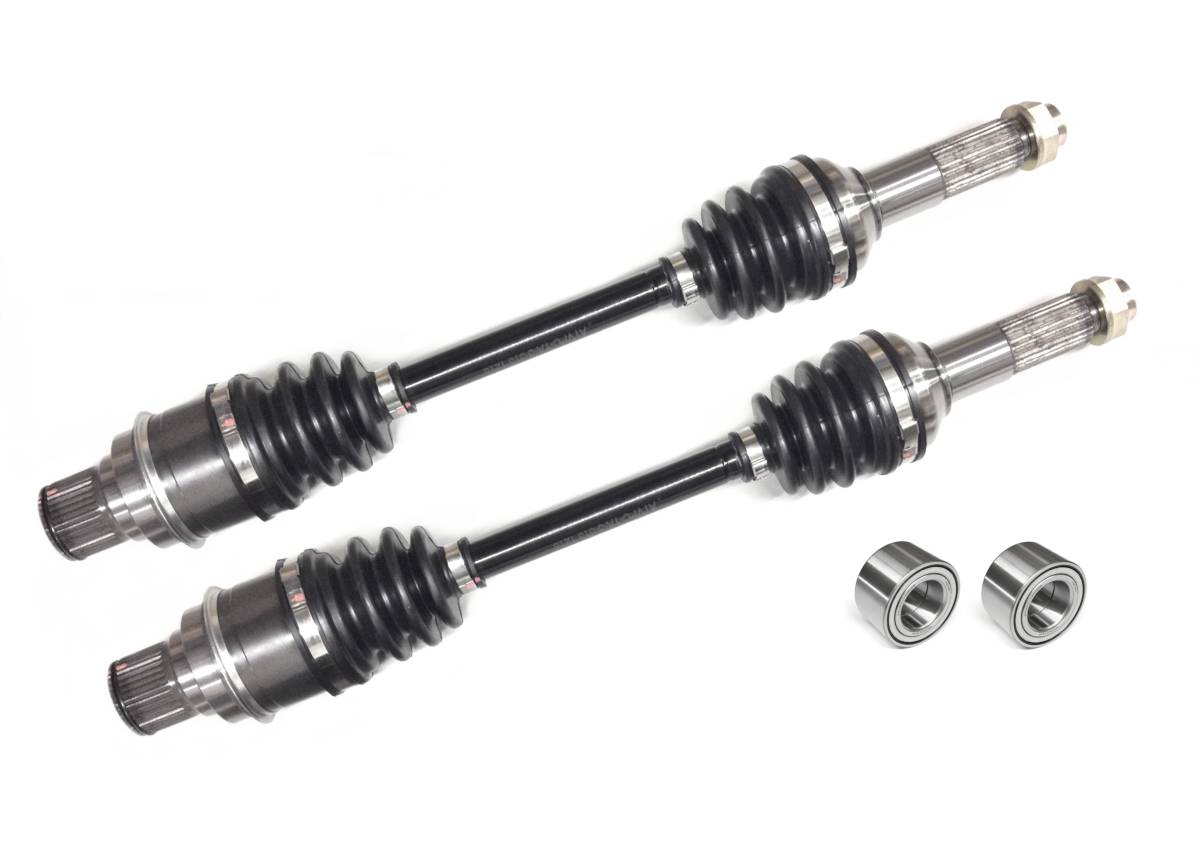

Rear Axle Pair with Bearings for Yamaha Grizzly 350 400 450 & Kodiak 400 450 4x4

Location on vehicle: Rear,Left,Right

WB-1496/WB-1496/YA-313/YA-313
This is a set of new Rear CV axles & wheel bearings for a Yamaha ATV.

They fit the following 4x4 models:

2007-2011 ... Grizzly 350 IRS

2007-2008 ... Grizzly 400

2007-2010 ... Grizzly 450

2005-2006 ... Kodiak 400

2005-2006 ... Kodiak 450

Rear, Left & Right side

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear and puncture resistance

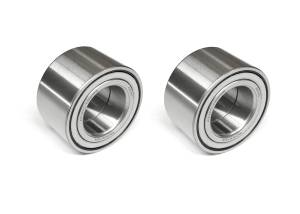

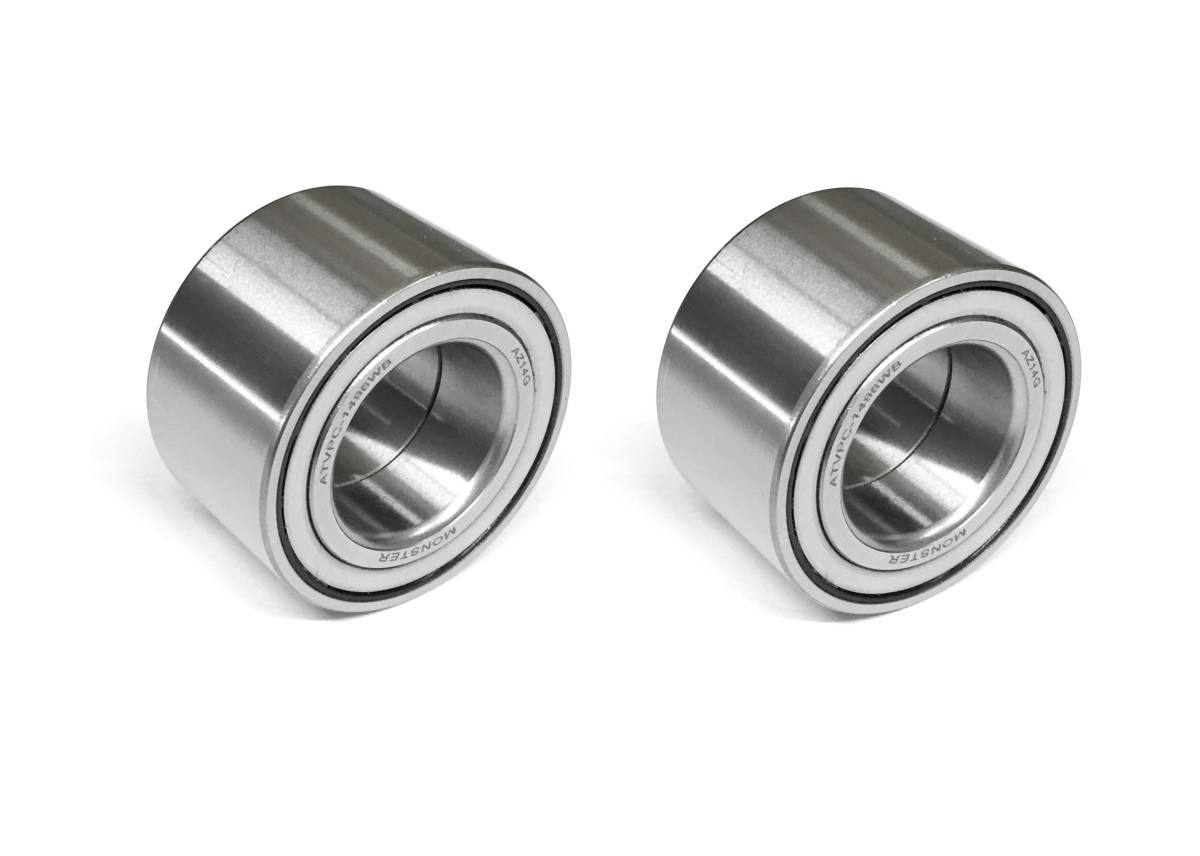

  • High speed bearings manufactured for long life
  • Double lip seals made to keep grease in and dirt out

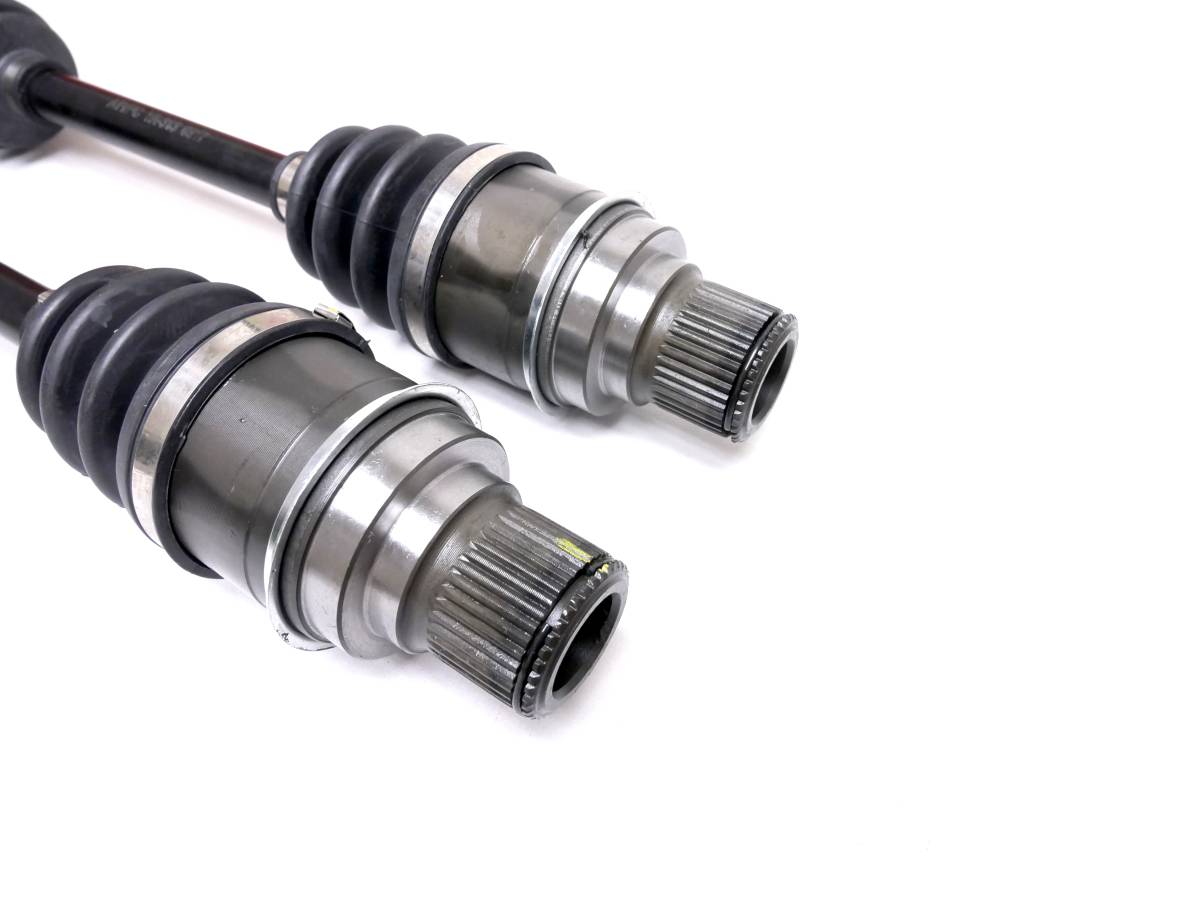

  • Inboard CV joint spline count: 39 (both)

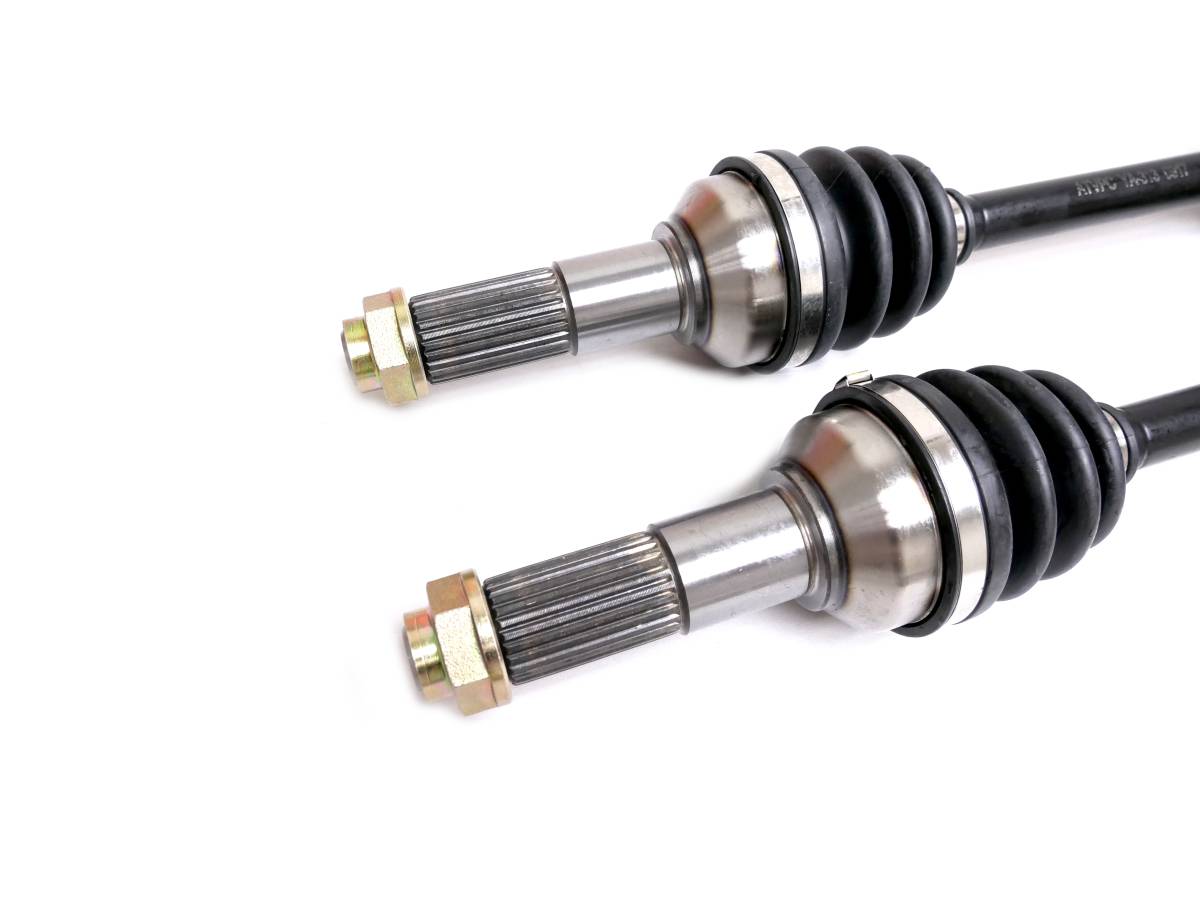

  • Outboard CV joint spline count: 27 (both)
  • Compressed overall axle length: 508 mm (both)
  • Replaces Yamaha OEM # (axles) 4S2-2530U-00-00, 4S1-2530V-00-00, (bearings) 93305-00601-00, 93305-00602-00
Limited Supply: only 3 remaining
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $139.99
Qty:
Free ground shipping for lower 48 states ( some exclusions may apply)

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits 2007-2011 Grizzly 350 IRS, 2007-2008 Grizzly 400, 2007-2010 Grizzly 450, 2005-2006 Kodiak 400, & 2005-2006 Kodiak 450 4x4.
  • Features stronger than OEM chromoly forged steel axle bars. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.
  • High speed bearings manufactured for long life. Double lip seals made to keep grease in and dirt out.
  • Compressed Length - 508 mm (both), Inboard Spline Count - 39 (both), Outboard Spline Count - 27 (both) * Replaces Yamaha OEM # (axles) 4S2-2530U-00-00, 4S1-2530V-00-00, (bearings) 93305-00601-00, 93305-00602-00.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

  • What's In The Box

  • 2 CV axles & 2 wheel bearings
  • Application List

    YearMakeModelSubmodelNotes
    2011YamahaGrizzly 350YFM350FGI 4x4 IRS
    2011YamahaGrizzly 350YFM350FGIH 4x4 Hunter Edition IRS
    2010YamahaGrizzly 350YFM350FGI 4x4 IRS
    2010YamahaGrizzly 350YFM350FGIH 4x4 Hunter Edition IRS
    2009YamahaGrizzly 350YFM350FGI 4x4 IRS
    2009YamahaGrizzly 350YFM350FGIH 4x4 Hunter Edition IRS
    2008YamahaGrizzly 350YFM350FGI 4x4 IRS
    2008YamahaGrizzly 350YFM350FGIH 4x4 Hunter Edition IRS
    2007YamahaGrizzly 350YFM350FGI 4x4 IRS
    2007YamahaGrizzly 350YFM350FGIH 4x4 Hunter Edition IRS
    2008YamahaGrizzly 400YFM400FG 4x4
    2008YamahaGrizzly 400YFM400FGH 4x4 Hunter Edition
    2007YamahaGrizzly 400YFM400FG 4x4
    2007YamahaGrizzly 400YFM400FGH 4x4 Hunter Edition
    2010YamahaGrizzly 450YFM450FG 4x4
    2010YamahaGrizzly 450YFM450FGH 4x4 Hunter Edition
    2009YamahaGrizzly 450YFM450FG 4x4
    2009YamahaGrizzly 450YFM450FGH 4x4 Hunter Edition
    2009YamahaGrizzly 450YFM450FGI 4x4 IRS
    2008YamahaGrizzly 450YFM450FG 4x4
    2008YamahaGrizzly 450YFM450FGH 4x4 Hunter Edition
    2007YamahaGrizzly 450YFM450FG 4x4
    2007YamahaGrizzly 450YFM450FGH 4x4 Hunter Edition
    2007YamahaGrizzly 450YFM450FGOH 4x4 Outdoorsman Edition
    2007YamahaGrizzly 450YFM450FGSE 4x4 Special Edition
    2006YamahaKodiak 400YFM400FA 4x4
    2006YamahaKodiak 400YFM400FAH 4x4 Hunter Edition
    2005YamahaKodiak 400YFM400FA 4x4
    2005YamahaKodiak 400YFM400FAH 4x4 Hunter Edition
    2006YamahaKodiak 450YFM450FA 4x4
    2006YamahaKodiak 450YFM450FAH 4x4 Outdoorsman Edition
    2006YamahaKodiak 450YFM450FASE 4x4 Special Edition
    2005YamahaKodiak 450YFM450FA 4x4
    2005YamahaKodiak 450YFM450FAH 4x4 Hunter Edition
    2005YamahaKodiak 450YFM450FSE 4x4 Special Edition

    Details

    • WB-1496/WB-1496/YA-313/YA-313
    • WB-1496/WB-1496/YA-313/YA-313
    • ATV Parts Connection
    • Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 20.0 lbs.
    • W10.0000” x H24.0000” x L5.0000”
    • Free ground shipping for lower 48 states ( some exclusions may apply)
    • Free Shipping - Same Day If Ordered Before 3 EST
