Front CV Axles & Bearings for Can-Am Commander 800 1000 2011-2016, Left & Right, 4140 Chromoly Steel, Heat-Treated, Quality Tested, ATVPC

Location on vehicle: Front,Left,Right

(0) Reviews: Write first review
CA-113/CA-213/WB-1516/WB-1516

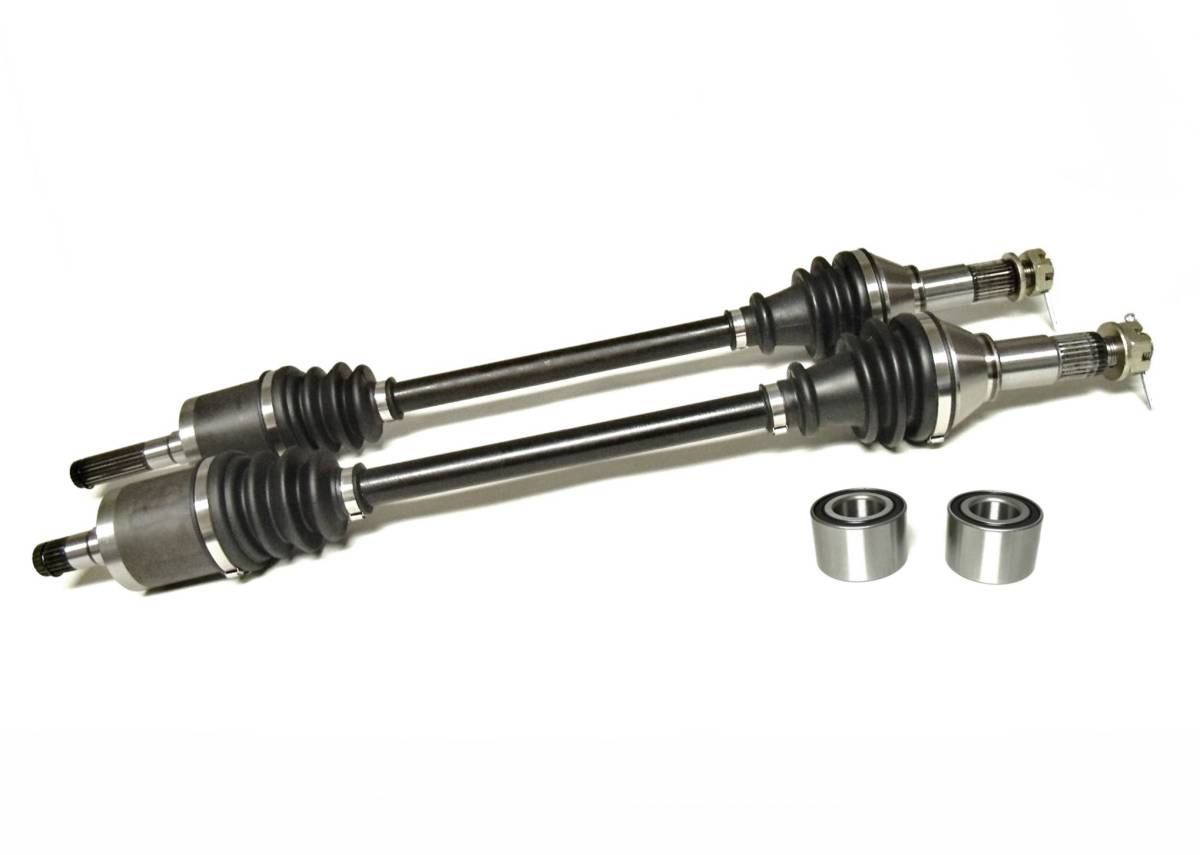

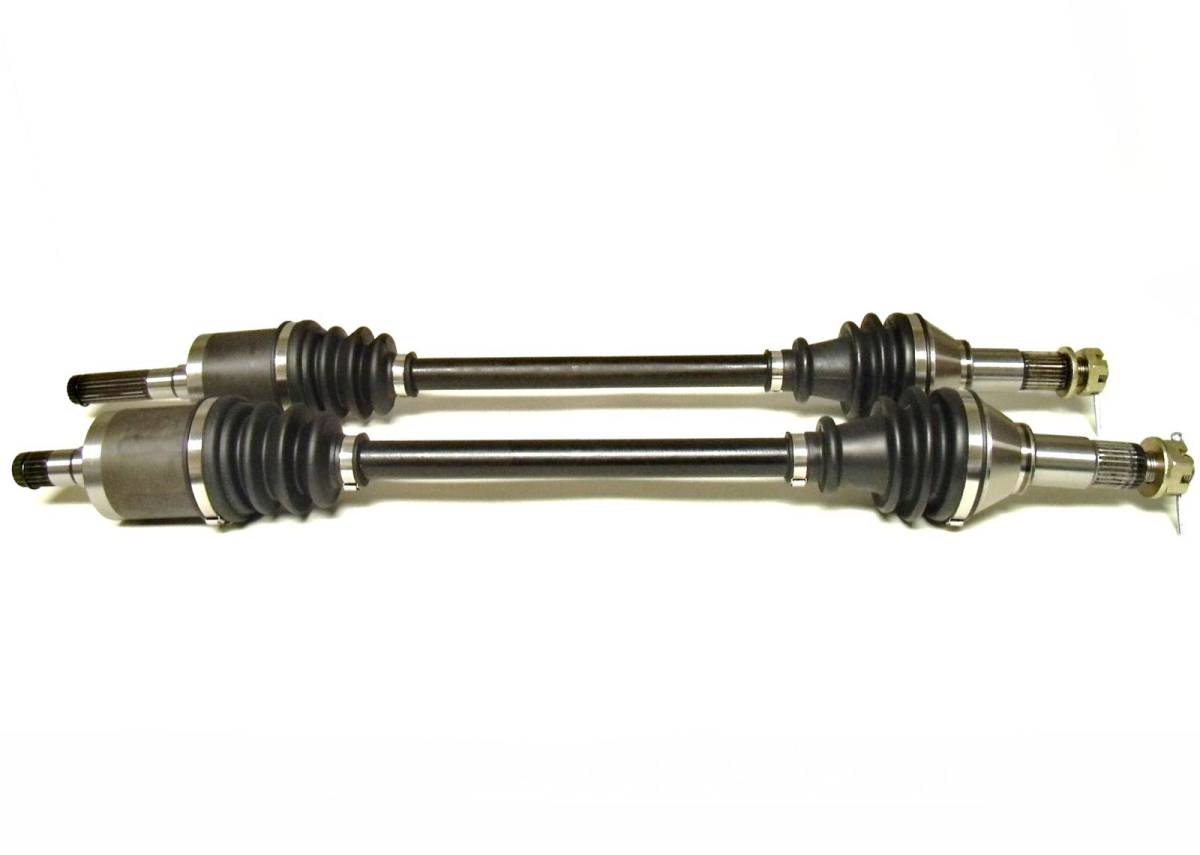

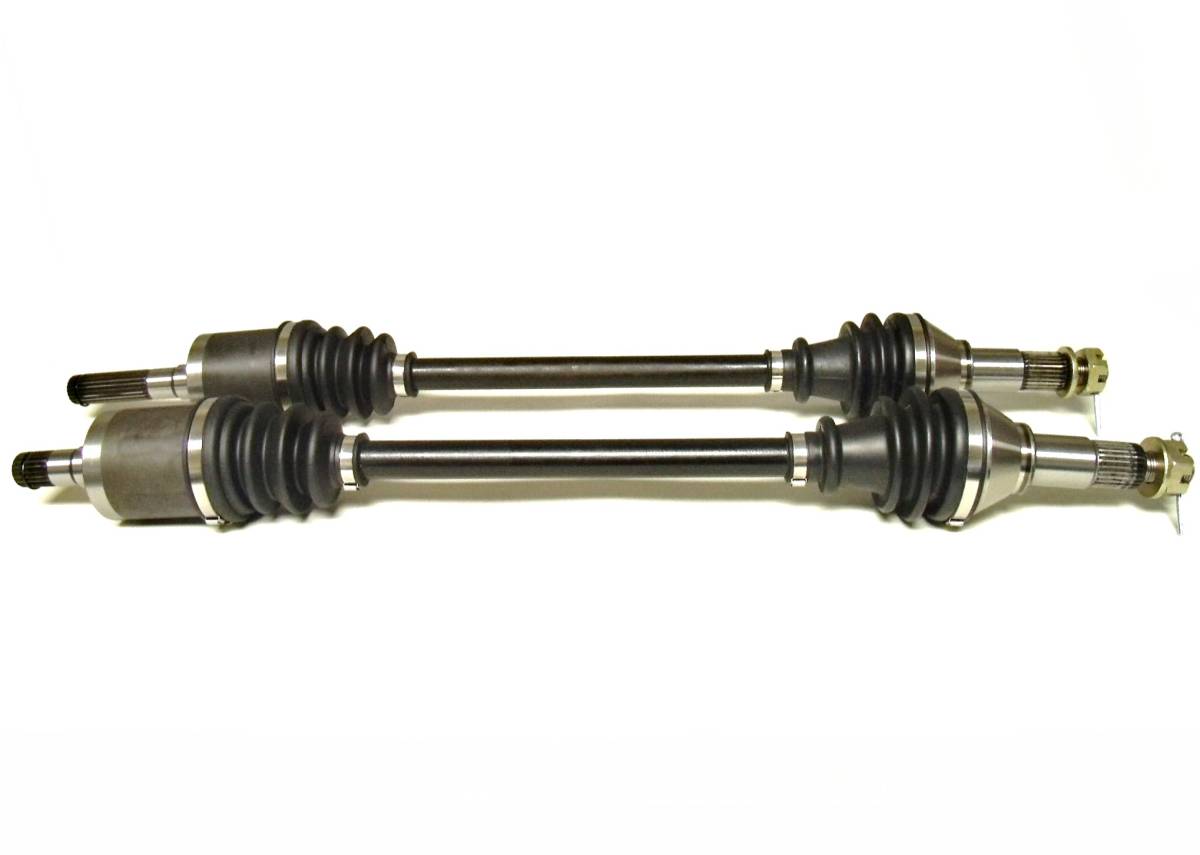

This is a pair of new front CV axles & wheel bearings for a Can-Am UTV.

They will fit the following 4x4 applications:

2011-2016 ... Commander 800

2016 ... Commander Max 800

2011-2016 ... Commander 1000

2014-2016 ... Commander Max 1000

front, left & right

*Not intended for use in lifted / modified suspensions

Product features:

  • Stronger than OEM chromoly forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance
  • inobard CV joint spline count: 21 (both)
  • outboard CV joint spline count: 26 (both)
  • Compressed overall axle length: left 642.5 mm, right 590.5 mm
Limited Supply: only 1 remaining
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $154.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2015Can-AmCommander 8004X4
2015Can-AmCommander 8004x4 DPS
2015Can-AmCommander 8004x4 XT
2015Can-AmCommander 8004x4 XT Rear Open Differential
2014Can-AmCommander 8004X4
2014Can-AmCommander 8004x4 DPS
2014Can-AmCommander 8004x4 XT
2014Can-AmCommander 8004x4 XT Rear Open Differential
2011Can-AmCommander 8004x4 XT
2016Can-AmCommander 800R4X4
2016Can-AmCommander 800R4x4 DPS
2016Can-AmCommander 800R4x4 XT Camo DPS
2016Can-AmCommander 800R4x4 XT DPS
2015Can-AmCommander 800R4X4
2015Can-AmCommander 800R4x4 DPS
2015Can-AmCommander 800R4x4 XT
2013Can-AmCommander 800R4x4 DPS EFI
2013Can-AmCommander 800R4x4 EFI
2013Can-AmCommander 800R4x4 XT EFI
2012Can-AmCommander 800R4x4 EFI
2012Can-AmCommander 800R4x4 XT EFI
2011Can-AmCommander 800R4X4
2011Can-AmCommander 800R4x4 XT
2016Can-AmCommander 10004x4 DPS
2016Can-AmCommander 10004x4 Limited DPS
2016Can-AmCommander 10004x4 Mossy Oak Hunting Edition DPS
2016Can-AmCommander 10004x4 XT-P DPS
2016Can-AmCommander 10004x4 XT Camo DPS
2016Can-AmCommander 10004x4 XT DPS
2015Can-AmCommander 10004X4
2015Can-AmCommander 10004x4 DPS
2015Can-AmCommander 10004x4 LTD
2015Can-AmCommander 10004x4 XT
2015Can-AmCommander 10004x4 XTP
2014Can-AmCommander 10004X4
2014Can-AmCommander 10004x4 DPS
2014Can-AmCommander 10004x4 LTD
2014Can-AmCommander 10004x4 XT
2014Can-AmCommander 10004x4 XTP
2013Can-AmCommander 10004x4 DPS EFI
2013Can-AmCommander 10004x4 EFI
2013Can-AmCommander 10004x4 LTD
2013Can-AmCommander 10004x4 X EFI
2013Can-AmCommander 10004x4 XT EFI
2012Can-AmCommander 10004x4 EFI
2012Can-AmCommander 10004x4 LTD EFI
2012Can-AmCommander 10004x4 X EFI
2012Can-AmCommander 10004x4 XT EFI
2011Can-AmCommander 10004X4
2011Can-AmCommander 10004x4 X
2011Can-AmCommander 10004x4 XT
2016Can-AmCommander Max 800R4x4 DPS
2016Can-AmCommander Max 10004x4 DPS
2016Can-AmCommander Max 10004x4 Limited DPS
2016Can-AmCommander Max 10004x4 XT Camo DPS
2016Can-AmCommander Max 10004x4 XT DPS
2015Can-AmCommander Max 10004x4 DPS
2015Can-AmCommander Max 10004x4 LTD
2015Can-AmCommander Max 10004x4 XT
2014Can-AmCommander Max 10004X4
2014Can-AmCommander Max 10004x4 DPS
2014Can-AmCommander Max 10004x4 XT

Product Notes

  • Fits front, left and right on the following Can-Am UTV models: 2011-2016 Commander 800/MAX 800, 2011-2016 Commander 1000/MAX 1000.
  • Features 4140 chromoly steel bars for a higher tensile strenth and more durability. Engineered as a direct replacement, fully-assembled, and ready to install. Please note the bearings are usually shipped inside the axle boxes.
  • Joints fitted with neoprene CV boots for added flexibility and resistance to hot/cold temperatures. Also uses high-performance moly grease to keep vital components lubricated. High speed bearings manufactured for long life. Double lip seals made to keep grease in and dirt out.
  • Replaces OEM # 705400953, 705401105, 705400952, 705401872, 293350040, 293250246, 705400088. Compressed length - left 642.5 mm, right 590.5 mm, Inboard spline count - 21 (both), Outboard spline count - 26 (both).
  • Warranty: 2 Years (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on modified suspensions.

    • What's In The Box

  • 2 Axles, 2 Wheel Bearings

    • Warranty

    Limited 2 year, one-time warranty

    Details

    • CA-113/CA-213/WB-1516/WB-1516
    • CA-113/CA-213/WB-1516/WB-1516
    • CUSTOM
    • ATV Parts Connection
    • Available
    • New
