Front Axle Pair with Wheel Bearings for Polaris Ranger 500 700 XP 700 2005-2007

Location on vehicle: Front,Left,Right

PO-309/PO-309/WB-1424/WB-1424

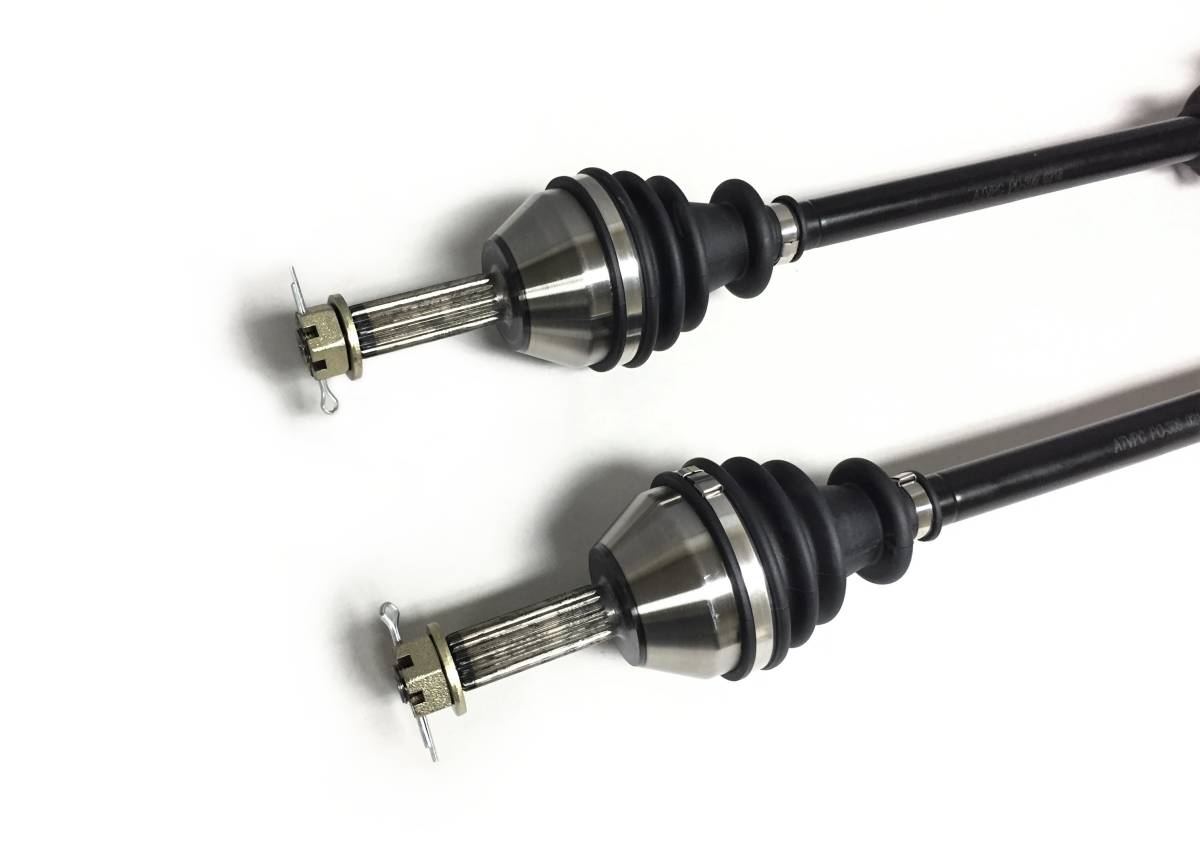

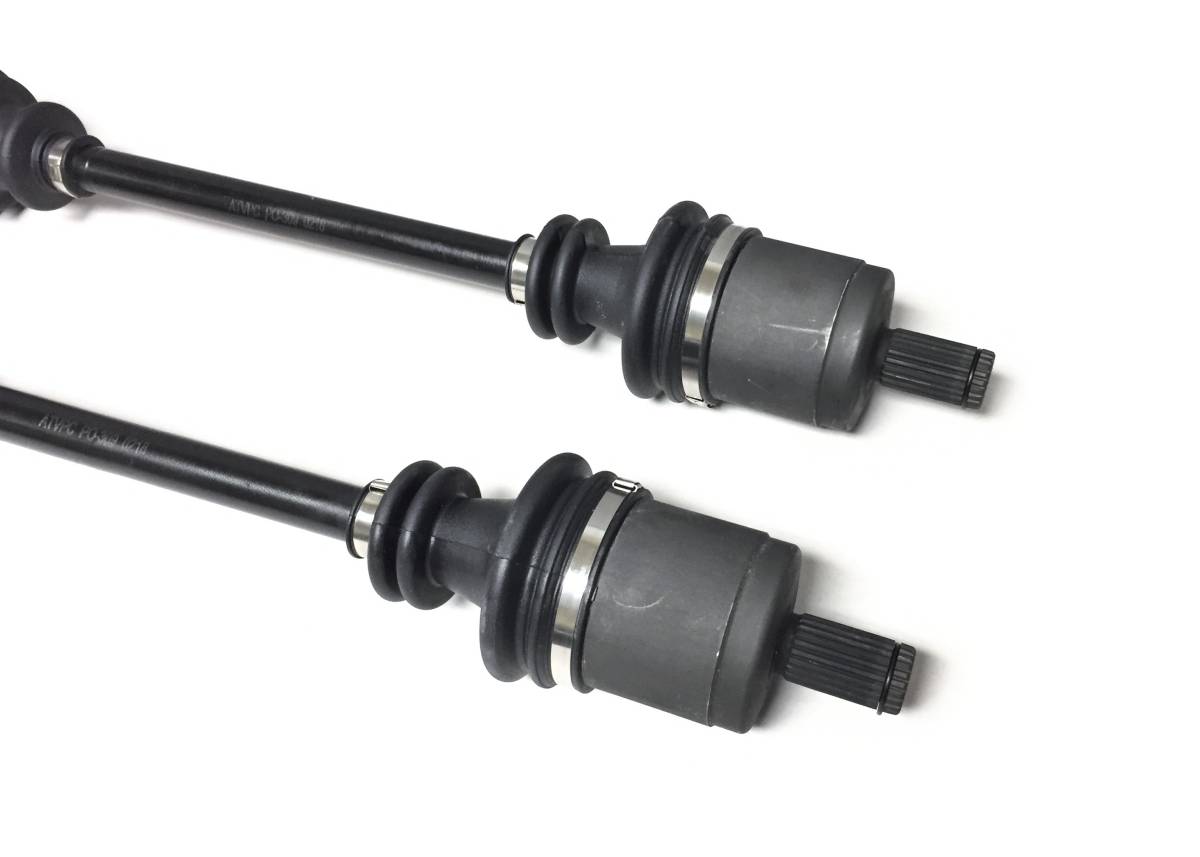

This is a set of new front CV axles & wheel bearings for a Polaris UTV.

They fit the following applications:

2004-2007 ... Ranger 500 4x4

(only models that require a CV joint on the inner axle shaft)

2005-2007 ... Ranger 700 / XP 700 4x4

2006-2007 ... Ranger 700 6x6

Fits front, left & right

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance

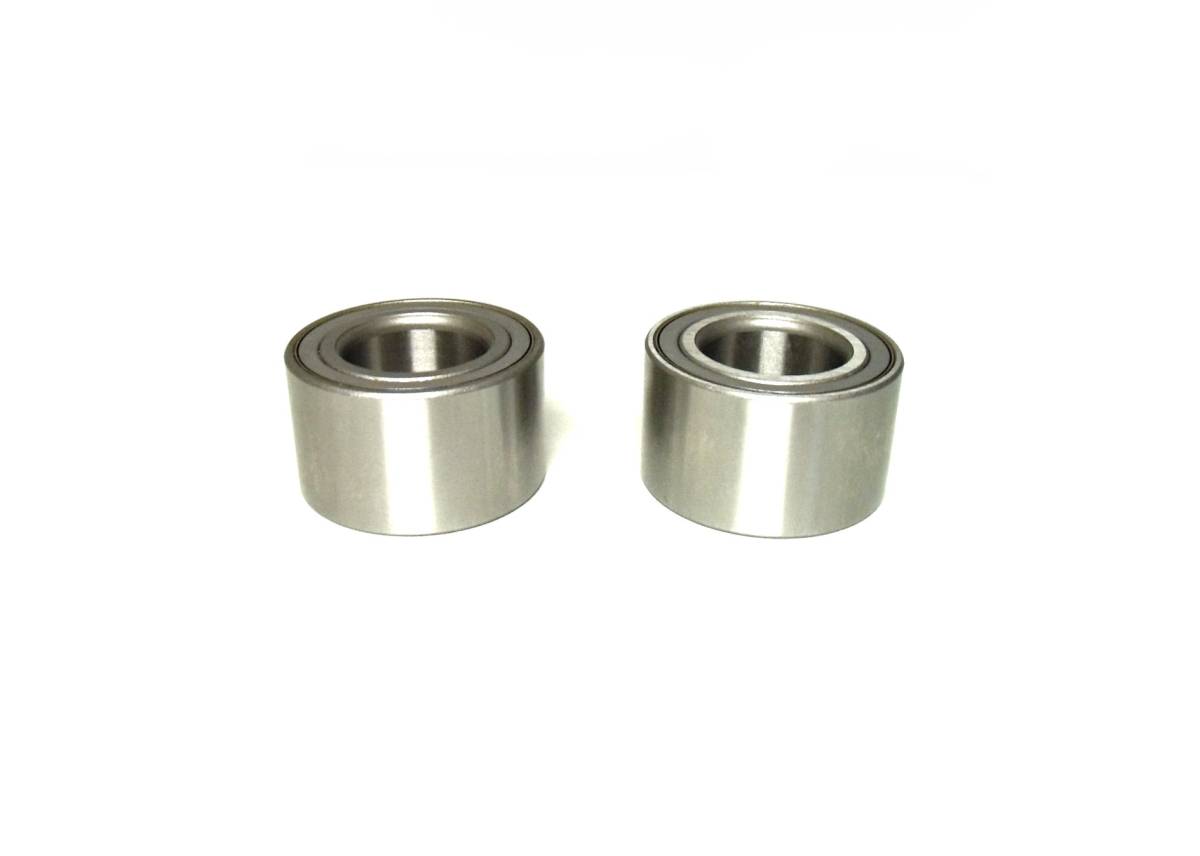

  • High speed bearings manufactured for long life
  • Double lip seals made to keep grease in and dirt out
  • inobard CV joint spline count: 22 (both)
  • outboard CV joint spline count: 20 (both)
  • Compressed overall axle length: 630 mm (both)
  • Replaces Polaris OEM # (axles) 1332423, (bearings) 3514342, 3514634
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $199.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2007PolarisRanger 5004X4
2007PolarisRanger 5004x4 EFI
2006PolarisRanger 5004X4
2006PolarisRanger 5004x4 EFI
2005PolarisRanger 5004X4must use CV joint on innner shaft
2005PolarisRanger 5004x4 Limited Editionmust use CV joint on innner shaft
2004PolarisRanger 5004X4must use CV joint on innner shaft
2007PolarisRanger 7004x4 EFI
2007PolarisRanger 7004x4 MVRS
2007PolarisRanger 7006x6 EFI
2006PolarisRanger 7006x6 EFI
2007PolarisRanger XP 7004x4 Browning EFI
2007PolarisRanger XP 7004x4 EFI
2006PolarisRanger XP 7004x4 EFI
2005PolarisRanger XP 7004x4 EFI

Product Notes

  • Fits front, left and right on the following Polaris UTV models: 2004-2007 Ranger 500 4x4 (models that use an inner CV joint), 2005-2007 Ranger 700 / XP 700 4x4, 2006-2007 Ranger 700 6x6.
  • Features stronger than OEM, 4340 chromoly steel bars for a higher tensile strenth and more durability. Engineered as a direct replacement, fully-assembled, and ready to install. Please note the bearings are usually shipped inside the axle boxes.
  • Joints fitted with neoprene CV boots for added flexibility and resistance to hot/cold temperatures. Also uses high-performance moly grease to keep vital components lubricated. High speed bearings manufactured for long life. Double lip seals made to keep grease in and dirt out.
  • Replaces OEM # (axles) 1332423, (bearings) 3514342, 3514634. Compressed length - 630 mm (both), Inboard spline count - 22 (both), Outboard spline count - 20 (both).
  • Warranty: 1 Year (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on modified suspensions.

  • What's In The Box

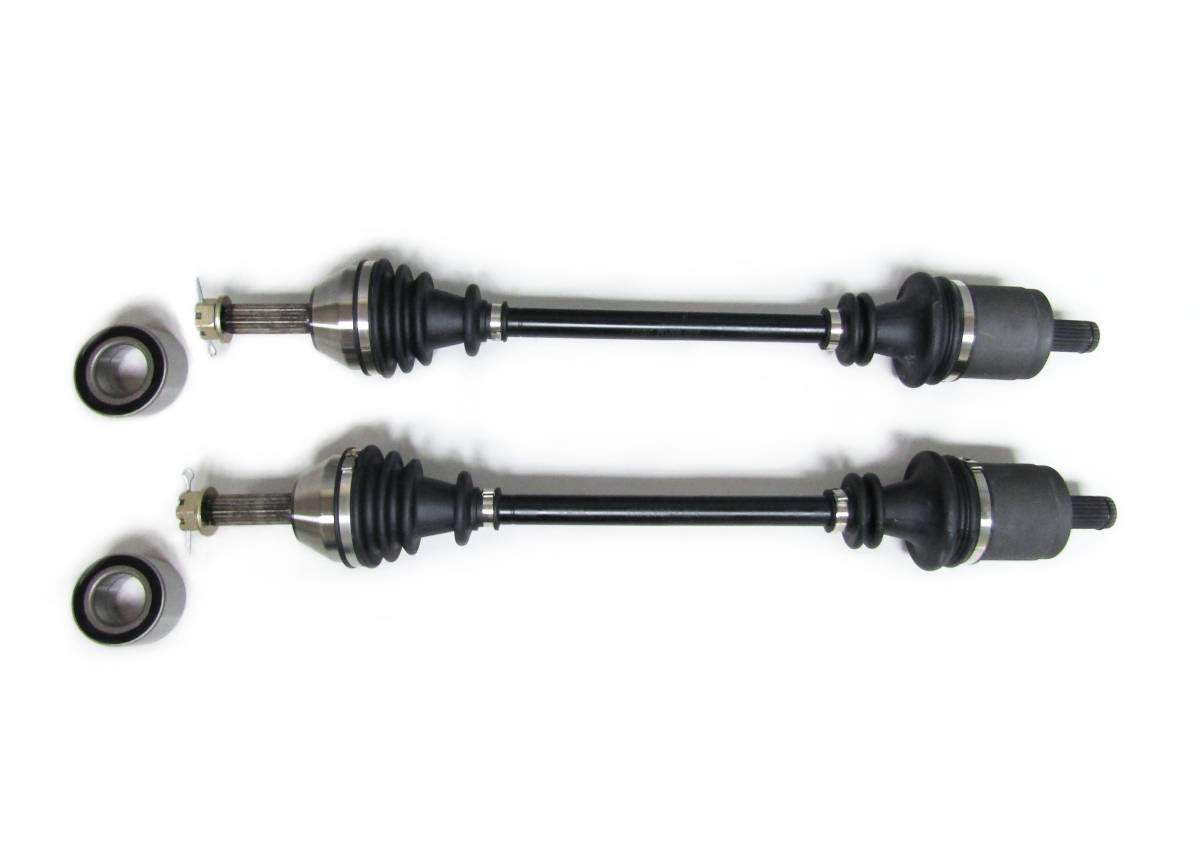

  • 2 CV axles & 2 wheel bearings
  • Warranty

    1 year factory defect limited warranty

    Details

    • PO-309/PO-309/WB-1424/WB-1424
    • PO-309/PO-309/WB-1424/WB-1424
    • CUSTOM
    • ATV Parts Connection
    • Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 24.0 lbs.
    • W10.0000” x H5.0000” x L31.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
