Front or Rear Axle Pair with Bearing Kits for Arctic Cat 400 & 500 FIS 2003-2004

Location on vehicle: Rear,Left,Right

(0) Reviews: Write first review
AC-244/AC-244/WB-1434/WB-1434

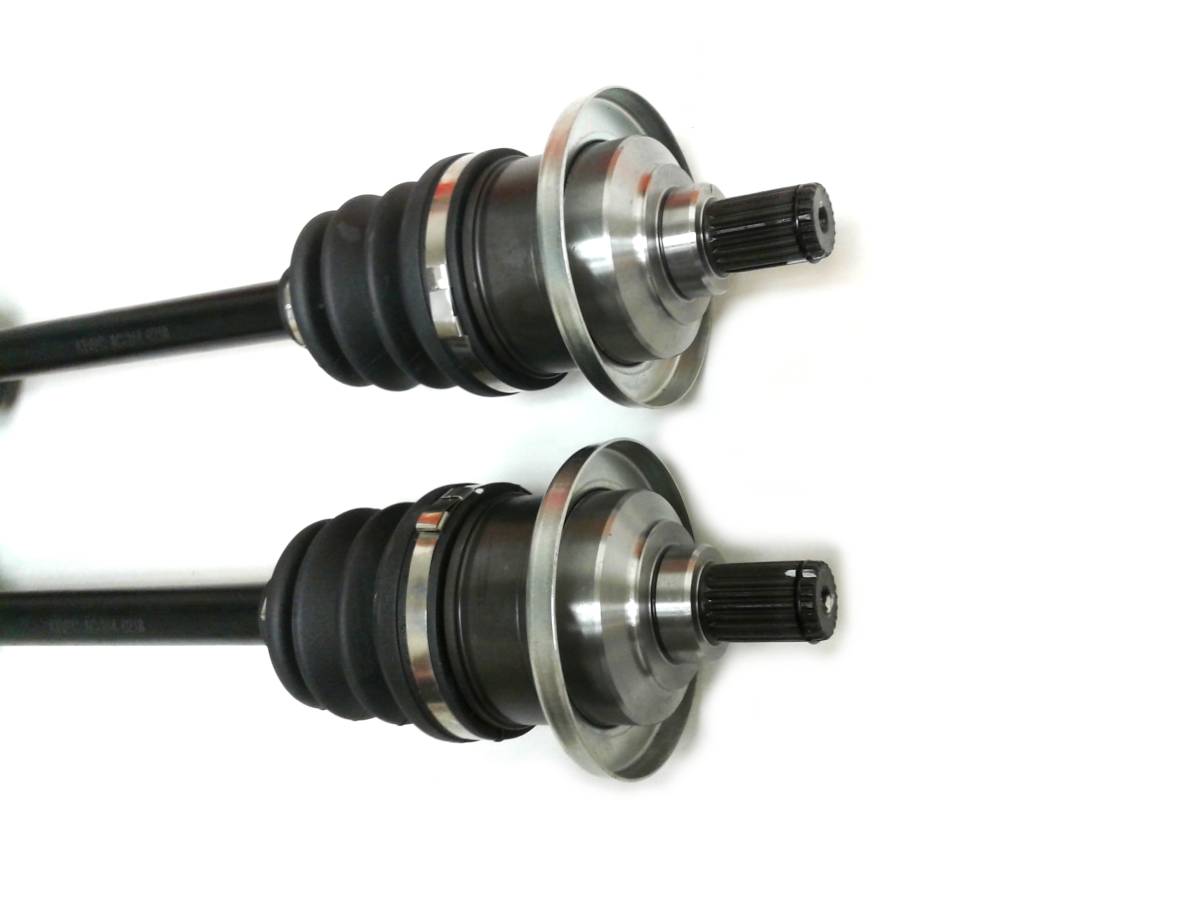

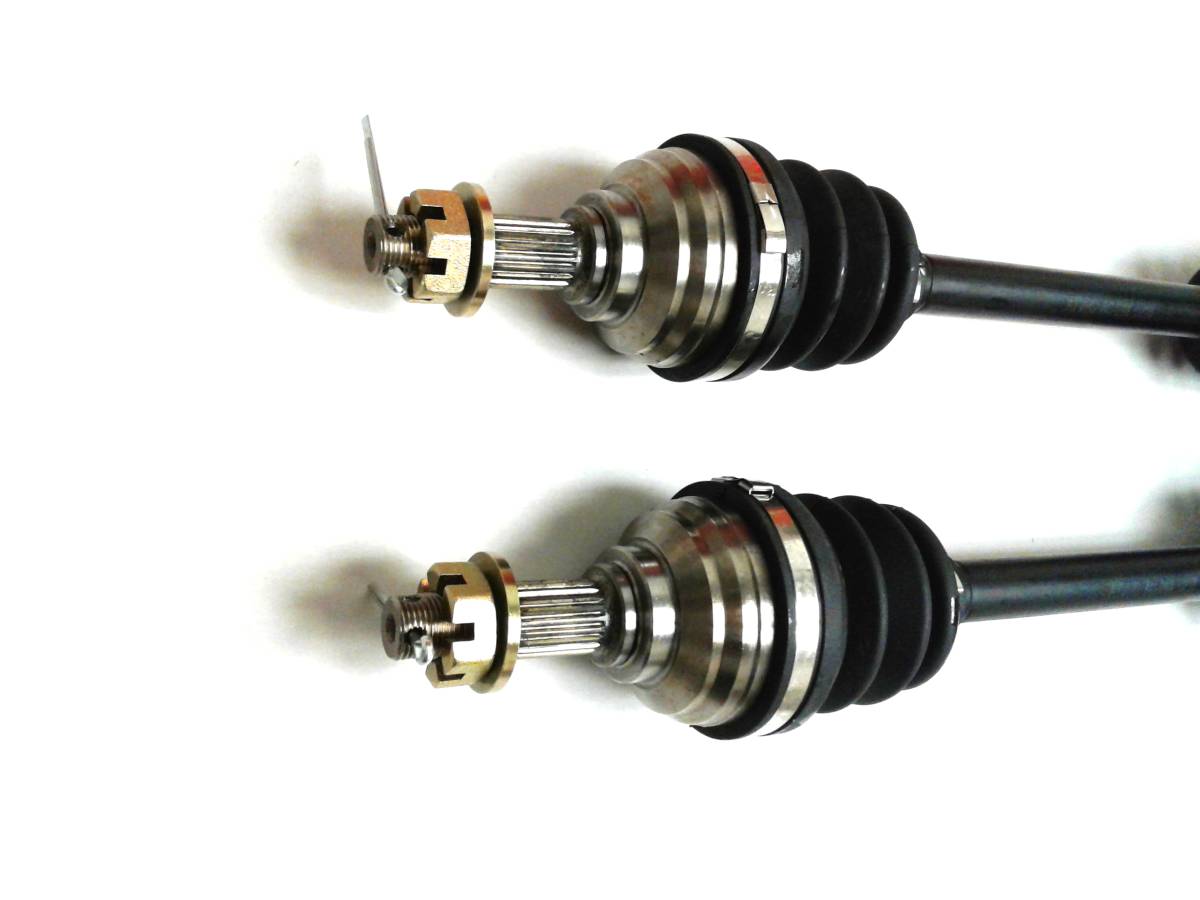

This is a set of new Front or Rear CV axles & wheel bearing/seal kits for an Arctic Cat ATV.

They fit the following 4x4 models:

2003-2004 ... 400 FIS MT/AT, TBX 400

2003-2004 ... 500 FIS MT/AT, TBX 500, & TRV 500

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly hardened steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear and puncture resistance
  • High speed bearing manufactured for long life
  • Double lip seals made to keep grease in and dirt out
  • High speed bearings manufactured for long life
  • Double lip seals made to keep grease in and dirt out
  • Inboard CV joint spline count: 21 (both)
  • Outboard CV joint spline count: 21 (both)
  • Compressed overall axle length: 548 mm (both)
  • Replaces Arctic Cat OEM # (axles) 0402-907, 0502-544, 1502-442, (bearings & seals), 0402-275, 0402-089, 0402-069
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $159.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2004Arctic Cat4004x4 Automatic
2004Arctic Cat4004x4 MRP
2004Arctic Cat4004x4 MRP Automatic
2004Arctic Cat4004x4 TBX Automatic
2003Arctic Cat4004x4 Automatic
2003Arctic Cat4004x4 Automatic EFI
2003Arctic Cat4004x4 EFI
2003Arctic Cat4004x4 MRP
2003Arctic Cat4004x4 MRP Automatic
2004Arctic Cat5004X4
2004Arctic Cat5004x4 Automatic
2004Arctic Cat5004x4 MRP
2004Arctic Cat5004x4 MRP Automatic
2004Arctic Cat5004x4 TBX Automatic
2004Arctic Cat5004x4 TRV Automatic
2003Arctic Cat5004X4
2003Arctic Cat5004x4 Automatic
2003Arctic Cat5004x4 Automatic EFI
2003Arctic Cat5004x4 EFI
2003Arctic Cat5004x4 MRP
2003Arctic Cat5004x4 MRP Automatic
2003Arctic Cat5004x4 TBX Automatic
2003Arctic Cat5004x4 TRV Automatic

Product Notes

  • Fits front or rear on the following Arctic Cat ATV models: 2003-2004 Arctic Cat 400 FIS & 500 FIS 4x4.
  • Features stronger than OEM, 4340 chromoly steel bars for a higher tensile strenth and more durability. Engineered as a direct replacement, fully-assembled, and ready to install. Please note the bearings are usually shipped inside the axle boxes.
  • Joints fitted with neoprene CV boots for added flexibility and resistance to hot/cold temperatures. Also uses high-performance moly grease to keep vital components lubricated. High speed bearings manufactured for long life. Double lip seals made to keep grease in and dirt out.
  • Replaces OEM # (axles) 0402-907, 0502-544, 1502-442, (bearings & seals), 0402-275, 0402-089, 0402-069. Compressed length: 548 mm (both), Inboard spline count: 21 (both), Outboard spline count: 21 (both).
  • Warranty: 1 Year (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on modified suspensions.

    • What's In The Box

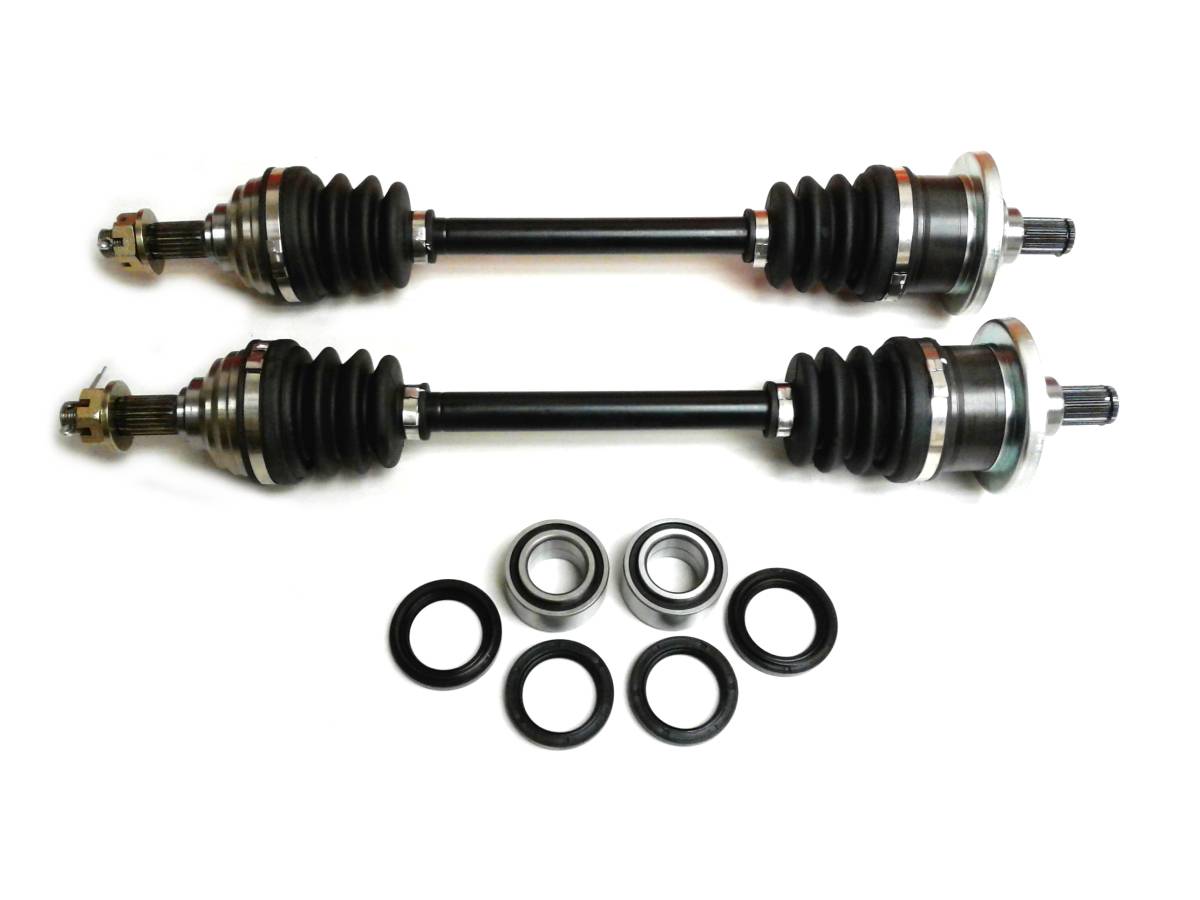

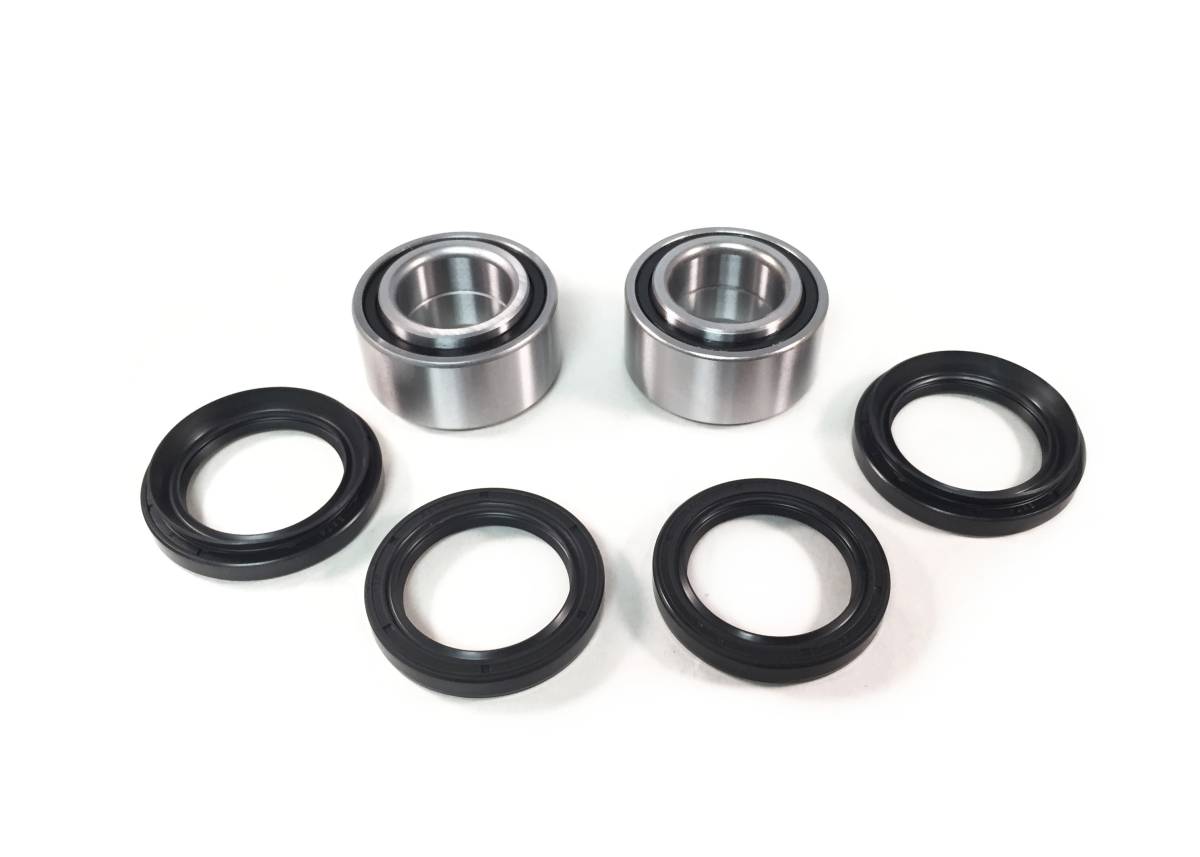

  • 2 CV axles & 2 wheel bearing kits

    • Warranty

    1 year factory defect limited warranty

    Details

    • AC-244/AC-244/WB-1434/WB-1434
    • AC-244/AC-244/WB-1434/WB-1434
    • CUSTOM
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 20.4 lbs.
    • W9.0000” x H5.0000” x L23.5000”
