Front Left Axle & Bearing Kit for Kawasaki Prairie 360 650 700 & Brute Force 650

Location on vehicle: Front,Left

(0) Reviews: Write first review

SKU: KW-105/WB-1497

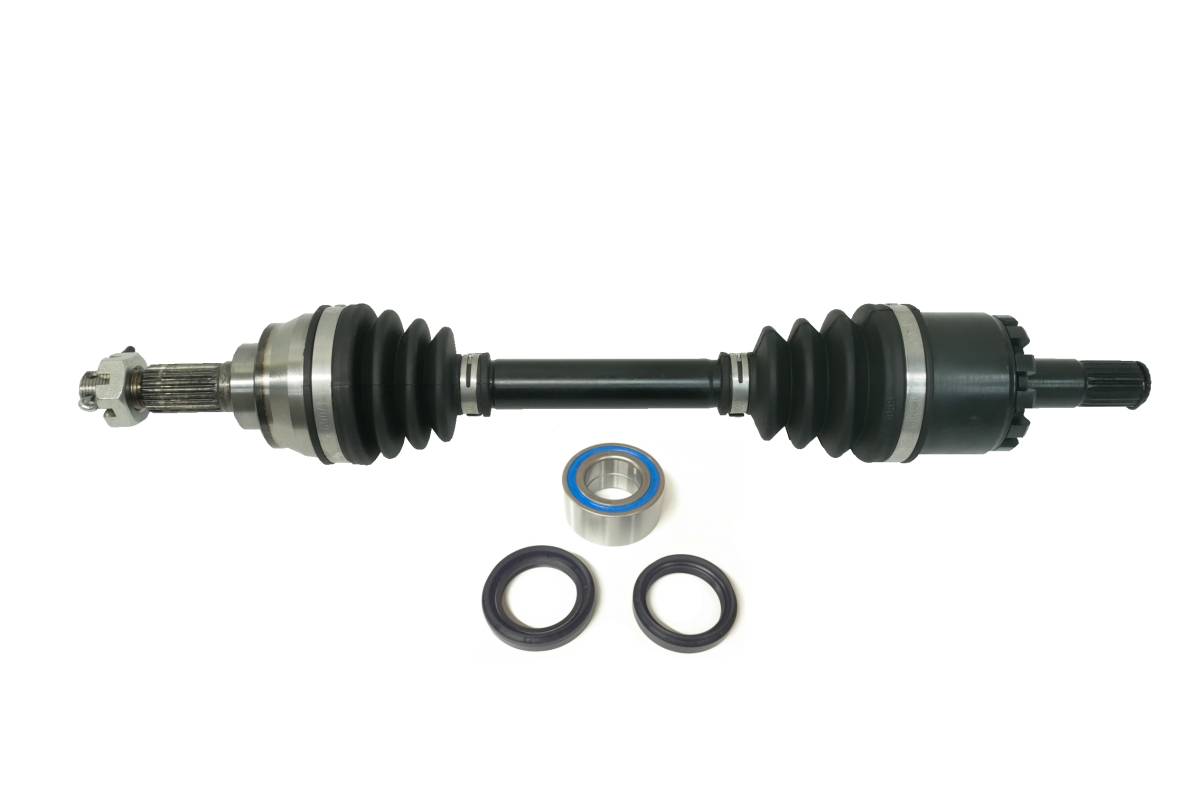

This is a new CV axle & wheel bearing kit for a Kawasaki ATV.

It fits FRONT, LEFT (driver side) on the following 4x4 models:

2005-2013 Brute Force 650 (excluding 650 'i' models)

2003-2013 Prairie 360

2002-2003 Prairie 650

2004-2006 Prairie 700

*Made as an OE replacement, and is not intended for lifted/ modified vehicles

Product features:

Stronger than OEM chromoly forged steel axle bar
Greased with a moly based grease to provide superior joint lubrication
Fitted with neoprene CV boots for added wear & puncture resistance

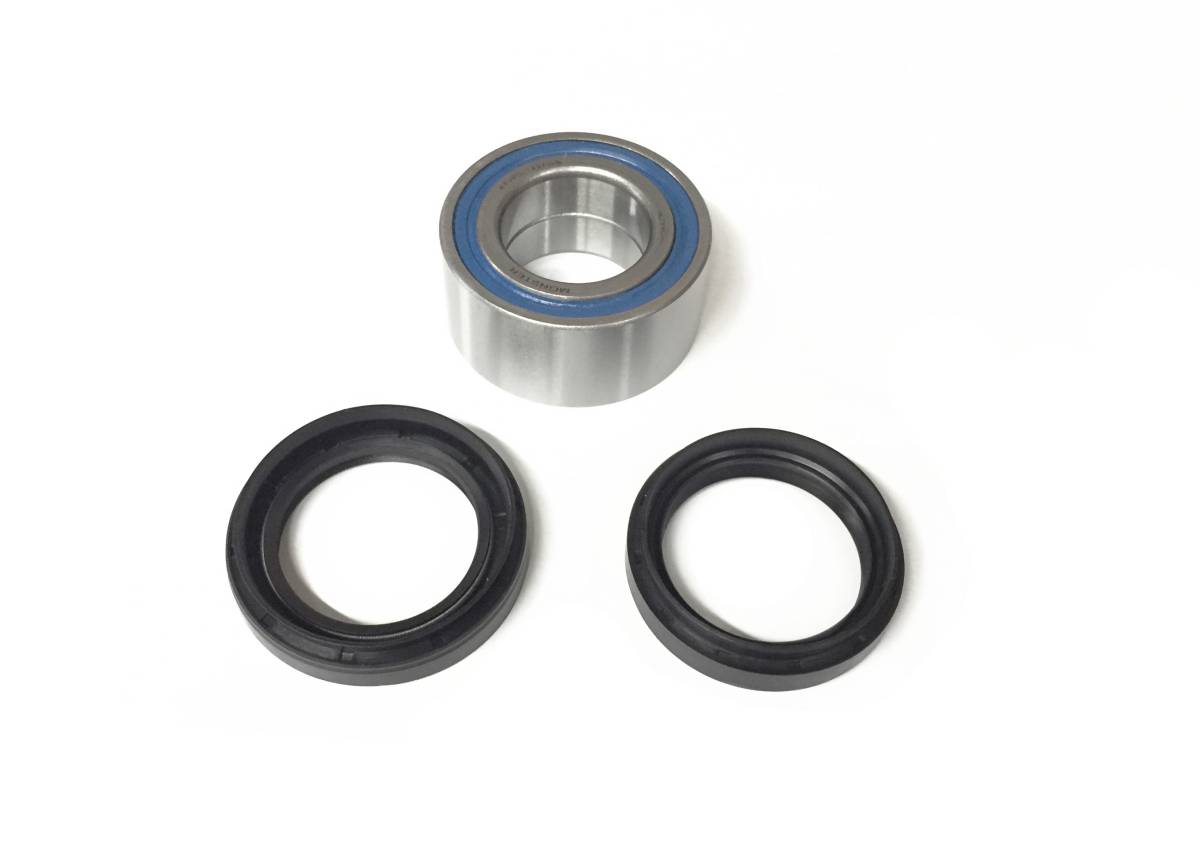

High speed bearing manufactured for long life
Double lip seals made to keep grease in and dirt out
Compressed overall axle length: 485.5 mm

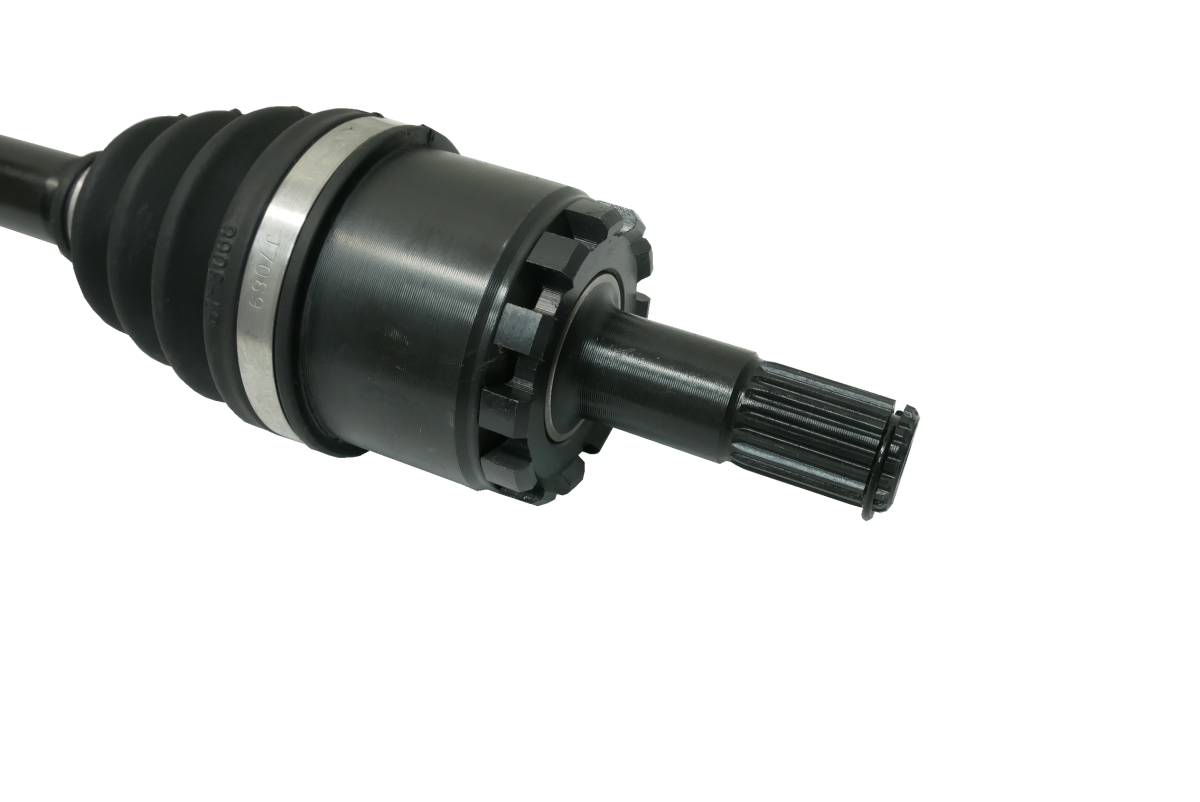

Inner CV joint spline count: 20

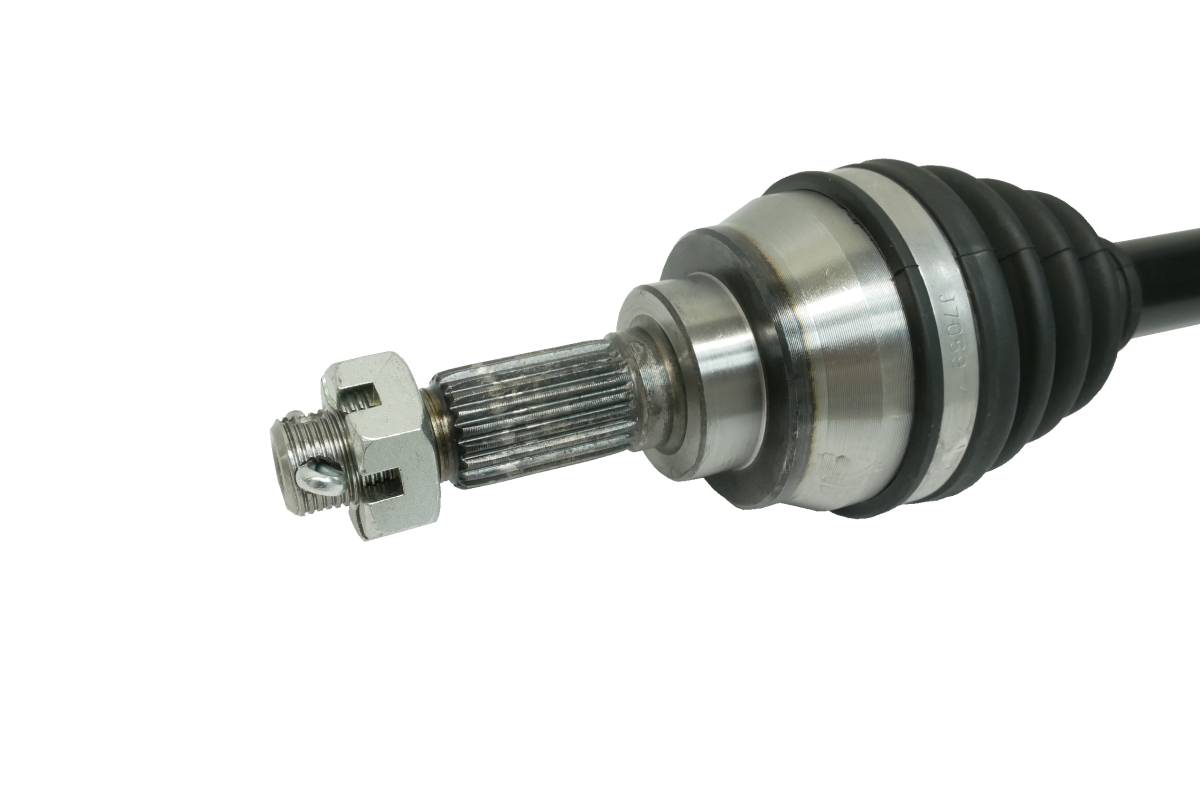

Outer CV joint spline count: 21
Replaces OEM # (axle) 59266-1135, 59266-0032, 59266-1129
Replaces OEM # (bearing & seals) 92045-1395, 92045-1448, 92045-0095, K9204-51448

Shipping: Free Shipping - Same Day If Ordered Before 3 EST

Pricing: $80.99

Application List
Product Notes
Warranty
Details
Shipping
Reviews

Application List

Year	Make	Model	Submodel
2013	Kawasaki	Brute Force 650	KVF650D 4x4
2012	Kawasaki	Brute Force 650	KVF650D 4x4
2011	Kawasaki	Brute Force 650	KVF650D 4x4
2010	Kawasaki	Brute Force 650	KVF650D 4x4
2009	Kawasaki	Brute Force 650	KVF650D 4x4
2009	Kawasaki	Brute Force 650	KVF650E 4x4
2008	Kawasaki	Brute Force 650	KVF650D 4x4
2007	Kawasaki	Brute Force 650	KVF650D 4x4
2007	Kawasaki	Brute Force 650	KVF650E 4x4
2006	Kawasaki	Brute Force 650	KVF650D 4x4
2006	Kawasaki	Brute Force 650	KVF650E 4x4
2005	Kawasaki	Brute Force 650	KVF650D 4x4
2005	Kawasaki	Brute Force 650	KVF650E 4x4
2013	Kawasaki	Prairie 360	KVF360A 4x4
2012	Kawasaki	Prairie 360	KVF360A 4x4
2011	Kawasaki	Prairie 360	KVF360A 4x4
2011	Kawasaki	Prairie 360	KVF360C 4x4
2010	Kawasaki	Prairie 360	KVF360A 4x4
2010	Kawasaki	Prairie 360	KVF360C 4x4
2009	Kawasaki	Prairie 360	KVF360A 4x4
2009	Kawasaki	Prairie 360	KVF360C 4x4
2008	Kawasaki	Prairie 360	KVF360A 4x4
2008	Kawasaki	Prairie 360	KVF360C 4x4
2007	Kawasaki	Prairie 360	KVF360A 4x4
2007	Kawasaki	Prairie 360	KVF360C 4x4
2006	Kawasaki	Prairie 360	KVF360A 4x4
2006	Kawasaki	Prairie 360	KVF360C 4x4
2005	Kawasaki	Prairie 360	KVF360A 4x4
2005	Kawasaki	Prairie 360	KVF360C 4x4
2004	Kawasaki	Prairie 360	KVF360A 4x4
2004	Kawasaki	Prairie 360	KVF360C 4x4
2003	Kawasaki	Prairie 360	KVF360A 4x4
2003	Kawasaki	Prairie 360	KVF360C 4x4
2003	Kawasaki	Prairie 650	KVF650A 4x4
2002	Kawasaki	Prairie 650	KVF650A 4x4
2006	Kawasaki	Prairie 700	KVF700A 4x4
2006	Kawasaki	Prairie 700	KVF700D 4x4 Team Green
2005	Kawasaki	Prairie 700	KVF700A 4x4
2005	Kawasaki	Prairie 700	KVF700B 4x4
2005	Kawasaki	Prairie 700	KVF700D 4x4 Team Green
2004	Kawasaki	Prairie 700	KVF700A 4x4
2004	Kawasaki	Prairie 700	KVF700B 4x4

Product Notes

Fits FRONT, LEFT (driver side) on the following Kawasaki 4x4 ATV models: 2005-2013 Brute Force 650 (excluding 650i models), 2003-2013 Prairie 360, 2002-2003 Prairie 650, 2004-2006 Prairie 700.

Features a stronger than OEM chromoly forged steel axle bar. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.

High speed bearing manufactured for long life. Double lip seals made to keep grease in and dirt out.

Replaces OEM # (axle) 59266-1135, 59266-0032, 59266-1129, (bearing & seals) 92045-1395, 92045-1448, 92045-0095, K9204-51448. Inboard spline count: 20, Outboard spline count: 21, Compressed axle length: 458.5 mm.

Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.
