CV Axle Set for Kawasaki Brute Force 750i 4x4 2008-2011 ATV, Front & Rear

Location on vehicle: Front,Rear,Left,Right

KW-121/KW-221/KW-312/KW-312

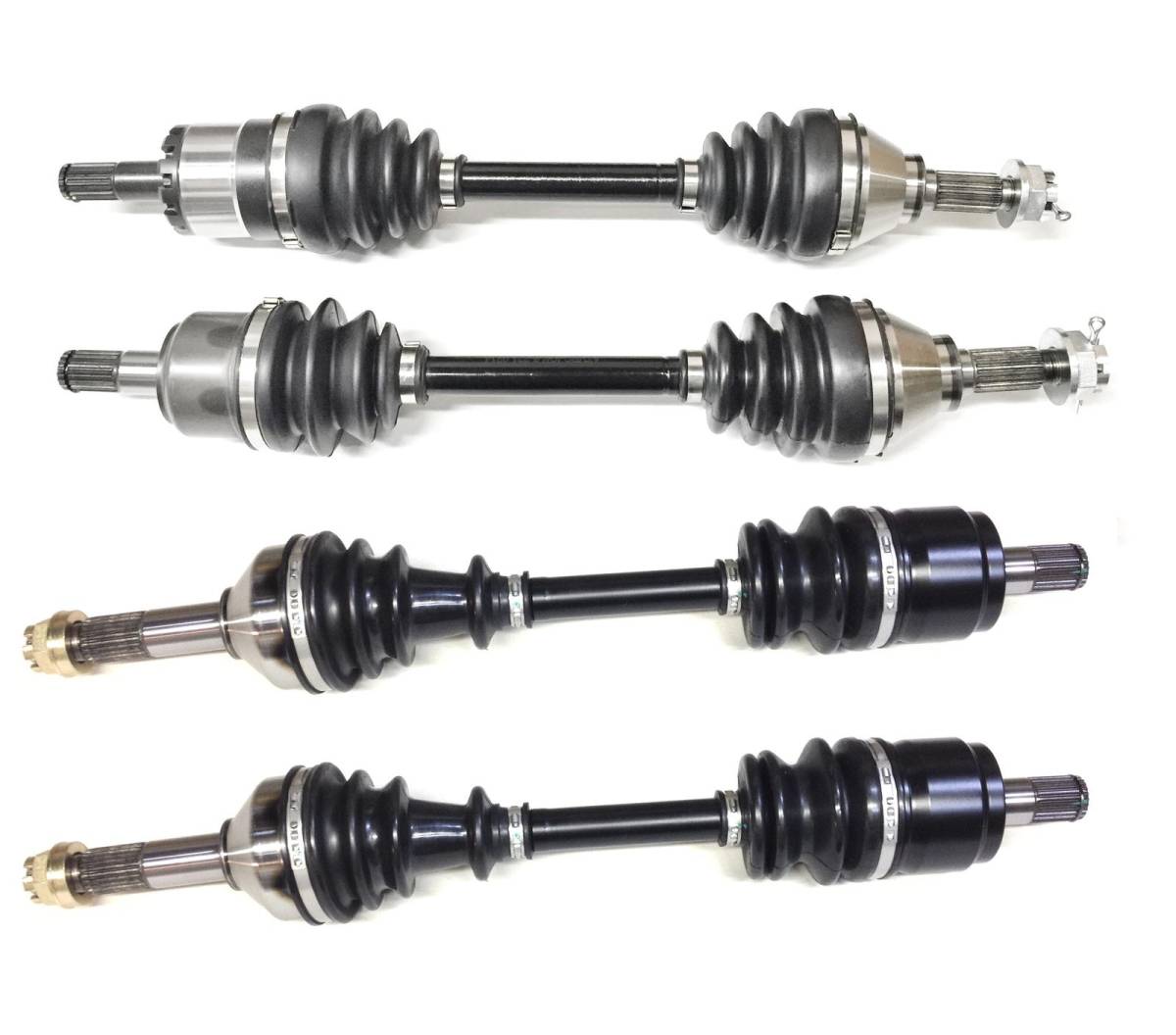

This is a set of new CV axles for a Kawasaki ATV.

They fit the following 4x4 models:

2008-2011 Brute Force 750i

Set includes 4 axles

*These are made as an OEM replacement, and is not intended for lifted/ modified vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bars
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear and puncture resistance
  • Inboard spline count: Fronts - 20, Rears - 24
  • Outboard spline count: Fronts - 21, Rears - 24
  • Compressed overall axle length (mm): FL 491, FR 492, RL 549, RR 549
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $259.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2011KawasakiBrute Force 750KVF750D 4x4i
2010KawasakiBrute Force 750KVF750D 4x4i
2010KawasakiBrute Force 750KVF750E 4x4i
2009KawasakiBrute Force 750KVF750A 4x4i
2009KawasakiBrute Force 750KVF750D 4x4i
2009KawasakiBrute Force 750KVF750E 4x4i
2009KawasakiBrute Force 750KVF750EA 4x4i NRA
2008KawasakiBrute Force 750KVF750A 4x4i
2008KawasakiBrute Force 750KVF750D 4x4i
2008KawasakiBrute Force 750KVF750E 4x4i
2008KawasakiBrute Force 750KVF750EA 4x4i NRA

Product Notes

  • Fits the following Kawasaki ATV models: 2008-2011 Brute Force 750i 4x4.
  • Features stronger than OEM, 4340 chromoly steel bars for a higher tensile strenth and more durability. Ships as a complete set, fully assembled and ready to install.
  • Joints fitted with neoprene CV boots for added flexibility and resistance to hot/cold temperatures. Also uses high-performance moly grease for additional protection against various environments and to keep vital components lubricated.
  • Replaces OEM # (fronts) 59266-0021, 59266-0022, (rears) 59266-0007, 59266-0008, 50266-0024, 59266-0025. Inboard spline count: fronts - 20, rears - 24, Outboard spline count: fronts - 21, rears - 24, Compressed overall axle length (mm): FL 491, FR 492, RL 549, RR 549.
  • Warranty: 1 Year (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on modified suspensions.

  • What's In The Box

  • 4 CV Axles
  • Warranty

    1 Year

    Details

    • KW-121/KW-221/KW-312/KW-312
    • KW-121/KW-221/KW-312/KW-312
    • CUSTOM
    • ATV Parts Connection
    • Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 36.0 lbs.
    • W10.0000” x H10.0000” x L25.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
